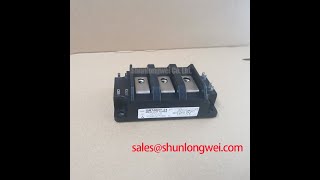

Mitsubishi QM100DY-24 | A Legacy of Reliability in Industrial Power Conversion
The Mitsubishi QM100DY-24 is a 1200V, 100A dual IGBT module that has established itself as a benchmark for durability and steadfast performance in demanding industrial environments. While the power electronics landscape constantly evolves, the QM100DY-24 remains a trusted workhorse for engineers who prioritize operational robustness and proven field reliability over chasing the absolute lowest switching losses. This module is engineered for longevity in applications where system uptime is non-negotiable.
Core Strengths and Design Philosophy
The enduring relevance of the Mitsubishi QM100DY-24 stems from a design that prioritizes stability and resilience. Its key attributes are tailored for real-world industrial challenges:
- Proven Durability: Built on a mature technology platform, this module offers a predictable lifecycle and robust performance under repetitive thermal and electrical stress.
- Half-Bridge Configuration: The dual (2-in-1) configuration simplifies the design of common inverter and chopper topologies, reducing component count and simplifying PCB layout.
- Substantial Safe Operating Area (SOA): Engineered to withstand transient overcurrent and overvoltage events typical in industrial motor control and power supply applications, providing a critical margin of safety.
- Excellent Cost-Performance Ratio: For medium-frequency applications, it delivers exceptional reliability without the cost premium associated with the latest high-frequency IGBT technologies.
Application Scenarios & Engineering Value
The QM100DY-24 excels in environments where ruggedness is paramount. Its characteristics provide tangible engineering benefits in several key sectors:
- Industrial Motor Drives: In general-purpose Variable Frequency Drives (VFDs), its ability to handle inductive load switching and torque ripple without degradation is critical. The module’s robust thermal design ensures stable operation when driving pumps, fans, and conveyors.
- Welding Power Supplies: The pulsed-power nature of welding demands components that can manage high peak currents and rapid thermal cycling. The QM100DY-24’s sturdy construction provides the long-term reliability required in these high-stress systems.
- Uninterruptible Power Supplies (UPS): For commercial and industrial UPS systems, reliability is the primary design driver. The proven track record of this IGBT module ensures dependable power conversion when the grid fails. For a deeper understanding of the fundamental principles, explore our guide on the IGBT's working principle.
Key Technical Parameters
The following table provides a quick reference for the core specifications of the Mitsubishi QM100DY-24. For comprehensive data, including characteristic curves and thermal information, refer to the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200V |
| Collector Current (IC) | 100A |
| Collector-Emitter Saturation Voltage (VCE(sat)) @ IC=100A | 2.7V (Max) |
| Total Power Dissipation (PC) | 540W |
| Operating Junction Temperature (Tj(op)) | -40°C to +150°C |
For detailed electrical and thermal characteristics, you can Download the QM100DY-24 Datasheet.
Selection Guidance: Positioning in Today's Market
In an era of advanced trench-gate and field-stop technologies, where does the QM100DY-24 fit? Its primary advantage is not achieving the lowest possible VCE(sat), but rather offering an unparalleled balance of performance, ruggedness, and cost-effectiveness for applications operating in the low-to-medium switching frequency range (typically below 10 kHz). While newer modules may offer lower conduction losses, they can be more sensitive to layout parasitics and require more sophisticated gate drivers.
Choose the Mitsubishi QM100DY-24 for:
- New designs where time-to-market, system cost, and proven reliability are the highest priorities.
- Maintenance and replacement in existing systems, guaranteeing consistent performance without requiring a full redesign of the power stage or gate drive circuitry.
- Applications where the operating environment is harsh and a wide Safe Operating Area (SOA) provides an essential design margin.
Frequently Asked Questions (FAQ)
Is the QM100DY-24 still a viable choice for new power electronic designs?
Absolutely. For systems that are not pushing the boundaries of power density or switching frequency—such as standard motor drives, battery chargers, and industrial heaters—its robustness and cost-efficiency make it an excellent choice. It simplifies the design process, leveraging a well-understood and highly reliable component.
What are the critical considerations for its gate drive circuit?
A standard gate drive voltage of +15V for turn-on is recommended. Critically, a negative voltage between -5V and -10V for turn-off is highly advised. This ensures a hard turn-off, prevents parasitic turn-on induced by the Miller effect (dV/dt), and enhances noise immunity, which is crucial for reliable operation in electrically noisy industrial environments. For further insights, review our practical tips for robust IGBT gate drive design.
For expert advice on integrating the QM100DY-24 into your specific application or to inquire about our full range of IGBT modules, please contact our technical team.
