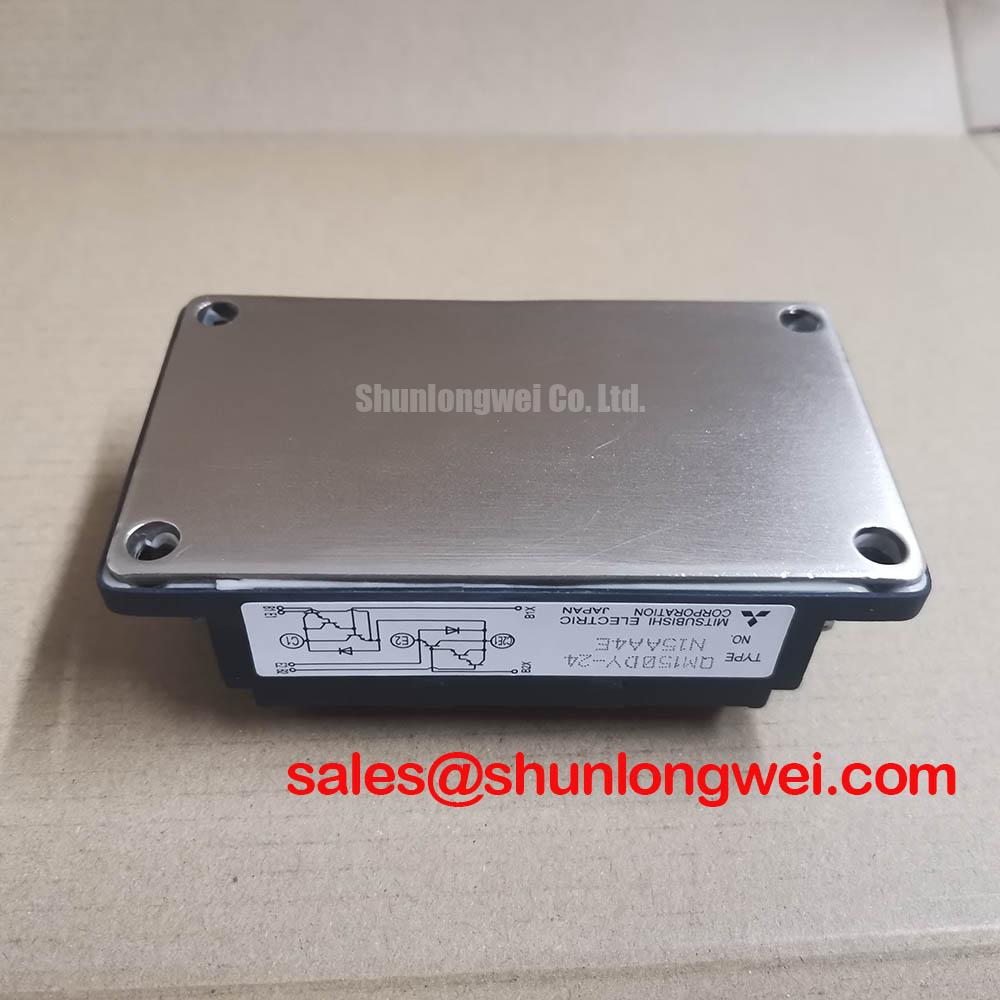

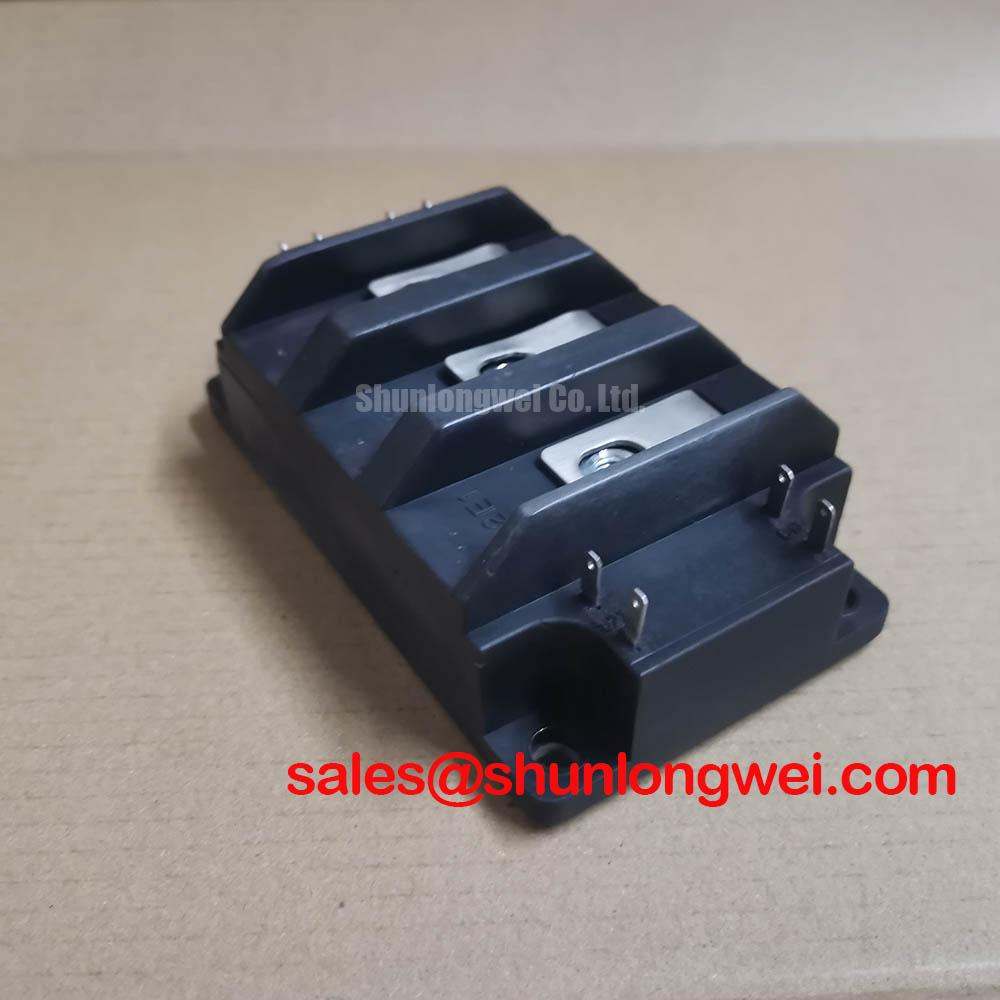

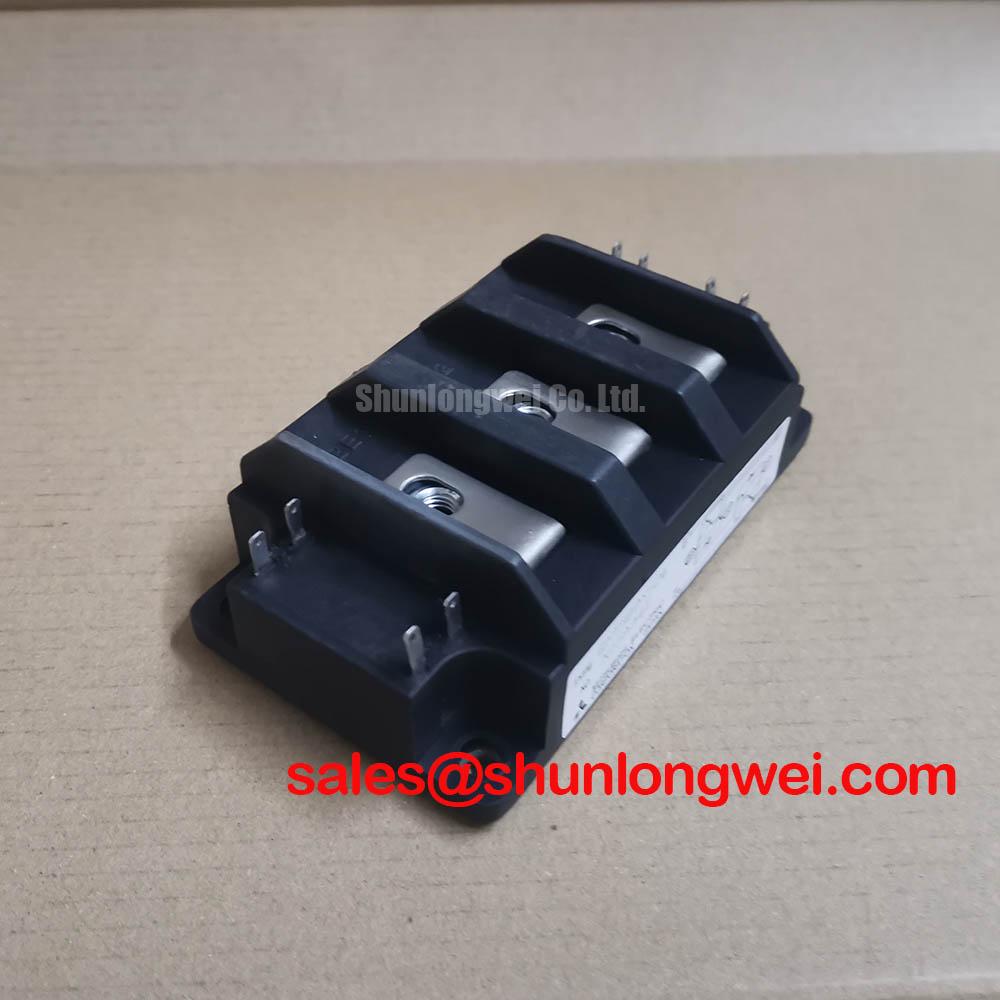

Mitsubishi QM150DY-24 | A Robust 1200V/150A Dual IGBT Module for Industrial Power Conversion
The Mitsubishi QM150DY-24 is a time-tested dual IGBT module designed for exceptional reliability in demanding industrial applications. Engineered as a workhorse component, this module provides a robust and cost-effective solution for power switching in systems where durability and proven performance are paramount. Its standard package and straightforward design make it an ideal choice for new designs in moderate-frequency applications as well as a drop-in replacement for maintenance and repair of existing industrial equipment.
Key Performance Highlights
As a foundational component in the power electronics field, the QM150DY-24 delivers a balanced set of features optimized for long-term service:
- High Voltage and Current Rating: With a 1200V collector-emitter voltage (VCES) and a 150A continuous collector current (IC), it is well-suited for 380V-480V AC line applications.
- Dual IGBT (Half-Bridge) Configuration: The integrated half-bridge topology simplifies the design of inverter legs, reducing component count and simplifying PCB layout for three-phase motor drives and inverters.
- Superior Ruggedness: Built with Mitsubishi's established silicon technology, this module exhibits high tolerance to electrical stress and a wide Safe Operating Area (SOA), crucial for handling inductive loads.
- Industry Standard Package: Housed in a standard industrial package with screw terminals, it ensures easy mounting, robust mechanical connections, and efficient thermal transfer to a heatsink.
Key Parameter Overview
For design engineers, the following specifications are critical for system integration and performance modeling. These values underscore the module's suitability for high-power, moderate-frequency switching tasks.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Collector Current (IC) | 150 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) typ. | 2.7 V (at IC = 150A) |
| Total Power Dissipation (PC) | 780 W |
| Isolation Voltage (Visol) | 2500 V (AC for 1 minute) |
For a complete list of parameters and characteristic curves, you can Download the QM150DY-24 Datasheet.
Engineered for Core Industrial Applications
The Mitsubishi QM150DY-24 excels in applications where cutting-edge efficiency is secondary to reliability and robustness. Its design addresses the specific pain points of core industrial systems.
- Variable Frequency Drives (VFDs): Its rugged construction and excellent SOA (Safe Operating Area) make it a perfect fit for motor control, where it can reliably handle the high inductive kickback and torque demands of industrial motors.
- Uninterruptible Power Supplies (UPS): In UPS systems, reliability is non-negotiable. The proven design of this module ensures stable power conversion and dependable operation during critical power backup scenarios.
- Welding Power Supplies: The high-current handling and short-circuit tolerance of the QM150DY-24 are essential for the pulsed-power conditions found in industrial welding equipment, providing consistent and powerful performance.
- General Purpose Inverters: For applications like auxiliary power units or battery chargers, this module offers a straightforward and dependable power switching solution without the complexity of more advanced systems.
Technical Deep Dive: The Value of a Proven Design
The QM150DY-24 utilizes a well-established planar or early trench-gate IGBT structure. While modern IGBTs focus on minimizing VCE(sat) for higher efficiency, the technology in this module was optimized for a different goal: survivability. The slightly higher conduction losses are a trade-off for a thicker, more robust silicon die that can withstand significant electrical and thermal stress. This is a critical factor in understanding why this remains a go-to part for many industrial systems—it is engineered to prevent catastrophic failures in harsh environments. For engineers designing systems where uptime is more critical than marginal efficiency gains, this robust architecture provides significant value and peace of mind. For an in-depth look at preventing such issues, explore our guide on IGBT failure analysis.
Frequently Asked Questions (FAQ)
Is the QM150DY-24 suitable for new, high-frequency designs?
While the QM150DY-24 is extremely reliable, its silicon technology is optimized for lower to moderate switching frequencies (typically below 20 kHz). For new designs requiring very high efficiency or operating at higher frequencies (e.g., >20-30 kHz), a more modern IGBT module with lower switching losses and a lower VCE(sat) would be a more appropriate choice. This module's strength lies in its ruggedness for applications like motor drives and welders.
What are the key considerations for its gate drive design?
The QM150DY-24 works well with standard IGBT gate drivers. Key considerations include providing a stable +15V turn-on voltage and a 0V or slightly negative (e.g., -5V to -10V) turn-off voltage to ensure immunity against noise-induced turn-on. Due to its standard input capacitance, a driver capable of delivering 2-4A peak current is typically sufficient for ensuring clean switching transitions. For more details, review our practical tips for robust gate drive design.
If you need to determine if the QM150DY-24 is the right fit for your specific application or require support in sourcing and integration, please do not hesitate to contact our technical team for expert guidance.
