Field Diagnostics & Commissioning: Managing High-C-Rate Battery Cycling Swing in CM300DY-12NF-300G Topologies
| Specification | Official Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product category | IGBT Module |
| Topology | Dual Half-Bridge Module |
| Collector-emitter voltage | 600 V |
| Collector current | 300 A |
| Package | Module |

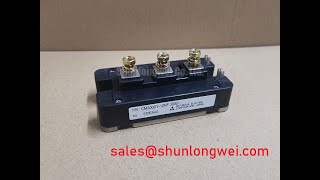

Measure the isolated gate-emitter paths and inspect the DC link, phase terminals, and mounting base before energizing a commercial string inverter or microgrid power stage. The CM300DY-12NF-300G is a 600 V, 300 A Mitsubishi Electric dual half-bridge IGBT module, so a cold inspection should confirm that the installed topology matches the original power path rather than treating the part as a generic single-switch replacement.
For a four-quadrant battery interface, trace both directions of active power flow: battery rack to inverter link during charging support, and inverter link back toward the battery during energy recovery or peak shaving. With power removed and the DC link safely discharged, compare the corresponding upper and lower switch paths using the same meter range and lead orientation. A meaningful difference between parallel phase legs can indicate a damaged junction, a contaminated terminal interface, or an external circuit fault. It is not, by itself, a complete failure diagnosis.
Use an oscilloscope with suitable differential probes to compare gate-emitter voltage, collector-emitter switching behavior, and the freewheel diode commutation interval on a known-good phase. The reverse-recovery softness factor of the diode, often described as the recovery softness factor S, affects the rate at which stored charge is removed. A harder recovery event can increase commutation overshoot and radiated EMI, while a softer waveform can shift losses into a longer transition. The actual result depends on bus impedance, gate resistance, stray inductance, load current, and the external DC-link capacitor arrangement.
Keep the high-current commutation loop physically compact and route gate-driver returns separately from power-current returns wherever the mechanical construction allows. Clearance around the main terminals should be checked against the working voltage, pollution environment, enclosure material, and applicable system insulation requirements. The module’s 600 V rating is an electrical device specification, not a complete creepage or clearance approval for the finished inverter.
When evaluating heavy C-rate cycling, log phase current, switching temperature, heat-sink temperature, and fault history across charge and discharge transitions. Cyclic thermal swing is a system-level condition influenced by switching frequency, load profile, cooling airflow, and thermal interface quality. Designers should verify junction-temperature margins through measured mission-profile testing rather than infer them from the 300 A rating alone. For topology coordination, the related CM300DY-24A reference can be reviewed as a neutral comparison point for an associated power-conversion stage.
CM300DY-12NF-300G Operational Boundaries: Evaluating High dv/dt Cross-Conduction Shoot-Through Limits
Capture both complementary gate signals and the switch-node waveform at the same time when investigating unexplained DC-link current spikes. Cross-conduction can be associated with insufficient dead time, driver ground movement, parasitic coupling, delayed turn-off, or a gate signal that is being disturbed by a high dv/dt transition; the waveform relationship must be established before changing the driver circuit.
A dedicated low-impedance gate-drive loop and an active Miller clamp are common Design Considerations for suppressing unintended turn-on during rapid collector-voltage transitions. A negative gate bias may also be evaluated in systems where the driver, isolation barrier, gate-emitter insulation, and switching behavior have been validated together. Do not apply a negative bias as a universal setting for this module without confirming the applicable Mitsubishi Electric gate-drive information and the driver’s absolute voltage limits.
For a high-side driver using a bootstrap supply, size the bootstrap capacitor from the actual gate-charge demand, driver quiescent current, switching interval, leakage paths, capacitor temperature characteristics, and permitted supply droop. The calculation should include the complete high-side driver load rather than only the nominal gate charge of the IGBT. Check the capacitor voltage at the driver pins during repeated high-duty operation, because a bench test with a low switching duty cycle may not reproduce a battery inverter’s operating condition.
Inspect the driver output directly at the module gate terminals, not only at the controller output. A clean controller waveform can still produce an unstable gate waveform if the isolation channel, driver supply, connector, or return path introduces impedance. Keep the gate loop short, reduce shared inductance, and verify the turn-on and turn-off transitions during both positive and negative power flow. The final gate resistance, clamp behavior, dead-time setting, and any negative-bias level remain system-determined values.
For wider reference material on Mitsubishi Electric power devices and module families, consult the Mitsubishi Electric Power Semiconductors and High-Power Modules resource and the Mitsubishi Electric NX-Series IGBT Modules technical pages. These references should be used to align driver assumptions with the relevant device documentation, not to infer unlisted ratings for this specific part.
CM300DY-12NF-300G Thermal-Electrical Optimization and Fault-Clearing Dynamics: Type-I/II Desaturation Tuning
Probe the desaturation or short-circuit protection path from the collector sensing point through the blanking network and driver shutdown input when the inverter reports intermittent overcurrent trips. A protection alarm can result from a real short circuit, excessive switching overshoot, sensing noise, incorrect blanking behavior, or a supply disturbance, so compare the protection waveform with collector-emitter voltage and gate voltage before replacing the module.
Type-I and Type-II desaturation approaches are system protection strategies, not stated ratings of the CM300DY-12NF-300G. A fast first-stage response is normally intended to identify an abnormal collector-emitter condition, while a controlled soft turn-off can limit the voltage overshoot created by stray inductance. Any target response time, including sub-microsecond or microsecond-scale values, must be derived from the selected driver, the short-circuit safe operating area data, and the original Mitsubishi Electric application guidance.
Use a two-stage soft turn-off only after confirming that the driver supports the required sequence. The first action should limit gate drive without creating an uncontrolled current interruption; the subsequent turn-off should be coordinated with the DC-link layout and clamp network. During testing, monitor collector-emitter overshoot, gate-emitter voltage, driver supply behavior, and the fault latch state together. The system engineer must verify peak voltage margins against the DC-link voltage during representative switching tests.
Minimize parasitic inductance in the desaturation sense path and separate it from high-current commutation conductors. Check the diode or sensing element for correct orientation, leakage behavior, and recovery interaction with the switching node. If a fault appears only during high battery current or rapid charge-discharge reversal, compare the event with the diode commutation waveform and the current-probe position; a protection circuit can respond to a layout-induced transient rather than a sustained short circuit.
Reliability studies involving high altitude, cosmic-ray exposure, single-event burnout, FIT values, or long-term lifetime require a documented device and system data source. No specific SEB withstand value, FIT rate, altitude derating factor, or operating-life figure should be assigned to this module without an applicable manufacturer document or recognized qualification source. The Resonant Topologies in Home Appliances guide provides additional topology context, while the actual protection design remains dependent on the converter’s measured electrical environment.
Preventing Spurious Faults: Thermal Paste Degradation Prevention and Mounting Guidelines for CM300DY-12NF-300G
Remove the module and inspect the baseplate, heat sink, thermal interface pattern, and screw seating whenever temperature imbalance or recurring thermal faults appears after service work. Look for dry regions, edge squeeze-out, trapped contamination, uneven contact marks, and local baseplate curvature; these observations help separate interface problems from current-sharing or driver faults.
A thin, continuous thermal interface layer is a practical Design Consideration, but the correct thickness depends on the selected compound, surface flatness, application method, and manufacturer instructions. The commonly used 50 to 100 micrometre range should not be treated as an official specification for this Mitsubishi Electric module. The objective is to fill surface irregularities without creating a thick thermal barrier or leaving voids beneath the baseplate.
Clean the mating surfaces with a process compatible with the thermal compound and insulation materials. Apply the compound evenly across the intended contact area, then lower the module without sliding it across the heat sink. Check that the baseplate sits flat before tightening. Sequential tightening in a cross pattern is a general installation method that helps distribute pressure, but the applicable screw size, washer arrangement, thread condition, and manufacturer torque instruction must control the final procedure.
⚠️ Field Alert: Disconnect and verify the absence of hazardous voltage before removing terminals or gate-drive connectors, and use the fastener torque specified for the actual mounting hardware rather than a guessed value.
After assembly, inspect the terminal seating and confirm that busbars are not applying mechanical load to the module terminals. Verify creepage and clearance around the high-voltage conductors after covers, barriers, and cable clamps are installed. These distances are determined by working voltage, pollution degree, material group, altitude, and the applicable equipment standard; the module package rating alone does not certify the complete insulation system.
For a lower-current comparison during a system review, engineers may examine the CM150DY-12NFA product page as a separate device reference. It should not be treated as a drop-in replacement without confirming topology, voltage, current, terminal arrangement, gate-drive behavior, thermal interface dimensions, protection settings, and the original equipment manufacturer’s electrical and mechanical requirements.
