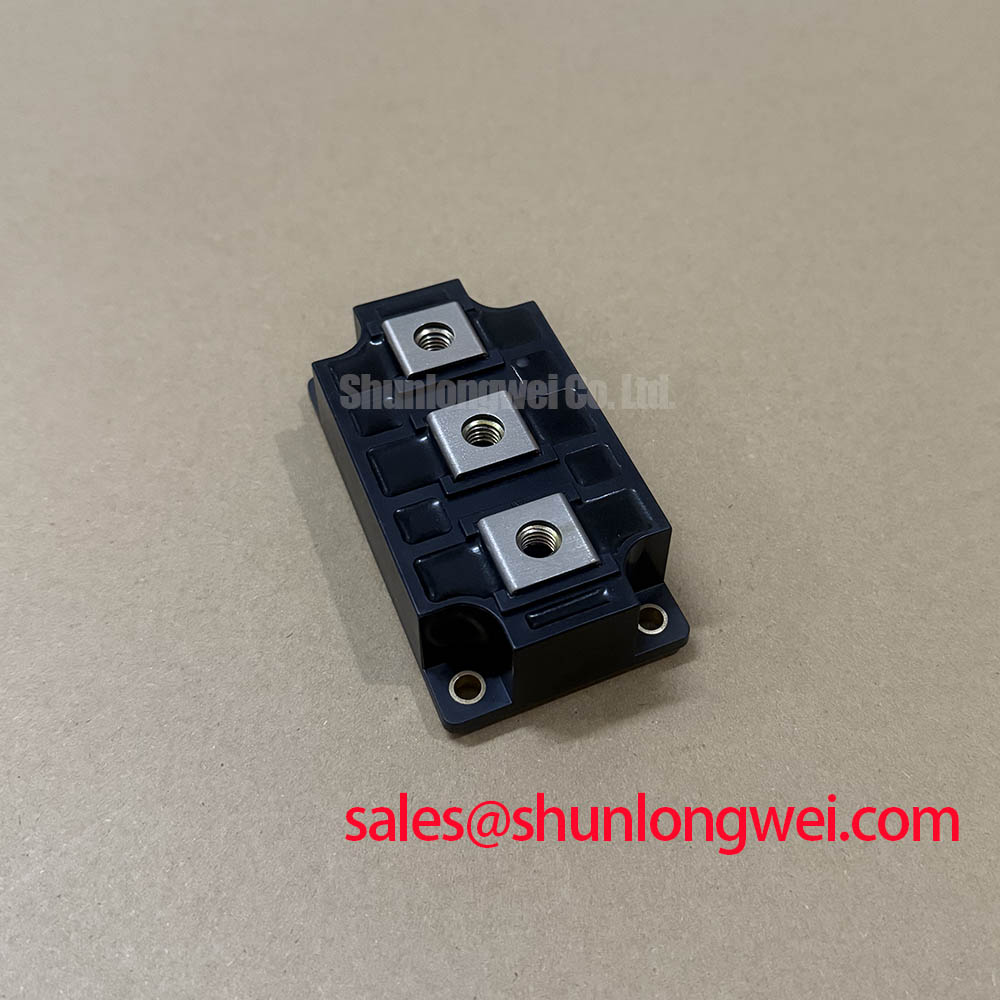

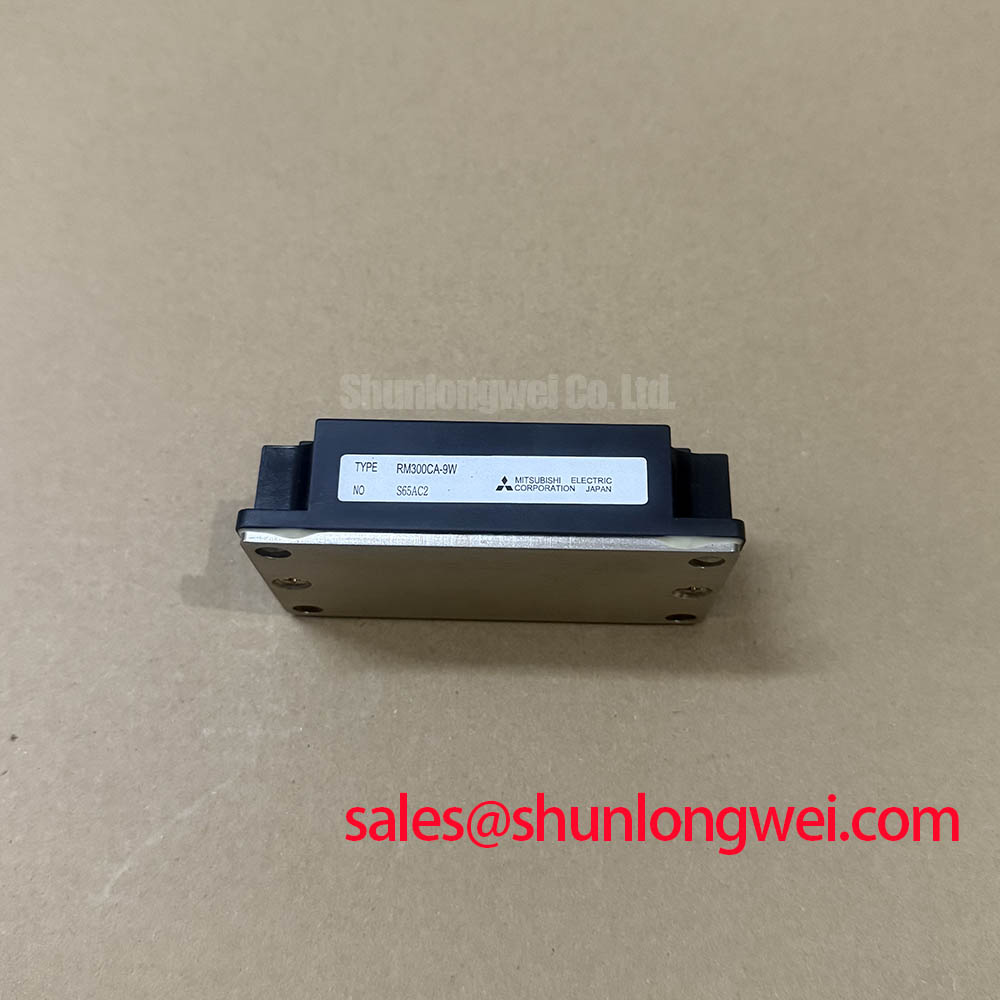

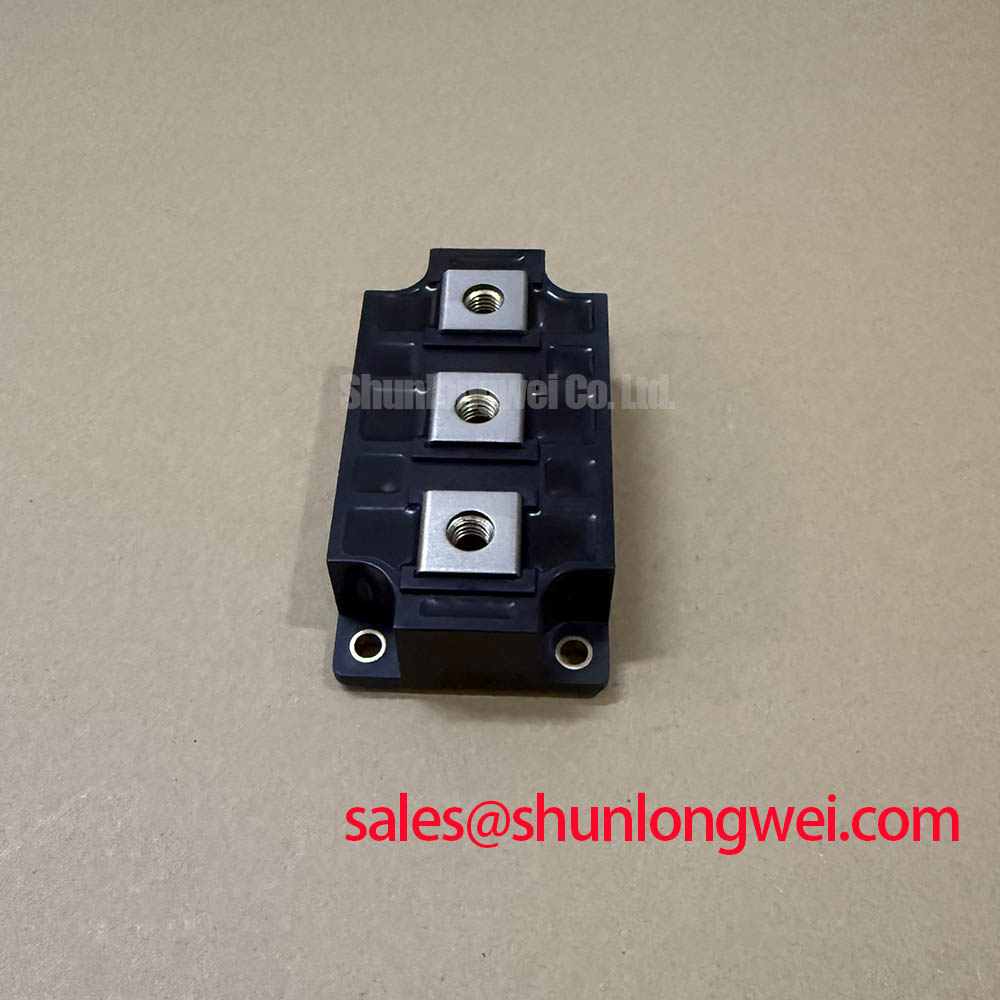

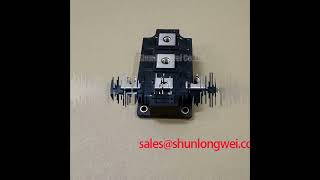

Mitsubishi RM300CA-9W | High-Current 450V IGBT for Demanding Power Switching
The Mitsubishi RM300CA-9W is not just another power switch; it's a specialized, high-current IGBT module engineered for applications where robust performance and precise control under demanding DC loads are paramount. As a single-switch module, it offers design flexibility as a fundamental building block for high-power choppers, converters, and motor control systems.
Product Highlights: Engineered for Power Density and Reliability
- High Collector Current (300A): Provides substantial current handling capability, ideal for high-power motor drives and welding applications that experience significant inrush and operational currents.
- Optimized 450V Voltage Rating: Specifically tailored for systems operating on lower voltage DC buses (e.g., 200-300V), offering a performance-optimized alternative to higher-rated, less efficient components.
- Robust Thermal Performance: With a collector power dissipation (Pc) of 1560W, this module is built to manage significant heat loads, ensuring operational stability and longevity in harsh industrial environments.
- Proven Mitsubishi Electric Reliability: Leverages Mitsubishi's long-standing expertise in power semiconductor manufacturing, delivering a component with predictable performance and a rugged, isolated package.
Key Technical Specifications
For engineers requiring quick-reference data, the core electrical and thermal characteristics of the RM300CA-9W are summarized below. For a comprehensive overview of its performance curves and safe operating areas, you can download the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 450V |
| Collector Current (I_C) @ Tc=25°C | 300A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) @ I_C=300A | 2.5V (Max) |
| Collector Power Dissipation (P_C) | 1560W |
| Thermal Resistance (R_th(j-c)) | 0.08 °C/W (Max) |
| Short-Circuit Withstand Time (t_sc) | 10µs |
Technical Deep Dive: The Engineering Value of the RM300CA-9W
Beyond the numbers, the true value of the RM300CA-9W lies in its specific design choices. Its 450V V_CES rating is a deliberate engineering decision. While many designs default to 600V or 650V IGBTs, this module provides a more efficient solution for systems where the DC bus voltage doesn't necessitate that level of headroom. This optimization often results in a lower VCE(sat) compared to a higher-voltage part at the same current, directly reducing conduction losses and improving overall system efficiency. The excellent thermal resistance (R_th) is critical, as it dictates how effectively heat can be moved from the silicon die to the heatsink, a key factor in system reliability. For more on this, explore our guide on why Rth matters for thermal performance.
Core Application Scenarios
The unique combination of high current and a 450V rating makes the Mitsubishi RM300CA-9W a standout performer in several key industrial applications:
- DC Motor Drives & Material Handling: In battery-powered systems like forklifts, AGVs, and ground support equipment, this module excels as a chopper for motor speed control. Its 300A rating effortlessly handles motor startup currents, and the 450V provides ample margin for inductive kickback on 240V or 300V battery systems.
- Industrial Welding Power Supplies: The module's robust Safe Operating Area (SOA) and high current capability are essential for primary-side choppers in inverter-based welders, where it must reliably switch high currents at demanding duty cycles.
- High-Power DC-DC Converters: As a single switch, it's a flexible component for building high-power buck or boost converters for applications like battery charging stations, electroplating, and bulk power supplies.
Frequently Asked Questions (FAQ)
Our engineers often receive questions about deploying specialized IGBT modules like this one. Here are some common inquiries:
1. Why not just use a standard 600V IGBT for a 240V bus application?
While a 600V IGBT would work, it's often over-specified. A 450V part like the RM300CA-9W is optimized for this lower voltage range. This typically translates to lower conduction losses (V_CE(sat)) and potentially faster switching, leading to a more efficient and cost-effective design without sacrificing necessary safety margins.
2. Can this module be used in a bridge configuration?
Absolutely. Two RM300CA-9W modules can be used to create a half-bridge, and four can form a full-bridge (H-bridge) inverter. As these are individual switches, the PCB layout and bus bar design are critical for minimizing stray inductance and ensuring current sharing if paralleled. A thorough read of our guide on decoding IGBT datasheets can help in designing the gate drive circuit appropriately for such configurations.
