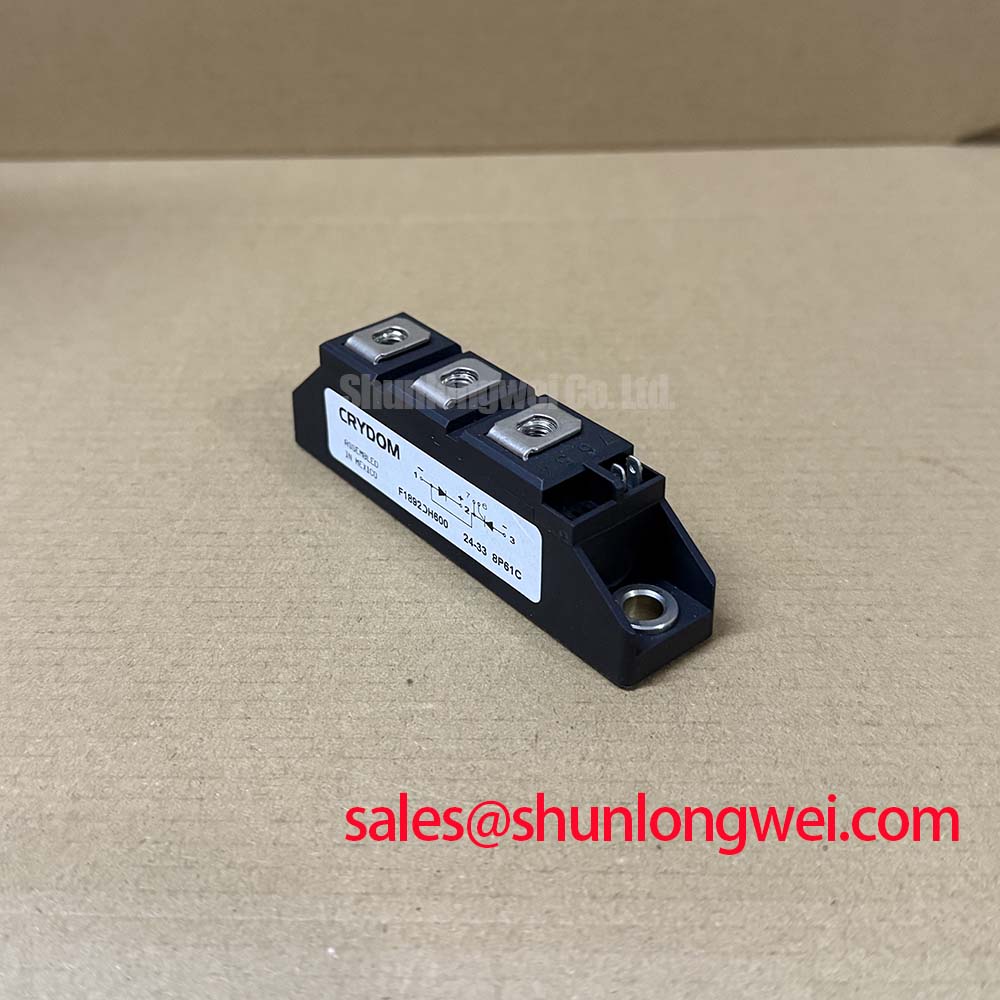

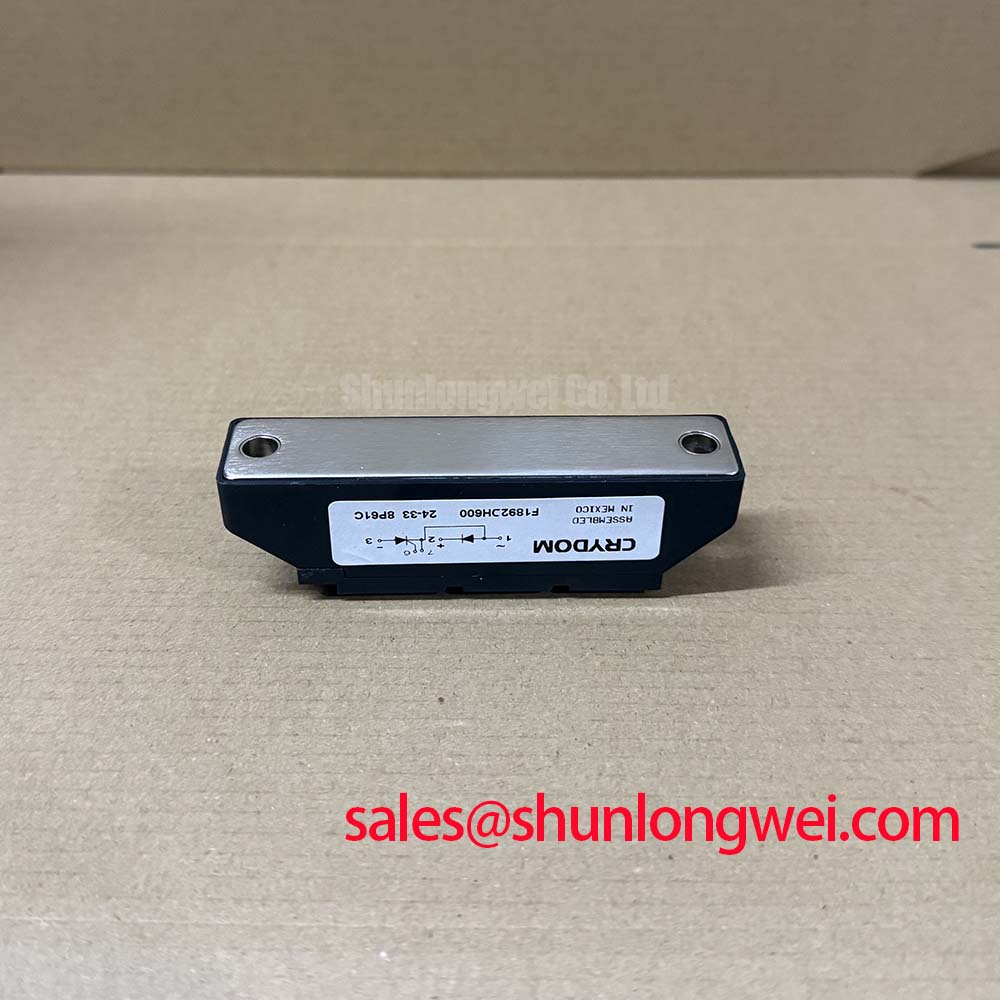

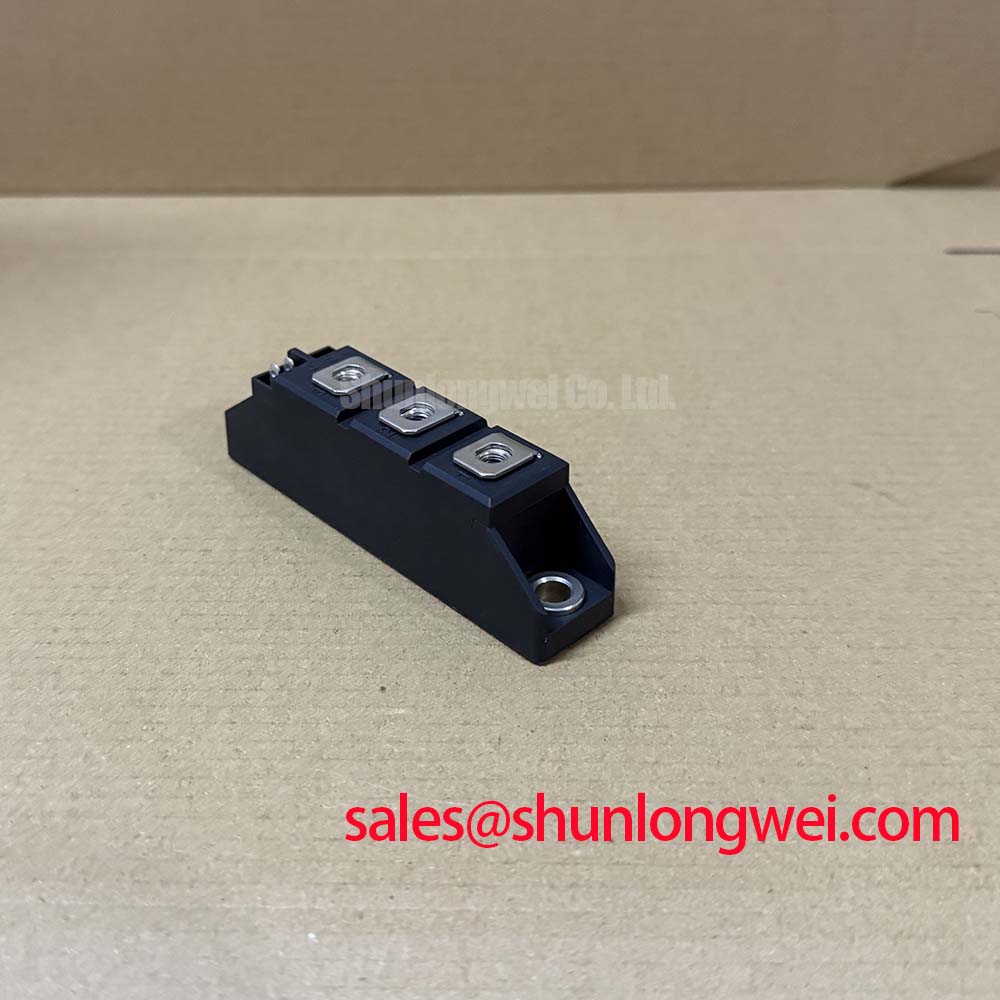

Crydom F1892DH600: A MIL-STD Rated 600V 90A Dual SCR SSR
Engineered for unwavering performance in high-shock and wide-temperature environments, the Crydom F1892DH600 Dual SCR Solid State Relay sets a new benchmark for operational durability. At its core, the integrity of a power switching component is defined by its ability to function flawlessly under mechanical and thermal stress. This relay's epoxy-free internal construction directly addresses a primary failure mode in conventional SSRs by eliminating cracks caused by thermal expansion mismatches, ensuring a longer service life in systems with frequent temperature fluctuations.
Top Specs: 600V VDRM | 90A Load Current | -55 to 100°C Operating Range
Key Benefits: Certified shock and vibration resistance. Enhanced thermal cycling endurance.
This design provides a resilient solution for engineers looking to harden their power control systems against the physical demands of industrial, transportation, and heavy-duty applications.
F1892DH600: Core Specifications for Demanding Environments
The technical specifications of the Crydom F1892DH600 are a direct reflection of its design for resilience. The parameters outlined below provide the data necessary for system integration, thermal modeling, and reliability assessment in challenging operational contexts.
Download the Complete Datasheet for full performance curves and application notes.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Max. Repetitive Off-State Voltage (VDRM) | 600 V | Provides a safe operating margin for use on 240V and 480V AC lines, protecting against transient voltage spikes. |
| Max. On-State RMS Current (IT(RMS)) | 90 A | Enables high-power load control for applications such as large heating elements, motor starters, and industrial lighting systems. |
| Control Voltage Range | 4 - 32 VDC | Offers wide compatibility with standard PLC and microcontroller logic outputs, simplifying system integration without needing intermediate driver circuits. |
| Isolation Voltage (V_iso) | 4000 Vrms | This 4000V isolation is like having an invisible, impenetrable wall between the sensitive control logic and the powerful load circuit, ensuring operator safety and protecting upstream electronics from catastrophic failures. |
| Parameter | Value | Engineering Significance |
|---|---|---|
| Operating Temperature Range | -55°C to 100°C | Guarantees functional integrity in unconditioned environments, from outdoor installations in freezing climates to high-temperature industrial processes. |
| Shock Resistance | 100g per MIL-STD-202, Method 213, Condition I | Certifies the component's ability to survive significant physical impacts, a critical factor for mobile equipment and heavy machinery. |
| Vibration Resistance | 15g per MIL-STD-202, Method 204, Condition C | Ensures stable electrical connections and prevents mechanical fatigue in applications with constant or intermittent vibration, such as generators and rail systems. |
Technical Breakdown: The Engineering Behind Extreme Durability
The exceptional robustness of the Crydom F1892DH600 stems from specific design choices that target common points of failure in standard solid state relays. The most impactful of these is the device's epoxy-free design. In conventional relays, epoxy potting is used to secure internal components. However, the thermal expansion coefficient of epoxy often differs from that of the silicon and copper elements. Over repeated temperature cycles, this mismatch creates mechanical stress, leading to micro-cracks and eventual device failure. By eliminating epoxy, the F1892DH600 achieves a substantially higher resilience to thermal cycling, a common condition in applications with intermittent loads. What is the key benefit of its epoxy-free design? Enhanced reliability by eliminating stress fractures from thermal expansion.
This inherent thermal stability is complemented by a construction that is certified to meet military standards for shock and vibration. How does the F1892DH600 ensure mechanical stability? It meets MIL-STD-202 for 100g shock and 15g vibration. This level of mechanical integrity is not a byproduct but a core design feature, ensuring that solder joints and internal connections remain intact even when subjected to the harsh conditions found in heavy machinery or transportation applications. The use of a Direct Bond Copper (DBC) substrate further enhances this reliability by providing an efficient thermal dissipation pathway, keeping junction temperatures lower and reducing thermally induced stress across the entire assembly.
Field-Proven: Deployment in High-Stress Scenarios
The F1892DH600 is validated in applications where premature failure could lead to significant downtime or safety hazards. For instance, in large-scale HVAC systems and industrial heating, its dual SCR configuration provides reliable control over high-current resistive loads. The zero-crossing turn-on function minimizes electromagnetic interference (EMI), which is crucial for maintaining signal integrity in complex automated environments. In railway applications, the relay's certified vibration resistance ensures consistent operation of onboard lighting and auxiliary power systems despite the constant mechanical stress of transit. This proven field performance offers engineers confidence when specifying a component for systems where long-term reliability is paramount.
Strategic Value in Modern Industrial Automation
In the context of Industry 4.0 and the increasing decentralization of control systems, components are frequently deployed outside of protected, climate-controlled cabinets. The F1892DH600's wide operating temperature range and mechanical resilience directly support this architectural shift. Its ability to perform reliably in harsh on-machine environments reduces the need for costly specialized enclosures and simplifies wiring. This allows for more modular and scalable system designs. By building in durability at the component level, designers can enhance the overall system's operational lifespan and reduce the total cost of ownership, a key metric in the procurement of industrial equipment. This focus on durability helps mitigate common causes of power component failure before they can impact production.
Data for Decision-Making: A Factual Comparison
When evaluating panel-mount solid state relays, engineers must weigh electrical specifications against mechanical and thermal resilience. The F1892DH600 provides a clear value proposition for systems where environmental factors are a primary concern. For applications where vibration is a known failure vector, such as in generator sets or large motor drives, devices with similar electrical ratings but without MIL-STD certification may present a higher long-term risk. The table below presents key data points for consideration during the component selection process. For designs needing a different configuration, the CM600DX-24T offers a dual IGBT module alternative.
| Feature | Crydom F1892DH600 | Typical Competing SSR | Decision Factor |
|---|---|---|---|
| Shock Rating | 100g (MIL-STD-202) | Not Specified / Lower | Critical for mobile, transportation, or high-impact machinery. |
| Vibration Rating | 15g (MIL-STD-202) | Not Specified / Lower | Essential for systems with motors, engines, or frequent movement. |
| Internal Construction | Epoxy-Free | Epoxy Potted | Key for reliability in applications with wide, frequent temperature swings. |
| Operating Temperature | -55°C to 100°C | -40°C to 80°C (Typical) | Provides a wider operational margin for extreme cold or high-heat environments. |
Engineered for Uptime: Key Application Verticals
The robust feature set of the Crydom F1892DH600 makes it an excellent component for power control systems where uptime and reliability are non-negotiable. Its design directly addresses the operational challenges present in several key industries.
- Industrial Automation: Ideal for controlling heating elements, motor starters, and conveyor systems, especially those mounted directly on machinery where vibration and temperature extremes are common.
- Transportation & Railway: Provides durable switching for HVAC, lighting, and auxiliary systems on trains, specialty vehicles, and marine vessels that experience constant shock and vibration.
- Energy & Infrastructure: Suitable for power distribution units, backup power systems, and renewable energy installations (e.g., wind turbine pitch control) located in outdoor or harsh environmental conditions.
- Food & Beverage Processing: The wide temperature range and resilient build are well-suited for controlling heating and drying equipment that undergoes frequent washdown cycles and temperature changes.
For systems operating in -55 to 100°C with high vibration, the F1892DH600's MIL-STD compliance makes it the superior choice over standard SSRs.
Frequently Asked Questions
1. What specific design feature in the F1892DH600 prevents failures from thermal cycling?
The primary feature is its epoxy-free internal design. This eliminates the mechanical stress caused by the different thermal expansion rates of epoxy, silicon, and copper, which is a leading cause of bond wire fatigue and substrate cracking in conventional SSRs during repeated temperature changes.
2. What does the MIL-STD-202 compliance mean for a system designer?
MIL-STD-202 compliance for shock (100g) and vibration (15g) provides third-party validation that the relay can withstand severe mechanical stress without compromising its electrical or physical integrity. For a designer, this means you can confidently specify the F1892DH600 for applications on mobile equipment, heavy machinery, or in transportation systems where such forces are expected, reducing the risk of field failures.
3. Can the F1892DH600 be used as a drop-in upgrade for less robust SSRs in an existing panel mount design?
Yes, the F1892DH600 is housed in an industry-standard panel mount package. This established mounting footprint allows it to serve as a direct mechanical replacement for many standard SSRs, providing a straightforward path to upgrade the ruggedness and reliability of a power control circuit without redesigning the panel layout.
Empower Your Design with Resilient Components
For your next project that demands uncompromising power control in the face of environmental and mechanical challenges, the Crydom F1892DH600 provides a validated, field-proven solution. To assess this component for your specific application, review the detailed datasheet and contact our team for further technical information. We are equipped to provide the data you need to make an informed engineering decision.
