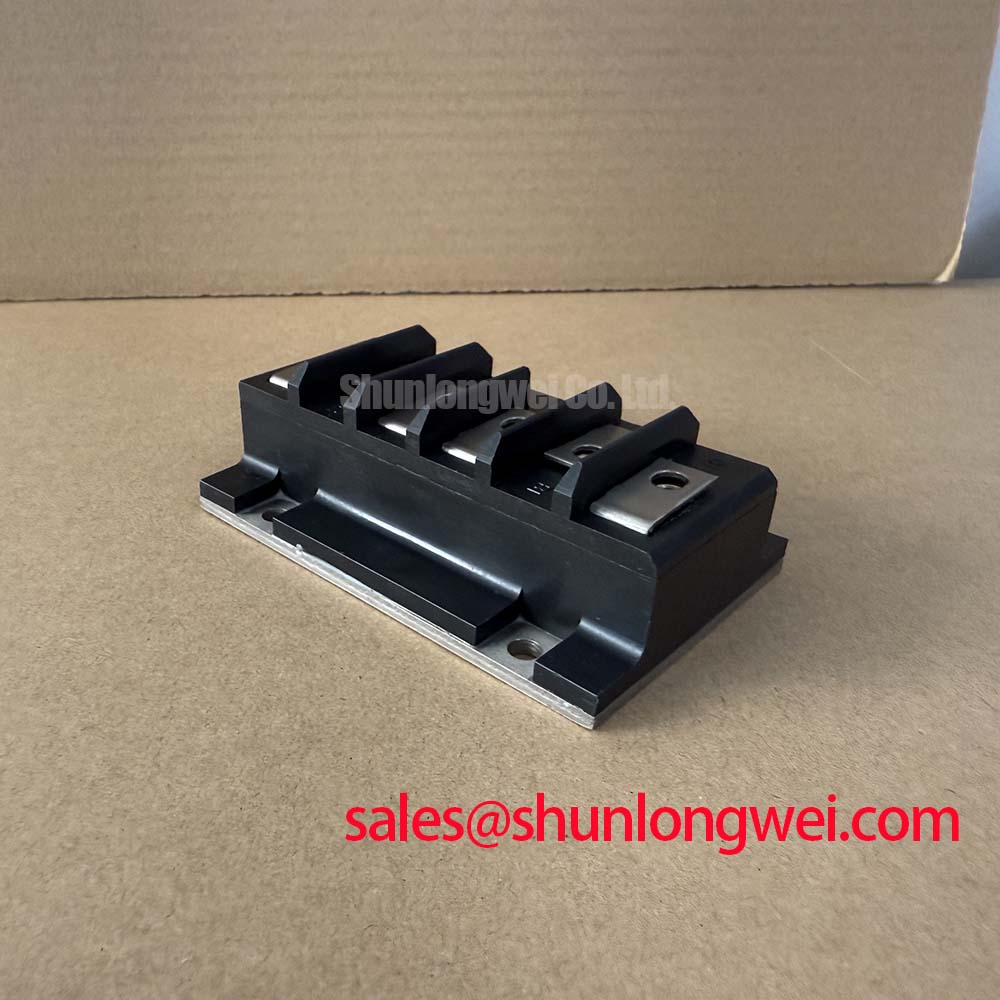

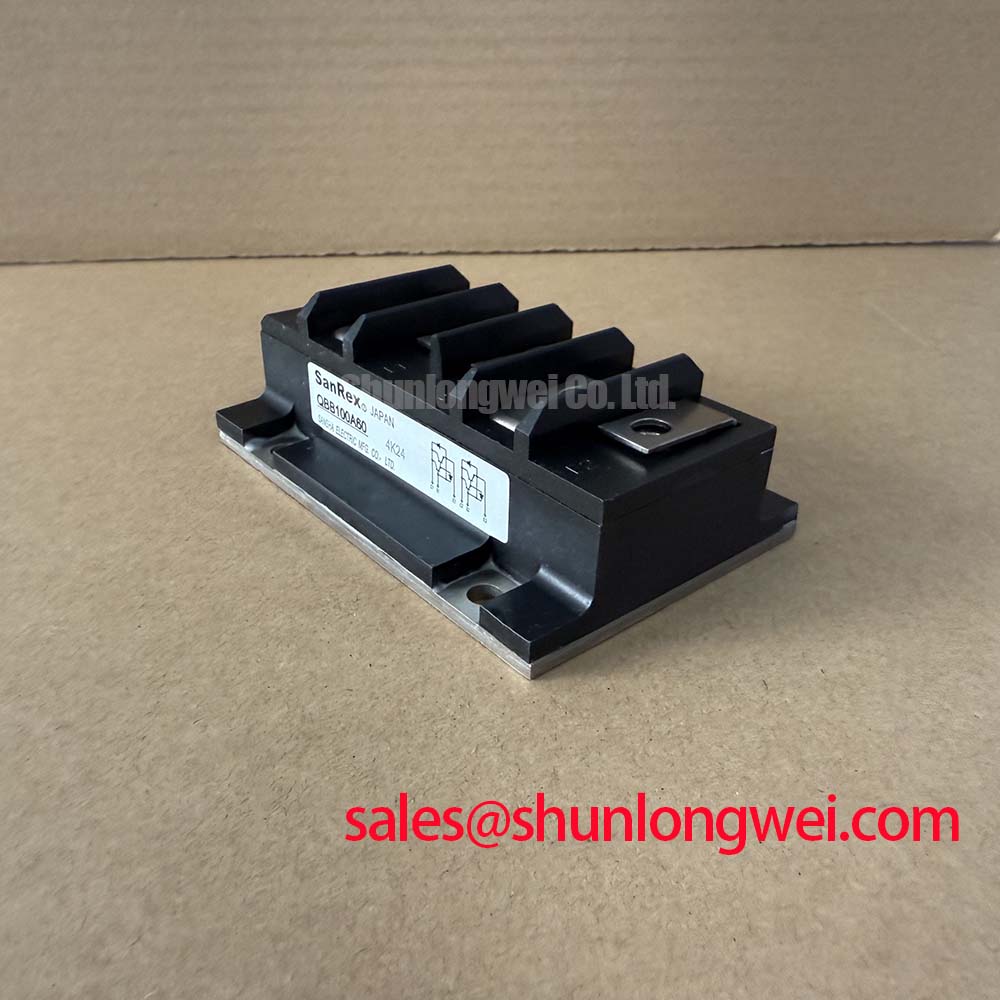

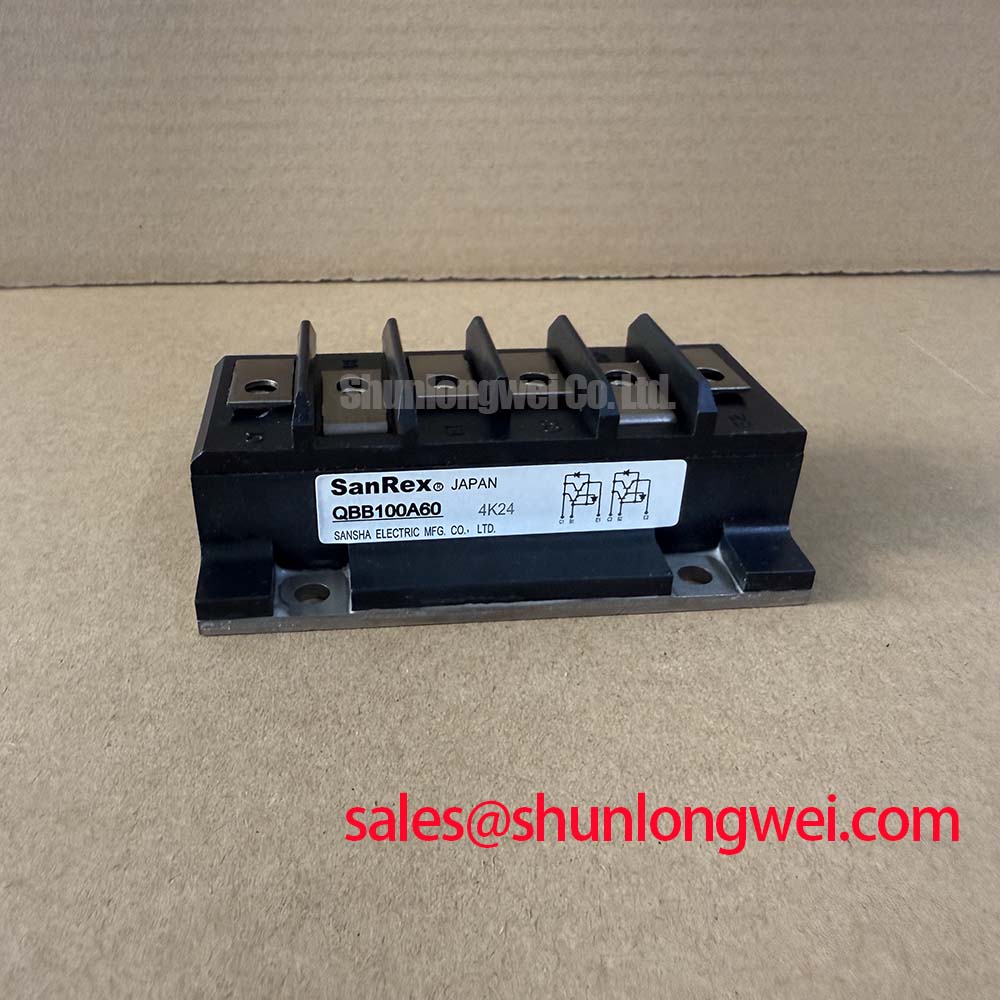

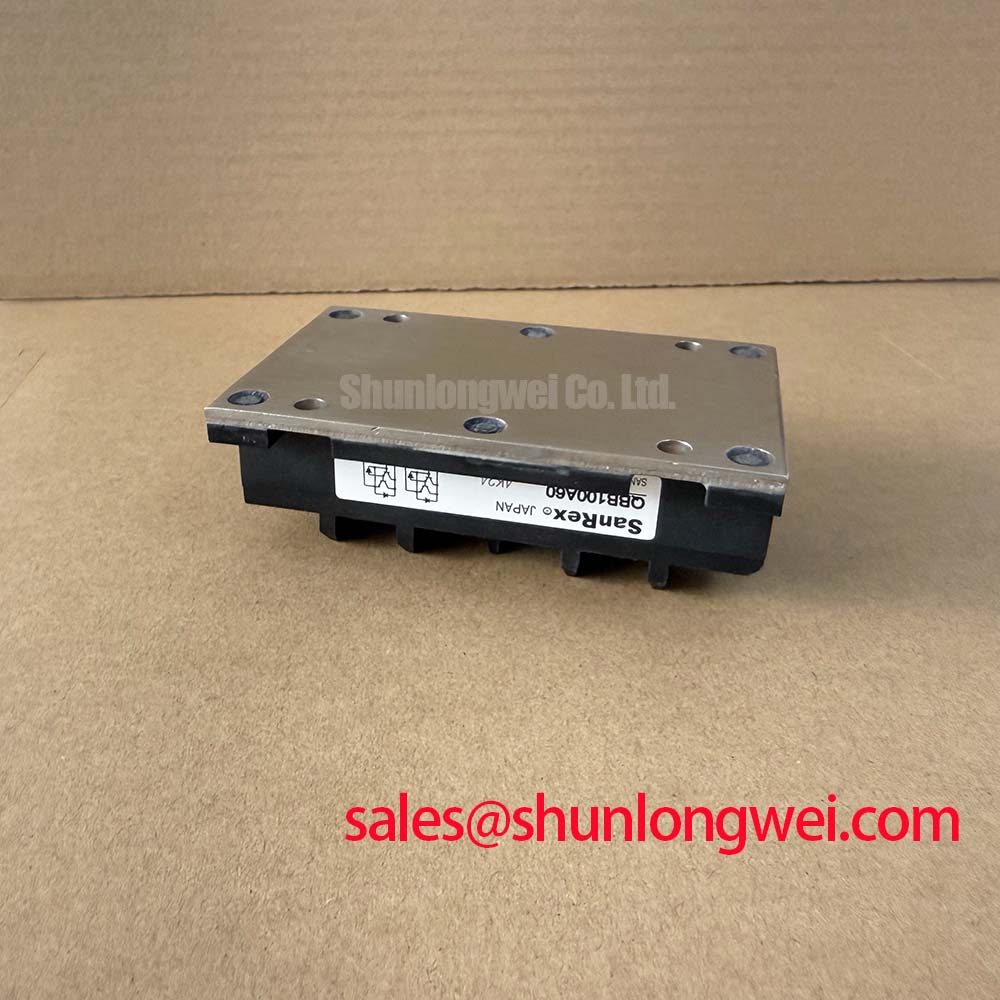

SanRex QBB100A60 Dual Darlington Module: Empowering Industrial Drive Efficiency
The SanRex QBB100A60 dual Darlington transistor module offers exceptional switching efficiency and robust current handling for industrial motor control applications. Top Specs: 600V | 100A | VEBO 10V. Key Benefits: Reduced conduction losses. Rapid flyback current quenching. What is the primary benefit of the QBB100A60 module? It delivers high-speed switching and low saturation voltage for efficient motor control. For legacy VFDs and industrial motor controls requiring reliable 600V switching, this SanRex 100A Darlington module is the optimal choice.
Application Scenarios & Value
Resolving High-Current Commutation Challenges in Legacy Drives
Engineers often face significant thermal and switching challenges when servicing or designing industrial Variable Frequency Drives and heavy-duty servo controllers. Handling inductive loads demands components that can manage sudden voltage spikes while minimizing energy dissipation. The QBB100A60, with its 600V breakdown voltage and 100A continuous current capability, is specifically tailored to address these hurdles. By integrating a high-speed reverse-paralleled fast recovery diode, this module efficiently quenches flyback currents, safeguarding the power stage from destructive transients. This level of protection is vital in automated manufacturing environments where motor stalls or sudden load changes can induce severe electrical stress.
While this module is ideal for mature 600V architectures, systems demanding alternative footprint compatibility or slightly different gate drive requirements might consider the related QM100DY-2H. Additionally, the VEBO of 10V guarantees a highly responsive turn-off characteristic, preventing cross-conduction in half-bridge configurations. Incorporating this component enhances overall industrial applications by ensuring consistent torque delivery and minimizing thermal stress on the system heat sink. Ultimately, selecting a module with these precisely balanced parameters directly contributes to extended equipment lifecycles and reduced maintenance overhead.
Technical Deep Dive
Decoding the High-Speed Darlington Topology for Loss Reduction
At the core of the QBB100A60 lies its dual Darlington architecture. Unlike single-stage bipolar transistors, this cascaded configuration provides significantly higher current gain, drastically reducing the base drive requirements. Think of the Darlington configuration as a cascaded hydraulic valve system; a small control signal effortlessly opens a massive main valve, enabling substantial current flow with minimal input effort. This translates to simplified gate drive circuits and lower parasitic losses across the power stage. In industrial automation, this simplicity translates directly to higher mean time between failures and more predictable thermal behavior under continuous load.
Furthermore, the module boasts a remarkably low saturation voltage. This characteristic is critical for minimizing conduction losses during the active on-state, especially when operating near the peak 100A rating. Coupled with a VEBO of 10V, the device ensures rapid charge depletion from the base region during turn-off, shrinking the switching transition window. The integrated fast recovery diode serves an essential role; it acts like a pressure-relief valve in a water pipe network, safely absorbing the sudden energy kickback from the Variable Frequency Drive motor coils. This synergy between low saturation and swift recovery forms the bedrock of its high-efficiency performance, which is further discussed in our in-depth analysis of power modules. The isolation voltage of the package also ensures that the heat sink can be grounded securely, providing a safe and reliable thermal dissipation path without compromising electrical isolation.
Key Parameter Overview
Essential 600V Transistor Specifications for System Design
| Key Specification | Value | Engineering Implication |
|---|---|---|
| Collector-Emitter Voltage (VCEX) | 600V | Provides adequate headroom for standard 200V to 240V AC line applications. |
| Continuous Collector Current (IC) | 100A | Supports high-torque motor startup and sustained heavy electrical loads. |
| Emitter-Base Voltage (VEBO) | 10V | Ensures robust reverse-bias capability for accelerated turn-off times. |
| Configuration | Dual Darlington | Maximizes current gain, simplifying the required base driver circuit complexity. |
Download the QBB100A60 datasheet for detailed specifications and performance curves.
Frequently Asked Questions
Engineering Insights on the QBB100A60 Transistor Module
- How does the VEBO of 10V impact the switching speed of the QBB100A60?A higher VEBO rating allows for a stronger reverse bias to be applied during turn-off. This rapidly sweeps minority carriers out of the base region, significantly reducing switching transition times. Faster transition times directly correlate with reduced switching losses, keeping the die cooler during high-frequency operation.
- What is the advantage of the reverse-paralleled fast recovery diode?The integrated diode provides a low-impedance path for freewheeling currents generated by inductive loads, preventing damaging voltage spikes across the transistor terminals. Its fast recovery nature ensures that reverse recovery losses are minimized, preventing thermal runaway in the diode itself.
- Why choose a Darlington configuration for legacy motor control applications?Darlington transistors provide exceptional current gain, which allows them to switch large continuous currents using relatively low-power control signals, making them ideal for older, simpler base drive architectures.
- Can this 600V module handle 480V AC industrial lines?No. A 600V rated module is typically suited for 200V to 240V AC systems. For 480V AC lines, engineers should select a module with a 1200V rating to ensure a safe operating margin against line voltage transients.
- How does the low saturation voltage benefit the overall thermal design?A lower saturation voltage directly reduces the power dissipated as heat during the conduction phase, allowing for more compact heat sinks and lowering the baseline thermal stress on the entire electronic assembly.
By prioritizing switching efficiency and robust current handling, the QBB100A60 remains a cornerstone for maximizing uptime and minimizing thermal bottlenecks in legacy industrial power systems. Evaluating these fundamental transistor characteristics allows engineering teams to optimize system-level reliability and maintain operational continuity. As industries continue to balance the adoption of newer semiconductor materials with the need to maintain existing robust architectures, understanding the proven mechanics of dual Darlington modules ensures that power supply and drive designs remain both cost-effective and dependable in harsh environments.
