SKKT57B06E Circuit Protection and Reliability: Interpreting the Surge Rating
Check the installed module’s terminal markings and the equipment schematic before reconnecting a repaired power stage. For SKKT57B06E, the supplied Semikron ratings identify a 600 V repetitive peak voltage and an average on-state current of 57 A at a case temperature of 85 °C (Official Specification). Confirm that the circuit’s repetitive blocking voltage, operating current and measured case temperature remain compatible with those conditions; the current figure is not an unconditional rating at every case temperature.
The specified surge on-state current is 1500 A at 25 °C for 10 ms (Official Specification). That short-duration value should not be treated as a repetitive operating-current allowance. For a fault study, compare the expected current waveform and protective-device clearing behavior with the applicable Semikron surge and fuse-coordination documentation. The supplied parameters do not include a fuse I²t coordination table, so they cannot establish a compatible fuse rating on their own. After a surge, assess the junction-temperature condition and the circuit’s reverse-voltage reapplication sequence against the full manufacturer data before returning the stage to service.

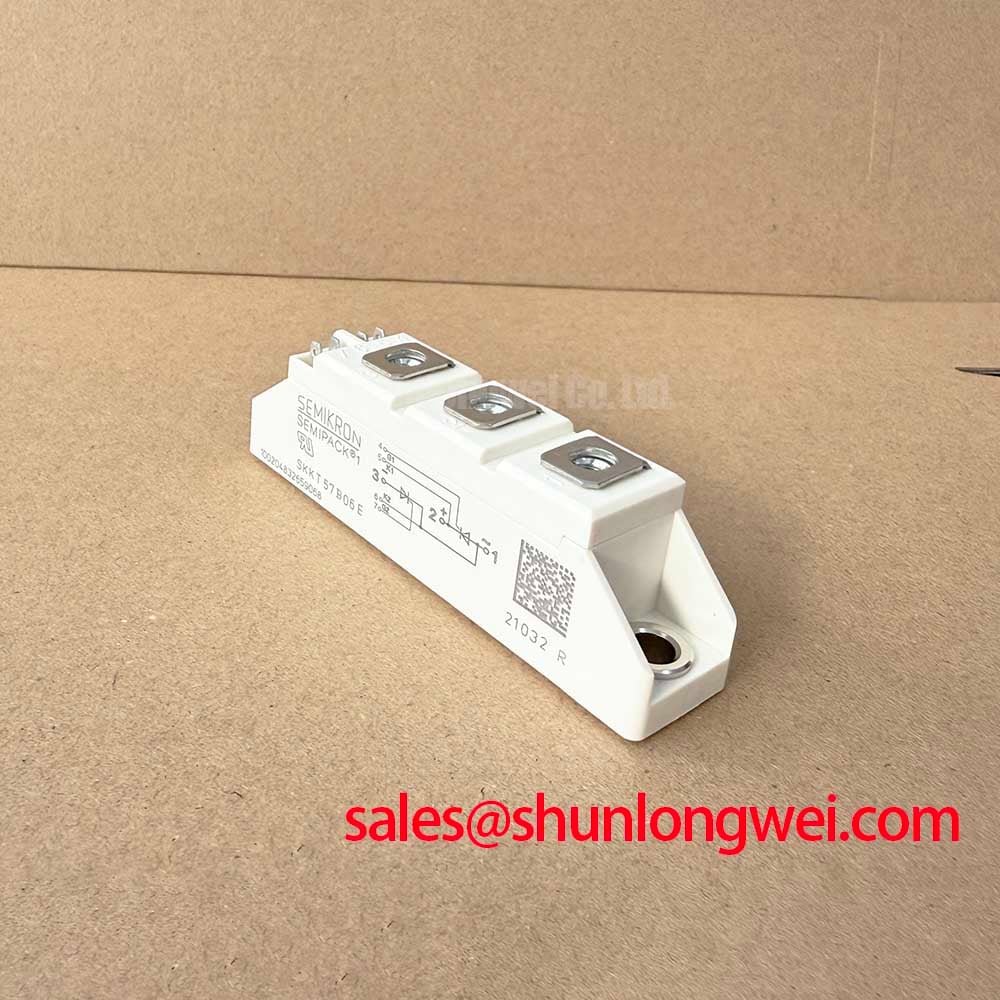

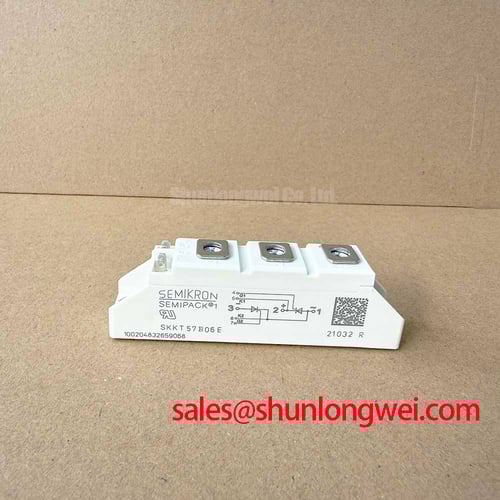

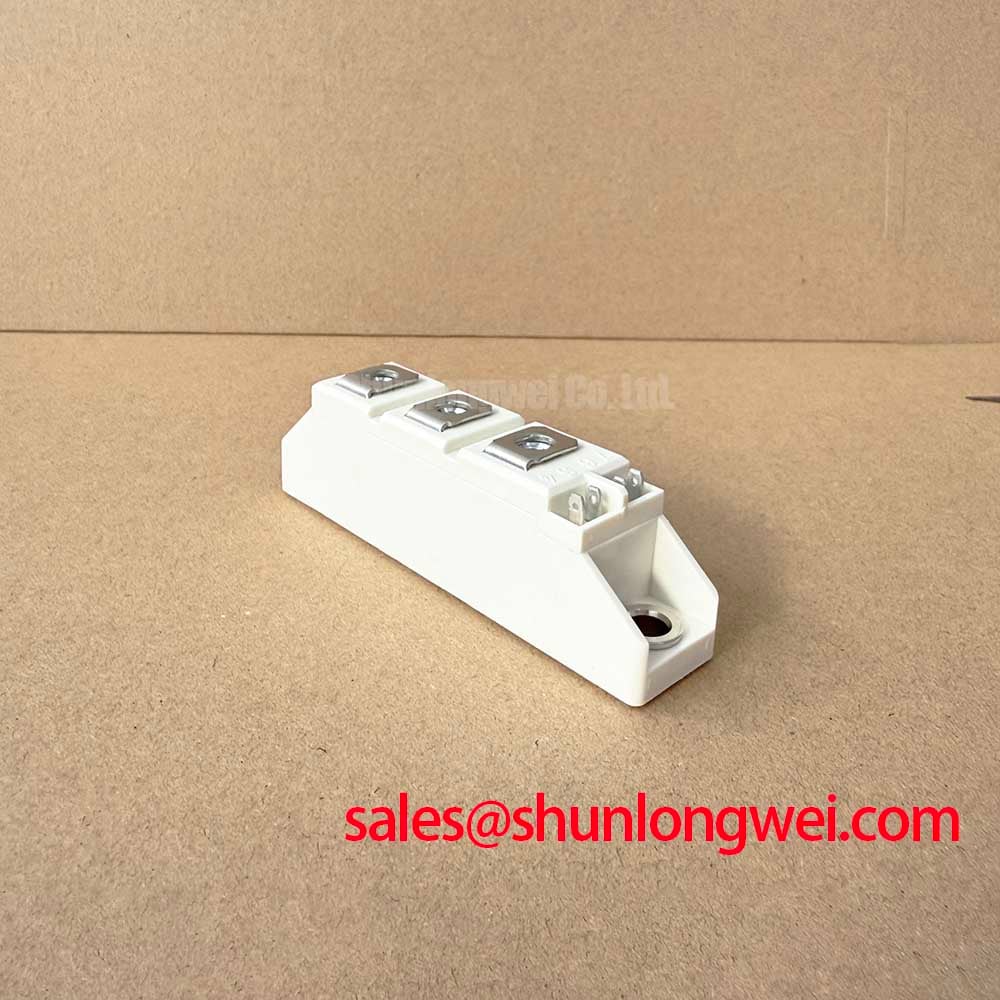

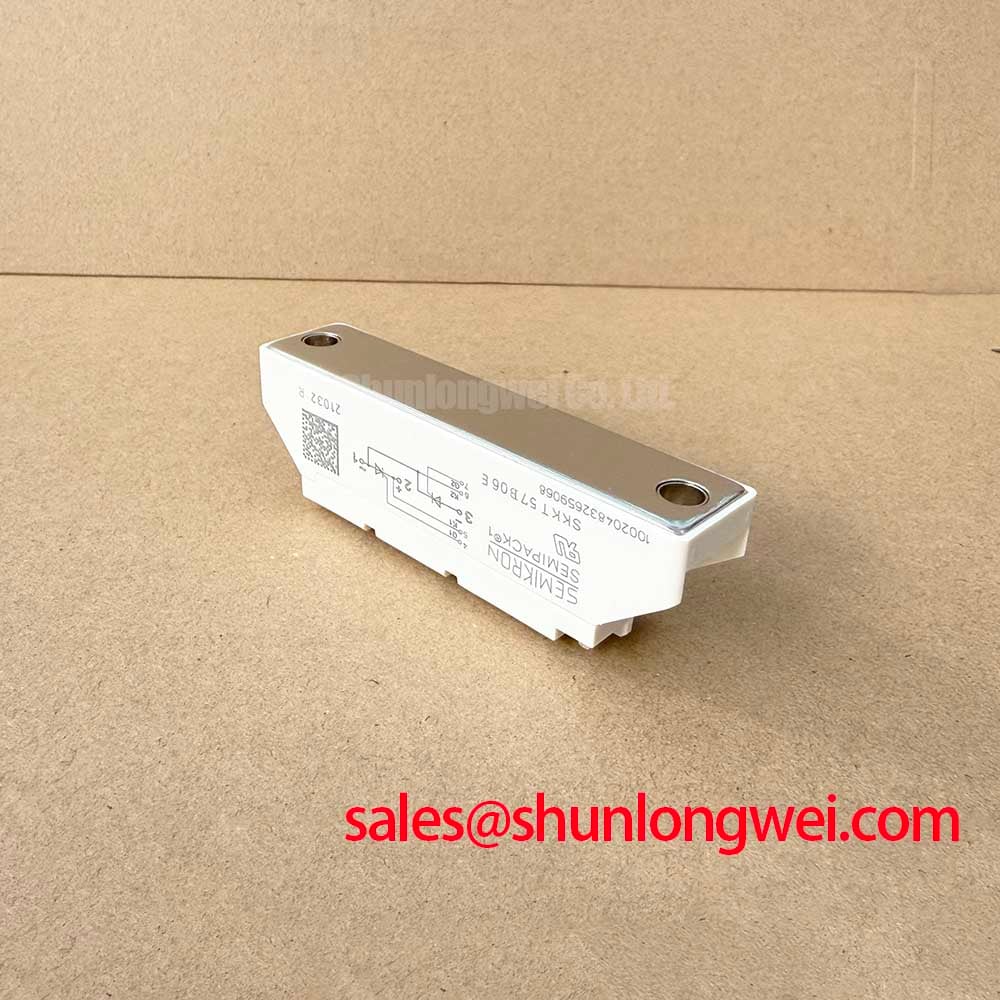

The SEMIPACK 1 package, junction-temperature range of −40 to +125 °C, junction-to-case thermal resistance of 0.57 K/W, and isolation-voltage rating of 3600 V~ are supplied Official Specifications. The isolation figure is a module rating, not a declaration that an assembled cabinet meets an insulation standard. During maintenance, inspect the heatsink contact, remove airflow obstructions and review terminal connections for evidence of heating. Maintenance note: Isolate and verify the equipment is de-energized before checking or retightening module terminals. Use the applicable Semikron assembly instructions for terminal and mounting torque; no torque value is established by the supplied ratings.
SKKT57B06E Operational Boundaries: Off-State Voltage Rise
The stated critical rate of rise of off-state voltage is 1000 V/µs (Official Specification). A voltage transient that approaches this limit calls for waveform assessment rather than an assumption that the thyristor will remain off under every circuit condition. Probe the device terminals during the relevant switching event, account for measurement-loop pickup, and compare the observed voltage rise with the manufacturer’s test conditions. The supplied rating alone does not define permissible transients at every temperature or operating voltage.
For a snubber review, trace the physical route between the thyristor terminals, the existing RC network and the source of the transient. As a Design Consideration, keep that loop compact to limit parasitic effects, then select and verify resistor and capacitor values from the measured waveform, operating losses and component ratings. A series saturable reactor is another circuit-level option where turn-on current rise needs control, but its suitability depends on the equipment topology and measured commutation behavior. Neither a snubber value nor a reactor specification follows directly from the SKKT57B06E ratings.
In a grid-tied static var compensator or thyristor-switched capacitor assembly, engineers may evaluate SKKT57B06E for a particular switching position only after checking the actual circuit voltage, current waveform, cooling arrangement and firing scheme. For a separate comparison, SKKT91/08D is a reference model whose electrical ratings, terminal layout and mounting details require independent verification; it is not an assumed drop-in replacement.
Benchtop Waveform Checks: Separating Commutation Evidence from Unspecified Recovery Data
Capture voltage across the device and current through the switching path at the event that prompted the repair. Look for repeatable overshoot, ringing or an unexpected current path, and compare the traces with a known-good channel under equivalent conditions. A changed waveform can have several contributors, including the external snubber, wiring, control timing or a neighboring semiconductor. It should not be assigned to one component from a single trace.
The supplied SKKT57B06E specifications do not state diode reverse-recovery peak current, reverse-recovery time or recovery softness. Those figures must not be presented as characteristics of this module. If the surrounding circuit contains a commutating diode, obtain that diode’s own documentation before assessing recovery-related current peaks or switching loss. Likewise, check the original schematic and manufacturer terminal diagram before assigning functions to individual module terminals.
For sustained operation, trend case temperature alongside load and heatsink conditions rather than relying on an isolated reading. Thermal transients differ from steady-state behavior; thermal-impedance network models explain the distinction, but a model for this installation must use applicable device data and measured boundary conditions. The Ultimate IGBT Knowledge Base provides background on a different power-semiconductor technology; its IGBT gate-drive and switching characteristics should not be transferred to this thyristor-module assessment.
SKKT57B06E Circuit Protection: Checking AC Input Transient Clamping
Before changing an input protection stage, identify where a transient can enter the cabinet and where its current would return. Inspect the existing surge protective devices, snubbers and connections, then measure switching transients at the module terminals under controlled conditions. The 600 V repetitive peak voltage rating (Official Specification) is a boundary for evaluating the device; it does not prescribe a metal-oxide varistor clamping voltage or establish the withstand capability of the complete installation.
As a Design Consideration, coordinate any MOV and RC stages with the source impedance, anticipated surge waveform, protective-device behavior and insulation requirements of the assembled equipment. IEC 61000-4-5 concerns surge immunity testing at equipment level; a thyristor module rating alone cannot demonstrate that the finished system passes such a test. Document the chosen test conditions and verify that measured voltage at the SKKT57B06E remains within the applicable manufacturer limits.
Where the equipment has another controlled-rectifier stage, SKKT 250/14E can be examined as a separate module in the circuit documentation, not presumed to share SKKT57B06E ratings or connections. Keep the protection review tied to the installed schematic: confirm terminal identities, inspect clamping paths and check heatsink contact after any mechanical work before repeating the controlled waveform test.
