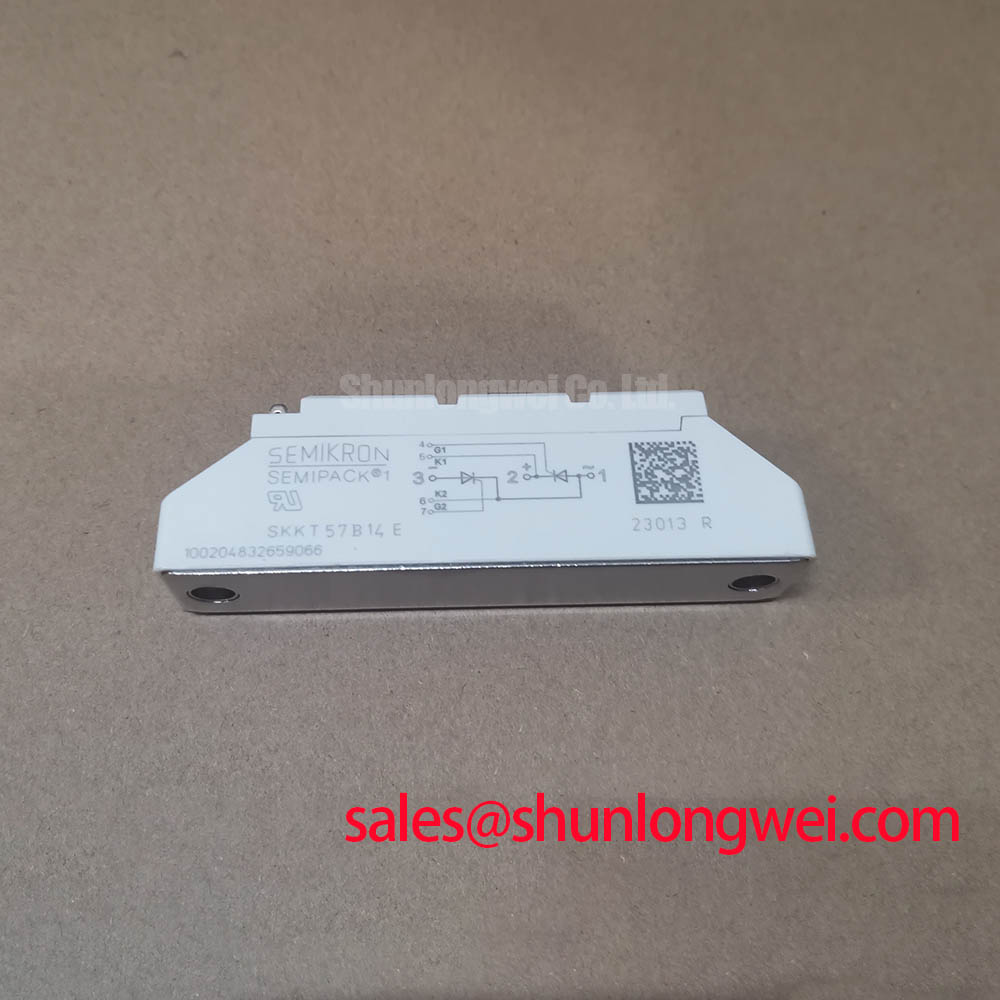

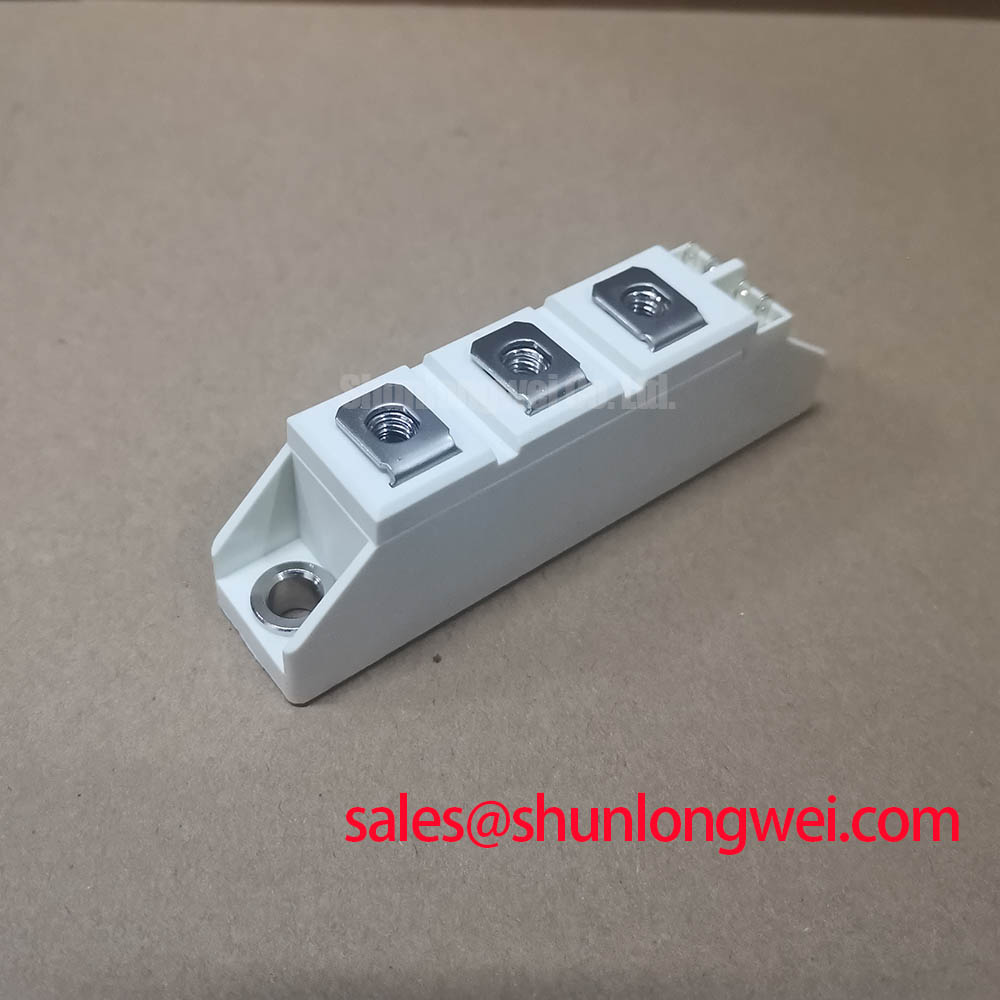

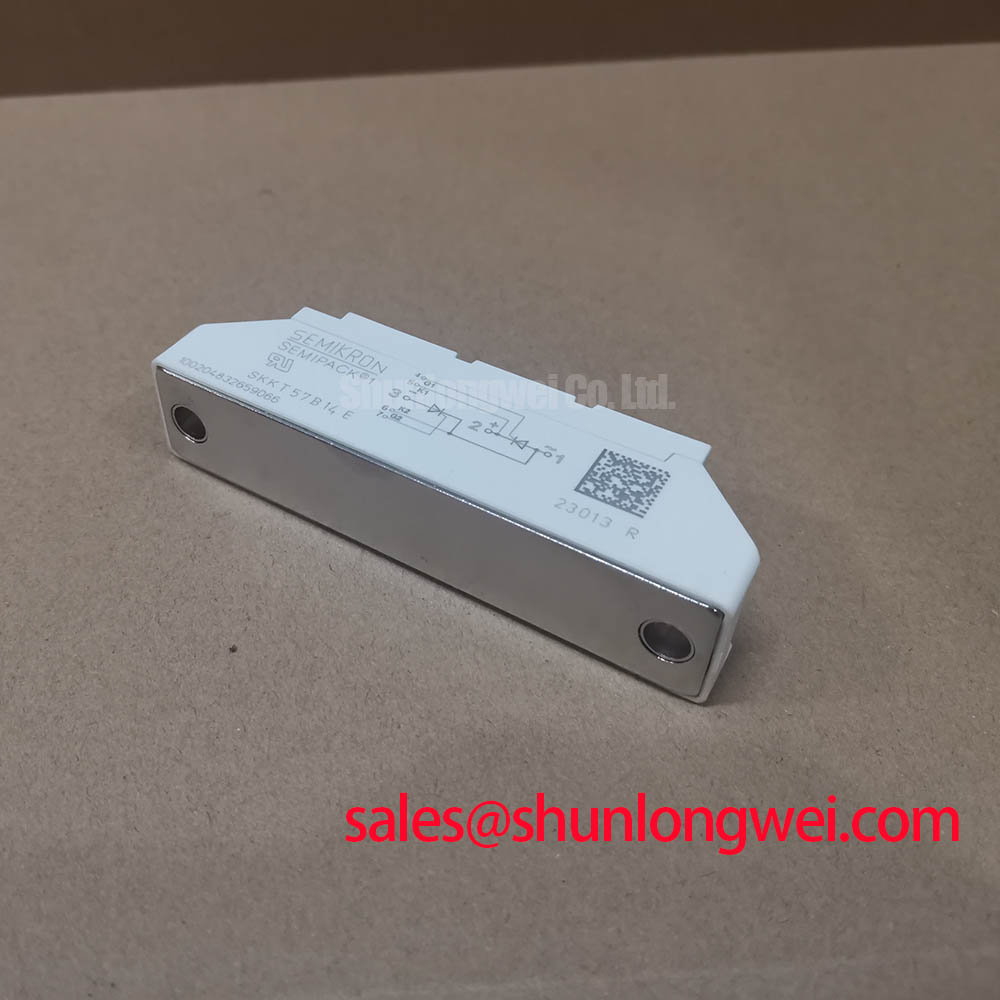

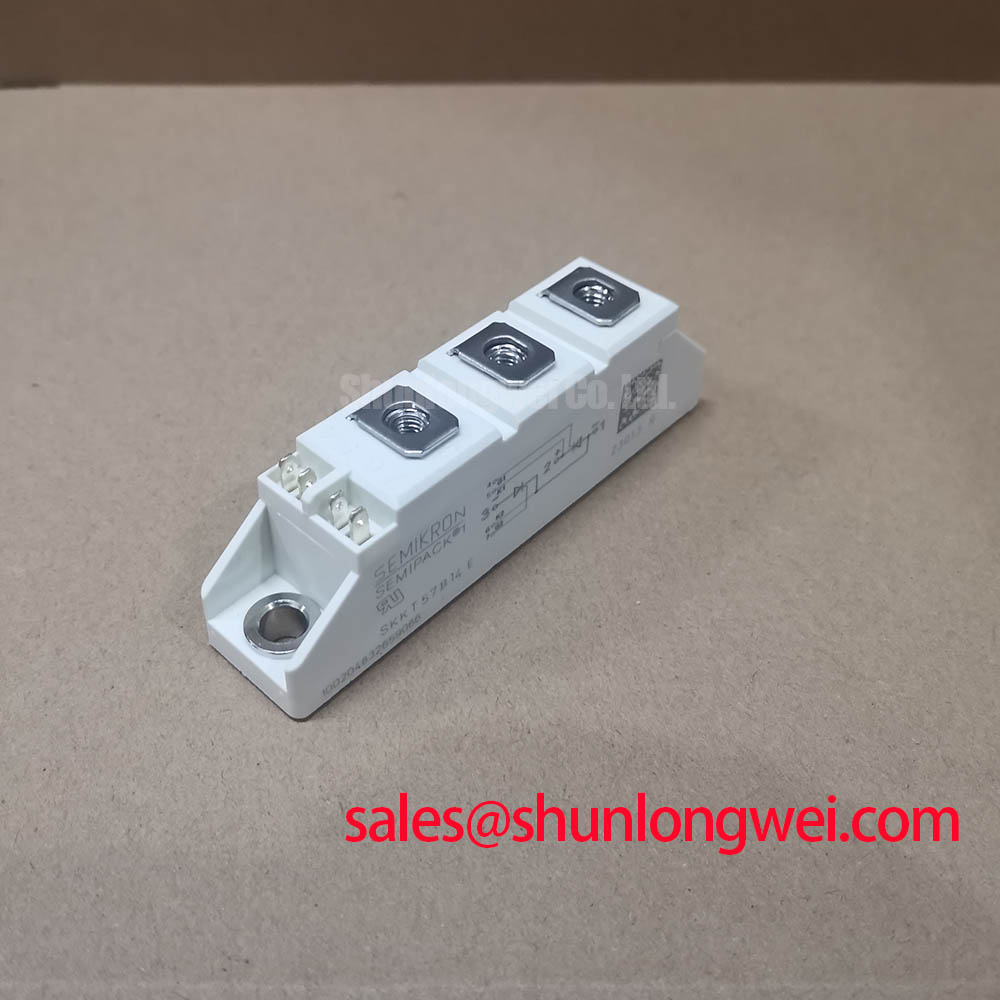

Semikron SKKT57B14E | Robust Thyristor/Diode Module for Reliable Power Control
The Semikron SKKT57B14E is an industry-proven power module designed for high-reliability phase control applications. Housed in the globally recognized SEMIPACK® 1 package, this module combines two thyristors in a series configuration (half-bridge), making it an ideal building block for AC controllers and controlled rectifiers. It's engineered not for cutting-edge speed, but for uncompromising durability and stability in demanding industrial environments.
- Proven Reliability: Features glass passivated thyristor dies, which provide exceptional long-term stability and protection against environmental contaminants.
- Excellent Thermal Performance: Utilizes an electrically-isolated baseplate, ensuring efficient heat transfer to the heatsink and simplifying thermal design.
- Versatile Configuration: The series-connected thyristor pair is perfect for single-phase AC controllers or as part of a three-phase bridge configuration.
- Industry Standard Package: The SEMIPACK® 1 housing ensures mechanical compatibility and straightforward integration into existing and new designs.
Key Technical Specifications
The following parameters are critical for design engineers evaluating the SKKT57B14E for their power systems. These values underscore its suitability for mains frequency power control up to 1400V.
| Parameter | Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1400 V |
| On-State Current (ITAV) @ Tcase = 85°C | 57 A |
| Surge On-State Current (ITSM) @ 10 ms, Tvj = 25°C | 1100 A |
| Threshold Voltage (VT0) | 0.95 V |
| On-State Slope Resistance (rT) | 8 mΩ |
| Thermal Resistance, Junction to Case (Rth(j-c)) per Thyristor | 0.45 K/W |
| Isolation Test Voltage (VISOL) | 3000 V (RMS, 1 min) |
For a comprehensive list of all electrical and thermal characteristics, you can download the official SKKT57B14E datasheet.
Application Scenarios & Engineering Value
The Semikron SKKT57B14E excels where robust, line-frequency control is paramount. Its design directly addresses common challenges in industrial power conversion.
- AC Motor Soft Starters: By precisely phase-controlling the voltage applied to an AC induction motor, this module significantly reduces mechanical shock on startup and limits high inrush currents that can stress the power grid. This extends motor and equipment lifespan. For more advanced motor control, engineers often turn to frequency-based solutions, which utilize different components like those discussed in our analysis of IGBTs in inverter ACs.
- Industrial Heating and Temperature Control: In applications like industrial furnaces, plastic extrusion, and large-scale ovens, the SKKT57B14E provides efficient proportional power regulation. Its ability to handle high currents makes it superior to mechanical relays, offering silent operation and a much longer operational life.
- Controlled Bridge Rectifiers: When used in single- or three-phase rectifier circuits, these modules enable the creation of variable DC voltage power supplies. This is critical for processes like battery charging, electroplating, and controlling the field current of DC motors.
Technical Deep Dive: The Foundation of Reliability
The enduring success of the Semikron SKKT57B14E is rooted in its fundamental design philosophy. The use of glass passivated thyristor dies is a key element. This process seals the silicon junction with a hermetic layer of glass, providing robust protection against humidity and chemical contaminants common in industrial settings. This directly contributes to a low failure rate and predictable performance over decades of operation. Furthermore, the module's construction leverages a Direct Copper Bonded (DCB) ceramic substrate, a technology that provides both high electrical isolation and a low Thermal Resistance. This ensures that heat generated during operation is efficiently conducted away from the silicon die to the heatsink, a critical factor in preventing catastrophic failures due to overtemperature.
Engineer's FAQ for the SKKT57B14E
What are the critical design considerations for the gate drive circuit?
A common oversight with thyristor modules is an inadequate gate drive. For the SKKT57B14E, especially when driving inductive loads like motors, it is crucial to supply a gate pulse that is strong enough (in both amplitude and duration) to ensure the entire silicon die turns on uniformly. A weak or short pulse can lead to localized "hot-spotting" and eventual device failure. Using an isolated pulse transformer is the recommended best practice for delivering the trigger signal safely and effectively.
Is the SKKT57B14E a good choice for a high-frequency switching application like a switched-mode power supply (SMPS)?
No, this module is specifically designed for line-frequency applications (50/60 Hz). Thyristors have a relatively long turn-off time (tq), making them fundamentally unsuitable for the high switching frequencies (typically >10 kHz) required in modern SMPS, solar inverters, or variable frequency drives. For those applications, technologies like IGBTs or MOSFETs are the appropriate choice. Understanding this distinction is key to proper component selection. For a deeper comparison, our guide to power semiconductor selection provides detailed insights. If you need assistance selecting the right component for your design, please contact our technical team for expert advice.
```
