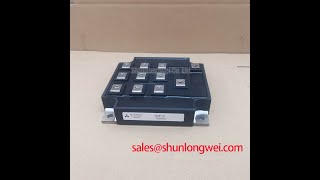

Mitsuibshi S2E12 IGBT Module | Streamlining Industrial Drive Design
The Mitsuibshi S2E12 represents a significant step forward in power electronics integration for industrial automation. This is not just another IGBT; it's a complete Converter-Inverter-Brake (CIB) solution engineered to simplify your design process, reduce assembly costs, and enhance system reliability. The S2E12 is specifically tailored for applications like variable frequency motor drives, servo controllers, and uninterruptible power supplies (UPS), where performance, efficiency, and a compact footprint are non-negotiable.
Technical Deep Dive: The Engineering Behind the S2E12
- Fully Integrated CIB Topology: The core advantage of the S2E12 lies in its Converter-Inverter-Brake architecture. By co-packaging the three-phase input rectifier, the three-phase output inverter, and the brake chopper into a single, thermally optimized module, we solve several critical engineering challenges. This integration drastically reduces parasitic inductance between stages, which minimizes voltage overshoots during switching. For designers, this means a simplified PCB layout, fewer external components, a smaller overall system size, and a significant reduction in assembly time and potential failure points.
- Advanced Low-Loss IGBT Technology: At the heart of the S2E12 inverter stage are state-of-the-art Trench Field-Stop IGBTs. This silicon technology is engineered for an exceptionally low collector-emitter saturation voltage (Vce(sat)). Lower Vce(sat) directly translates to lower conduction losses—the primary source of heat in motor drive applications. The tangible benefit for your system is reduced heat dissipation requirements, enabling the use of smaller, more cost-effective heatsinks and improving overall energy efficiency.
Application-Specific Value of the S2E12 CIB Module
The true value of an IGBT module is realized in its application. Here’s how the Mitsuibshi S2E12 addresses specific industry pain points:
- Variable Frequency Drives (VFDs): In VFDs, the integrated brake chopper provides a ready-made solution for managing regenerative energy during motor deceleration. This eliminates the need for a separate braking unit, simplifying the bill of materials and control logic. The result is a more compact and cost-effective drive.
- Servo Control Systems: The low internal inductance of the S2E12 CIB design is crucial for high-precision servo applications. It allows for faster and cleaner switching of the three-phase IGBT inverter, leading to more accurate current control, reduced torque ripple, and superior positioning accuracy.
- HVAC and Pumping Systems: Reliability and efficiency are paramount in these 24/7 operations. The S2E12's robust, integrated design minimizes potential interconnect failures, while its high thermal efficiency lowers operational energy costs over the system's lifespan.
- General-Purpose Industrial Inverters: For designers of welding equipment or UPS systems, the S2E12 offers a versatile, high-power-density building block. It accelerates development time, allowing teams to focus on application-level software and features rather than wrestling with complex power stage hardware layouts.
For more solutions tailored to your specific power conversion needs, you can Explore More IGBT Modules on our website.
Key Technical Parameters at a Glance
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous Collector Current (Ic @ 80°C) | 25 A |
| Collector-Emitter Saturation Voltage (Vce(sat), Typ. @ 25°C) | 1.85 V |
| Total Power Dissipation (Per IGBT) | 180 W |
| Isolation Voltage (Visol) | 2500 V (AC, 1 minute) |
| Package Type | Industry Standard CIB PIM |
Frequently Asked Questions (FAQ)
- What is the primary benefit of the S2E12's integrated NTC thermistor?
The built-in NTC thermistor provides real-time temperature feedback directly from the module's substrate. This allows for precise thermal monitoring and enables the implementation of over-temperature protection schemes in your control logic, significantly enhancing long-term system reliability and preventing catastrophic failures. - How does the S2E12 CIB module compare to using discrete IGBTs and diodes?
While discrete components offer design flexibility, the S2E12 CIB module provides superior power density, proven reliability due to fewer solder joints, and simplified thermal management. The pre-optimized internal layout also guarantees lower stray inductance, a challenge that is difficult and costly to manage in a discrete design.
Choosing the right power module is critical for meeting performance targets and budget constraints. If you need assistance comparing the Mitsuibshi S2E12 to other solutions or require a detailed analysis for your project, please do not hesitate to Contact Us for a Quote.
