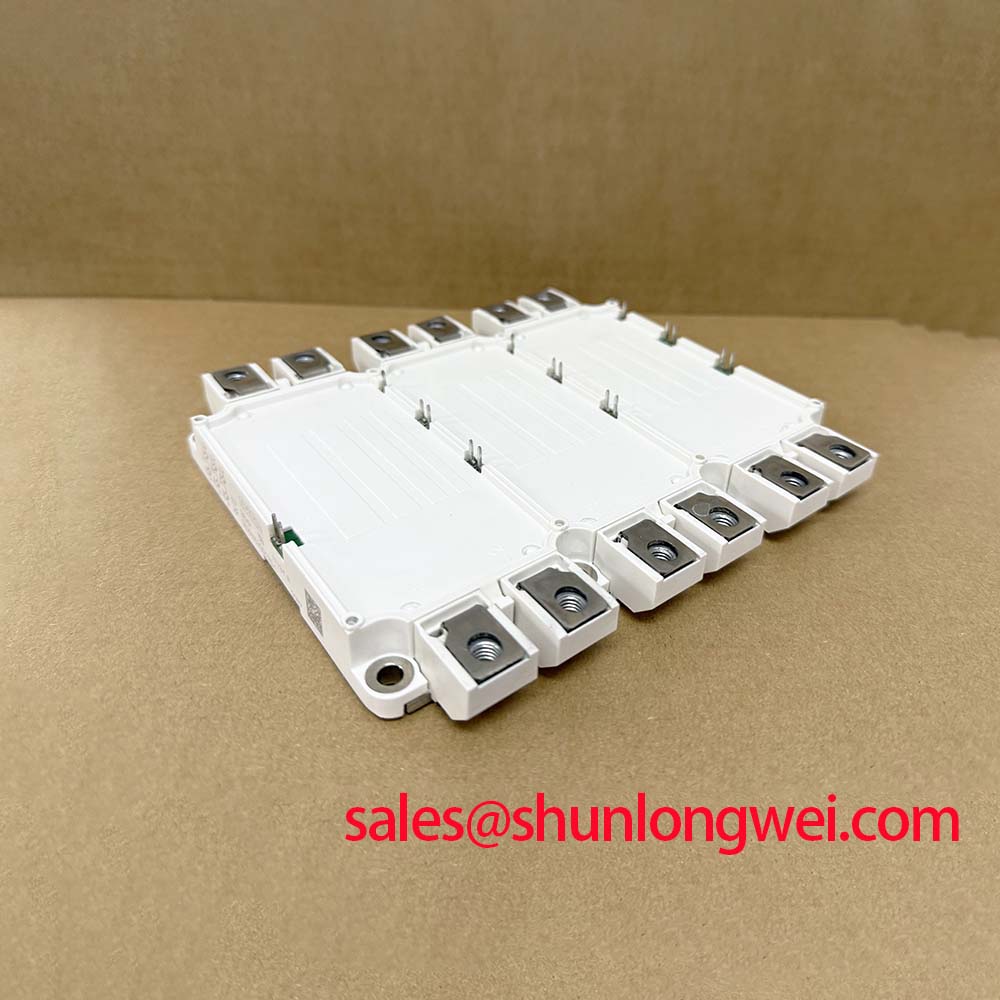

Semikron SEMIX653GD176V1 IGBT Module

SEMIX653GD176V1: High-Reliability 1700V Half-Bridge IGBT Module for Demanding Power Conversion Systems

An Engineering-Centric Overview of the SEMIX653GD176V1

Content last revised on October 10, 2025.

The SEMIX653GD176V1 is a high-power IGBT module engineered for superior thermal stability and operational reliability in demanding high-power inverter applications. It combines a robust 1700V blocking voltage with significant current handling capabilities, featuring Trenchgate technology to optimize switching performance. Key specifications include: 1700V | 438A (at Tc=80°C) | Rth(j-c) 0.054 K/W. This design delivers two primary engineering benefits: enhanced thermal management and excellent current sharing in parallel configurations. For engineers designing systems like large-scale inverters where thermal margin is critical, this module's low thermal resistance from junction to case is a decisive factor in achieving compact and reliable designs. Its positive temperature coefficient for VCE(sat) inherently balances current flow when multiple modules are paralleled, simplifying system scaling and enhancing safety. For industrial drives operating on 690V AC lines, the 1700V rating of the SEMIX653GD176V1 provides the essential voltage headroom for dependable performance.

Application Scenarios & Value

System-Level Benefits in Renewable Energy and Industrial Drives

The SEMIX653GD176V1 is positioned for high-stress applications where both high voltage and thermal performance are non-negotiable. Its 1700V collector-emitter voltage rating makes it an excellent component choice for power conversion systems connected to 690V AC mains, providing a substantial safety margin against voltage transients common in industrial environments.

A primary engineering scenario for this module is within the DC-AC stage of a large-scale Central Solar Inverter or a Wind Turbine Converter. In these applications, reliability and efficiency are paramount. The module's exceptionally low thermal resistance of 0.054 K/W per IGBT is a critical enabler. This parameter directly dictates how efficiently heat generated during switching and conduction is transferred away from the silicon chip to the heatsink. A lower Rth(j-c) value means the chip runs cooler for a given load, which directly translates to improved system longevity and higher power density, as smaller and more cost-effective cooling systems can be employed. The module's inherent robustness supports the high power cycling capability required to handle the intermittent nature of renewable energy sources. While the SEMIX653GD176V1 is ideal for these high-power systems, for applications requiring a more compact footprint at lower power, the related SEMIX453GB12VS offers a solution within a 1200V classification.

Key Parameter Overview

A Functionally Grouped Specification Table

The following parameters are derived from the official datasheet for the SEMiX653GD176HDc, a closely related variant, to provide a clear engineering baseline for design and evaluation. This data highlights the module's electrical, thermal, and switching characteristics.

Download the SEMiX653GD176HDc datasheet for detailed specifications and performance curves.

Technical Deep Dive

Implications of Trenchgate Technology and Positive VCE(sat) Temperature Coefficient

The SEMIX653GD176V1 leverages SEMIKRON's Trenchgate IGBT technology, which is a significant factor in its performance. Unlike older planar gate structures, a trench gate creates a vertical channel for current flow. This design simultaneously reduces the on-state voltage drop (VCE(sat)) and minimizes switching losses, particularly the turn-on energy (Eon). For an engineer, this translates into higher inverter efficiency, as less power is wasted as heat during operation.

What is the primary benefit of its positive temperature coefficient for VCE(sat)? Enhanced reliability in paralleled module arrays. Think of it like a self-balancing system. If one module in a parallel set starts to get hotter than its neighbors, its on-state resistance (related to VCE(sat)) increases slightly. This subtle increase naturally diverts a small amount of current to the cooler, less resistive modules. This prevents thermal runaway, where one module would otherwise take on a disproportionate share of the load, overheat, and fail. This characteristic simplifies the design of high-current inverter stacks, making it a critical feature for scaling power in applications like Medium Voltage Drives (MVD).

Frequently Asked Questions (FAQ)

How does the 1700V rating of the SEMIX653GD176V1 benefit designs for 690V industrial lines?
A 690V AC line can produce a rectified DC link voltage of approximately 975V. However, inductive loads and network fluctuations can cause significant voltage overshoots. The 1700V rating provides a robust safety margin of over 70%, ensuring the module operates well within its Safe Operating Area (SOA), which is crucial for long-term reliability in harsh industrial environments.

What is the practical impact of the module's 0.054 K/W thermal resistance on system design?
This low thermal resistance value is key to effective thermal management. It means that for every watt of power dissipated as heat in the IGBT chip, the temperature difference between the chip's junction and the module's case is only 0.054°C. This high efficiency of heat transfer allows engineers to either use a smaller, less expensive heatsink for a given power level or to push more power through the module while maintaining a safe junction temperature, thereby increasing the system's overall power density.

Strategic Design Considerations

Integrating the SEMIX653GD176V1 into a power system requires attention to the complete ecosystem around the module. A well-designed gate driver circuit is essential to properly manage the switching characteristics defined by the Trenchgate technology, ensuring clean turn-on and turn-off to minimize losses and control EMI. Furthermore, the low thermal resistance of the module is only fully realized when paired with an appropriate thermal interface material and a correctly specified heatsink. Proper mechanical mounting and torque application are critical to ensure a minimal-resistance thermal path, maximizing the reliability and performance benefits engineered into this high-power IGBT module.
