SEMIX453GB12E41P | 1200V Trench IGBT Module for High-Reliability Power Conversion
An Engineering Perspective on a High-Current Half-Bridge IGBT Module

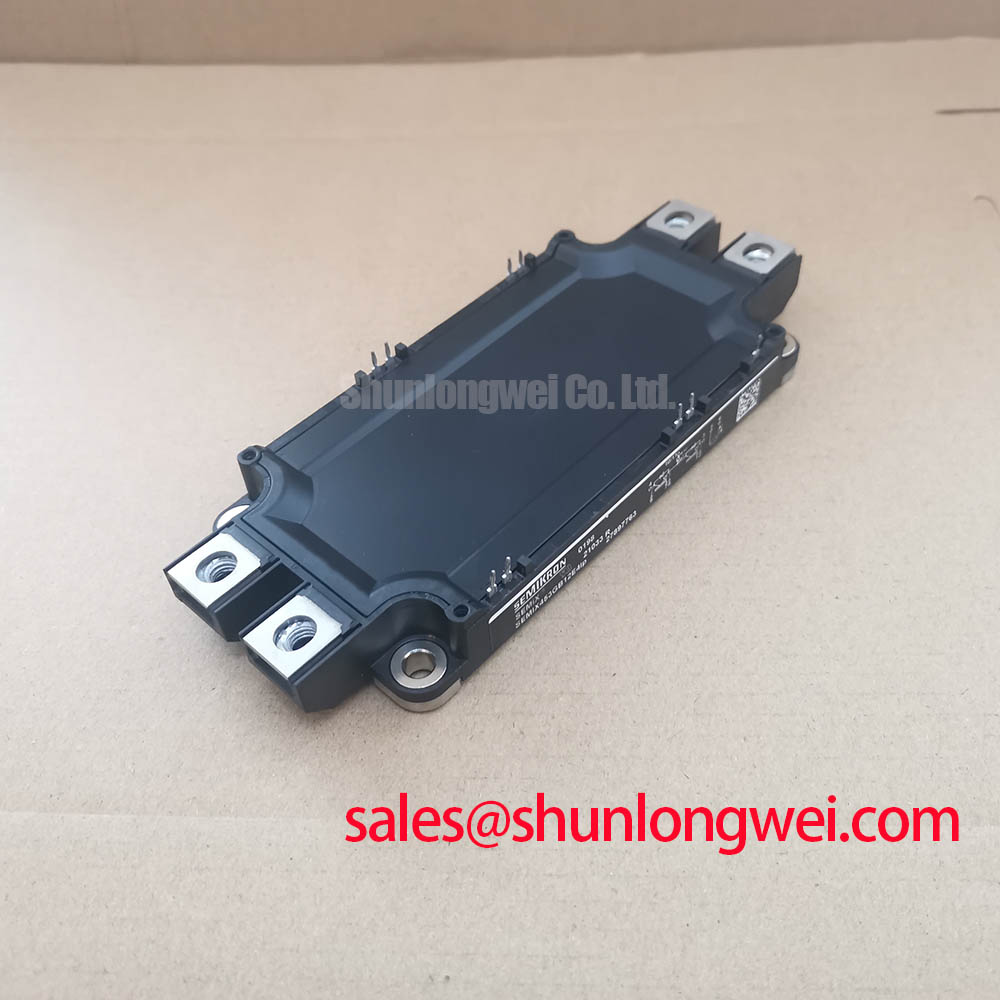

The SEMIX453GB12E41P is a robust 1200V half-bridge IGBT module engineered for demanding high-power applications. This module’s architecture prioritizes thermal efficiency and electrical reliability, leveraging Semikron's Trenchgate IGBT technology and a positive temperature coefficient for VCE(sat). With key specifications of 1200V | 625A | Rth(j-c) 0.080 °C/W, it delivers exceptional thermal performance and simplifies parallel operation. This design directly addresses the challenge of achieving stable current sharing and effective heat dissipation in multi-module inverter stacks. For high-power inverter systems where thermal stability and paralleling are critical, the SEMIX453GB12E41P's specifications make it a premier design choice.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The technical specifications of the SEMIX453GB12E41P are tailored for robust performance in high-stress power systems. The highlighted parameters below are critical for thermal management, efficiency calculations, and safe operating area considerations.
| Parameter | Symbol | Value | Condition |
|---|---|---|---|
| Collector-Emitter Voltage | VCES | 1200 V | Tj = 25 °C |
| Continuous DC Collector Current | IC,nom / IC | 450 A / 625 A | Tcase = 25 °C / 80 °C |
| Collector-Emitter Saturation Voltage | VCE(sat) | 1.9 V (typ.) | IC = 450 A, Tj = 25 °C |
| Thermal Resistance, Junction to Case | Rth(j-c) | 0.080 °C/W | per IGBT |
| Short Circuit Withstand Time | tsc | 10 µs | VGE ≤ 15 V, Tj = 150 °C |
| Maximum Junction Temperature | Tj,max | 175 °C | - |
Download the SEMIX453GB12E41P datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Power Converters
The SEMIX453GB12E41P is engineered for power conversion systems where reliability and thermal stability are non-negotiable. Its primary value is demonstrated in applications such as AC inverter drives, large-scale Uninterruptible Power Supplies (UPS), and renewable energy systems like solar and wind inverters. In a high-power Variable Frequency Drive (VFD), for instance, multiple IGBT modules are often paralleled to meet motor current demands. The SEMIX453GB12E41P's positive temperature coefficient of VCE(sat) is critical here; as a chip heats up, its on-state voltage increases slightly, naturally forcing current to share with cooler, parallel devices. This self-balancing behavior prevents thermal runaway, a common failure mode in less advanced modules, thereby simplifying the busbar design and enhancing overall system longevity. While this module delivers significant current handling, for applications requiring a lower current rating within a similar voltage class, the SEMIX303GB12E4 may be a relevant component for consideration.
Frequently Asked Questions (FAQ)
What is the primary benefit of the VCE(sat) positive temperature coefficient?
It enables stable and reliable paralleling of multiple modules. This characteristic creates a self-regulating effect on current distribution, preventing individual modules from overheating and ensuring balanced load sharing without complex external circuitry.
How does the Rth(j-c) of 0.080 °C/W impact thermal design?
This low thermal resistance signifies highly efficient heat transfer from the IGBT junction to the case. For a system designer, it means a smaller, more cost-effective heatsink can be used for a given power dissipation, or conversely, it allows for higher power output while maintaining the junction temperature within safe limits, directly contributing to increased power density and system reliability.
What does the 10 µs short-circuit withstand time imply for system protection?
This rating provides a crucial safety margin, allowing the gate drive protection circuitry sufficient time to detect a short-circuit fault and safely turn off the device before catastrophic failure occurs. It is a key indicator of the module's robustness in harsh electrical environments, such as those found in industrial motor drives with potential for phase-to-phase faults.
Strategic Advantage
Built for Long-Term Performance in Demanding Power Cycles
