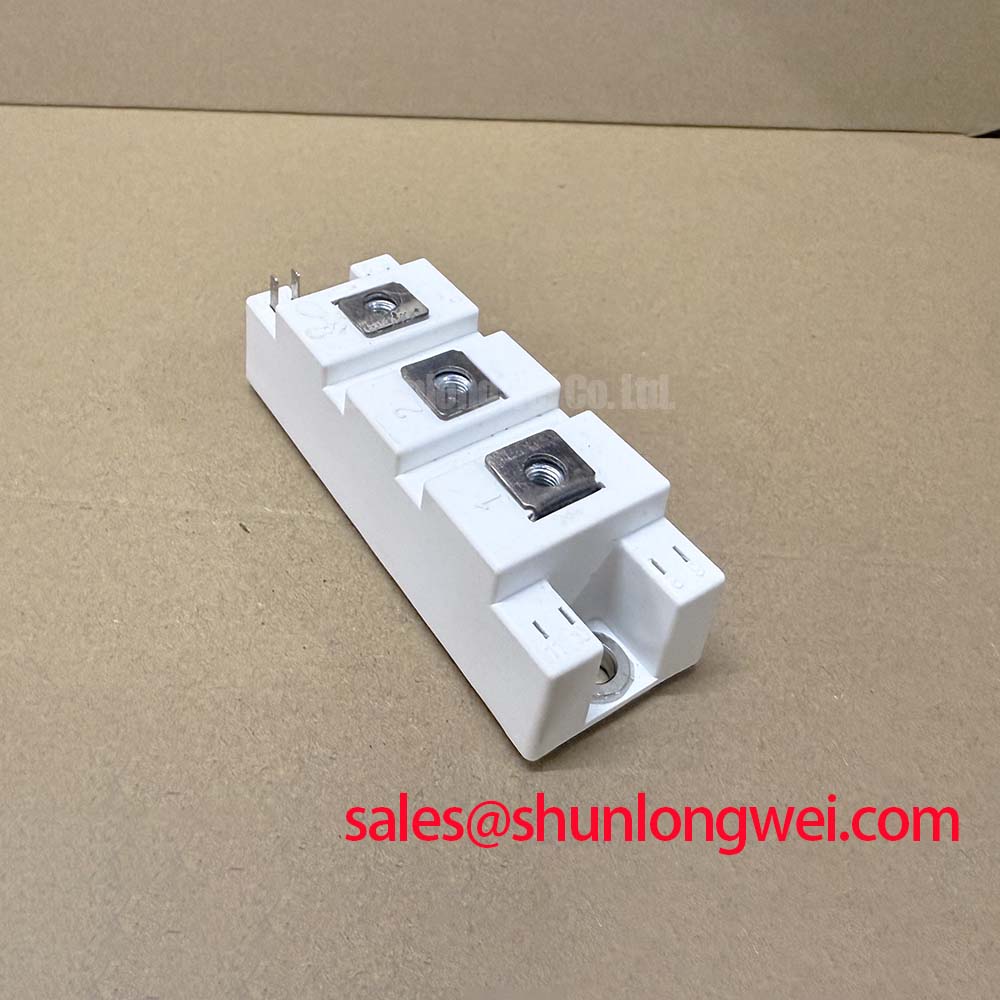

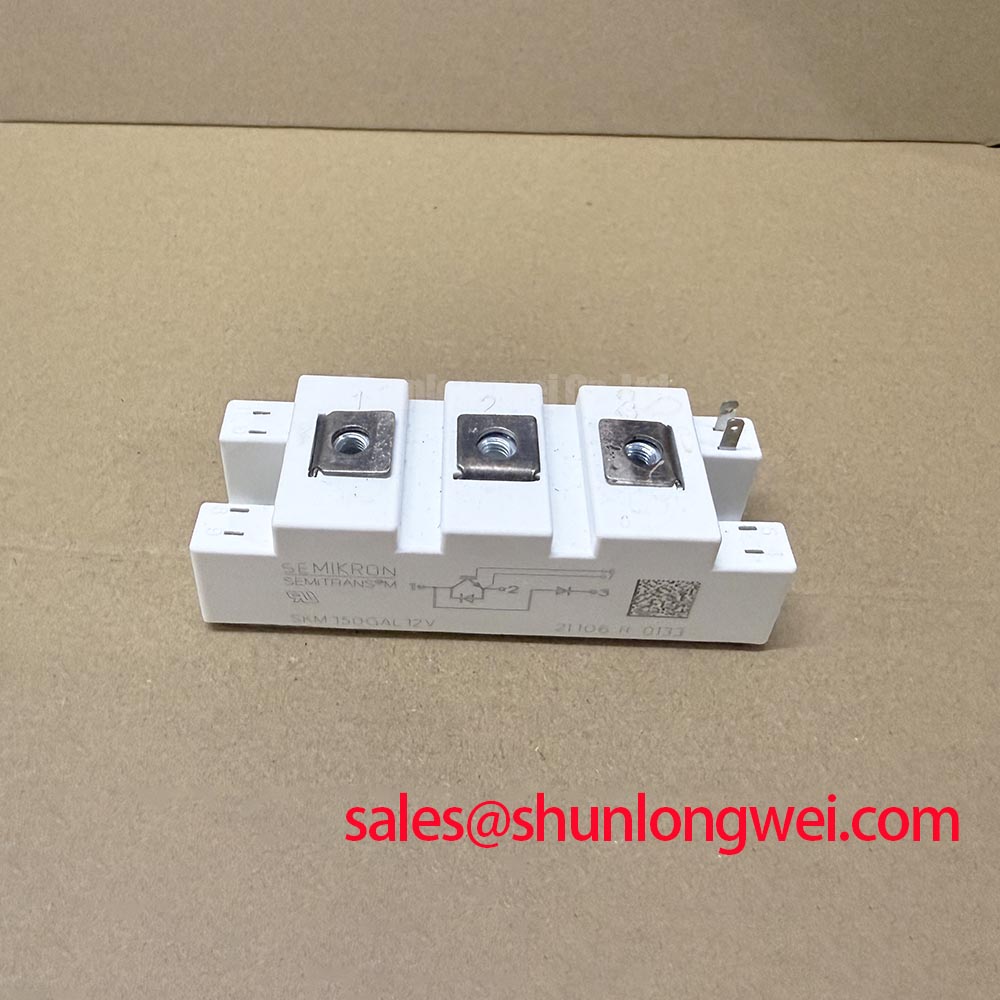

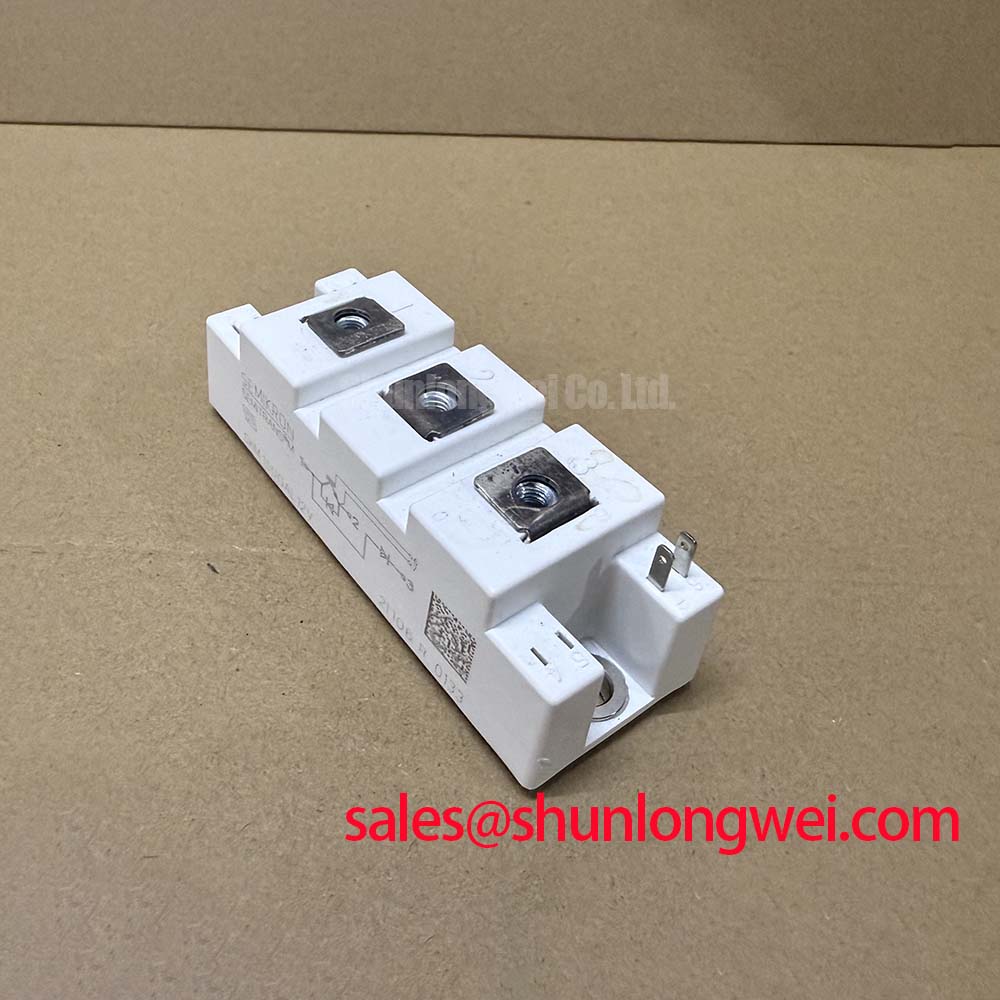

Semikron SKM150GAL12V IGBT Module

## SKM150GAL12V IGBT Module: Data-Driven Insights

### SEMITRANS 2 SKM150GAL12V: Efficiency-Focused Single Switch IGBT Module
The SEMITRANS 2 SKM150GAL12V is a single switch IGBT module engineered for high-efficiency power conversion systems demanding superior thermal performance and reliability. It delivers a robust specification set—1200V | 150A | VCE(sat) 2.2V (typ.)—to enable dependable operation. Key engineering advantages include exceptionally low switching losses and enhanced power cycling capability. This module directly addresses the challenge of minimizing energy dissipation in high di/dt applications by integrating advanced 6th generation V-IGBT technology with a soft-switching CAL4 diode, ensuring both performance and longevity.

### Technical Deep Dive: The Core of SKM150GAL12V's Performance
The SKM150GAL12V module's performance is anchored in its advanced semiconductor technology and thermal design. It incorporates a 6th Generation Trench V-IGBT from Fuji, paired with a 4th Generation CAL (Controlled Axial Lifetime) diode. This combination is specifically optimized for soft switching, which significantly reduces power loss during state transitions. What is the impact of a CAL4 diode on performance? It provides "soft" recovery characteristics, meaning it minimizes voltage overshoots and oscillations when the diode turns off, a critical factor in reducing EMI and improving the reliability of the entire power stage.

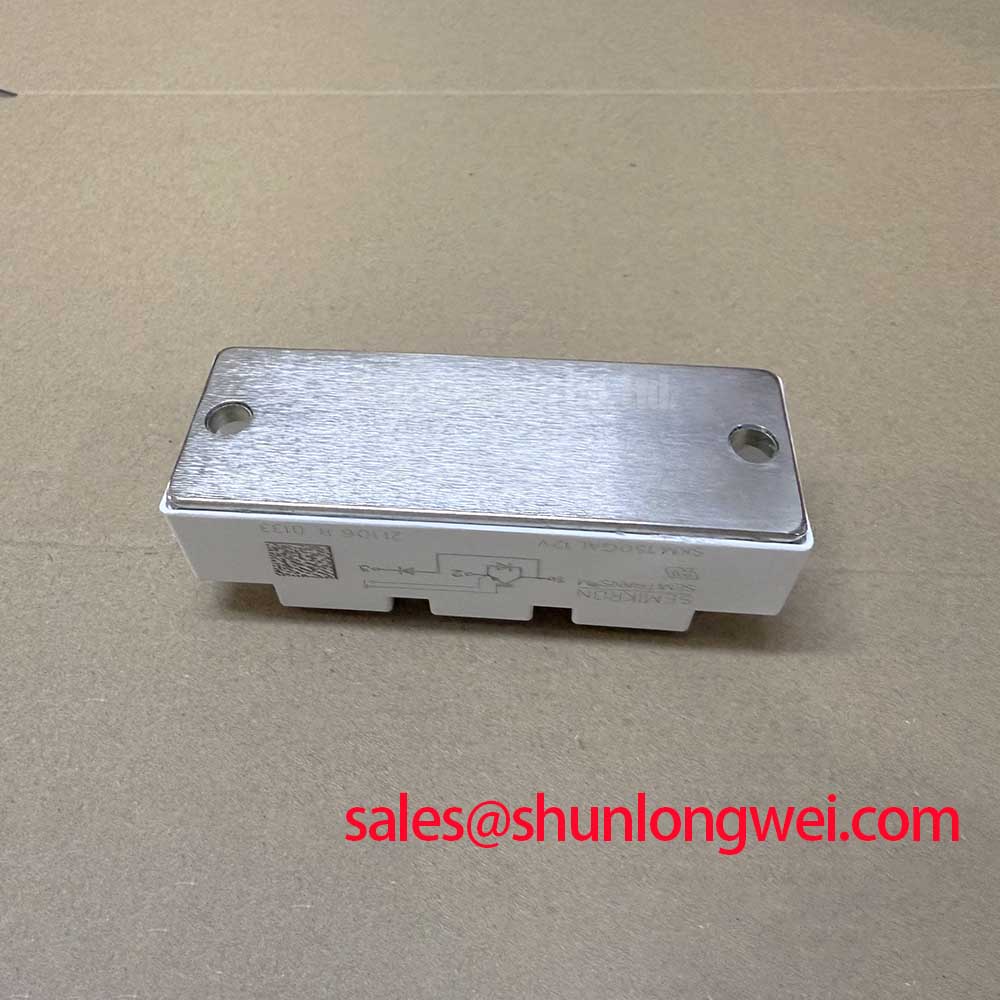

Furthermore, the module is constructed on an insulated copper baseplate using Direct Bonded Copper (DBC) technology. This construction method offers a low thermal resistance path, analogous to a wide, unobstructed pipeline for heat, allowing for efficient dissipation from the semiconductor chip to the heatsink. This superior thermal management is crucial for achieving the specified high power cycling capability, ensuring the device withstands repeated thermal stress over a long operational life.

### Data-Centric Comparison for Informed Selection
For engineers evaluating power modules, a direct comparison of key parameters provides the necessary data for an informed decision. The SKM150GAL12V is positioned within a family of modules designed for various power levels.

| Part Number | VCES (V) | ICnom (A) | VCE(sat) (typ. @ ICnom, 150°C) | Technology |
| :--- | :--- | :--- | :--- | :--- |
| **SKM150GAL12V** | 1200 | 150 | 2.20 V | V-IGBT Gen 6 + CAL4 Diode |
| SKM300GA123D | 1200 | 300 | 2.15 V | Trench IGBT Gen 3 |
| SKM150GB12V | 1200 | 150 | 2.20 V | V-IGBT Gen 6 + CAL4 Diode |

*Note: This comparison is for informational purposes only. All specifications should be verified from the official product datasheets.*

For applications where minimizing conduction losses at higher currents is the primary driver, the SKM300GA123D presents an alternative with double the nominal current rating. The SKM150GB12V offers a half-bridge configuration using the same advanced chip technology for inverter designs.

### Frequently Asked Questions (FAQ)

**What are the primary advantages of the CAL4 diode in the SKM150GAL12V?**
The soft-switching 4th Generation CAL diode is engineered to reduce turn-off losses and voltage overshoot. This leads to lower electromagnetic interference (EMI), reduces stress on the IGBT, and allows for more efficient operation, particularly in systems with high switching frequencies or high di/dt rates.

**What does the UL recognized file number E63532 signify for this module?**
The UL recognition (file no. E63532) indicates that the SKM150GAL12V has been tested by Underwriters Laboratories and meets their specific safety standards. This third-party certification is crucial for designers integrating the module into systems that require regulatory compliance for markets in North America and beyond, simplifying the end-product's certification process.

**How does the integrated gate resistor benefit the circuit design?**
The inclusion of an integrated gate resistor simplifies the external gate drive circuitry and helps to control the IGBT's switching speed. It is optimized to provide a balance between switching losses and voltage overshoot/EMI, reducing the need for additional external components and potentially saving board space and design time. For more in-depth guidance on this topic, a valuable resource is the article on 5 practical tips for robust IGBT gate drive design.

### Key Parameter Overview for the SKM150GAL12V

For a complete list of specifications, please download the official datasheet.

### Industry Perspective: Enhancing Reliability in Power Conversion
In industrial sectors like motor control and power conversion, long-term reliability is a key driver of total cost of ownership. The SKM150GAL12V addresses this through its design focused on power cycling capability. Power cycling failures, often caused by the thermal expansion mismatch between different material layers during temperature fluctuations, are a primary wear-out mechanism in IGBT Modules. By utilizing DBC technology on a copper baseplate, Semikron creates a mechanically robust module with improved thermal performance. This translates to an extended operational lifetime in applications subjected to frequent load changes, such as brake choppers in regenerative drives or DC-DC converters in renewable energy systems.

### Application Scenarios and Value Proposition
The SKM150GAL12V is engineered to excel in high-frequency and dynamic load applications where both efficiency and durability are critical.

* **Brake Choppers:** In motor drives, brake choppers dissipate regenerative energy. The module's low switching losses and high thermal cycling capability ensure efficient and reliable energy absorption during braking events.
* **DC/DC Converters:** For solar and energy storage systems, efficient power conversion is paramount. The module's optimized V-IGBT and CAL4 diode combination minimizes losses, maximizing the energy yield of the system.
* **DC Motor Drives:** The robust construction and reliable performance make it a suitable choice for controlling DC motors in industrial machinery, ensuring precise control and long service life.
* **Switched Reluctance Motors:** These motor types often involve high current ripple and demanding switching conditions. The SKM150GAL12V provides the necessary performance headroom to manage these challenging electrical loads effectively.

With its low VCE(sat) of 2.2V at 150°C, this module is the optimal choice for chopper applications where minimizing conduction losses under heavy load is the primary design goal.

For engineers seeking a deeper understanding of the foundational principles of these components, our guide on deconstructing the IGBT provides valuable context.

### Engineering Your Next Power System
To facilitate the integration of the SKM150GAL12V into your next project, our team is prepared to provide the necessary technical documentation and data to support your design and procurement processes. We encourage you to review the official datasheet to confirm that its performance characteristics align with the specific demands of your application. Contact us to discuss your system requirements and how this module can contribute to a more efficient and reliable power conversion solution.
