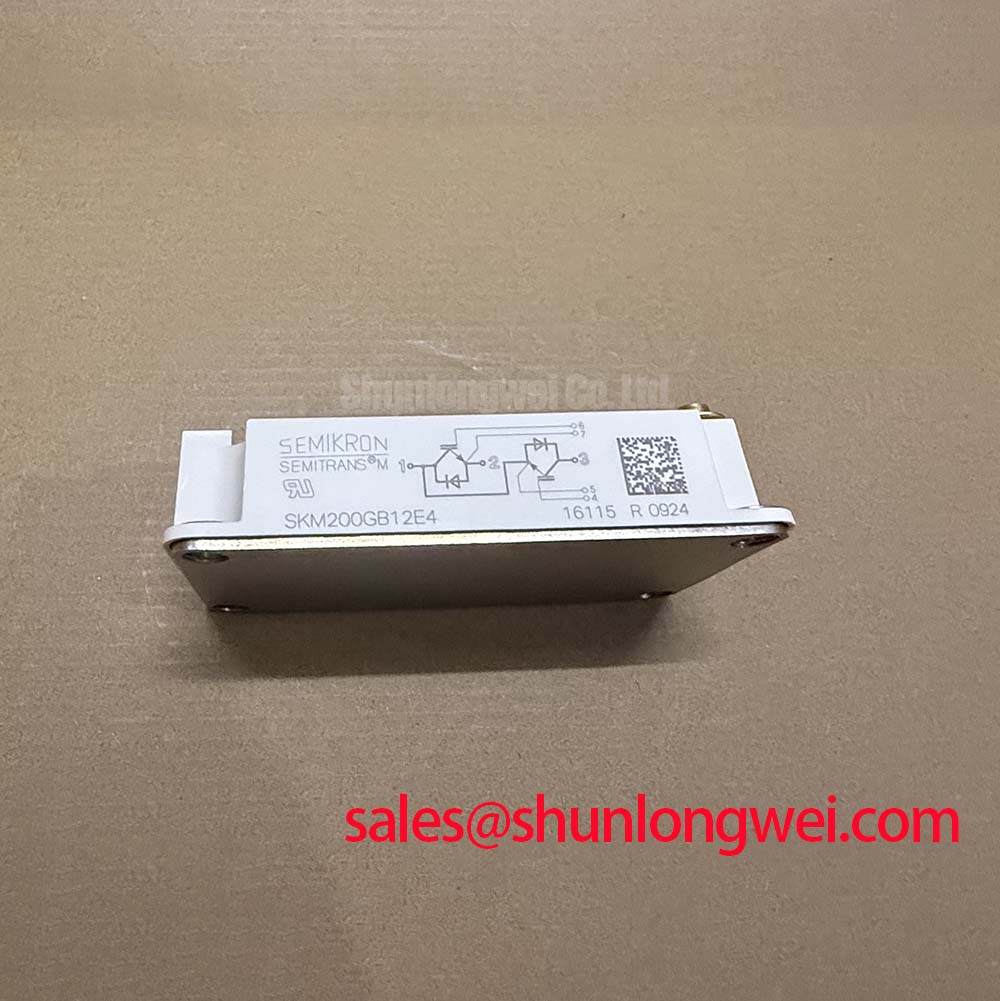

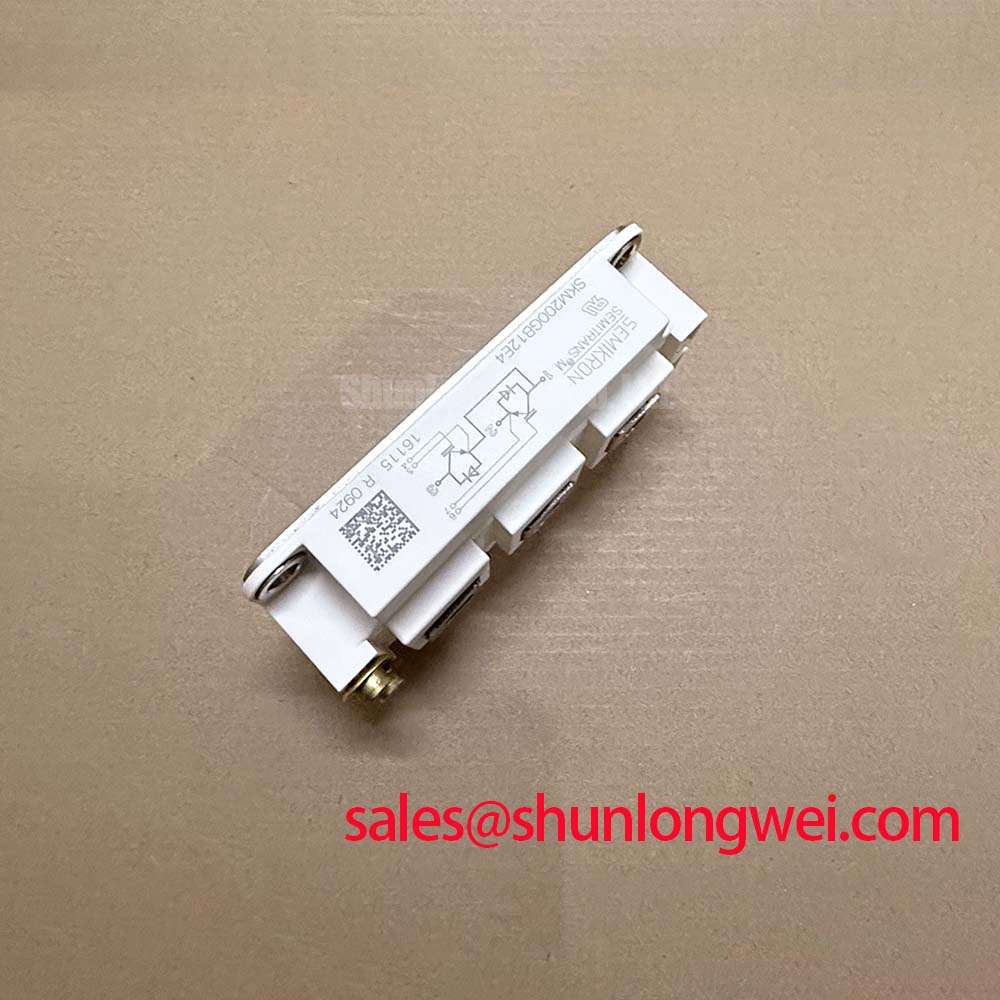

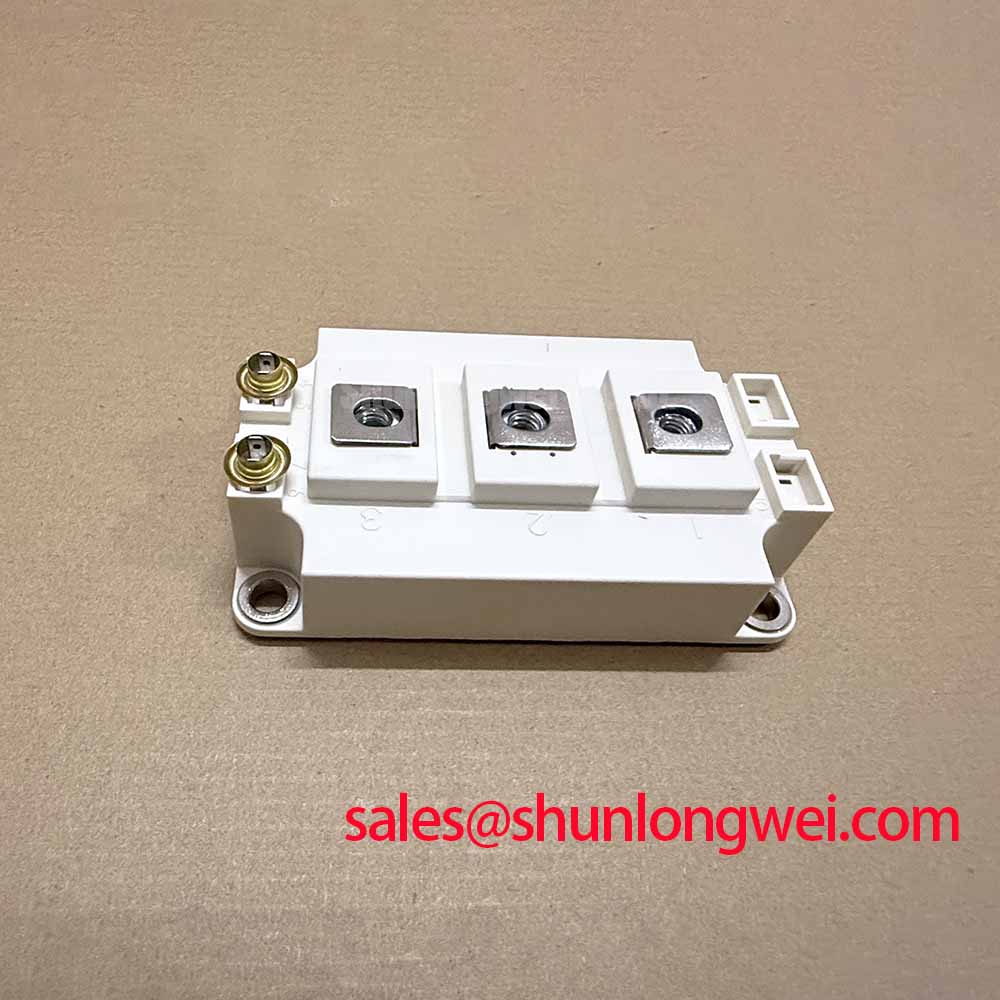

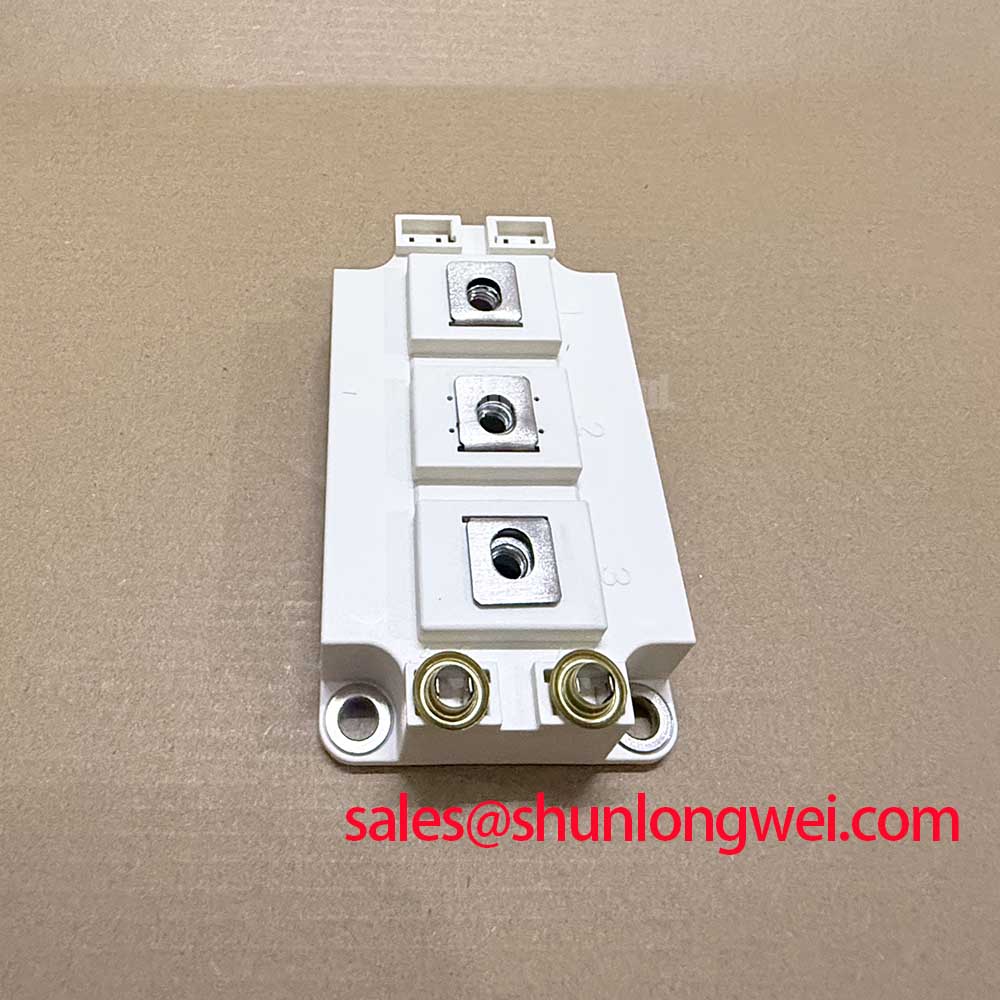

## Semikron SKM200GB12E4 | Robust 1200V Trench Fieldstop IGBT for High-Reliability Power Conversion
The Semikron SKM200GB12E4 is a workhorse 1200V, 200A half-bridge IGBT module designed for exceptional durability and performance in demanding power conversion systems. Housed in the industry-proven SEMITRANS® 2 package, this module combines mature, reliable technology with robust construction, making it a cornerstone for engineers developing high-power motor drives, uninterruptible power supplies (UPS), and welding equipment. It represents a pragmatic choice where reliability, thermal performance, and proven field history are paramount.
### Technical Deep Dive: The Engineering Behind the SKM200GB12E4
The performance of the SKM200GB12E4 is not accidental; it is the result of deliberate engineering choices in both silicon and packaging. Two key technologies stand out:
- Trench Fieldstop IGBT Technology: This module utilizes a 4th generation Trench Fieldstop (Trench FS) IGBT structure. Unlike earlier planar designs, the trench gate architecture allows for a higher channel density, significantly reducing the on-state voltage drop (VCE(sat)). The integrated "field-stop" layer provides a crucial benefit: it allows for a much thinner n-drift region without compromising the 1200V blocking capability. For the design engineer, this translates directly into a superior trade-off between conduction losses and switching losses, enabling higher efficiency, especially in hard-switching applications operating in the 5-20 kHz range.
- CAL (Controlled Axial Lifetime) Free-Wheeling Diode: Paired with the IGBT is a CAL free-wheeling diode, a technology pioneered by manufacturers like Semikron. The "soft" recovery characteristic of this diode is its most critical feature. It minimizes voltage overshoot and high-frequency oscillations during turn-off, which significantly reduces the electromagnetic interference (EMI) signature of the entire system. This simplifies the design and cost of external snubber circuits and filtering, a tangible benefit in complex systems like industrial servo drives.
### Application Focus: Where Reliability Meets Performance
The SKM200GB12E4's robust feature set makes it an ideal power switch for several high-stress industrial applications:
- Industrial Motor Drives: In variable frequency drives (VFDs), the module's low conduction losses enhance efficiency across a wide range of motor speeds and loads. The rugged SEMITRANS package and excellent thermal cycling capability ensure long operational life under the repetitive torque demands of conveyor systems, pumps, and fans.
- Uninterruptible Power Supplies (UPS): For mission-critical UPS systems, reliability is non-negotiable. The SKM200GB12E4's proven design, high short-circuit withstand time, and integrated NTC thermistor for temperature monitoring provide the layers of protection necessary to ensure continuous, clean power.
- Welding Power Supplies: Welding applications subject components to high-current pulses and demanding thermal loads. The module's high current rating and low thermal resistance from junction to case allow for effective heat dissipation, maintaining stability and performance even during intense operation cycles.
### Key Technical Specifications
Here is a summary of the critical parameters for the SKM200GB12E4. For comprehensive specifications and characteristic curves, please download the SKM200GB12E4 datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC,nom) | 200 A (@ Tcase = 80°C) |
| Collector-Emitter Saturation Voltage (VCE(sat), typ.) | 2.15 V (@ IC = 200 A, Tj = 25°C) |
| Gate-Emitter Voltage (VGES) | ±20 V |
| Maximum Junction Temperature (Tj,max) | 150 °C |
| Short-Circuit Withstand Time (tsc) | 10 µs (@ VCC ≤ 800 V, Tj ≤ 125°C) |
| Package | SEMITRANS® 2 |
### Frequently Asked Questions (FAQ)
How does the integrated NTC thermistor benefit my design?
The integrated NTC (Negative Temperature Coefficient) thermistor provides a direct, real-time measurement of the module's baseplate temperature. This data is crucial for implementing a precise thermal protection scheme in your controller. It allows the system to trigger alarms, derate power, or perform a safe shutdown if the module approaches its thermal limits, preventing catastrophic failure and enhancing the overall system's long-term reliability. Effective thermal management is fundamental to power electronics design.
What are the key considerations for paralleling the SKM200GB12E4?
While this module is capable of being paralleled for higher current output, careful design is essential. The positive temperature coefficient of VCE(sat) in Trench FS IGBTs provides a degree of self-balancing for static current sharing. However, dynamic sharing during switching is highly dependent on a symmetrical gate drive layout and busbar design. Ensure that the gate drive traces to each module are of equal length and impedance. A low-inductance, laminated busbar structure is strongly recommended to minimize stray inductance mismatches, which can cause unequal current distribution and potential failure.
For expert guidance on selecting the right IGBT modules for your specific application or for support with your power stage design, please contact our technical team.
