Semikron SKET400/18E | Robust High-Voltage Thyristor/Diode Module for Industrial Power Control

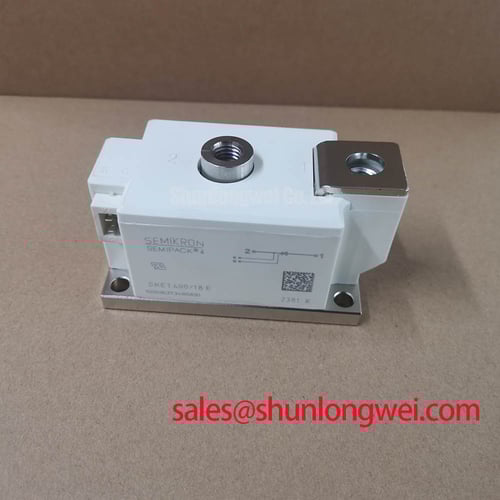

The Semikron SKET400/18E is an engineering workhorse, a power module designed not for finesse but for formidable control and unwavering reliability in high-stress industrial environments. As part of the venerable SEMIPACK® 3 family from Semikron, this module integrates a high-power thyristor (SCR) and a diode in series, providing a fundamental building block for robust AC and DC power conversion systems.
Application Scenarios & Engineering Value
The true value of the SKET400/18E is realized in applications where precise, line-frequency control and bulletproof durability are paramount. Its design directly addresses the challenges faced by engineers in several key areas:
- Controlled Rectifiers: In industrial battery charging systems, electroplating, and DC power supplies, this module enables the creation of efficient half-controlled or fully-controlled bridge rectifiers. The thyristor allows for phase-angle control, giving engineers precise command over the output DC voltage and current, a feat not achievable with simple diode bridges.
- AC Soft Starters: The high inrush current of large induction motors can cause significant electrical and mechanical stress. By integrating the SKET400/18E into a soft starter circuit, engineers can gracefully ramp up the voltage supplied to the motor. This minimizes voltage sag on the power line, reduces torque shock on gearboxes and couplings, and extends the operational life of the entire motor-driven system.
- DC Choppers: For high-power DC motor drives or heating element control, this module can be configured as a DC chopper. It effectively regulates the power flow to the load, providing a cost-effective solution for variable speed or temperature control in demanding DC circuits.
Technical Deep Dive: The Foundation of Reliability
Beyond its basic function, the SKET400/18E's design incorporates features that translate directly into system-level benefits. Understanding these elements is key to appreciating its role in modern power electronics.
The SEMIPACK® 3 Advantage
The industry-standard SEMIPACK® 3 package is a cornerstone of this module's reliability. Its robust mechanical construction and isolated baseplate (rated for 3000V) simplify system assembly by allowing multiple modules to be mounted on a common heatsink without cumbersome external insulators. This not only saves space but also improves thermal transfer efficiency. The use of an Alumina (Al2O3) ceramic Direct Bonded Copper (DCB) substrate provides excellent thermal conductivity while ensuring high electrical isolation, a critical factor in preventing catastrophic system failures.
Integrated Thyristor/Diode Topology
Integrating a thyristor and a freewheeling diode into a single package offers more than just component reduction. This pre-configured topology is optimized for performance, ensuring the characteristics of the diode are perfectly matched to the thyristor's switching behavior. This reduces parasitic inductance, simplifies gate drive layout, and provides a more predictable and reliable building block for rectifier and chopper circuits compared to using discrete components.
Key Parameter Overview
For engineers, at-a-glance data is crucial for initial design considerations. The SKET400/18E delivers the high-current and high-voltage capabilities required for heavy industrial loads.
| Parameter | Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM, VRRM) | 1800 V |
| Average On-State Current (ITAV @ Tc=85°C) | 400 A |
| Surge On-State Current (ITSM) | 10500 A |
| Threshold Voltage (VT0) | 0.9 V |
| On-State Slope Resistance (rT) | 0.85 mΩ |
| Thermal Resistance, Junction-to-Case (Rth(j-c), Thyristor) | 0.080 °C/W |
| Isolation Voltage (Visol) | 3000 V (RMS) |
For a comprehensive list of specifications and performance curves, please download the official SKET400/18E datasheet.
Frequently Asked Questions (FAQ)
How does the SKET400/18E differ from an IGBT module?
This is a critical distinction. The SKET400/18E, being a thyristor-based module, is a line-commutated device primarily used for phase-angle control at mains frequencies (50/60 Hz). It excels at controlling large blocks of AC or rectified DC power. In contrast, an IGBT module is a high-frequency switch controlled by a gate signal, used in Pulse-Width Modulation (PWM) applications like variable frequency drives (VFDs) and solar inverters to synthesize complex waveforms. They serve different purposes in the power conversion chain.
What are the critical mounting considerations for this module?
Proper thermal management is essential. To achieve the specified low Thermal Resistance, the heatsink surface must be flat (typically better than 25µm over the module footprint) and clean. A thin, uniform layer of high-quality thermal interface material (TIM) should be applied. Most importantly, the mounting screws must be tightened to the torque specified in the datasheet to ensure intimate contact between the module baseplate and the heatsink without inducing mechanical stress.
For assistance with your power control design or to determine if the Semikron SKET400/18E is the optimal choice for your application, please contact our technical team for expert consultation.
