SKD116/18-L75 Semikron 1800 V 116 A Bridge Rectifier Module

Content last revised on October 12, 2026

Transient Dynamics & Electrical Design: Junction-to-Heatsink Heat Dissipation on SKD116/18-L75

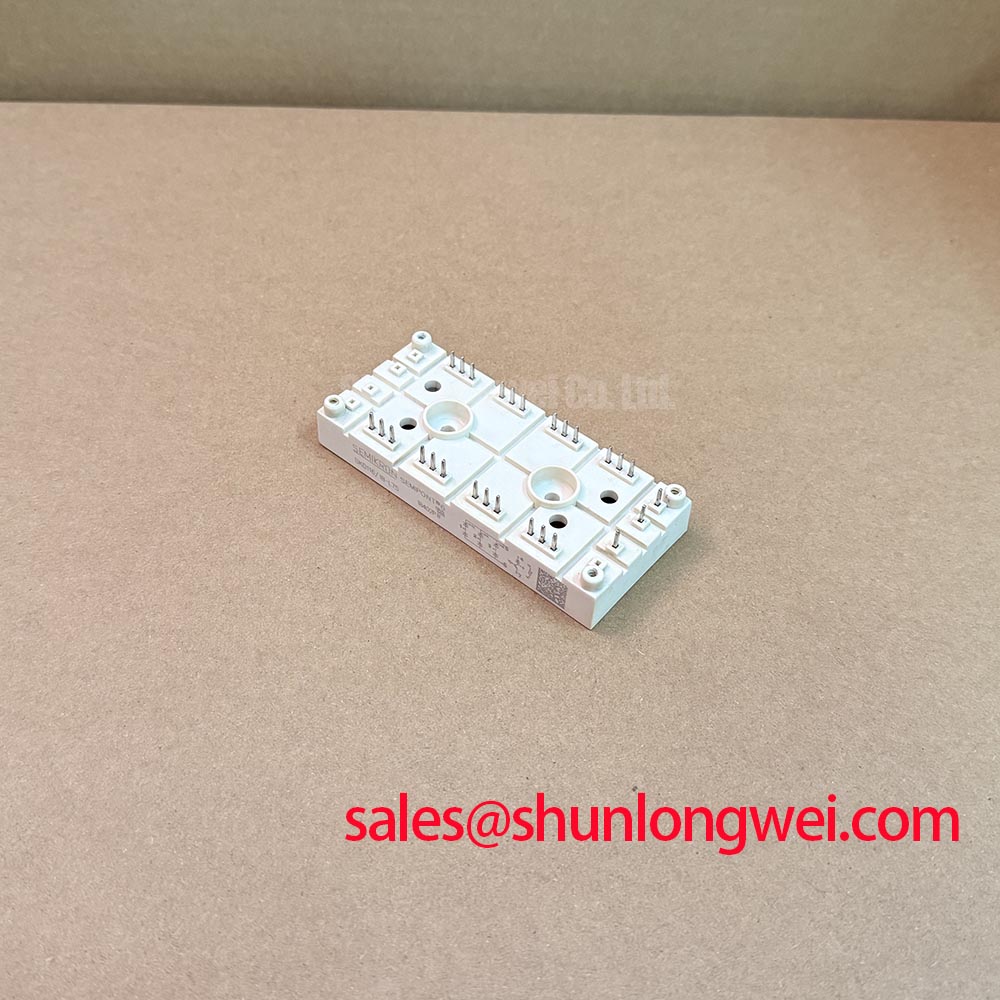

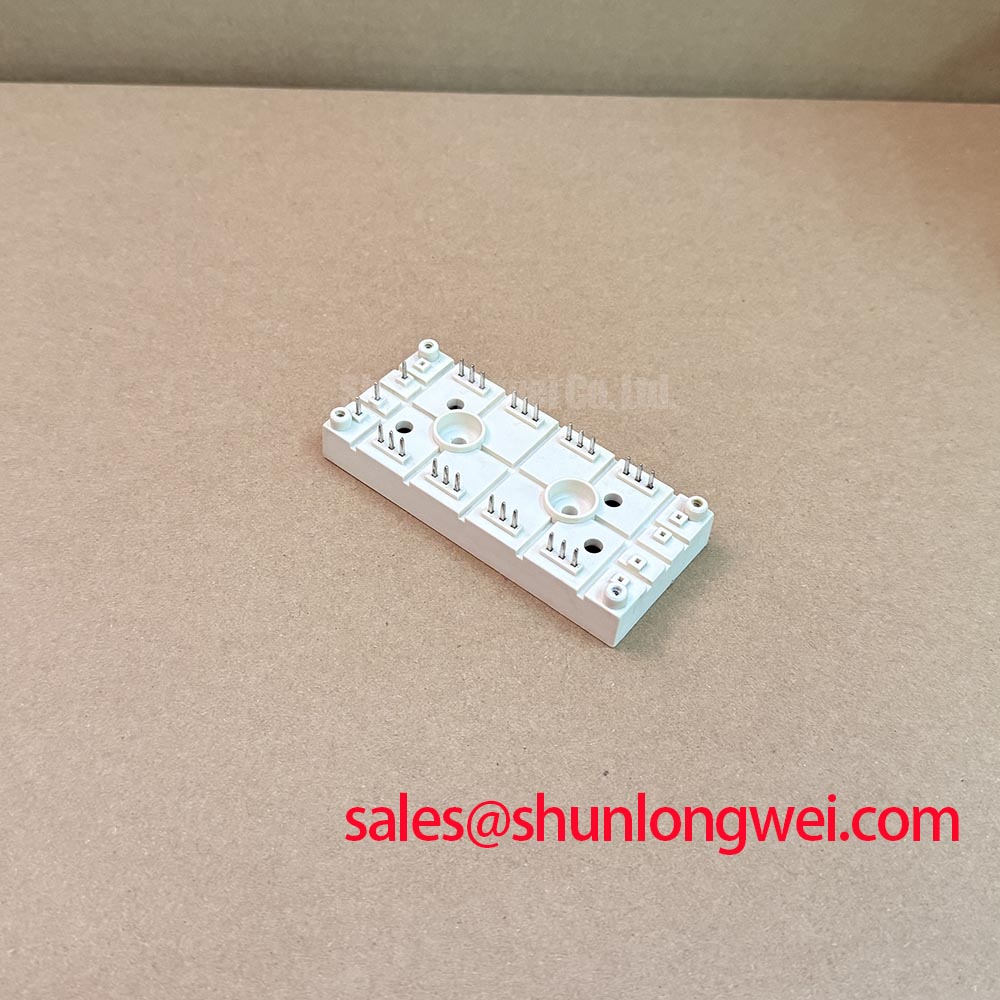

With the cabinet isolated and discharged, first compare the installed nameplate against SKD116/18-L75, then inspect its SEMITOP 3 housing, terminals, mounting face, and connected busbar hardware before removing any conductors. This Semikron bridge rectifier module is officially rated at Vrrm 1800 V, Id 116 A at the specified case temperature, and Ifsm 1000 A at 10 ms. Its stated junction-to-sink thermal resistance is Rth(j-s) 0.05 K/W.

A cold-state multimeter check can identify a clearly abnormal bridge path before power is restored, but it cannot prove switching performance, surge capability, insulation condition, or thermal integrity under load. Record meter polarity, measured junction paths, and the original circuit connection before disconnecting the unit. A comparison with an undamaged, correctly identified assembly is more useful than applying a universal diode-drop acceptance value.

The useful starting point is the mechanical and electrical boundary of the actual module. The 1800 V repetitive reverse-voltage rating is an Official Datasheet Specification, not a statement of the allowable DC link, commutation overshoot, or surge margin in a completed converter. The 116 A DC output-current value is also conditional on the specified case-temperature test condition. The surrounding cooling path, rectifier waveform, load profile, enclosure temperature, and heatsink condition determine whether the installed assembly remains within its required junction-temperature limits.

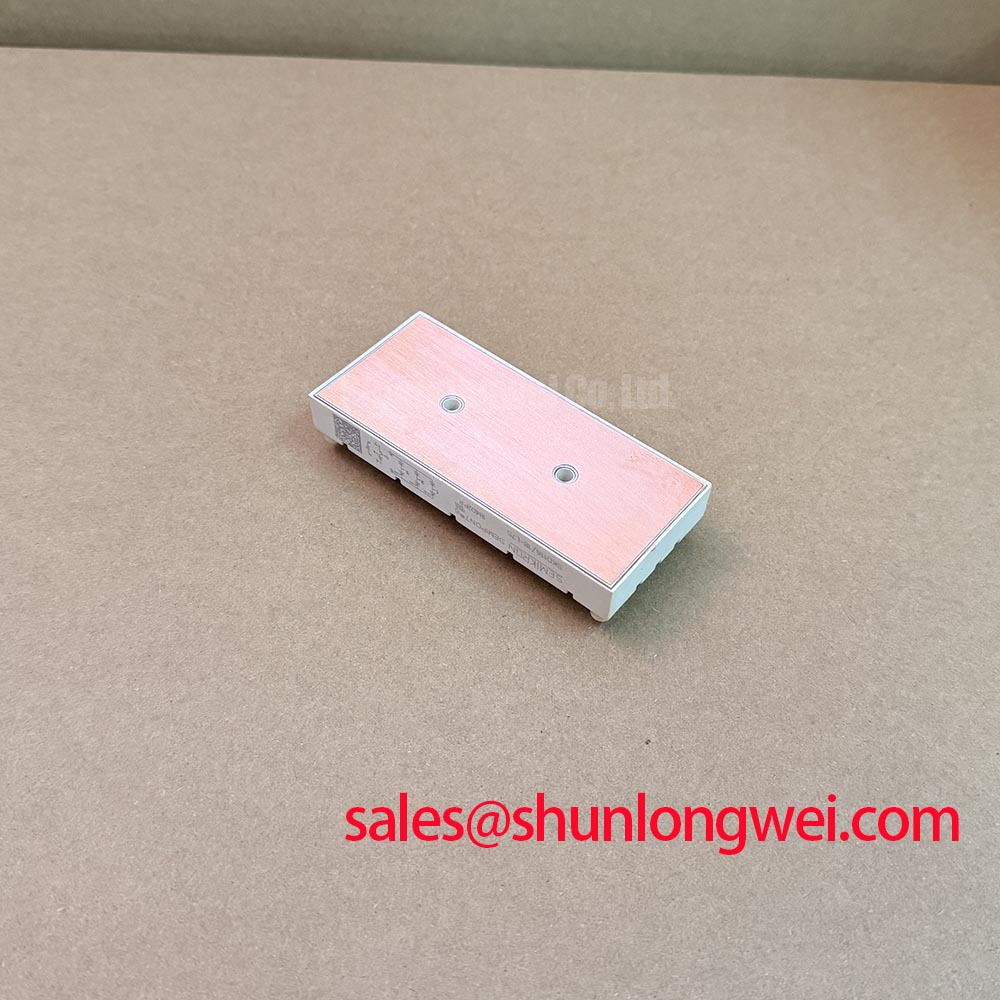

For equipment recovery work, clean the heatsink interface and inspect it under direct light for raised burrs, embedded debris, old compound ridges, or local corrosion. These defects can hold part of the SEMITOP 3 base away from the cooling surface. Apply thermal interface material as required by the equipment documentation and tighten the module using the specified mounting sequence so clamping pressure develops evenly. Excessive local force can distort a package or damage mounting hardware, while uneven force can leave a thermally resistive contact area even when the module appears firmly installed.

Field Alert: Isolate and discharge the DC link before touching bridge terminals, and use the equipment-specified fastener torque with an even, thin thermal interface layer rather than tightening one mounting point fully before the others.

The stated 0.05 K/W Rth(j-s) is the official junction-to-sink thermal-resistance figure. It should be treated as one segment of the thermal path, not as a complete junction-temperature model. The heatsink thermal resistance, interface behavior, airflow or liquid-cooling condition, and load duty are system-dependent inputs. A Design Consideration is to compare heat-sink temperature during a controlled run with the machine's known-good operating record, then investigate blocked coolant passages, failed fans, loose thermal hardware, or altered load duty if temperatures diverge.

At the power terminals, confirm conductor orientation, terminal contact area, insulation clearance, and the absence of discolored hardware before applying power. A high-resistance busbar joint can generate heat outside the module and present as a rectifier fault. The bridge should be evaluated with its associated fuse, contactor, precharge arrangement, transformer secondary, and DC-link capacitors, because a downstream fault or abnormal charging sequence can impose severe stress on a healthy rectifier.

For a medium-frequency induction melting or hardening furnace power supply, this module can be assessed as a bridge-stage replacement only after the original electrical ratings, terminal arrangement, mounting footprint, and cooling arrangement have been confirmed. This is a compatibility assessment, not an assertion that the module is dedicated to every furnace topology.

SKD116/18-L75 Thermal-Electrical Optimization: Critical Rate of Rise of Off-State Voltage Practical Tuning

Do not assign an off-state voltage rate-of-rise limit to SKD116/18-L75 from a generic rectifier rule. No such numerical limit is included in the provided official parameter set. When a rectifier shares a power stage with rapidly switched circuitry, ringing at transformer leakage inductance, busbar inductance, capacitor impedance, and commutation paths can elevate terminal stress. The practical task is to measure the relevant waveforms with suitable high-voltage differential measurement equipment and verify peak conditions against the module's 1800 V Vrrm rating and the complete system design requirements.

An RC suppression network and any series saturable reactor belong to the wider converter design. Their values cannot be responsibly prescribed from the bridge module's voltage and current ratings alone. As a Design Consideration, engineers can use waveform capture to identify whether repetitive ringing coincides with switching transitions, transformer-secondary commutation, or contactor events. They should then examine the existing snubber connections, capacitor condition, lead routing, grounding arrangement, and original control-board settings before revising any network.

Keep the rectifier current loop compact where the machine architecture permits it, because distributed inductance between the transformer secondary, bridge terminals, DC-link capacitor, and suppression components changes the observed transient. This is not a request for a universal layout dimension. The required loop geometry depends on equipment spacing, current path, insulation requirements, mechanical service access, and measured switching behavior. Peak margins should be validated in the installed system during controlled testing rather than inferred from component placement alone.

A metal-oxide varistor may be part of an existing overvoltage-control arrangement, but its selection, coordination, energy capability, and failure mode must be checked at equipment level. The bridge's official 1800 V reverse-voltage rating does not establish a suitable MOV clamp voltage. Verify the original circuit documentation and inspect whether the suppression device, its fuse path, and its connection conductors remain intact. A visibly damaged MOV or a deteriorated snubber capacitor can indicate a broader transient event; neither observation independently establishes root cause.

Driver-board optical isolation or digital isolation is relevant where the furnace power system uses controlled semiconductor stages near the bridge. Common-mode transient immunity is a property to verify from the driver and isolator documentation, not a rating that can be assigned to this passive bridge rectifier module. Review isolation supply return paths, gate-drive reference routing, shielding strategy, and measured common-mode disturbance when unexplained control resets or erroneous switching appear during high-energy operation.

For repair planning, a physically similar Semikron module such as SKD82/18 should be treated as a separate item requiring a documented comparison of electrical ratings, terminal arrangement, package dimensions, cooling interface, and original circuit requirements. A lower current designation alone does not establish interchangeability.

Benchtop Waveform Tuning: Mitigating Stress via Minimizing Commutation Turn-Off Voltage Sp on SKD116/18-L75

Before bench energization, verify every bridge connection against the original schematic, particularly the AC input terminals and positive and negative DC outputs. A bridge installed with one transformer-secondary connection misplaced can create a damaging fault immediately at energization. Use a controlled commissioning procedure appropriate to the machine, with protection components and current-limiting arrangements retained as defined by the equipment manufacturer or system engineer.

The provided official specifications do not state reverse-recovery peak current, reverse-recovery time, softness characteristic, forward voltage, junction-to-case thermal resistance, or an allowable switching-frequency limit for this exact module. Those values must not be estimated or presented as SKD116/18-L75 facts. When commutation-related stress is suspected, measure the actual voltage and current paths with correctly rated probes and compare the results to the original approved waveform, where available.

Voltage overshoot at commutation can be influenced by transformer leakage behavior, DC-link capacitor condition, interconnect geometry, snubber performance, and the switching state of connected power semiconductors. It may also be affected by measurement setup. A long probe ground lead or an unsuitable measurement point can display ringing that is not representative of the terminal condition. Engineering Recommendation: use a measurement method that preserves bandwidth, voltage rating, safety clearance, and a short measurement loop, then corroborate the result at a known-good test point.

Thermal behavior should be reviewed alongside waveform quality. A system can exhibit acceptable average current while repeated transient events create localized semiconductor heating. The official 1000 A at 10 ms Ifsm rating is a surge-current specification under stated conditions; it is not a permitted repetitive operating current and does not define recovery behavior after arbitrary fault events. After a suspected surge, inspect fuses, transformer terminals, DC-link connections, cooling surfaces, and all bridge paths before deciding that the bridge alone caused the shutdown.

Semikron's sintering technology information provides manufacturer context on thermal packaging technology. It does not replace the exact product documentation or establish unstated internal construction for SKD116/18-L75. For system-level understanding of semiconductor operating principles and power-stage fault mechanisms, consult The Ultimate IGBT Knowledge Base while keeping the diode-bridge evaluation tied to this module's published ratings.

SKD116/18-L75 Thermal-Electrical Optimization: I2t Sub-Cycle Melting Rating Practical Tuning

Fuse coordination must begin with the fuse manufacturer's time-current and pre-arcing I2t data, plus the protected circuit's prospective fault current and clearing conditions. The supplied official data for SKD116/18-L75 gives Ifsm 1000 A at 10 ms, but does not provide a module I2t withstand rating, a recommended fuse family, or a fuse clearing-energy limit. A fuse I2t calculation cannot therefore be completed from the available module data without inventing a device parameter.

For a dead-short investigation, document the fuse part number, its installation orientation, the conductor condition, and the event sequence recorded by the machine controller or protection relay. A ruptured fuse may result from a downstream short, bridge failure, capacitor failure, transformer fault, contactor event, or an unsuitable coordination condition. The corrective path is to test each power-stage section under the equipment's approved service method, rather than replacing only the visibly affected component and reapplying full power.

The 1000 A at 10 ms surge figure supports comparison with a fault or inrush event only when the waveform, duration, initial temperature, repetition, and mounting condition have been established. A single nonrepetitive surge test condition cannot be expanded into a service-life prediction, a repetitive overload approval, or a claimed fault-survival factor. Where multiple bridges are used in parallel, static and dynamic current sharing depend on the actual circuit symmetry, connection resistance, thermal environment, and individual device characteristics. Designers should validate sharing under the intended waveform and thermal conditions.

A practical service sequence is to isolate the converter, verify stored energy has been removed, inspect the bridge terminals and cooling interface, check the AC source and DC output paths for abnormal continuity, and confirm fuse data against the original equipment design. Reinstall the module only after the mounting surface, electrical connections, protective components, and control interlocks have been checked. Information from the Semikron-Danfoss official power electronics hub can help identify manufacturer technical resources, while final protection coordination remains a system-level engineering responsibility.
