Preventing Spurious Faults: High-Frequency Commutation Loop Inductance Guidelines for SKIM200GD126D

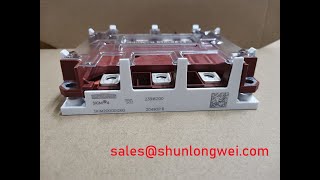

The SKIM200GD126D is a Semikron IGBT Module in a SKiM Module housing, with a six-pack, three-phase bridge configuration. The following supplied official specifications establish its identification and primary electrical ratings; switching conditions, terminal assignments, and mounting requirements belong to the corresponding manufacturer documentation.
| Specification | Official Specification |
|---|---|
| Manufacturer | Semikron |
| Part Number | SKIM200GD126D |
| Collector-Emitter Voltage (Vces) | 1200.0 V |
| Continuous Collector Current (Ic) | 200.0 A |
| Package | SKiM Module |
| Configuration / Topology | IGBT Power Stage |
| Bridge arrangement | Six-Pack (Three-Phase Bridge) |
| Detailed integration parameters | Consult Datasheet |
- Isolate the equipment, discharge the DC link, and verify absence of voltage before checking the main terminals.
- Compare cold diode-check readings across corresponding bridge positions with the gate connections controlled against accidental charging.
- Inspect the heatsink contact surface, mounting hardware, and thermal interface for contamination or uneven seating.
- Check the gate-driver wiring and fault-history records before reconnecting the power stage.
Trace the switching-current path between the local DC-link capacitor and bridge terminals before attributing intermittent trips to the module. As a Design Consideration, overlapping outgoing and return conductors can reduce loop inductance, but terminal access, electrical clearance, and mechanical support must remain adequate for the equipment’s operating conditions.
An Engineering Calculation expresses the approximate turn-off peak as Vpeak = VDC + Lσ × (di/dt), linking overshoot to stray inductance and current slew rate. This relationship guides waveform interpretation rather than establishing a fixed allowable busbar inductance. Measure collector-emitter voltage with a suitable differential probe and short connections; distinguish actual ringing from probe-loop pickup before changing the layout.
For snubber assessment, consider measured transient energy, capacitor pulse-current capability, connection inductance, and dissipation together. The Navigating the Trade-Off Between Snubber Capacitor Selection and Efficiency Loss Engineering Guide provides related selection context. Gate-driver common-mode transient immunity also deserves attention when trips coincide with switching edges; inspect driver supply integrity and signal-return routing rather than assuming semiconductor damage.
Field Diagnostics & Commissioning: Pre-Installation Junction Health Check for SKIM200GD126D Topologies
Disconnect parallel circuit paths before using a multimeter’s diode-check function across the identified bridge terminals. Under an Engineering Recommendation, compare corresponding antiparallel-diode paths with consistent probe polarity and temperature, while preventing unintended gate charging. An unusual reading warrants isolation and further investigation; it does not establish a failure mechanism by itself.
A multimeter can reveal gross gate-emitter shorts, but it cannot certify gate leakage at the manufacturer’s specified test conditions or establish switching health. If the equipment labels a fault signal “Fo,” trace that signal through the driver schematic; do not assume it is a dedicated terminal on this module. Preserve the original fault sequence before resetting the controller.
Before installation, check that mating surfaces are clean and that the thermal interface material is compatible with the assembly. Bond-line thickness and fastening sequence should follow the applicable mounting instructions, not a generic grease thickness or torque. Apply the specified sequence progressively with calibrated tooling where required, keeping the housing seated without forcing misaligned mounting points.
SKIM200GD126D Operational Boundaries: Evaluating Type-2 Coordination: Protecting IGBT Module Limits
Review semiconductor-fuse clearing behavior alongside the driver’s fault-detection and turn-off response. As a Design Consideration, fuse total clearing I²t alone does not establish IGBT short-circuit survival: semiconductor stress also depends on instantaneous voltage, current, junction temperature, and protection delay. Fuse interruption and electronic protection perform different functions.
Type-2 coordination is an equipment-level assessment, not a property established by the module’s nameplate. Evaluate the protective arrangement against applicable equipment requirements and documented tests; neither successful fuse operation nor a current rating guarantees that a damaged module housing remains intact.
For compatibility evaluation, commercial string inverters and micro-grid energy-storage converters require checks of bridge connections, driver behavior, cooling, and protection. A comparison with SKM800GA126D should examine topology and interfaces before replacement suitability. Likewise, SKM75GB12V is a separate power-module reference for reviewing other converter stages, not an assumed rectifier or interchangeable companion.
Transient Dynamics & Electrical Design: Heatsink Surface Flatness and Thermal Grease on SKIM200GD126D
Inspect the heatsink mating area for burrs, embedded debris, corrosion, and distortion before applying fresh thermal interface material. As an Engineering Recommendation, assess contact geometry against the assembly drawing rather than assuming a copper baseplate or a prescribed convex profile. Avoid using bolt force to pull an uneven assembly flat.
Record temperature trends under comparable load and cooling conditions so maintenance decisions reflect changes in the installed assembly. Inspect thermal compound during planned removal for displacement or deterioration, and check terminal joints using the approved service procedure. Inspection intervals should follow operating conditions and equipment history, including dust accumulation and condensation exposure.
Maintenance Note: Monitor terminal temperature trends and keep the cooling airflow clear during scheduled service.
Use the Semikron-Danfoss Power Modules Catalog to locate manufacturer product information when matching housing and mounting documentation. After reassembly, check seating, conductor strain, and cooling performance before restoring the equipment’s normal load profile.
