Semikron SKKE81/08 | Robust 800V Rectifier Diode Module for Industrial Power Conversion

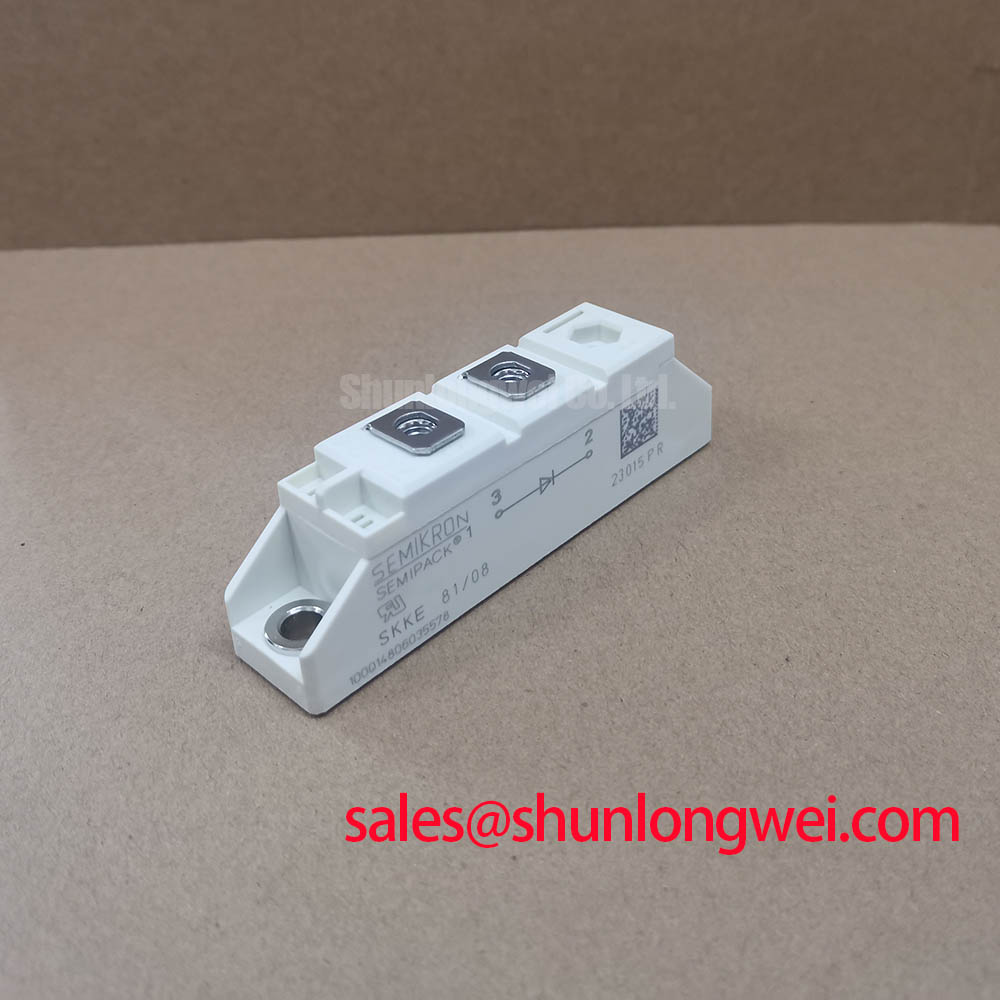

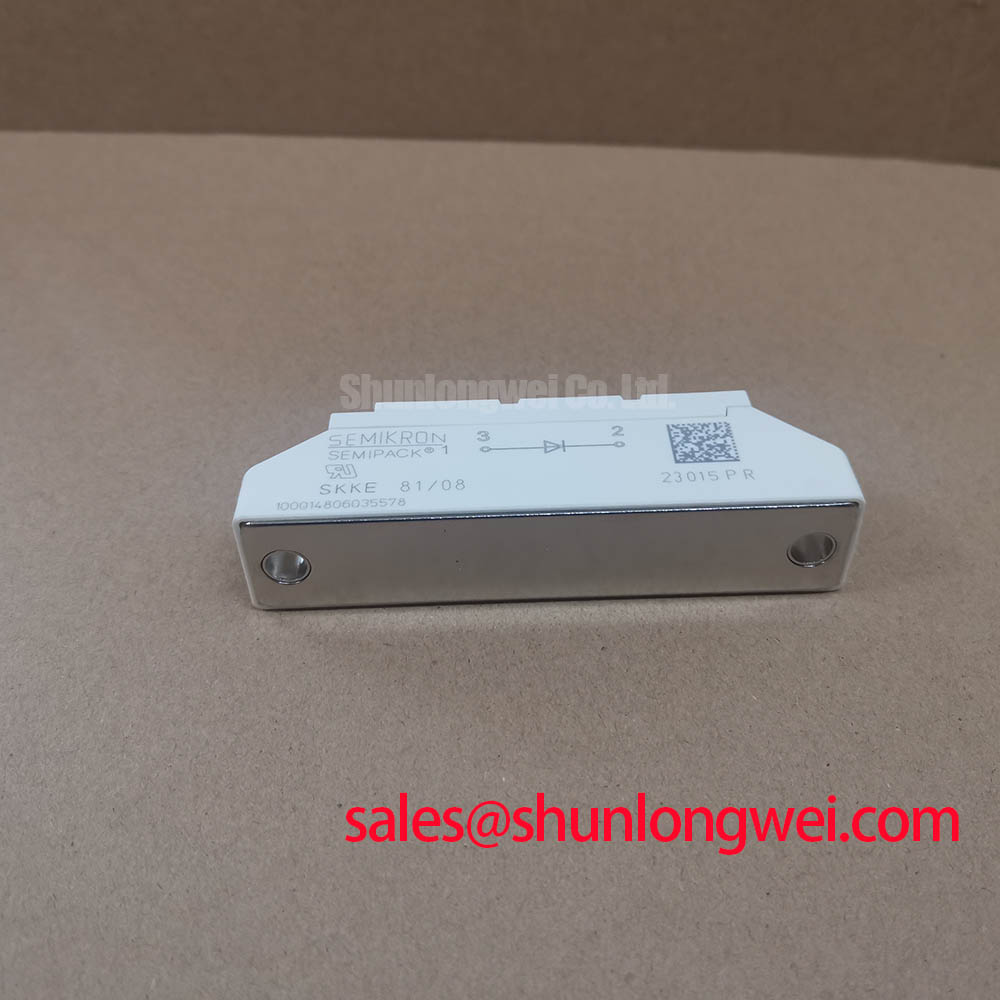

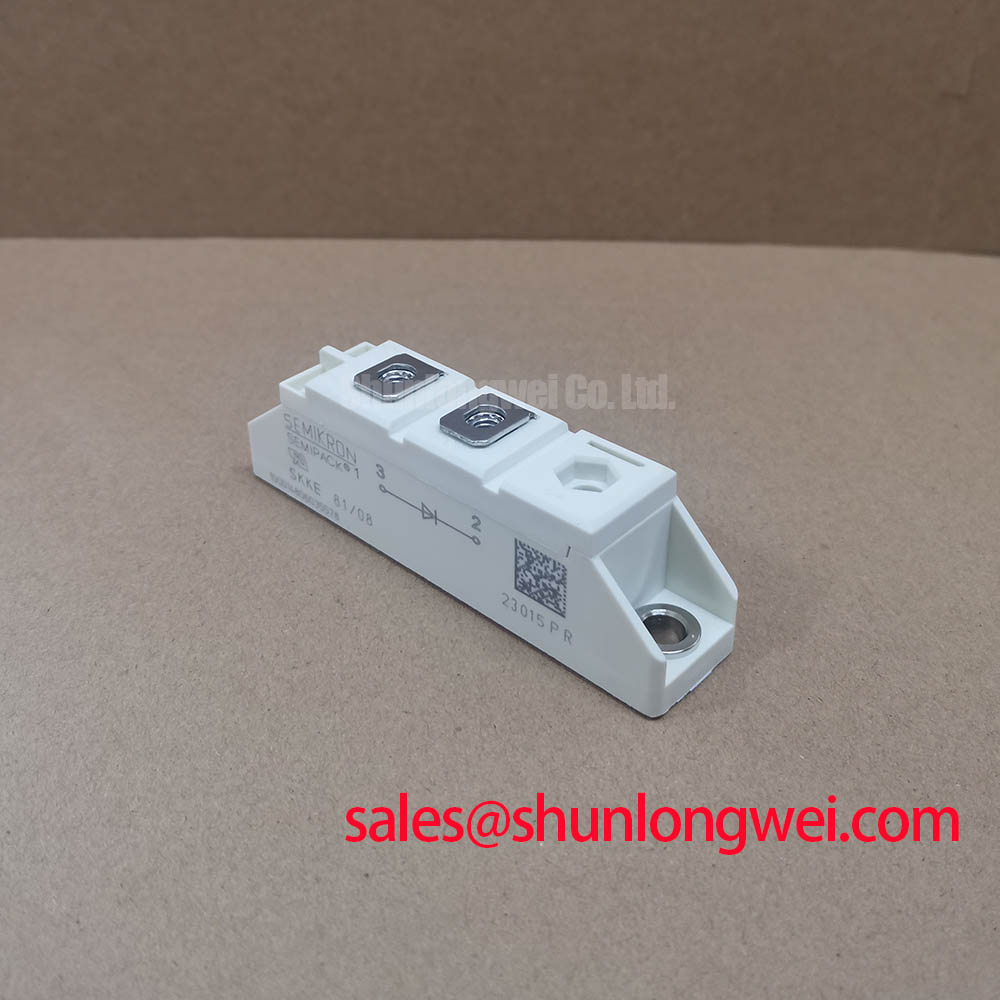

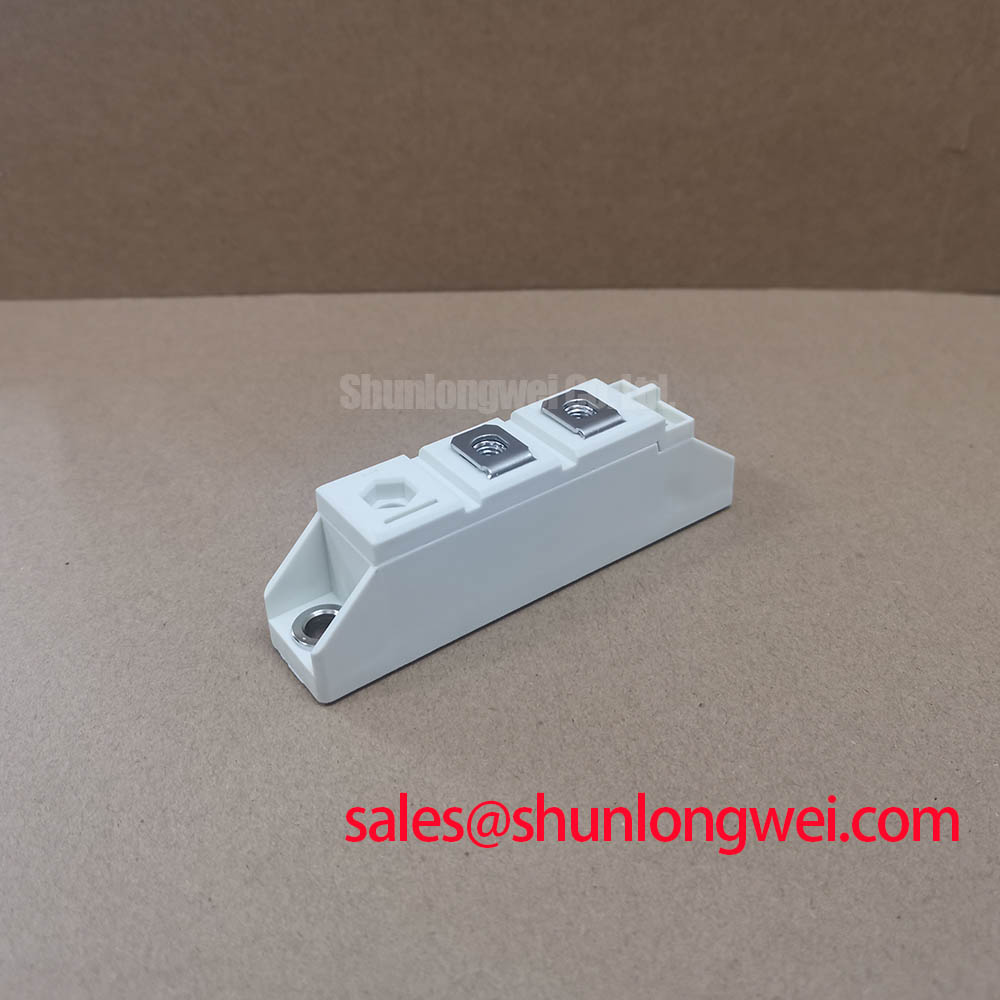

The Semikron SKKE81/08 is an 800V, 82A dual diode module engineered for reliability and performance in demanding industrial power electronics applications. Housed in the industry-proven SEMIPACK® 1 package, this module provides a rugged, electrically isolated solution for front-end rectification, DC power supplies, and field supply circuits. Its design prioritizes thermal efficiency and long-term stability, making it a cornerstone component for any system requiring dependable AC-to-DC conversion.
Product Highlights: The Engineering Edge
- High Power Density: Delivers a continuous forward current (IFAV) of 82A with a repetitive peak reverse voltage (VRRM) of 800V, suitable for 230V and 400V AC line applications.
- Robust SEMIPACK® 1 Housing: Features a rugged plastic case with screw terminals for secure connections and an electrically isolated baseplate (3000V~), which simplifies heatsink mounting and enhances system safety.
- Glass Passivated Diode Technology: The internal diode junctions are glass passivated, ensuring stable blocking characteristics and superior resistance to environmental factors over the module's entire operational life.
- Optimized Common Cathode Configuration: The series-connected dual diode with a center tap is ideal for designing efficient and compact single-phase center-tap rectifiers, reducing component count and simplifying PCB layout.
Technical Deep Dive: Beyond the Specs
While the top-level specifications are impressive, the true value of the SKKE81/08 lies in its underlying design philosophy. Two features, in particular, demonstrate Semikron's commitment to industrial-grade reliability.
First, the SEMIPACK® 1 package is more than just a container; it's an integral part of the thermal management system. Its low thermal resistance from junction to case (Rth(j-c)) ensures efficient heat extraction from the diode dies. The isolated baseplate eliminates the need for external insulating foils, which can degrade over time and add thermal impedance. This integrated design approach reduces assembly complexity and creates a more reliable thermal interface, which is critical for achieving a long service life in applications with high thermal cycling.
Second, the use of glass passivated dies is a critical manufacturing step that directly impacts long-term reliability. This process hermetically seals the sensitive p-n junction area, protecting it from moisture and ionic contaminants that can cause gradual degradation of the reverse blocking voltage capability. The result is a highly stable device that maintains its performance specifications even when operating in harsh industrial environments with fluctuating temperatures and humidity.
Application Scenarios & Value Proposition
The Semikron SKKE81/08 is engineered to excel in applications where reliability and efficiency are non-negotiable.
- Line Rectifiers for Motor Drives: In Variable Frequency Drives (VFDs) and servo drives, the SKKE81/08 serves as the ideal front-end rectifier, converting the incoming AC line voltage into a stable DC bus. Its robustness handles inrush currents and line disturbances, providing a clean power source for the high-power IGBT inverter stages.
- Industrial DC Power Supplies: For high-current switched-mode power supplies (SMPS) and uninterruptible power supplies (UPS), this module's low forward voltage drop and excellent thermal performance contribute directly to higher overall system efficiency and reduced cooling requirements.
- Field Supply for DC Motors: A classic application where reliability is paramount. The SKKE81/08 provides a dependable, uncontrolled rectified voltage to energize the field windings of DC motors, ensuring consistent motor performance.
Key Technical Parameters
The following table provides a quick reference for the critical electrical and thermal characteristics of the SKKE81/08. For a complete overview, you can download the official datasheet.
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 800 V |
| Average Forward Current (IFAV) @ Tcase = 100 °C | 82 A |
| Peak Forward Surge Current (IFSM), t = 10 ms | 850 A |
| Forward Voltage (VF) @ IF = 100 A, Tj = 25 °C | typ. 1.15 V |
| Threshold Voltage (VT0) | 0.85 V |
| Slope Resistance (rT) | 3 mΩ |
| Thermal Resistance, Junction to Case (Rth(j-c)) | 0.45 °C/W (per diode) |
| Operating Junction Temperature (Tj) | -40 to +150 °C |
Frequently Asked Questions (FAQ)
Can the SKKE81/08 be used directly with IGBT modules?
Yes, this is its primary role in many systems. The SKKE81/08 diode module typically functions as the input rectifier to create the main DC bus voltage. This DC voltage then powers the inverter stage, which is built using IGBT modules for high-frequency switching to drive a load like a motor.
What are the most critical mounting considerations for this module?
Proper thermal management is essential. To achieve the specified low thermal resistance, the module's baseplate must be mounted to a flat, clean heatsink using a high-quality thermal interface material (TIM). It is crucial to follow the datasheet's recommendations for screw torque to ensure optimal thermal contact without inducing mechanical stress on the ceramic substrate.
Why select a dual diode module like the SKKE81/08 over two discrete diodes?
A module offers several engineering advantages. First, it simplifies assembly, reducing component count and labor. Second, the two diodes within the module are manufactured from the same wafer, providing better-matched electrical and thermal characteristics. This inherent matching is beneficial for circuit balance and performance. Finally, the integrated, isolated package provides superior ruggedness and a single, well-defined thermal path.
