SKKT500/12E Thyristor Module: Engineering Analysis for High-Reliability Power Control
Product Overview and Key Specifications
Engineered for Unmatched Durability in High-Current AC Control

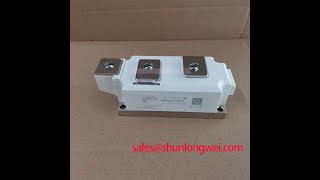

The SKKT500/12E by Semikron is a high-power thyristor/diode module engineered for exceptional long-term reliability in high-stress power control applications through its robust pressure contact design. This module provides a definitive solution for engineers designing demanding industrial systems. Key specifications include: 1200V | 500A (ITAV) | ITSM 12500A. Its core benefits are superior thermal cycling capability and simplified, secure mechanical assembly. This module directly addresses the need for components that can reliably manage the significant inrush currents typical in heavy-duty AC motor starters without degradation over time. For high-power AC controllers and soft starters demanding maximum operational lifetime, the SKKT500/12E's pressure-contact design is the definitive choice.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal and Electrical Robustness
The technical specifications of the SKKT500/12E are foundational to its performance in high-power systems. The parameters below are organized to provide a clear view of the module's capabilities for system design and thermal management.
| Electrical Characteristics (per Thyristor, at Tj = 25 °C unless otherwise specified) | ||
|---|---|---|
| Parameter | Symbol | Value |
| Repetitive Peak Off-State Voltage (Tj = 125 °C) | VDRM, VRRM | 1200 V |
| Average On-State Current (Tc = 85 °C) | ITAV | 500 A |
| RMS On-State Current (Tc = 85 °C) | ITRMS | 785 A |
| Surge On-State Current (10 ms, sine 50 Hz) | ITSM | 12500 A |
| I²t Value (10 ms, sine 50 Hz) | I²t | 781250 A²s |
| Threshold Voltage | VT(TO) | 0.85 V |
| Slope Resistance | rT | 0.6 mΩ |
| Thermal and Mechanical Characteristics | ||
| Thermal Resistance, Junction to Case (per thyristor) | Rth(j-c) | 0.05 K/W |
| Operating Junction Temperature Range | Tj | -40 to +125 °C |
| Isolation Test Voltage (RMS, 1 min.) | Visol | 3600 V |
| Mounting Force | Fm | 40 ± 4 kN |
Download the SKKT500/12E datasheet for detailed specifications and performance curves.
The ITSM rating of 12500 A is particularly significant. Think of it as the module's ability to withstand a sudden, massive surge of electricity—like a dam momentarily holding back a flash flood. This capability is critical for surviving the intense inrush currents during the startup of large AC motors, preventing catastrophic failure and ensuring system robustness. Furthermore, the very low thermal resistance (Rth(j-c)) of 0.05 K/W signifies highly efficient heat transfer from the silicon die to the heatsink. This allows the module to run cooler under heavy loads, directly contributing to a longer operational life and enabling more compact thermal management solutions.
Application Scenarios & Value
Delivering Robustness in High-Power Industrial Motor Control
The SKKT500/12E is purpose-built for high-power phase control applications where reliability is non-negotiable. Its primary value is demonstrated in systems like industrial AC motor control and soft starters.
High-Fidelity Scenario: Large Conveyor Belt Soft Starter
Consider the engineering challenge of starting a heavily loaded, multi-ton conveyor system in a mining or logistics facility. The initial torque required to overcome inertia results in a massive inrush current, far exceeding the motor's nominal operating current. A standard thyristor module might be pushed beyond its limits, leading to premature failure. The SKKT500/12E's exceptional surge current (ITSM) and I²t ratings provide the necessary headroom to absorb this energy repeatedly without degradation. This robustness, governed by standards like IEC 60146 for semiconductors, ensures reliable system startup, minimizes downtime, and reduces maintenance costs over the equipment's lifespan. The module's use of phase angle control allows for a smooth ramp-up of voltage, further protecting the motor and mechanical drivetrain.
For applications requiring even greater current handling, such as those in large-scale grid infrastructure, the related SKKT570/16E offers an increased current rating within a similar package family.
Technical Deep Dive
A Closer Look at Pressure Contact Technology for Long-Term Reliability
Unlike conventional modules that rely on soldered connections, the SKKT500/12E utilizes Semikron's field-proven pressure contact technology. This design eliminates one of the most common failure mechanisms in high-power modules: solder fatigue. In applications with frequent temperature fluctuations, such as motor drives with start/stop cycles, the differing thermal expansion rates of silicon, copper, and solder can cause micro-cracks to form in solder joints over time. These cracks increase thermal and electrical resistance, leading to higher operating temperatures and eventual device failure.
The pressure contact design circumvents this issue entirely. A precisely calibrated mounting force ensures a uniform, high-pressure connection between the internal components and the baseplate. To draw an analogy, solder joints are like rigid glue that can crack under the repeated stress of thermal expansion and contraction. In contrast, pressure contacts act like a powerful, spring-loaded connection, maintaining perfect and consistent contact regardless of thermal stress. This results in vastly superior Power Cycling Capability, making the SKKT500/12E an ideal component for applications demanding a service life of 15-20 years or more with minimal maintenance.
Frequently Asked Questions (FAQ)
What is the primary benefit of the SKKT500/12E's pressure-contact design?
The core advantage is enhanced long-term reliability and an extended operational lifespan by completely eliminating solder fatigue, a common failure point in power modules subjected to thermal cycling.
How does the 12500 A ITSM rating benefit industrial motor drive applications?
This high surge current rating ensures the module can safely withstand the large inrush currents that occur when starting heavy inductive loads, such as large AC motors. This prevents device failure during startup sequences and contributes to overall system robustness and reduced downtime.
Final Engineering Considerations
The SKKT500/12E thyristor module represents a strategic component choice for engineers developing high-power AC control systems where operational lifetime and fault tolerance are paramount. Its combination of high current capacity, superior surge handling, and the inherent reliability of pressure contact technology provides a robust foundation for building durable and efficient industrial equipment. For technical inquiries or to discuss how this module can be integrated into your next project, please contact our engineering support team.
