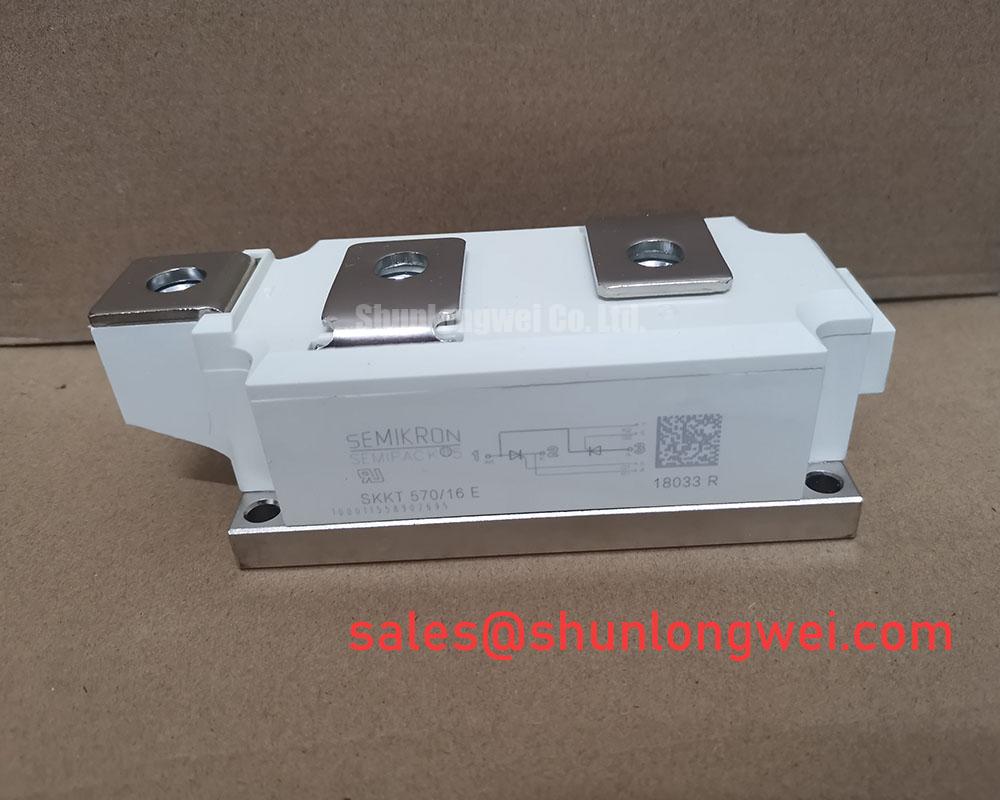

SKKT570/16E Thyristor/Diode Module: Engineering Analysis for High-Power Control
An In-Depth Look at a 1600V Power Control Workhorse
The SEMIKRON SKKT570/16E is a thyristor and diode module engineered for robust, long-term performance in high-power AC control and rectification applications. Its defining value lies in a design that prioritizes operational reliability through superior thermal management and electrical isolation. With core specifications of 1600V | 570A (ITAV) | Visol 3000V, this module delivers two critical engineering benefits: enhanced system lifespan and simplified mechanical assembly. It directly addresses the need for components capable of withstanding the harsh electrical environments found in heavy industrial machinery and power infrastructure. For systems requiring robust control on 690V industrial lines, this module's high voltage rating and surge current capacity make it a standout choice.
Key Parameter Overview
Decoding the Specifications for System Reliability and Performance
The technical specifications of the SKKT570/16E are foundational to its performance in demanding power systems. Each parameter provides insight into the module's capabilities, from its raw power handling to its long-term operational stability. The following table highlights key metrics and translates them into direct engineering value.
| Parameter | Value | Engineering Value & Interpretation |
|---|---|---|
| Repetitive Peak Off-State Voltage (VDRM, VRRM) | 1600 V | Provides a significant safety margin for operation on 575V and 690V AC mains, ensuring resilience against line voltage transients. |
| On-state Current (ITAV) @ Tc=85°C | 570 A | Enables high continuous power throughput, making it suitable for heavy-duty applications like industrial motor drives and rectifiers. |
| I²t-value (t=10ms) | 3,200,000 A²s | Surge Current Resilience: This high I²t rating acts like a dam's spillway during a flood; it quantifies the module's ability to absorb massive, short-duration energy surges (e.g., from motor startups or fault conditions) without failing, directly enhancing system robustness. |
| Isolation Test Voltage (Visol) | 3000 V (AC, 50 Hz, 1 min.) | The integrated, electrically isolated baseplate simplifies mounting by eliminating the need for external insulating materials, reducing assembly time and potential points of thermal failure. |
| Thermal Resistance, Junction to Case (Rth(j-c)) | 0.04 K/W (per thyristor) | Indicates highly efficient heat transfer from the silicon die to the heatsink. A lower value facilitates more compact thermal designs and higher power density. |
| Gate Trigger Current (IGT) @ Tj=25°C | max. 200 mA | A well-defined trigger current ensures reliable and predictable switching behavior when interfaced with standard Gate Drive circuitry. |
Download the SKKT570/16E datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in Industrial Power Control
The SKKT570/16E is best suited for high-power phase control applications where reliability and precise power regulation are paramount. Its robust electrical and thermal characteristics deliver tangible value in several key areas.
- AC Motor Soft Starters: A primary application is in industrial soft starters for large induction motors. The engineering challenge here is managing the immense inrush current during motor startup, which can be 6-8 times the nominal current. The SKKT570/16E's high I²t rating of 3,200,000 A²s is critical, providing the necessary resilience to handle these repeated current surges without degradation, ensuring a long operational life for the starter and protecting the motor.
- Controlled Rectifiers: In applications like welding power supplies, electroplating, or DC motor drives, this module can be used to build powerful and reliable controlled rectifier bridges. The 1600V blocking voltage offers ample headroom for industrial line voltages, and the glass passivated chips ensure stable performance over many years of operation.
- AC Power Controllers: For industrial heating controls or large-scale lighting systems (e.g., airport runways), the module provides precise, efficient control over massive AC loads. Its low on-state voltage drop and excellent thermal transfer minimize power losses, contributing to higher overall system efficiency.
While this model provides substantial current handling for a wide range of applications, for systems with lower power requirements but similar voltage needs, the related SKKT250/16E offers a similar feature set with a lower current rating.
Technical Deep Dive
A Closer Look at Construction for Long-Term Reliability
Two key construction features of the SKKT570/16E from Semikron-Danfoss directly translate to superior field reliability and simplified system integration. Understanding these elements is crucial for engineers evaluating the module's total cost of ownership.
First, the use of an electrically isolated baseplate is a significant design advantage. The module is rated for 3000V isolation, which can be thought of as the high-grade electrical insulation on a professional power tool; it guarantees a robust barrier between the high-voltage electrical circuit and the grounded metal heatsink. This eliminates the need for fragile, thermally inefficient isolation pads during assembly. The direct, metal-to-metal contact with the heatsink (using a thermal interface material) maximizes heat dissipation, lowers junction temperatures, and ultimately extends the power cycling capability of the entire system.
Second, the glass passivated thyristor chips are fundamental to the module's long-term stability. The passivation process creates a hermetic, chemically stable glass layer over the sensitive high-voltage junction termination area of the silicon die. This layer protects the chip from ambient humidity and contaminants that could otherwise cause leakage currents to increase over time, leading to unpredictable performance or premature failure. This ensures that the module's blocking voltage characteristics remain stable and reliable throughout its operational life, a critical factor in systems designed for 10+ years of service. What is the primary benefit of its glass passivated design? It ensures consistent, long-term voltage blocking stability.
Frequently Asked Questions (FAQ)
How does the 3000V isolation voltage of the SKKT570/16E simplify system design?
The integrated 3000V isolation allows the module to be mounted directly onto a grounded heatsink without any additional insulating foils or pads. This reduces bill-of-materials costs, simplifies the mechanical assembly process, and improves thermal performance by creating a more direct and reliable heat transfer path.
What is the significance of the 3,200,000 A²s I²t rating for industrial applications?
This high I²t value indicates exceptional robustness against non-repetitive surge currents. It is a critical parameter for applications like motor drives or capacitor banks, where large inrush currents are common. It essentially guarantees the module can survive significant fault conditions without fusing, thereby preventing catastrophic system failure and improving overall equipment uptime.
How does glass passivation on the thyristor chips contribute to the SKKT570/16E's long-term stability?
Glass passivation creates a hermetic seal around the active semiconductor junction. This protects it from environmental factors like moisture that can degrade performance over time. The result is a highly stable off-state leakage current and consistent blocking voltage capability throughout the module's entire service life, a key factor for building reliable, low-maintenance power systems.
What are the main thermal management considerations for a module with an Rth(j-c) of 0.04 K/W?
This very low thermal resistance signifies excellent internal heat conduction. The primary consideration for the design engineer is to pair the module with an equally effective heatsink and a high-quality thermal interface material (TIM). Ensuring proper mounting pressure and TIM application is key to fully leveraging this low Rth(j-c) to minimize operating junction temperatures and maximize system reliability.
Is the SKKT570/16E suitable for AC-AC switching applications like static switches or AC choppers?
Yes, its configuration with two thyristors in an anti-series (common cathode) arrangement makes it ideal for building single-phase AC controllers or static switches. It provides full-wave control, enabling precise regulation of power delivered to resistive or inductive loads.
An Engineer's Perspective on Field Performance
From a system design standpoint, the SKKT570/16E represents a commitment to predictable, long-term performance. Its specifications are not just about meeting a power threshold; they are about providing the necessary design margins to build equipment that operates reliably year after year in demanding industrial settings. The combination of high voltage overhead, robust surge handling, and a thermally efficient package means fewer field failures, lower maintenance costs, and greater confidence in the end system's durability.
