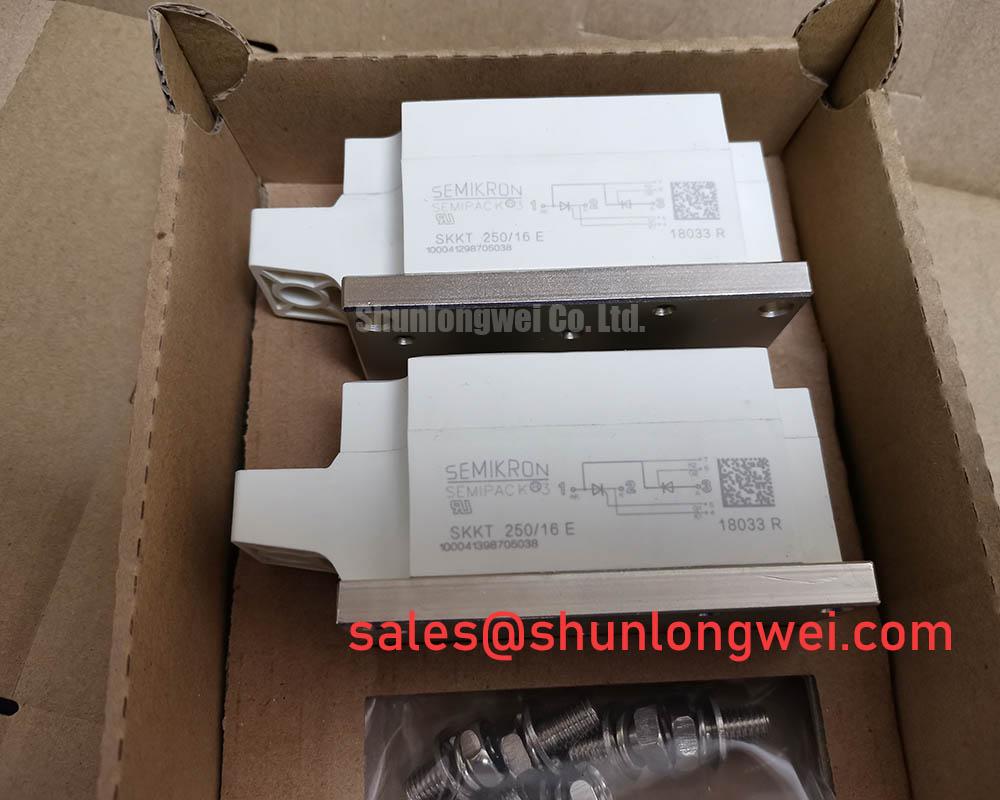

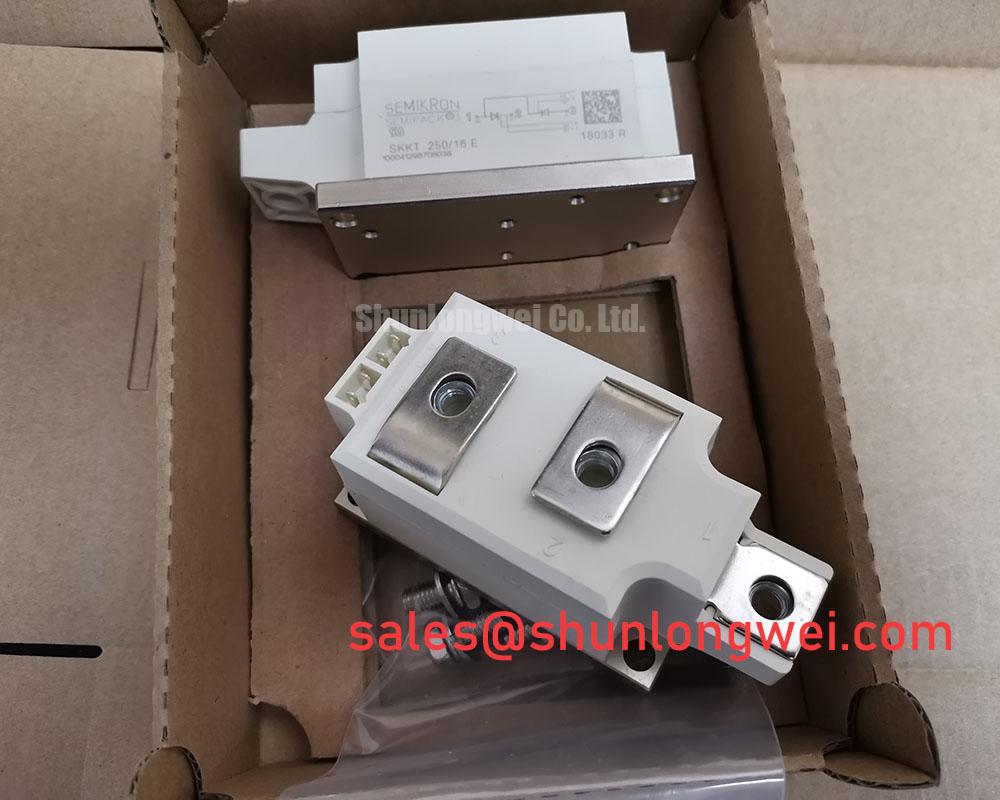

SEMIKRON SKKT250/16E Thyristor Module | Robust High-Power Phase Control
The SEMIKRON SKKT250/16E is a high-reliability thyristor/diode module engineered for demanding industrial power control applications. Housed in the industry-standard SEMIPACK® 2 package, this module integrates two series-connected thyristors (SCRs), providing a robust and efficient solution for AC voltage controllers, controlled rectifiers, and motor soft starters. The SKKT250/16E is not just a component; it's a cornerstone for building durable and stable power systems that operate flawlessly at line frequencies.
Technical Deep-Dive: The Engineering Behind the SKKT250/16E's Reliability
- Glass Passivated Thyristor Chips: At the heart of the SKKT250/16E are glass passivated thyristor chips. This specialized manufacturing process creates a hermetic seal around the silicon die's junction. Application Value: This provides exceptional protection against environmental contaminants and moisture, leading to very high long-term stability and resistance to electrical degradation. For system designers, this means a significantly longer operational lifespan and predictable performance, even in harsh industrial settings.

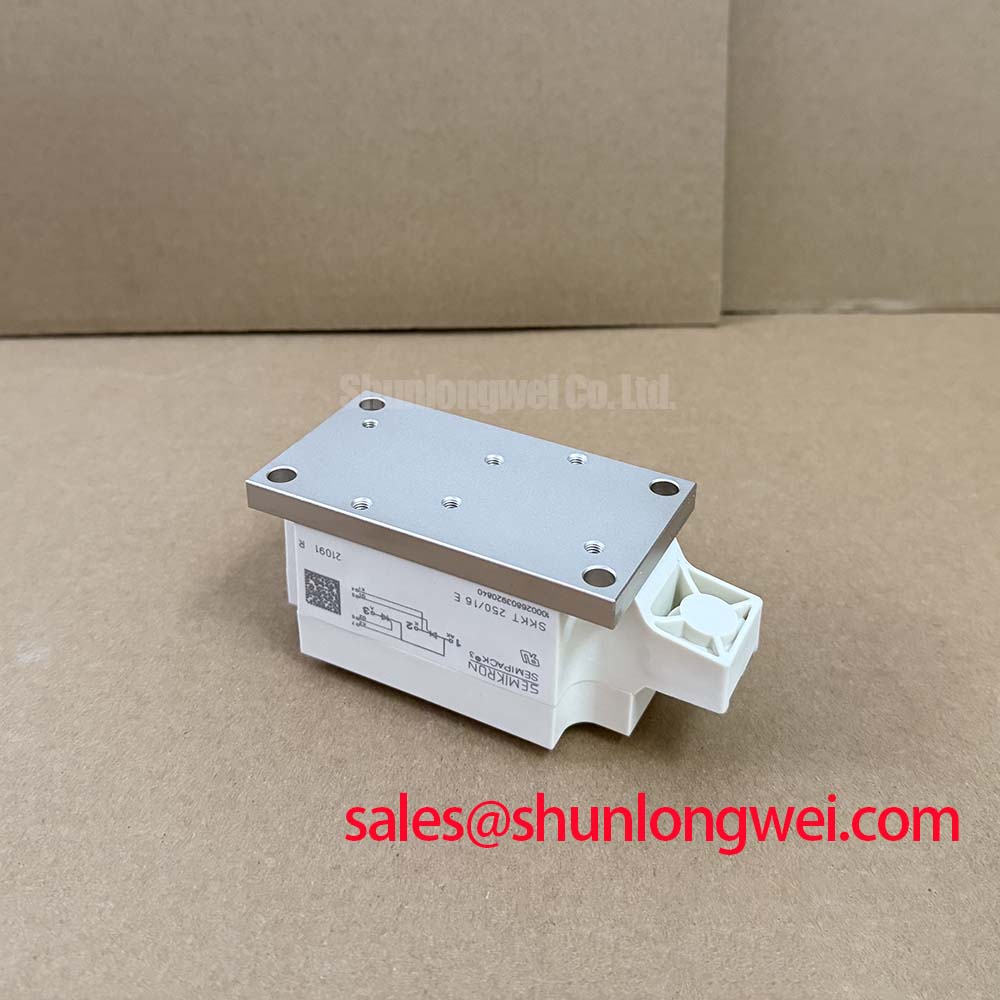

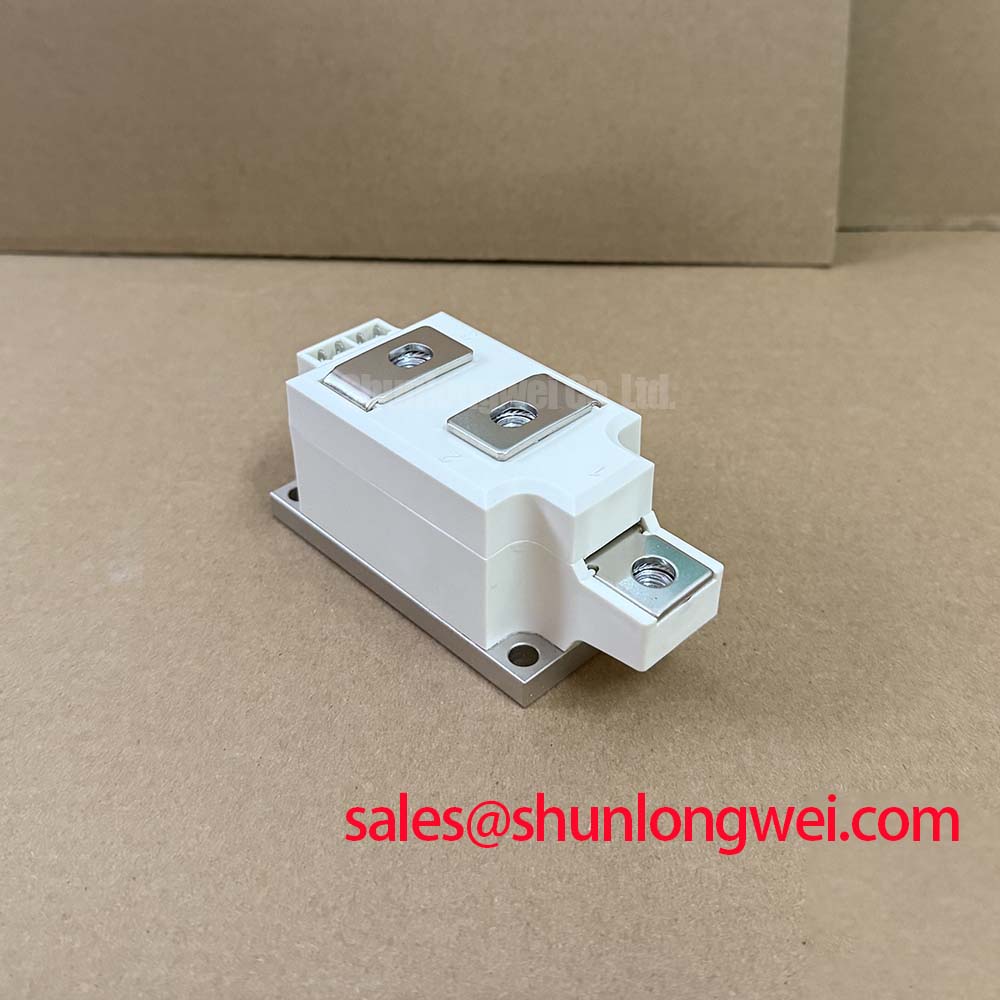

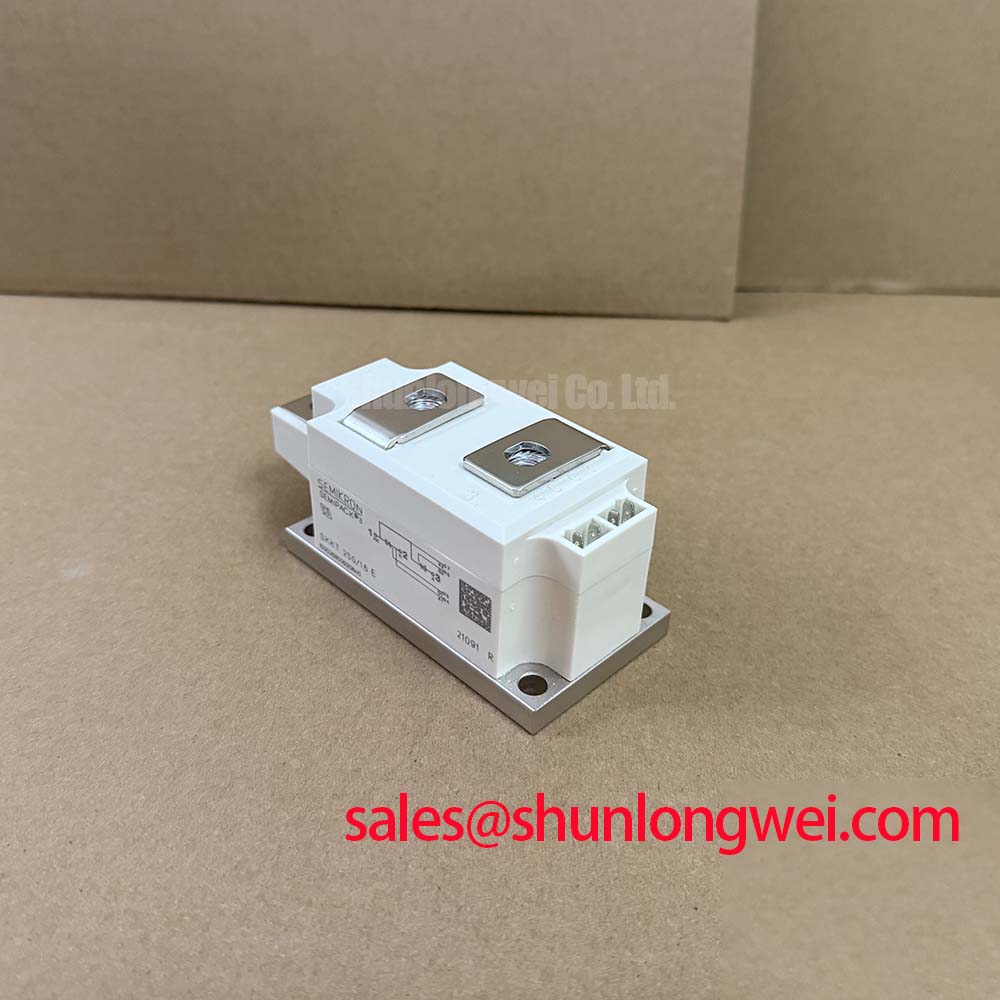

- Robust SEMIPACK® 2 Package with Isolated Baseplate: The module utilizes a copper baseplate and an isolated package design (3000 V~ insulation). Application Value: The copper baseplate ensures excellent thermal transfer to the heatsink, minimizing junction temperature and increasing power cycling capability. The isolated design simplifies mounting procedures, reduces the risk of short circuits, and allows multiple modules to be mounted on a single, non-isolated heatsink, ultimately lowering assembly costs and complexity. Proper heatsink selection is critical for maximizing this benefit.
Diverse Applications, Tangible Benefits
The unique characteristics of the SEMIKRON SKKT250/16E make it an ideal choice for specific high-power scenarios where ruggedness and simplicity are paramount:
- AC Motor Soft Starters: By precisely managing the phase angle, the SKKT250/16E gradually ramps up voltage to large AC motors. This mitigates damaging inrush currents, reduces mechanical shock on drivetrains, and minimizes voltage dips on the local power grid, extending the life of the motor and connected machinery.
- Controlled Rectifiers: When used in single or three-phase bridge configurations, these modules create highly reliable and adjustable DC power supplies. They are a workhorse in applications like large-scale battery charging systems, welding equipment, and electroplating processes where precise current control is non-negotiable.
- Industrial Heating and Lighting Control: For large resistive loads such as industrial furnaces, ovens, and large-scale lighting arrays, the SKKT250/16E provides a simple yet effective method for power regulation. Its ability to handle high currents and its inherent robustness make it superior to less durable alternatives in these demanding thermal environments.
- AC Power Switching: As a static AC switch, the module offers a no-moving-parts solution for switching high-power AC loads, providing a significant reliability improvement over mechanical contactors, especially in applications requiring frequent switching cycles. The integrated back-to-back SCR topology simplifies the design of such systems.
Key Technical Specifications
The following parameters highlight the core capabilities of the SKKT250/16E module. For a comprehensive overview, please refer to the official datasheet.
| Parameter | Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1600 V |
| Average On-State Current (IT(AV), Tcase = 76 °C) | 250 A |
| RMS On-State Current (IT(RMS)) | 400 A |
| Surge Current (ITSM, 10 ms) | 6500 A |
| Operating Junction Temperature (Tvj) | -40 to +130 °C |
Download the official datasheet for complete electrical and thermal characteristics: SKKT250/16E Datasheet
Choosing the Right Technology: Thyristor vs. IGBT
While modern IGBT Modules excel in high-frequency applications like VFDs and solar inverters, the **SEMIKRON SKKT250/16E** holds a distinct advantage in line-frequency (50/60Hz) power control. Thyristors are inherently more rugged against voltage transients and surge currents, and their gate drive circuits are significantly simpler. If your application demands straightforward, robust control of AC power without high-frequency switching, a thyristor module like the SKKT250/16E is often the more reliable and cost-effective choice for industrial power electronics.
Frequently Asked Questions (FAQ)
- What is the primary benefit of the SKKT250/16E's glass passivation technology?
The main advantage is enhanced long-term reliability. Glass passivation creates a stable, impervious layer that protects the thyristor's sensitive junction from environmental factors, ensuring consistent blocking voltage and low leakage currents throughout the module's life. - Is this module suitable for a high-frequency switching power supply?
No. The SKKT250/16E is a thyristor-based device optimized for low-frequency phase control (typically 50/60Hz). Its turn-off characteristics are not suitable for high-frequency PWM applications. For such designs, we recommend exploring our comprehensive range of dedicated IGBT modules. - Can I use this module for a three-phase controlled bridge rectifier?
Absolutely. Three SKKT250/16E modules can be configured to create a B6C (three-phase fully controlled bridge) rectifier, providing a robust and adjustable DC output from a three-phase AC source. For detailed application notes or design assistance, please Contact Us for a Quote.
