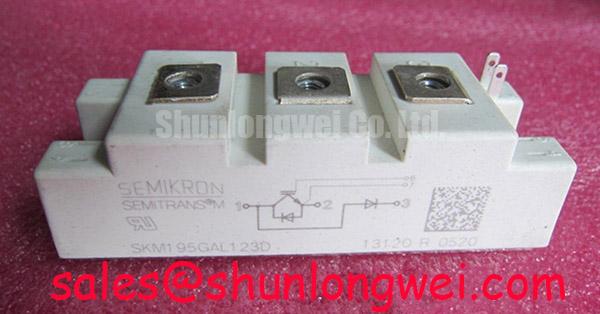

Semikron SKM195GAL123D: Addressing Efficiency Bottlenecks in Braking Chopper Designs
Engineers designing high-power motor drives often encounter a specific thermal and switching efficiency hurdle: how to manage regenerative energy without compromising system reliability or increasing footprint. When a motor decelerates, it acts as a generator, feeding energy back into the DC bus. Traditional symmetrical bridge modules used in these stages often suffer from excessive parasitic inductance and suboptimal diode recovery. The Semikron SKM195GAL123D, a specialized 1200V IGBT Module in the GAL (Low-side Chopper) topology, is engineered to solve these precise integration and efficiency challenges.
This 195A rated module integrates an IGBT and a Semikron CAL Diode in an asymmetric configuration, providing 1200V isolation and ultra-low switching losses. By prioritizing the braking stage's unique duty cycle, it achieves thermal stability that general-purpose half-bridges cannot match. For industrial braking units where high current pulse handling is critical, the 1200V 195A GAL module represents the industry benchmark. Request pricing now to secure high-performance silicon for your next power conversion project.
Engineering FAQ
Optimizing Thermal and Switching Performance
How does the GAL topology of the SKM195GAL123D simplify brake chopper circuit design?
Unlike standard GB (half-bridge) modules, the GAL topology specifically positions the IGBT as a low-side switch and includes a freewheeling diode. This reduces the need for complex external wiring and minimizes stray inductance in the braking loop, which is vital for preventing voltage spikes during high-speed switching of inductive loads. Designers can achieve a more compact layout while ensuring the 1200V barrier is maintained.
What impact does the CAL diode technology have on the module's recovery characteristics?
The integration of a Semikron CAL Diode (Controlled Axial Lifetime) ensures "soft" recovery behavior. This significantly reduces electromagnetic interference (EMI) and prevents high-frequency oscillations that can lead to IGBT failure. In applications like Variable Frequency Drives (VFD), this translates to lower noise filters and higher system reliability.
Does the 195A current rating allow for significant overload capacity in pulsed applications?
The SKM195GAL123D is rated for a continuous collector current (Ic) of 195A at Tc=25°C (decreasing to approximately 135A at Tc=80°C). However, its pulse current rating (Icp) is typically twice the nominal current, allowing it to handle the intense, short-duration surges common in regenerative braking without exceeding the 150°C junction temperature limit.
How can I verify the health of this module during field maintenance?
Engineers should perform static tests using a high-precision multimeter to check the gate-emitter resistance and the collector-emitter diode drop. For a detailed procedure on identifying latent defects, refer to our guide on how to test an IGBT module with a multimeter.
Key Parameter Overview
High-Performance Metrics for Power Systems
| Critical Specification | Value / Detail | Engineering Benefit |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200V | Safe operation on 400V/480V AC lines. |
| Continuous Current (Ic) | 195A (at Tc=25°C) | Handles high-density power throughput. |
| Saturation Voltage (Vce(sat)) | Typ. 2.10V | Reduces conduction losses during the "ON" state. |
| Thermal Resistance (Rth(j-c)) | 0.13 K/W (IGBT) | Superior heat dissipation to the baseplate. |
| Package Type | SEMITRANS 2 | Industry-standard footprint for easy retrofitting. |
Technical Deep Dive
Minimizing Total Switching Losses in Asymmetric Topologies
The SKM195GAL123D utilizes a high-trench gate structure combined with a field-stop layer, a technology often referred to as IGBT3. In a braking chopper, the Switching Loss (Eon and Eoff) is the primary driver of thermal stress during high-frequency operation. By optimizing the carrier lifetime, the module achieves a balance between the low Vce(sat) and fast turn-off times. Think of Vce(sat) like the friction in a water pipe; the lower it is, the less energy is wasted as heat while water (current) flows.
Crucially, the SEMITRANS 2 package features a copper baseplate that provides an Rth(j-c) of 0.13 K/W. This low thermal impedance is essential because it allows the silicon junction to stay cooler, extending the Power Cycling Capability of the module. When the braking resistor is engaged, the SKM195GAL123D must switch massive currents with minimal delay. Failure to manage the turn-off energy (Eoff) can lead to desaturation; for further technical insight on this phenomenon, see our analysis on why does IGBT desaturation occur. This module's robust RBSOA (Reverse Bias Safe Operating Area) ensures it can turn off 390A at 1200V without latch-up risks, providing a substantial safety margin for industrial designers.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
In the field of industrial automation, the SKM195GAL123D is predominantly utilized in the braking stages of Variable Frequency Drives (VFD) and Servo Drive units. A typical high-fidelity engineering scenario involves a large overhead crane system. During the descent of a heavy load, the motor generates significant back-EMF. The SKM195GAL123D acts as the gatekeeper, switching the excess current into a braking resistor. Its ability to handle a 1200V peak ensures it survives the inductive transients of the long cable runs used in crane assemblies.
Beyond motor control, this IGBT Module is an excellent candidate for DC-DC Converter applications and Uninterruptible Power Supply (UPS) systems where a low-side chopper is required for battery charging or regulation. While this module is ideal for medium-power systems, for designs requiring higher current handling in a similar footprint, the SKM400GB123D offers a higher collector current capacity. Conversely, for smaller 400V drive systems, the SKM150GB123D provides a more cost-effective alternative while maintaining the same reliability standards.
As industry moves toward IEC 61800-3 compliance for EMC, the soft-switching characteristics of the CAL Diode inside the SKM195GAL123D become a strategic advantage. It allows engineers to reduce the weight and cost of passive filters, directly impacting the total cost of ownership (TCO) of the drive system. By choosing a module that integrates protection and efficiency into the silicon itself, manufacturers can ensure their systems are built for long-term survival in harsh electrical environments.
In an era where power density and thermal efficiency define market leadership, the Semikron SKM195GAL123D provides the factual data and proven reliability required for the most demanding power stages. Its 1200V 195A rating, combined with the GAL topology, empowers engineers to design braking choppers that are smaller, cooler, and more reliable. This strategic component selection ensures that your system remains resilient against overvoltage and thermal fatigue, securing the backbone of modern industrial motion control.
