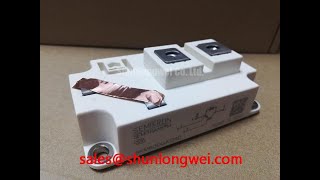

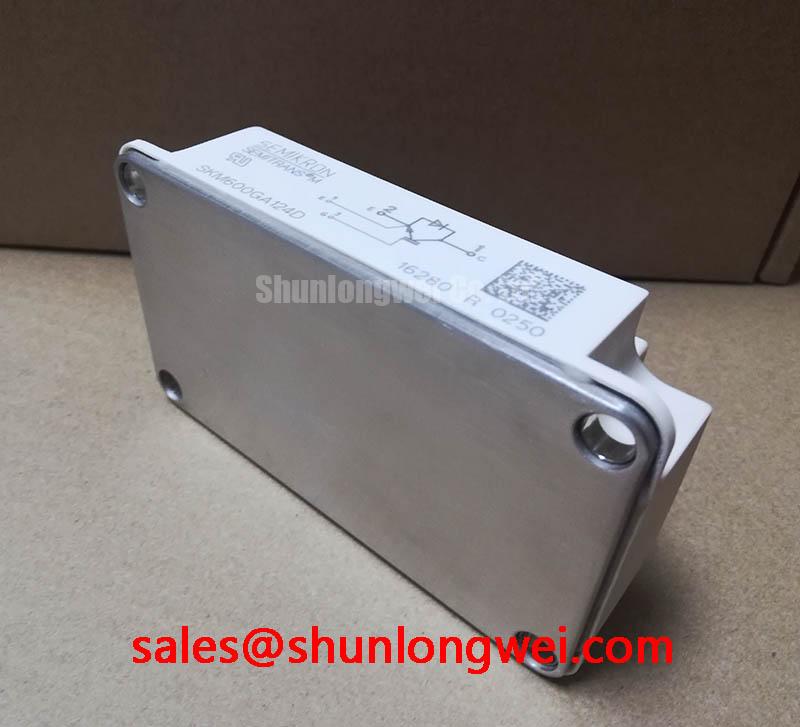

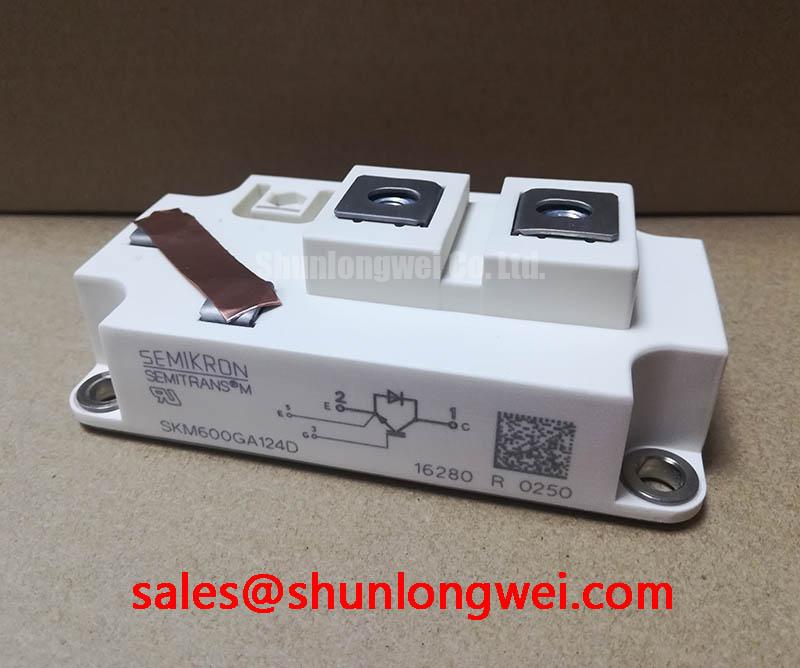

Semikron SKM600GA124D IGBT Module

SKM600GA124D: Mastering High-Power Conversion with Robust IGBT Technology

Introduction: Core Specifications & Engineering Value

The SKM600GA124D is a high-power single IGBT module engineered for demanding power conversion systems requiring robust performance and thermal stability. Delivering a formidable 1200V blocking voltage and 800A continuous collector current, this SEMITRANS 2 module provides a dependable foundation for high-power designs. Its key benefits include exceptional current handling and proven reliability. This component directly addresses the challenge of achieving efficient power switching in applications like large motor drives by offering a low saturation voltage. For industrial drive systems requiring robust, high-current switching, this 1200V module offers a proven and powerful solution.

Key Parameter Overview

Decoding the Specs for High-Current Applications

The technical specifications of the SKM600GA124D are pivotal for system designers aiming to maximize performance and reliability. The parameters outlined below highlight the module's capacity for handling significant power loads while maintaining operational stability. Understanding these values is crucial for effective thermal management, gate drive design, and overall system integration.

Download the SKM600GA124D datasheet for detailed specifications and performance curves.

Application Scenarios & Value

System-Level Benefits in Industrial Drives and Power Supplies

The SKM600GA124D is ideally suited for high-power applications where efficient and reliable current switching is non-negotiable. Its robust electrical characteristics make it a cornerstone component in the design of large-scale industrial systems.

• Industrial Motor Drives: In heavy-duty applications such as conveyors, pumps, and large fans, Variable Frequency Drives (VFDs) must handle substantial and often fluctuating currents. The SKM600GA124D's 800A continuous current rating (at Tcase = 25°C) provides the necessary capacity to control large induction motors, ensuring smooth operation and preventing overload conditions.
• High-Power Converters: For large-scale power conversion systems, such as those found in renewable energy or industrial power supplies, minimizing conduction losses is critical for overall efficiency. The module's typical VCE(sat) of 2.1V at 600A and 125°C translates directly to lower power dissipation during the on-state. Think of VCE(sat) as the electrical "friction" the device presents; a lower value means less energy is wasted as heat, simplifying thermal design and improving the system's energy footprint.
• Uninterruptible Power Supplies (UPS): Data centers and critical facilities rely on high-capacity UPS systems to ensure continuous operation. The SKM600GA124D's proven reliability and high current handling capability make it a suitable choice for the inverter stage of these systems, providing a stable AC output during power outages.

For systems requiring similar voltage characteristics but with a slightly lower current rating, the related SKM500GA124D offers a comparable design in the same product family.

Technical Deep Dive

Analyzing Thermal Performance and Electrical Ruggedness

A component's long-term value is often defined by its performance under stress. For the SKM600GA124D, two key areas stand out: its thermal impedance and its inherent robustness. The specified thermal resistance from junction to case (Rth(j-c)) of 0.033 °C/W is a critical metric. This value represents how effectively heat generated within the silicon can be transferred to the heatsink. A lower Rth(j-c) is analogous to a wider pipe for heat flow; it allows for more efficient cooling, which in turn enables the device to operate at higher power levels or with a smaller, more cost-effective cooling solution. This superior thermal transfer is essential for maintaining the junction temperature within its safe operating area, a cornerstone of long-term system reliability.

Furthermore, the module is built upon a foundation of established IGBT and CAL Diode (Controlled Axial Lifetime) technology. This design approach ensures not only efficient switching but also a high degree of ruggedness against transient events. The freewheeling diode is optimized for soft recovery, which minimizes voltage overshoots and electromagnetic interference (EMI), simplifying the design of snubber circuits and improving overall electromagnetic compatibility (EMC) compliance for the entire power converter.

Frequently Asked Questions (FAQ)

What is the primary advantage of the 600A current rating at a case temperature of 80°C?
This specification provides a realistic performance benchmark for designers. While the 800A rating at 25°C is useful for comparison, the 600A rating at the more typical operating case temperature of 80°C gives engineers a practical and reliable current limit for thermal design calculations in real-world industrial environments.

How does the VCE(sat) of 2.1V (typ) at 600A impact system efficiency?
A lower collector-emitter saturation voltage (VCE(sat)) directly reduces conduction losses (P = VCE(sat) * IC). In high-current applications, this seemingly small voltage drop has a significant impact, leading to less heat generation, improved overall energy efficiency, and potentially smaller heatsink requirements, which saves space and cost.

What does the ±20V gate-emitter voltage rating imply for the gate drive circuit design?
The wide VGES range of ±20V provides substantial design margin and noise immunity for the gate drive circuitry. It ensures that the IGBT can be reliably turned on and off even in electrically noisy environments, preventing spurious switching events that could lead to system failure.

Is this module suitable for paralleling to achieve higher current output?
Yes, modules like the SKM600GA124D are often designed with characteristics that facilitate paralleling. However, successful implementation requires careful attention to gate drive symmetry, busbar layout to ensure balanced current sharing, and thermal management to maintain equal operating temperatures across all modules. Consulting the manufacturer's application notes on paralleling is essential.

Strategic Considerations for System Design

Integrating the SKM600GA124D provides more than just meeting raw power specifications; it's a strategic choice for creating dependable, long-life power systems. The use of an industry-standard SEMITRANS 2 housing simplifies mechanical integration and sourcing of compatible hardware like heatsinks and busbars. Engineers can leverage this established footprint to streamline both new product development and retrofitting of existing designs. By selecting a component built on proven technology from a reputable manufacturer like Semikron, design teams can mitigate supply chain risks and ensure consistent performance, which is a critical factor for products with long service life expectations in the industrial sector.
