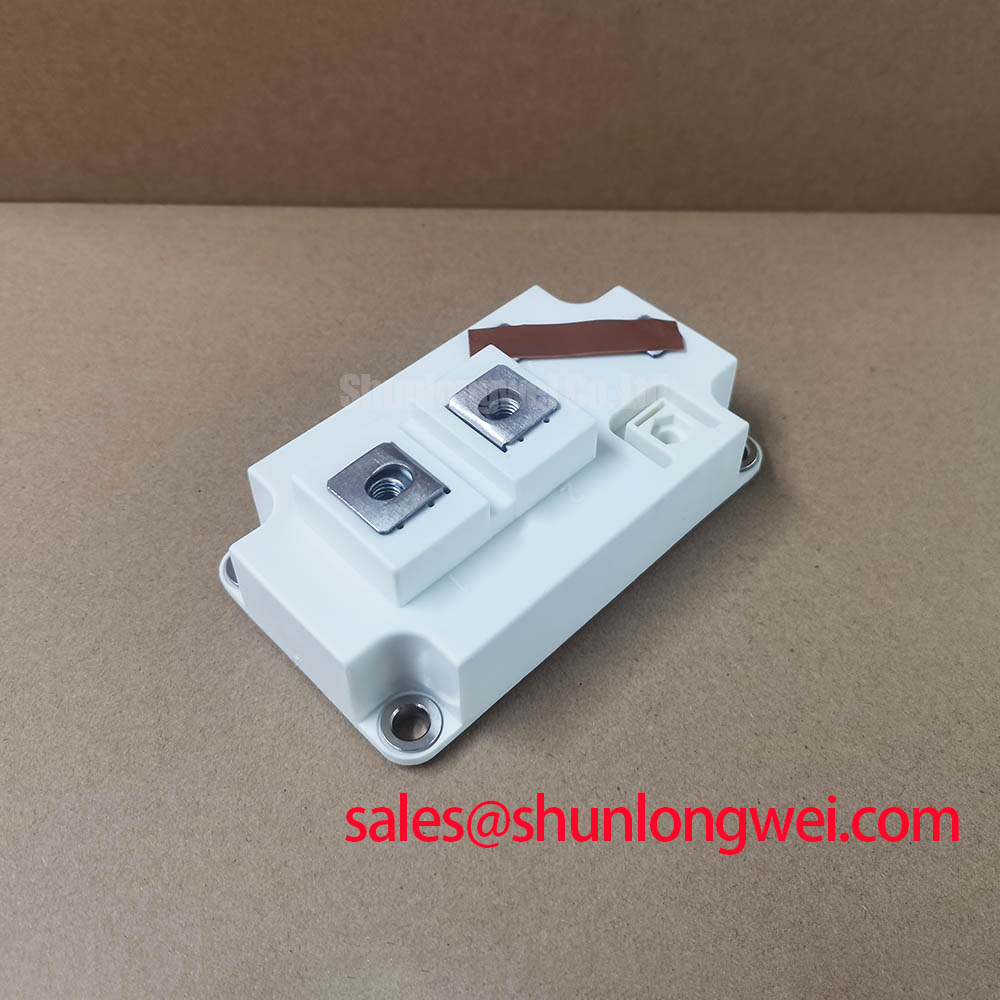

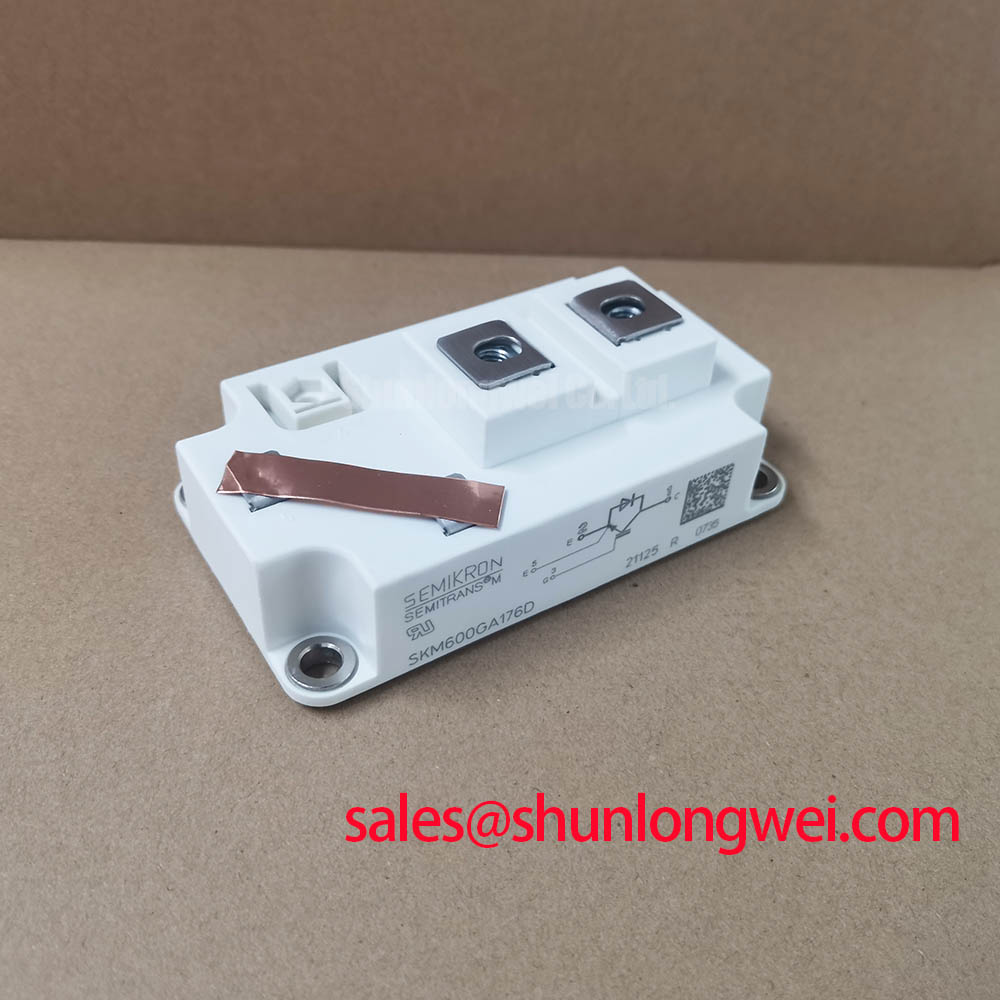

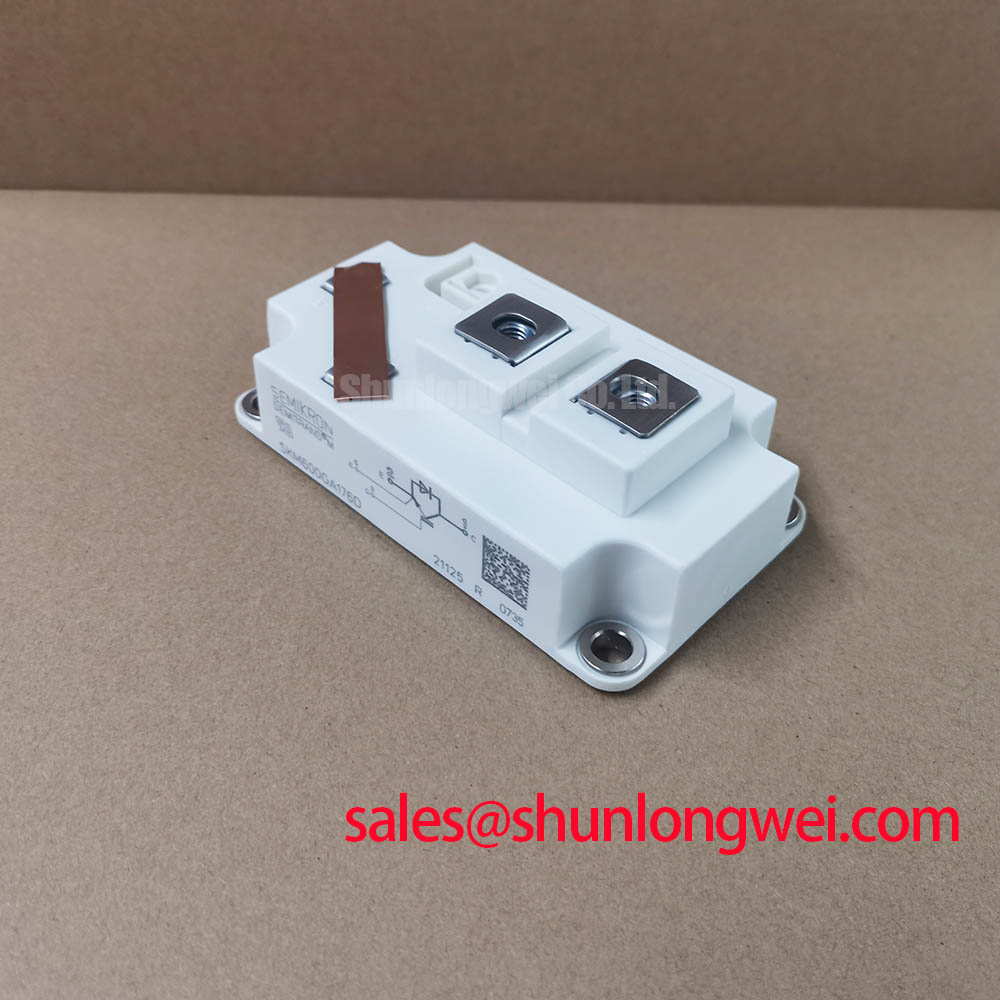

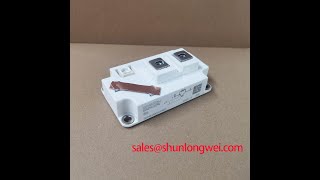

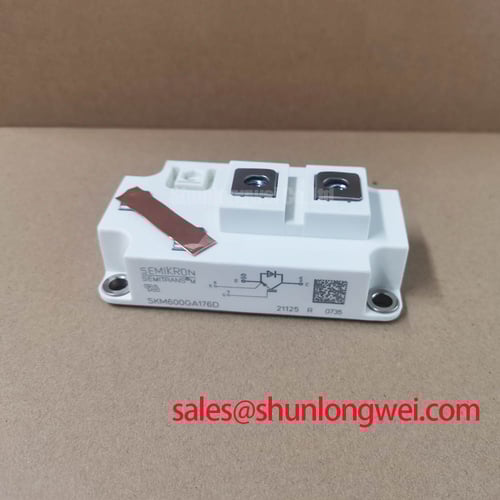

## Semikron SKM600GA176D | High-Power 1700V IGBT Module for Demanding Inverter Applications
The Semikron **SKM600GA176D** is a high-performance half-bridge IGBT module engineered for the most challenging high-power conversion systems. As a cornerstone of the SEMITRANS 3 family, this 1700V, 600A module provides an exceptional balance of electrical performance, thermal efficiency, and mechanical robustness, making it an ideal choice for developers focused on long-term system reliability and efficiency.
* **Brand:** Semikron
* **Model:** SKM600GA176D
* **Configuration:** Half-Bridge (2x IGBTs in one package)
* **Ratings:** 1700V Collector-Emitter Voltage / 600A Continuous Collector Current
* **Primary Applications:** Industrial Motor Drives, Renewable Energy Inverters, UPS, Power Supplies
## Application-Specific Value of the SKM600GA176D
Simply listing applications doesn't capture a module's true value. The **SKM600GA176D** excels by solving specific engineering problems within these demanding fields:
* **High-Power Industrial Motor Drives:** In applications like cranes, conveyors, and pumps, reliability under continuous heavy load is paramount. The module's robust thermal design, built on an Aluminum Silicon Carbide (AlSiC) baseplate, minimizes thermal stress, preventing premature failures and costly downtime in critical industrial automation processes.
* **Renewable Energy Inverters (Solar & Wind):** The 1700V blocking voltage provides a significant safety margin for high DC-link voltage systems common in large-scale solar farms. More importantly, the superior thermal cycling capability of the **SKM600GA176D** withstands the daily and seasonal temperature swings inherent to IGBTs in solar inverters, directly enhancing the operational lifetime of the entire converter.
* **Medium-Voltage Converters:** This module is an excellent building block for multilevel inverter topologies, such as 3-Level Neutral Point Clamped (NPC) inverters. Its high voltage rating and isolated package simplify the series connection and mechanical layout, reducing overall system complexity and cost.
* **Uninterruptible Power Supplies (UPS):** For mission-critical data centers and medical facilities, UPS failure is not an option. The proven reliability of the Semikron platform, combined with low conduction losses, ensures both high efficiency and unwavering readiness.
## Technical Deep Dive: The Engineering Behind the Performance
The superior performance of the **SKM600GA176D** stems from its advanced internal construction and component technology.
Advanced Thermal Management with AlSiC and AlN

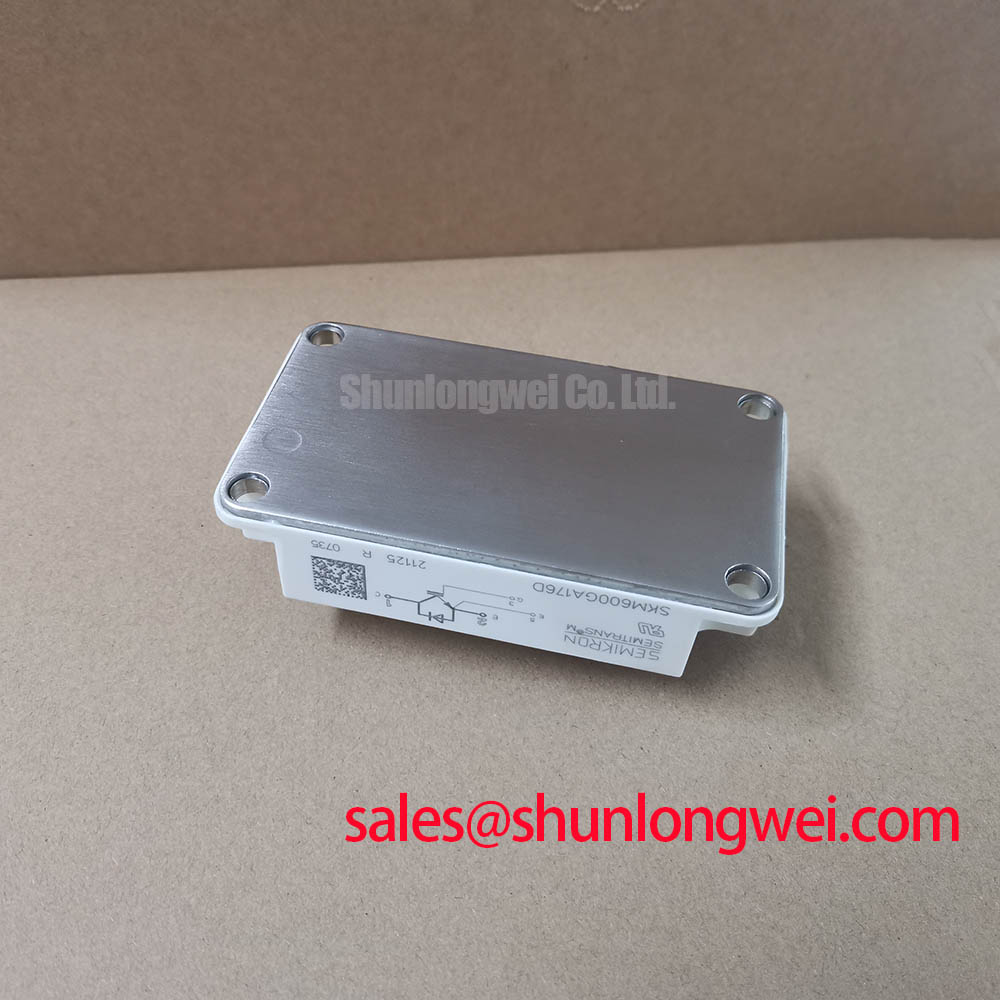

- Technical Principle: The module utilizes an Aluminum Silicon Carbide (AlSiC) baseplate combined with an Aluminum Nitride (AlN) Direct Bonded Copper (DBC) substrate. AlSiC has a coefficient of thermal expansion (CTE) that closely matches that of the silicon IGBT chip. AlN offers significantly higher thermal conductivity compared to standard Alumina (Al₂O₃).
- Application Value: This material combination drastically reduces mechanical stress on the solder joints during power cycling. For the end-user, this translates directly to a longer service life and higher reliability, especially in applications with frequent start/stop cycles or fluctuating loads. The enhanced thermal conductivity ensures heat is efficiently transferred away from the junction, allowing for higher power density or operation in tougher ambient conditions.
CAL4F Freewheeling Diode Technology
- Technical Principle: The integrated freewheeling diode employs CAL (Controlled Axial Lifetime) technology. This results in a "soft" reverse recovery characteristic, meaning the current falls smoothly without an abrupt snap-off.
- Application Value: A soft recovery diode generates significantly lower voltage overshoots and electromagnetic interference (EMI). This simplifies the design of snubber circuits, reduces the need for extensive EMI filtering, and lowers the voltage stress on both the diode and the IGBT. The result is a more reliable and cost-effective overall system design.
## Key Technical Specifications
For detailed design-in, refer to the official datasheet. Key parameters include:
| Parameter | Value |
|---|---|
| Max. Collector-Emitter Voltage (Vces) | 1700 V |
| Continuous Collector Current @ 80°C (Ic) | 600 A |
| Collector-Emitter Saturation Voltage (Vce(sat), typ. @ 600A, 25°C) | 2.10 V |
| Max. Junction Temperature (Tjmax) | 150 °C |
| Package | SEMITRANS 3 |
For complete specifications, please download the SKM600GA176D Datasheet.
## Frequently Asked Questions (FAQ)
* **What is the primary advantage of the AlSiC baseplate over a standard copper baseplate?**
The primary advantage is reliability. AlSiC's CTE is much closer to silicon than copper's. This reduces the mechanical stress on the solder layers during temperature changes (power cycles), significantly increasing the module's lifetime and resistance to fatigue-related failures.
* **How does this module help in reducing system EMI?**
The integrated CAL4F freewheeling diode features a soft-recovery characteristic. This gentler switching behavior reduces high-frequency voltage and current oscillations, which are major sources of EMI. This can lead to smaller, less expensive EMI filters and a faster EMC compliance process.
* **Can the SKM600GA176D modules be connected in parallel for higher current?**
Yes, these modules are designed for paralleling. Their positive temperature coefficient of Vce(sat) helps in ensuring good current sharing between modules. However, careful attention must be paid to symmetrical busbar layout and gate drive design to minimize imbalances.
For complex applications or to explore further options, contact our technical experts for a consultation. We can help you select the optimal component from our extensive portfolio of IGBT modules to ensure your project's success.
