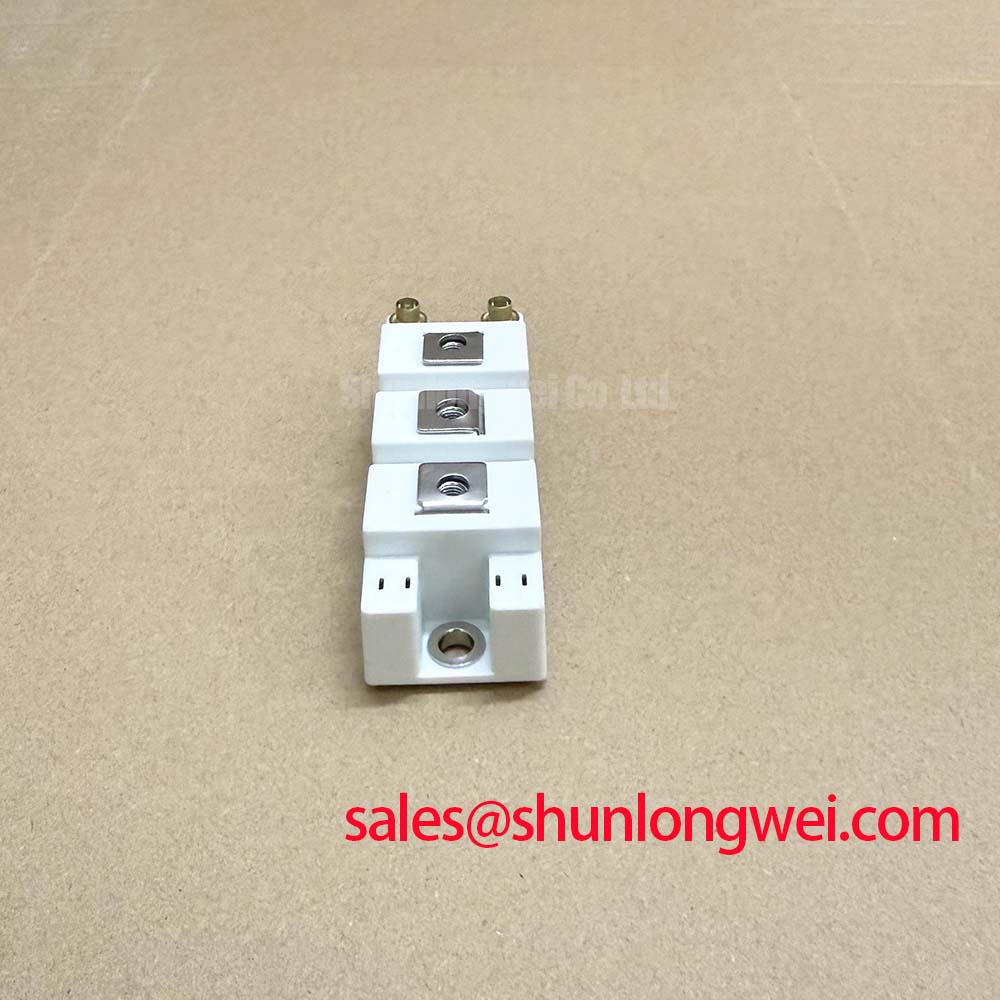

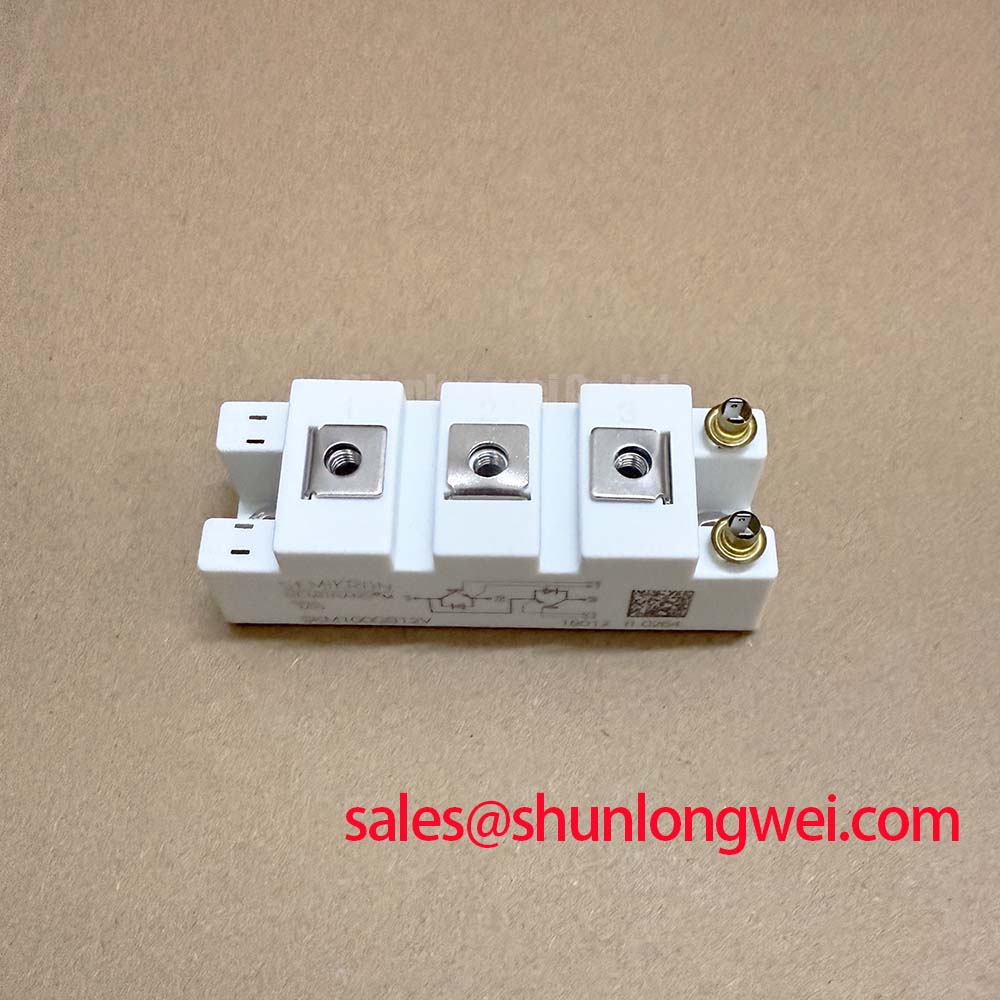

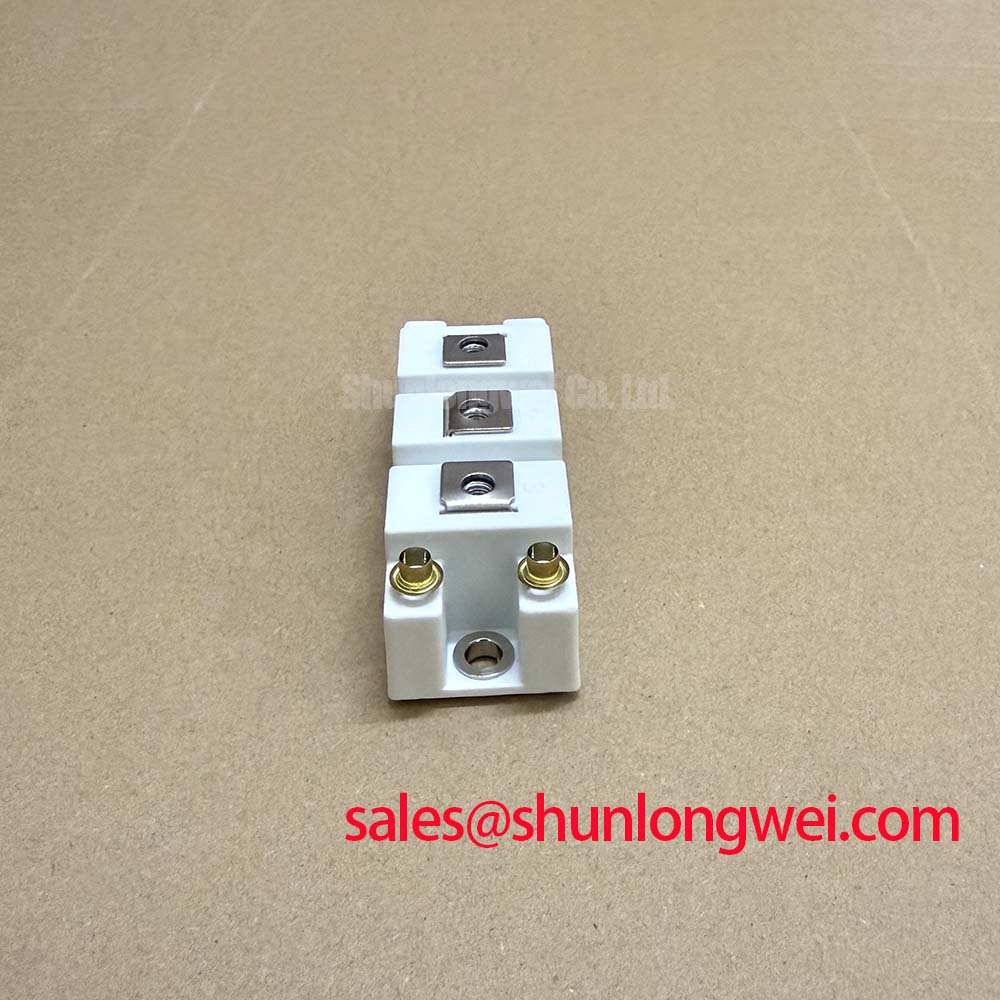

Semikron SKM100GB12V | Robust 1200V IGBT Module for High-Reliability Power Conversion
The Semikron SKM100GB12V is an industry-proven 1200V, 100A half-bridge IGBT module engineered for applications where reliability and thermal efficiency are not negotiable. Housed in the compact SEMITOP® 2 package, this module delivers a potent combination of Semikron's mature V-Series (Trench Field-Stop IGBT4) technology and robust construction, making it a cornerstone component for demanding power electronics designs.
Key Features at a Glance
- Voltage and Current Rating: 1200V collector-emitter voltage (V_CES) and a nominal 100A collector current (I_C), providing substantial power handling capacity.
- Advanced IGBT Technology: Utilizes Semikron's V-Series Trench Field-Stop IGBT4, optimized for low conduction losses and robust operation.
- High-Performance Diode: Integrates a fast and soft-recovery CAL (Controlled Axial Lifetime) freewheeling diode, minimizing switching losses and EMI.

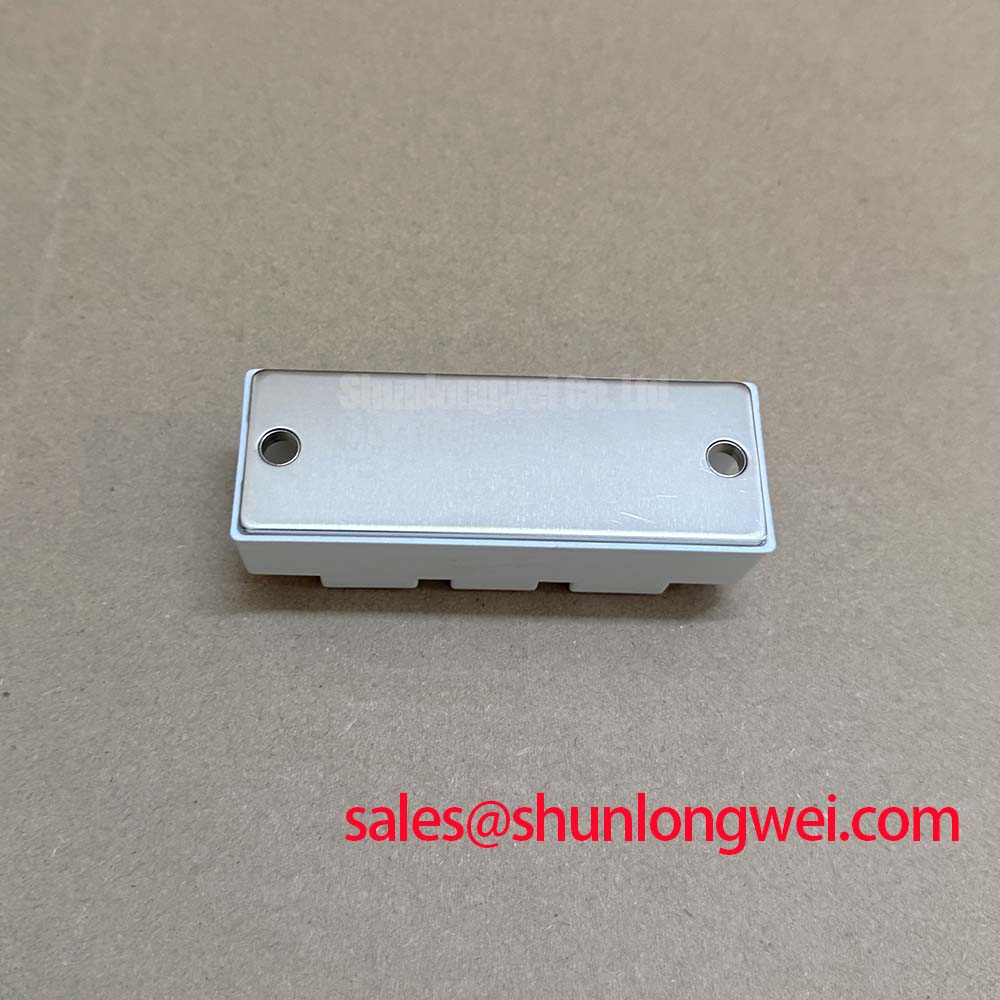

- Superior Thermal Management: Features an isolated copper baseplate (Al2O3 DBC) for excellent thermal conductivity and simplified heatsink mounting.
- Compact Footprint: The SEMITOP® 2 package enables high power density designs where board space is a premium.
Technical Deep-Dive: The Engineering Advantage
The performance of the SKM100GB12V is rooted in two core Semikron innovations. Understanding these reveals why this module remains a trusted choice for system designers.
First, the V-Series Trench Field-Stop IGBT4 chip represents a mature and highly optimized technology. The trench gate structure, combined with a field-stop layer, significantly reduces the collector-emitter saturation voltage (VCE(sat)). For engineers, this directly translates to lower conduction losses, meaning less waste heat is generated during operation. This reduces the burden on the thermal management system, allowing for smaller heatsinks or higher operational power within the same thermal budget.
Second, the integrated CAL Freewheeling Diode is engineered for "soft" recovery characteristics. When the IGBT turns off, the diode takes over the inductive load current. A hard-recovery diode would snap off abruptly, causing high voltage spikes and significant electromagnetic interference (EMI). The CAL diode's soft recovery mitigates these issues at the source, leading to a more reliable system with simplified snubber circuit design and easier EMC compliance—a critical factor in preventing catastrophic failures. For more insights on this topic, explore our guide on IGBT failure analysis and prevention.
Application Scenarios & Value Proposition
The balanced performance of the Semikron SKM100GB12V makes it exceptionally well-suited for a range of medium-power applications:
- Industrial Motor Drives: In variable frequency drives (VFDs) up to approximately 37 kW, the module's low VCE(sat) improves overall drive efficiency, while its robustness ensures long service life in harsh industrial environments.
- Uninterruptible Power Supplies (UPS): For online UPS systems, reliability is paramount. The SKM100GB12V's proven design and excellent thermal cycling capability ensure continuous, dependable power conversion.
- Welding Power Supplies: The module's fast switching characteristics and robust thermal design can handle the demanding, high-frequency pulse-width modulation (PWM) schemes used in modern welding equipment.
- Solar Inverters: In commercial string inverters, its efficiency and reliability contribute to maximizing energy harvest and ensuring a long operational lifespan for the entire system.
Key Technical Parameters
This table provides a quick reference for the critical electrical and thermal characteristics of the SKM100GB12V. For a complete set of specifications and performance curves, please review the official datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Continuous Collector Current (I_C) @ T_case = 80°C | 100 A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) @ I_C = 100A, T_j = 125°C | 1.9 V (Typ.) |
| Total Power Dissipation (P_tot) @ T_case = 25°C | 520 W |
| Short-Circuit Withstand Time (t_sc) | 10 µs |
| Thermal Resistance, Junction to Case (R_th(j-c)) per IGBT | 0.24 K/W |
For detailed schematics, application notes, and full electrical characteristics, you can download the SKM100GB12V datasheet here.
Frequently Asked Engineering Questions (FAQ)
What are the recommended gate drive conditions for the SKM100GB12V?
To ensure optimal performance and reliability, a gate drive voltage of +15V for turn-on and -8V to -15V for turn-off is recommended. The negative turn-off voltage provides a strong buffer against dV/dt-induced turn-on, especially in half-bridge configurations. A dedicated gate resistor (Rg) should be selected based on the desired switching speed, balancing efficiency against EMI and voltage overshoot. Following these best practices is crucial for system stability; you can learn more by reading these 5 practical tips for robust IGBT gate drive design.
Can the SKM100GB12V modules be paralleled for higher current?
Yes, paralleling is feasible. The V-Series IGBTs exhibit a positive temperature coefficient for V_CE(sat), which aids in automatic current balancing between modules. However, for successful paralleling, it is critical to ensure symmetrical PCB layout for both the gate drive signals and the main power connections (DC bus and AC output). This symmetry minimizes stray inductance imbalances, ensuring that current is shared as evenly as possible during both static and dynamic conditions.
```
