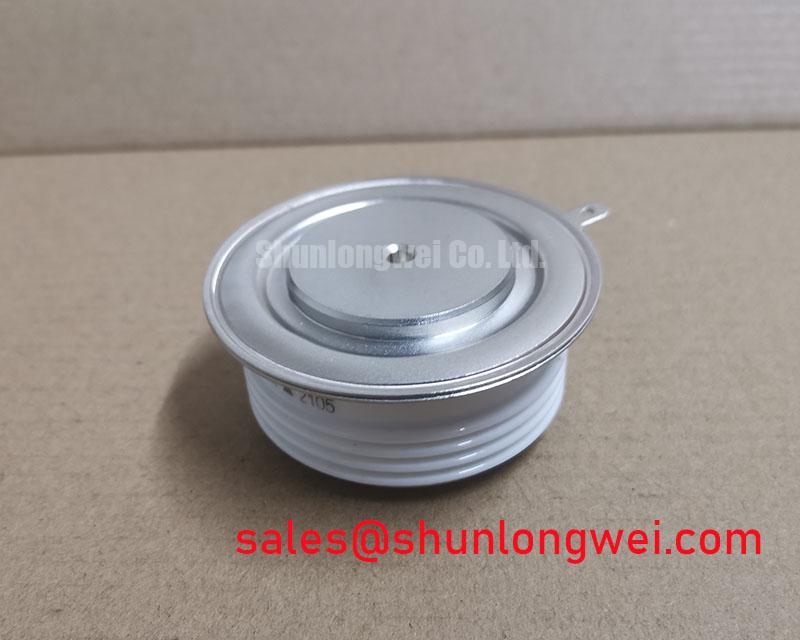

SKT760-16E Semikron 1600.0 V 760.0 A Thyristor Module

Evaluate SKT760-16E Semikron thyristor module for static var compensator repairs: 1600.0 V, 760.0 A, with integration and fuse coordination checks.

· Categories: Thyristor Module
· Manufacturer: Semikron
· Price: US$ 33 In-Stock Offer
· Date Code: Please Verify on Quote
. Available Qty: 510
MOQ: 1 PC
Express Shipping
90-Day Warranty
1-2 Days Lead Time
100% Tested
Whatsapp: 0086 189 2465 1869

Content last revised on November 12, 2026

SKT760-16E Inspection and Product Ratings

  • Isolate the power assembly, discharge stored energy, and verify absence of voltage before disconnecting the SKT760-16E terminals.
  • Record cold anode-to-cathode and gate-to-cathode measurements with parallel circuit paths disconnected; compare results with a known-good device under identical instrument conditions.
  • Check terminal identification, contact-face condition, mounting hardware, and cooling-interface alignment against the assembly drawing.
  • Inspect gate wiring and insulation spacing for contamination, loose connections, or displaced conductors before reconnecting the power circuit.

The SKT760-16E from Semikron is a thyristor. The specification card below separates its stated product ratings from the system-dependent checks discussed afterward. A cold meter test provides preliminary screening; it does not establish high-voltage blocking capability or successful commutation under load.

Parameter Specified product value
Manufacturer Semikron
Part Number SKT760-16E
Repetitive Peak Reverse Voltage (VRRM) 1600.0 V
Average On-State Current (IT(AV)) 760.0 A under the datasheet-specified conditions
Package Disc Capsule Thyristor
Configuration / Topology Single Thyristor
Additional selection data Consult Datasheet: terminal drawing, mounting requirements, current-rating conditions, recovery characteristics, surge ratings, and semiconductor-fuse coordination.

SKT760-16E Operational Boundaries: Evaluating Reverse Recovery Charge Limits

Capture current through the commutating branch together with voltage across the outgoing device when assessing reverse recovery. Design Consideration: peak reverse recovery current, I_rrm, and recovery time, t_rr, depend on the operating conditions used for their measurement. Compare waveforms at relevant junction temperature, preceding current, and commutation rate rather than treating a single oscilloscope trace as a universal device characteristic.

The thyristor designation does not establish the presence of an internal companion diode. Trace the assembly schematic to identify which semiconductor carries reverse recovery current. For the thyristor itself, circuit-commutated turn-off time is also relevant: recovery of reverse blocking does not by itself establish readiness to withstand reapplied forward voltage.

Observe the recovery tail and associated voltage ringing with appropriately rated probes and controlled measurement loops. Abrupt current recovery can excite circuit inductance and increase voltage overshoot; measurement pickup can produce a similar-looking trace. Correlate the current and voltage records before changing the suppression network. These observations support assessment of switching stress and interference mechanisms, not an equipment-level EMC compliance claim.

During replacement assessment, compare the SKT552/16E against the actual current waveform, cooling arrangement, recovery requirements, terminal orientation, and mechanical drawing. Model-family proximity is not evidence of interchangeability. For compatibility evaluation, a grid-tied static var compensator or thyristor-switched capacitor assembly also requires review of branch voltage sharing and switching sequence.

SKT760-16E Thermal-Electrical Optimization: Saturable Reactor and Snubber Sizing to Practical Tuning

Select the snubber network from measured reapplied voltage and commutation conditions, then evaluate resistor heating and capacitor pulse duty across the operating envelope. Design Consideration: an RC network can moderate voltage rise and damp oscillation, but its discharge current also passes through a circuit path that must be included in the thyristor turn-on assessment.

A series saturable reactor can limit initial current rise while conduction spreads through the thyristor. Its magnetic reset, saturation behavior, and losses must match the switching sequence. Component selection therefore belongs to the complete branch design, with validation of current rise and voltage stress rather than an assumed universal reactor or snubber value.

Engineering Recommendation: Keep the gate-current return closely coupled to its outgoing conductor, and validate triggering during the actual commutation sequence rather than relying on an unloaded gate-pulse check.

Thyristor gate triggering should not be treated as IGBT gate-voltage control: removing the trigger does not normally interrupt established anode current. When reviewing related power stages, the SKKT-132-16 provides a separate topology reference, not an automatically compatible driver or replacement. Compare terminal functions and trigger requirements at schematic level.

Mechanical integration deserves equal attention. Match the mounting method to the housing drawing; do not substitute bolt torque for capsule clamping force. Where a thermal interface material is specified, control its application through the approved assembly procedure rather than assuming a generic thickness. Inspect terminal clearances and surface creepage paths against the equipment insulation design, including contamination and conductor movement.

SKT760-16E Operational Boundaries: Evaluating Post-Surge Reverse Voltage Blocking Limits

Coordinate the semiconductor fuse using its total clearing I²t, prospective fault current, and circuit voltage against the thyristor’s applicable surge limits. Design Consideration: fuse pre-arcing I²t alone does not describe the complete energy passed during interruption, and semiconductor protection does not establish enclosure containment performance.

For a sinusoidal 10 ms half-cycle assessment, use an I_TSM rating explicitly specified for that waveform and starting junction temperature. The 760.0 A average-current rating cannot substitute for surge capability. Check whether the surge specification permits subsequent reverse voltage application and how its stated conditions relate to the equipment protection sequence.

After a fault, assess the previous load, cooling condition, fault-clearing record, and recovery interval before authorizing restart. The broader article The Backbone of High-Power Wireless EV Charging provides related power-conversion context; its IGBT discussion does not establish SKT760-16E protection limits. Complete the repair assessment with controlled blocking and trigger tests, followed by monitored recommissioning under the equipment service procedure.
