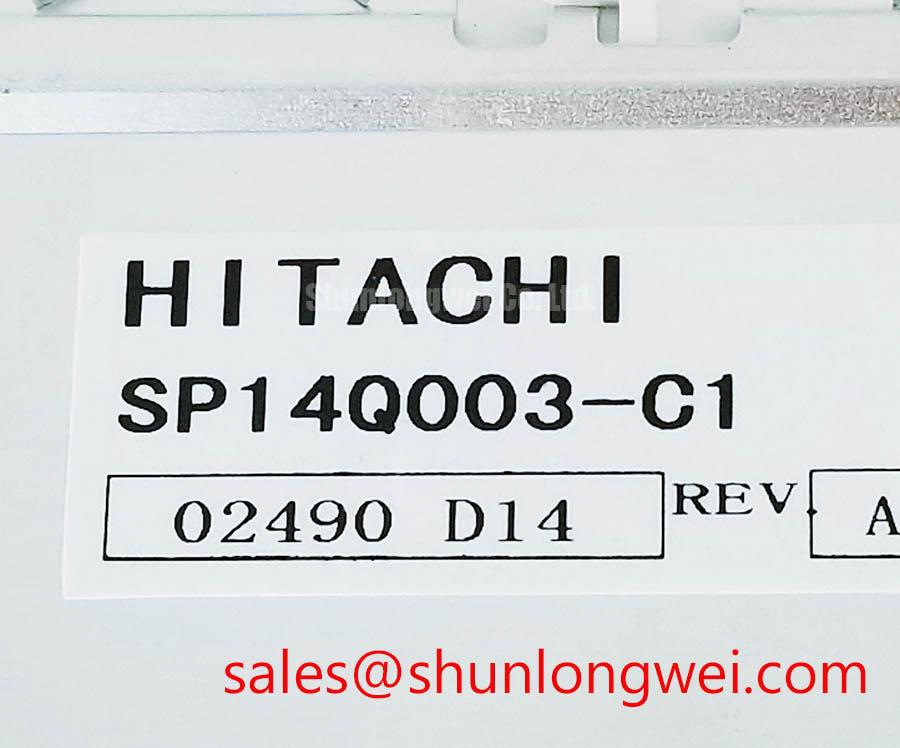

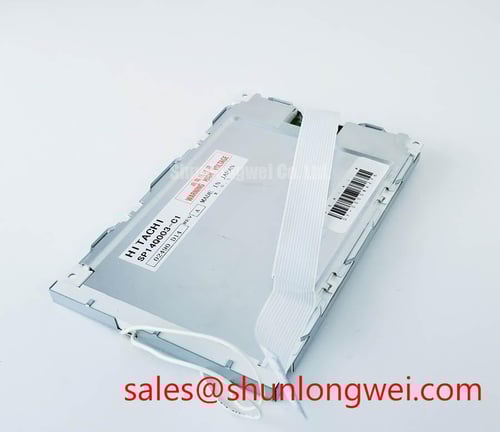

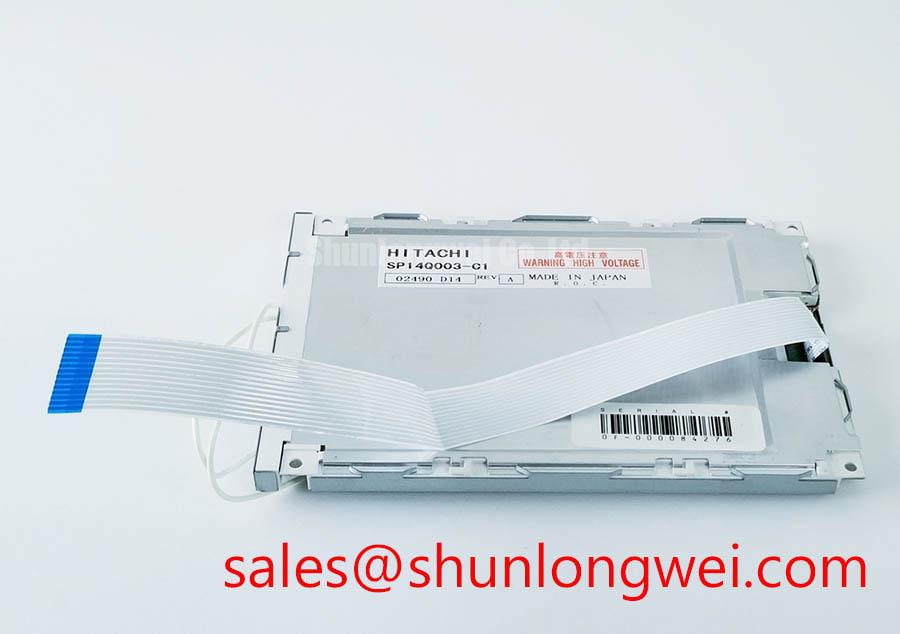

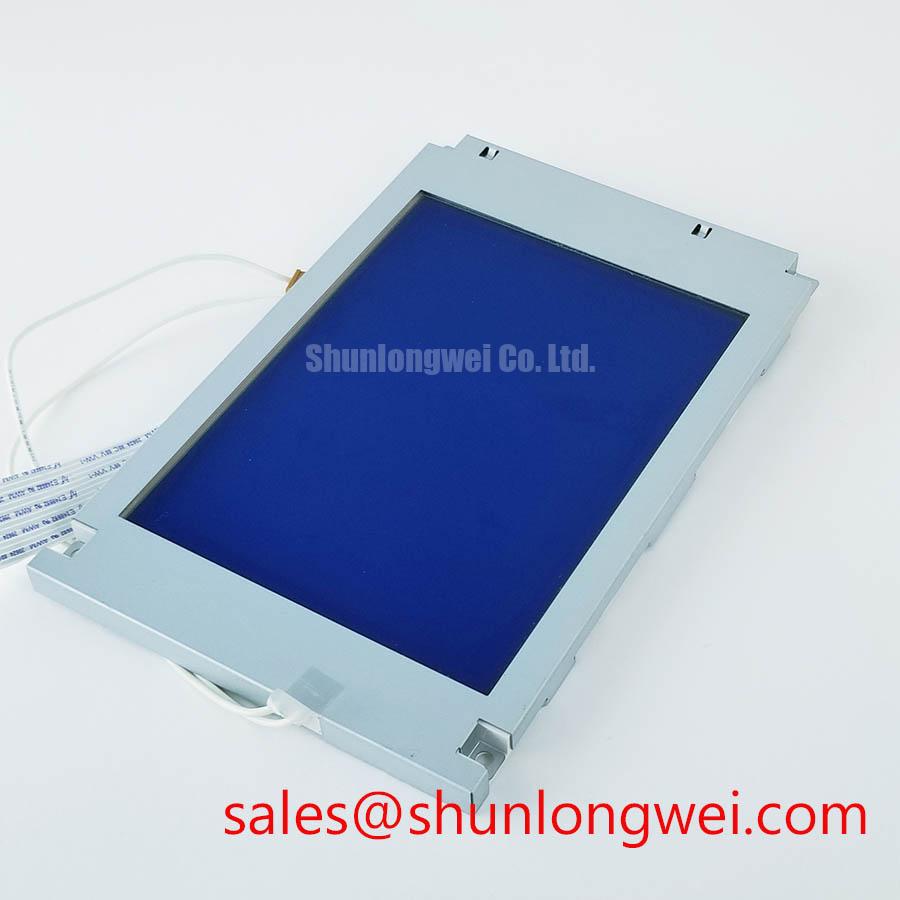

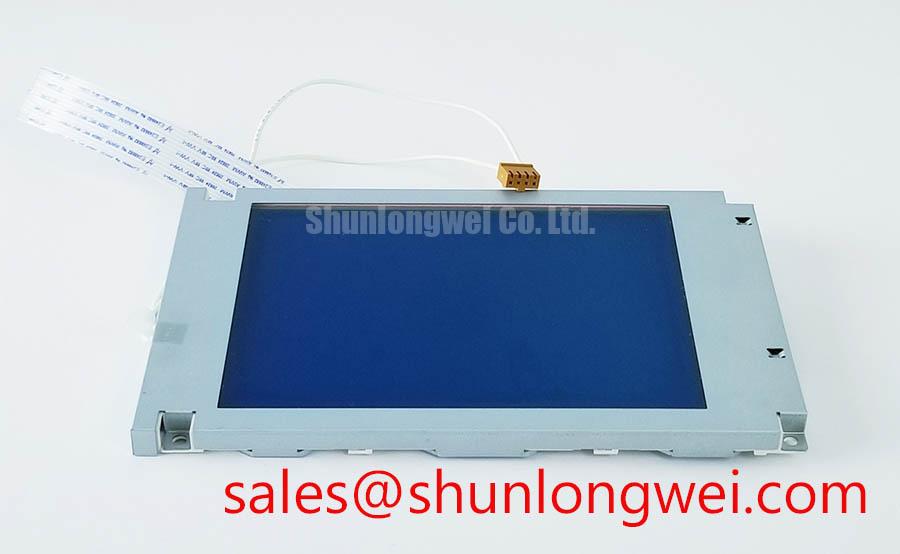

SP14Q003-C1 KOE Hitachi FSTN Monochrome LCD Panel

SP14Q003-C1 KOE Hitachi LCD display for substation protection and SCADA consoles. FSTN monochrome panel; check interface and fit.

· Categories: LCD Display
· Manufacturer: Hitachi
· Price: US$ 210 In-Stock Offer
· Date Code: Please Verify on Quote
. Available Qty: 33
MOQ: 1 PC
Express Shipping
90-Day Warranty
1-2 Days Lead Time
100% Tested
Whatsapp: 0086 189 2465 1869

Content last revised on October 17, 2026

Cleaning Zebra Rubber Strips and PCB Gold Contact Pads with Anhydrous Isopropyl Alcohol (IPA)

When rows or columns disappear on an SP14Q003-C1 display, first check whether the image changes with gentle pressure around the bezel; that observation can help distinguish a contact or alignment issue from a signal-path fault. The supplied product identification describes the panel as a KOE / Hitachi FSTN / STN monochrome passive-matrix LCD. It does not establish the connector type, pinout, bus width, or cleaning procedure as model-specific specifications.

For a panel using an elastomeric zebra connector, inspect the strip and mating PCB pads for residue, oxidation, displacement, or uneven clamping. If cleaning is appropriate for the actual assembly, use electronics-grade anhydrous isopropyl alcohol sparingly on a lint-free swab and allow the surfaces to dry fully before reassembly. Do not scrape plated contacts or apply unverified clamping-pressure figures: bezel geometry and connector compression are assembly-specific. Refit the bezel evenly and compare the displayed rows and columns before and after reassembly.

Bench Tip: Disconnect power before handling the panel, use ESD precautions, and make sure any flexible cable is seated squarely before locking its connector.

If the panel uses parallel timing signals, inspect the documented interface for clock, line, and frame timing names and compare them with the controller output using a known-good reference. Do not assume that signals named CP, LP, or FLM, or a particular 4-bit or 8-bit bus, apply to this unit without the matching panel documentation. For replacement evaluation, LM12S49 is a separate display to assess against the host’s mechanical, electrical, and optical requirements; its presence here does not establish interchangeability.

Backlight and Inverter Compatibility Checks

Identify the installed backlight from the original panel and equipment documentation before testing or replacing its driver. The supplied SP14Q003-C1 product data identifies a monochrome passive-matrix LCD, but does not specify a backlight type, striking voltage, operating current, or inverter. Do not apply CCFL ignition-voltage or tube-current figures as though they were ratings for this panel.

Where the equipment uses a separate high-voltage lamp inverter, treat its output as hazardous and follow the equipment manufacturer’s service procedure. Inspect the lamp wiring and insulation for visible damage, and use test equipment and methods rated for the circuit. A driver or display change should be assessed as a complete subsystem: connector pinout, supply requirements, mechanical fit, brightness control, and any monitoring signals all matter. The TX26D211VM0BAB is another product in the display ecosystem, not a confirmed companion driver or compatible substitute for this panel.

For a high-voltage substation protection or SCADA dispatch console, compatibility depends on the console’s existing panel interface and enclosure, not on the application label alone. Compare the original display’s viewing area, mounting features, connector orientation, and image format with the replacement documentation before installation.

Contrast and Temperature Evaluation

Assess contrast across the equipment’s specified operating conditions by allowing the display and enclosure to reach a stable temperature, then comparing character legibility and background uniformity at the same viewing angle. FSTN and STN identify monochrome passive-matrix display technologies; they do not, by themselves, establish this panel’s threshold voltage, operating-temperature limits, contrast ratio, or temperature-compensation circuit.

If contrast changes with temperature, check the host’s documented LCD bias supply and contrast-control circuit for stability, then compare measured behavior with the panel’s original specification. Avoid applying an assumed negative bias range or ripple limit: incorrect bias can degrade the image or stress the display. A temperature-dependent change can also arise from the controller, supply regulation, connector contact, or the panel itself, so record the conditions and repeat the observation rather than treating one symptom as proof of a single cause.

For systems with a zebra connector, recheck alignment and uniform contact after thermal testing. Cleaning and reassembly should follow the actual contact construction and service procedure. For broader display-interface context, The Ultimate Guide to Industrial TFT LCD Technology discusses technology and integration considerations; TFT guidance should not be mistaken for specifications of this passive-matrix model.

Logic and LCD Bias Power-Up Coordination

Check the controller’s power-up and power-down sequence against the panel’s own interface documentation before reconnecting a display that shows a blank screen, unstable characters, or residual image. The supplied product information does not confirm a 3.3 V or 5.0 V logic rail, a VEE or V0 bias requirement, or a particular order for applying those supplies. Use the values and timing specified for the exact panel revision and host controller.

Where the interface uses frame, line, and pixel timing signals, verify their definitions and timing at the panel connector, not only at the controller. Check that signal transitions remain orderly during startup and shutdown, and that the display is not left with an unintended DC bias. The DisplayPort overview describes a packetized digital interface, which is distinct from a panel’s documented parallel timing interface; it is useful only when assessing a separate system-level link, not as evidence of this model’s connector protocol. Likewise, the sRGB color space concerns color reproduction and does not define monochrome panel power or timing.

In long-running HMI or SCADA use, review the displayed content and host behavior if persistent screen patterns remain after power-down. Record whether the effect clears after a normal restart and compare with a known-good panel or controller path. Avoid changing supply rails or timing based on an assumed interface; confirm the required settings from the equipment and panel documentation.
