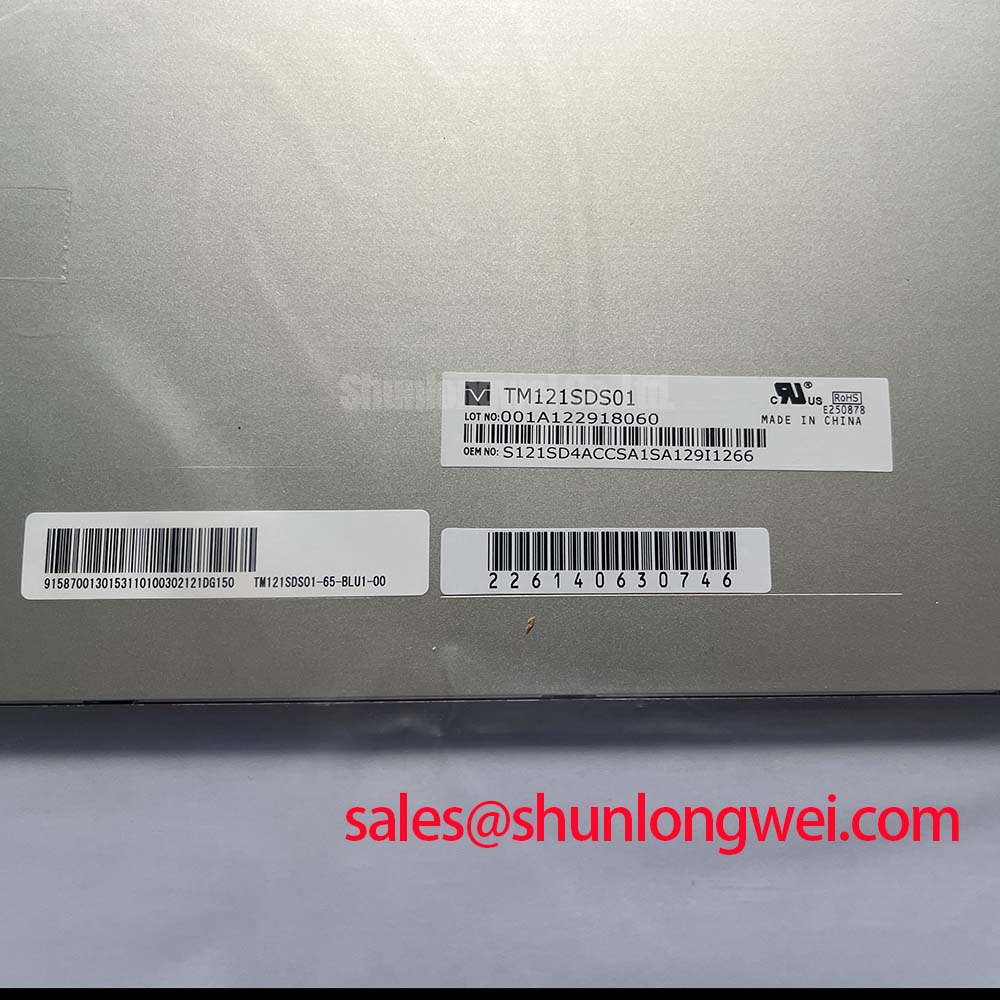

TM121SDS01: A Robust 12.1-Inch SVGA Display for Industrial Environments
Engineered for Reliability in Demanding Visual Applications
Optimizing Performance in High Ambient Light and Fluctuating Temperatures
The Tianma TM121SDS01 is an a-Si TFT-LCD module engineered for long-term performance in applications where operational reliability and visual clarity are non-negotiable. It delivers a balanced set of features centered on robustness and consistent readability. At its core, the TM121SDS01 provides a stable visual interface with key specifications of 12.1-inch diagonal size, 800x600 SVGA resolution, a brightness of 450 cd/m², and a wide operating temperature range from -20°C to 70°C. Key engineering benefits include sustained readability in bright industrial settings and operational integrity across challenging thermal cycles. This display directly addresses the need for a durable HMI solution that resists environmental stress without compromising on performance. For industrial systems requiring a proven, long-lifecycle display, the TM121SDS01 offers a compelling engineering solution.
Key Parameter Overview
Specification Highlights for System Integration and Performance
The technical specifications of the TM121SDS01 are tailored for straightforward integration into industrial equipment. The combination of its brightness, contrast, and thermal resilience makes it a prime candidate for new designs and retrofits where reliability is a primary concern. The WLED backlight system is not only efficient but is also rated for a 50,000-hour lifespan, significantly reducing maintenance overhead.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Panel Size | 12.1 inches | Provides a substantial viewing area for complex data visualization without an excessive footprint. |
| Resolution | 800(RGB)×600 [SVGA] | Delivers clear, sharp images suitable for standard industrial control interfaces and monitoring systems. |
| Brightness | 450 cd/m² (Typ.) | Ensures screen content remains visible and legible, even in brightly lit factory floors or control rooms. |
| Contrast Ratio | 700:1 (Typ.) | Offers distinct separation between light and dark elements, enhancing the clarity of detailed graphics and text. |
| Operating Temperature | -20 ~ 70 °C | Guarantees stable operation in unconditioned environments, from cold storage facilities to hot manufacturing lines. |
| Viewing Angle (L/R/U/D) | 80/80/65/75 (Typ.) | Allows for clear off-axis viewing, a critical feature for control panels that are not always viewed from a direct, head-on position. |
| Interface | LVDS (1 ch, 6/8-bit) | Utilizes a standard, low-noise interface for reliable data transmission, simplifying system-level electronic design. |
| Backlight Lifetime | 50,000 hours (Typ.) | Translates to over 5.7 years of continuous 24/7 operation, aligning with the long service life required of industrial machinery. |
Download the TM121SDS01 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Delivering System-Level Benefits in Industrial Human-Machine Interfaces
The TM121SDS01 is best suited for applications where a screen is more than just a display; it's a critical component for control, monitoring, and safety. Its feature set provides tangible value in environments that would compromise standard consumer-grade panels. For systems requiring a different form factor or resolution, the G104S1-L01 offers a 10.4-inch alternative, also with SVGA resolution, catering to more space-constrained designs.
High-Fidelity Engineering Scenario: Process Control HMI on a Manufacturing Floor
Consider a Computer Numerical Control (CNC) machine or a packaging line controller situated on a factory floor. This environment often features intense overhead lighting and significant temperature swings throughout the day. An operator needs to clearly read machine status, input commands, and monitor critical process variables without error. The 450-nit brightness of the TM121SDS01 is crucial here; it acts like turning up the volume on a radio in a noisy room, cutting through the ambient light to ensure the on-screen data is always legible. Simultaneously, its ability to operate flawlessly from -20°C to 70°C means the HMI's performance remains consistent, whether the plant is in a cold startup phase on a winter morning or running at peak thermal load in the summer. This thermal resilience prevents screen failures that could halt production, directly contributing to higher overall equipment effectiveness (OEE).
- Industrial Automation & Control Panels
- Test and Measurement Equipment
- Medical Monitoring Systems
- Data Terminals and Kiosks
Frequently Asked Questions
Engineering-Focused Inquiries for the TM121SDS01
How does the 450-nit brightness of the TM121SDS01 affect its performance in industrial settings?
A brightness of 450 nits is significantly higher than typical consumer displays, providing the necessary luminance to overcome glare and reflection from high-intensity factory lighting. This directly enhances operator accuracy and reduces eye strain, leading to fewer input errors in critical tasks.
What are the design implications of the specified -20 to 70°C operating temperature range?
This wide operating range allows the display to be integrated into systems deployed in non-climate-controlled environments without requiring dedicated heating or cooling subsystems for the panel itself. This simplifies the overall mechanical and thermal design of the end product, reducing complexity, cost, and potential points of failure.
What is the significance of the LVDS (1 ch, 6/8-bit) interface for system integration?
The LVDS interface is an industry standard for displays, valued for its high noise immunity and low electromagnetic interference (EMI). This is critical in an industrial setting where electrical noise from motors, drives, and power lines can corrupt video signals. Using LVDS simplifies achieving electromagnetic compatibility (EMC) compliance and ensures a stable, flicker-free image. For a deeper understanding of display technologies, explore The Ultimate Guide to TFT-LCD.
Strategic Outlook
The Enduring Value of Robust Display Technology
As industrial systems become more interconnected and data-reliant, the human-machine interface evolves from a simple peripheral to the central nexus of operational control. The TM121SDS01 represents a commitment to the foundational principles of industrial design: durability, reliability, and performance under pressure. Its proven technology and robust specifications ensure it remains a relevant and valuable component for system integrators focused on delivering long-term value and minimizing the total cost of ownership. Investing in a display engineered for these environments is a strategic decision that enhances system integrity and user confidence for years to come.
