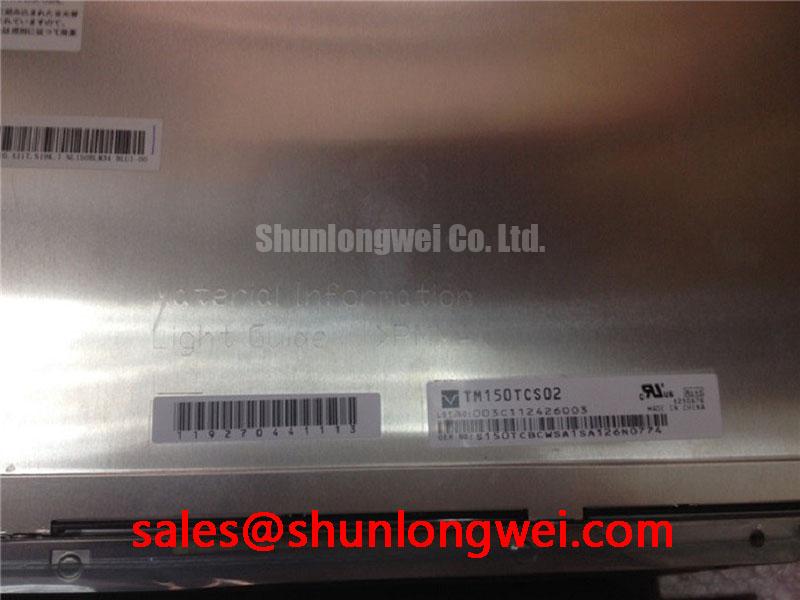

Tianma TM150TCS02 | Industrial-Grade 15" XGA Display for Demanding HMI Applications
The Tianma TM150TCS02 is a 15.0-inch TFT-LCD panel engineered from the ground up for long-term reliability in demanding industrial environments. It delivers a robust and stable display solution, moving beyond the short lifecycles of consumer-grade panels to provide the consistency required for critical machinery, control systems, and specialized equipment. This display is a workhorse, designed for applications where clarity, dependability, and integration simplicity are paramount.
Product Highlights Overview
- Optimal Resolution: 1024x768 XGA resolution provides the perfect balance of detail for complex user interfaces and efficiency for embedded systems.
- Proven Technology: Utilizes a-Si TFT (Amorphous Silicon) technology, renowned for its stability, long operational life, and consistent performance across a wide temperature range.
- Seamless Integration: Features a standard 20-pin LVDS Interface, ensuring compatibility with a vast ecosystem of industrial motherboards and single-board computers.
- Engineered for Industry: Built to meet the rigorous demands of industrial automation, medical devices, and interactive kiosks where uptime is non-negotiable.
Key Parameter Overview
The following table outlines the core technical specifications that make the TM150TCS02 an excellent choice for system integrators. For complete, unabridged specifications, it is essential to consult the official product datasheet.
| Parameter | Specification |
|---|---|
| Screen Size | 15.0 inch |
| Resolution | 1024(RGB)×768 [XGA] |
| Display Technology | a-Si TFT-LCD, LCM |
| Brightness | Typically 300-450 cd/m² (Varies by specific model revision) |
| Contrast Ratio | Typically 700:1 |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Operating Temperature | -20 ~ 70 °C |
| Backlight System | WLED, typically with 50K+ hours lifetime |
Technical Deep Dive: Engineering for Performance
The value of the Tianma TM150TCS02 lies not just in its specifications, but in the engineering decisions behind them. The XGA (1024x768) resolution is a deliberate choice for the industrial sector. It delivers significantly more detail than older SVGA panels, allowing for sophisticated graphical HMIs, clear diagnostic readouts, and legible text without overburdening the system's graphics processor. This efficiency is critical in real-time control applications.
The use of a-Si TFT technology is a cornerstone of its industrial pedigree. Unlike the technologies used in consumer televisions that prioritize refresh rates, amorphous silicon provides exceptional stability and a proven track record of longevity, ensuring consistent optical performance over years of continuous operation. This makes it a reliable component for industrial LCD displays that must function flawlessly for the life of the machine they are built into.
Application Scenarios & Value Proposition
The specific combination of features in the TM150TCS02 translates directly into value across several key sectors:
- Industrial Automation & HMI: Its robust operating temperature range and clear resolution make it ideal for factory floor control panels, SCADA systems, and CNC machine interfaces where operators need at-a-glance clarity in challenging conditions.
- Medical Diagnostic Equipment: The stable image quality and long-term availability are critical for medical devices like patient monitors and diagnostic imaging stations, where component consistency and certification are key.
- Transportation and Kiosks: In ticketing machines, information kiosks, and public transit displays, the reliable WLED backlight and durable construction ensure high uptime and low maintenance, maximizing ROI in public-facing installations. Learn more in our ultimate guide to TFT LCDs.
Frequently Asked Questions (FAQ)
What is the typical backlight lifetime of the TM150TCS02?
While the exact rating is in the official datasheet, industrial-grade panels like the Tianma TM150TCS02 are typically equipped with WLED backlight systems rated for 50,000 hours or more to L50 (the time at which brightness degrades to 50% of its initial value). This is engineered for 24/7 operation over many years, a stark contrast to consumer panels which may be rated for only 15,000-20,000 hours.
Can the TM150TCS02 be paired with a touchscreen?
Absolutely. The 15.0-inch form factor is a standard size, making it highly compatible with third-party resistive (RTP) and projected capacitive (PCAP) touch overlays. Its mechanical design provides a solid foundation for bonding a touchscreen, enabling the development of fully interactive HMIs. For specialized integration or difficult environments, contact our technical team to discuss custom solutions.
