TT 330 N 16 KOF 12M1: Engineering High-Reliability Power Control with Pressure Contact Technology

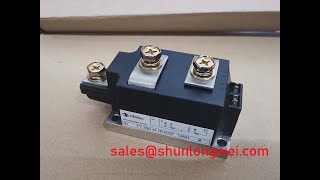

The Infineon TT 330 N 16 KOF 12M1 is a high-performance thyristor module engineered for exceptional reliability in demanding high-power phase control applications. This module leverages Infineon's advanced pressure contact technology to deliver superior thermal and electrical performance over its operational lifespan. With key specifications of 1600V | 330A | 10000A ITSM, it provides robust power handling and exceptional surge current survivability. Its core benefits include outstanding power cycling capability and enhanced long-term DC blocking stability. This module directly addresses the engineering need for a durable, high-current control component in industrial systems by eliminating solder fatigue, a common failure point in conventional modules. What is the primary benefit of its pressure-contact design? Enhanced long-term reliability by eliminating solder fatigue.
Application Scenarios & Value
Achieving System-Level Reliability in High-Demand Industrial Drives
In high-power industrial applications such as soft starters for large induction motors, the ability to reliably manage massive inrush currents and thermal stress is paramount. The TT 330 N 16 KOF 12M1 is specifically designed for these scenarios. Its high surge current capability (ITSM) of 10,000A ensures the module can withstand the significant electrical stress of motor startups without degradation. Furthermore, its pressure contact design provides a decisive advantage over traditional soldered modules. By eliminating solder layers, it creates a more direct, lower-resistance thermal path, which is critical for dissipating heat during repeated start-stop cycles. This superior thermal management, a key aspect of reliable servo drive and Variable Frequency Drive (VFD) operation, prevents premature aging and extends the service life of the entire power conversion system. For systems requiring a higher voltage margin, the related TT215N22KOF12M1 offers a 2200V blocking capability.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The parameters of the TT 330 N 16 KOF 12M1 are optimized for robust performance in industrial power control. The specifications below highlight its capacity for high-current handling and thermal stability, which are crucial for long-term reliability in applications like UPS (Uninterruptible Power Supply) systems and industrial rectifiers.
| Parameter | Value | Notes |
|---|---|---|
| Blocking Characteristics | ||
| Repetitive Peak Off-State Voltage (VDRM, VRRM) | 1600 V | Ensures safe operation on industrial grids with significant voltage transients. |
| Conducting Characteristics | ||
| Average On-State Current (ITAVM) | 330 A (@ TC = 85°C) | High continuous current capability for demanding loads. |
| RMS On-State Current (ITRMSM) | 520 A | Defines the maximum continuous RMS current handling. |
| Surge Current (ITSM) | 10000 A (@ Tvj max, 10ms) | Exceptional survivability during fault conditions and high inrush events. |
| I²t-value | 500,000 A²s (@ Tvj max, 10ms) | Critical for coordinating with fuses and circuit breakers for system protection. |
| Thermal & Mechanical Characteristics | ||
| Max. Junction Temperature (Tvj max) | 130 °C | Provides operational margin in thermally challenging environments. |
| Thermal Resistance, Junction to Case (Rth(j-c)) | 0.112 K/W | A low thermal resistance value indicating efficient heat transfer to the heatsink. |
| Technology | Pressure Contact | Eliminates solder fatigue points, enhancing mechanical and thermal cycling robustness. |
Download the TT 330 N 16 KOF 12M1 datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at the Pressure-Contact Design for Long-Term Reliability
The core innovation of the TT 330 N 16 KOF 12M1 is its use of Infineon's proven pressure contact technology. Unlike conventional modules where silicon dice are soldered to a baseplate, this design uses precisely calibrated mechanical pressure to establish electrical and thermal connections. This seemingly simple change has profound engineering implications. Solder layers are prone to fatigue and cracking over thousands of thermal cycles, eventually leading to increased thermal resistance and catastrophic failure. The pressure contact system completely sidesteps this failure mode. Think of it like the difference between a glued joint and a bolted flange in a high-vibration engine; the bolted connection maintains its integrity and performance characteristics far longer under continuous stress, ensuring predictable and reliable operation throughout the product's entire service life.
Frequently Asked Questions (FAQ)
How does the pressure contact design of the TT 330 N 16 KOF 12M1 contribute to its operational lifespan compared to soldered modules?
The pressure contact technology eliminates solder layers, which are a primary failure point due to thermal cycling fatigue. By removing solder, the module offers significantly higher robustness against temperature swings, leading to a longer and more reliable operational life, especially in applications with frequent start-stop cycles like soft starters or industrial heating.
What is the significance of the 10,000A surge current (ITSM) rating for a system designer?
A high ITSM rating of 10,000A provides a crucial safety margin. It ensures the thyristor module can survive significant, non-repetitive fault currents or large inrush currents from motors and transformers without failing. This allows designers to build more resilient systems and simplify protective device coordination.
For what kind of AC line voltage is a 1600V VDRM rating typically suitable?
A 1600V rating makes this module well-suited for power control applications on 480V to 690V AC industrial power lines. This provides a sufficient safety margin to handle the voltage spikes and transients commonly found in industrial environments, ensuring reliable DC blocking stability.
What does the "Short on Fail" feature mean for system safety?
"Short on Fail" is a fail-safe characteristic inherent to the pressure contact design. In the unlikely event of a die failure, the pressure ensures that the failed component creates a stable short circuit. This prevents an open-circuit condition, which can be more dangerous in many systems, and allows protective devices like fuses to safely disconnect the circuit.
Strategic Advantage
Integrating the TT 330 N 16 KOF 12M1 into new power system designs is a strategic decision for enhancing long-term reliability and reducing total cost of ownership. Its pressure contact technology future-proofs equipment against the mechanical stresses of modern, high-efficiency power cycles. For engineers developing next-generation industrial drives, large-scale UPS systems, or renewable energy converters, this module provides a robust foundation, minimizing the risk of field failures and ensuring sustained performance in critical infrastructure. In applications where reliability is non-negotiable, the inherent robustness of this design offers a distinct competitive advantage.
