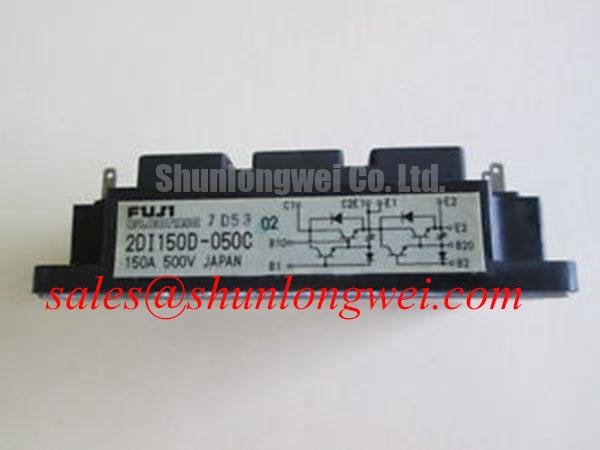

Fuji Electric 2DI150D-050C Darlington Transistor Module: High-Gain Current Amplification for Industrial Power Switching
The 2DI150D-050C is a high-performance Dual Darlington Transistor Module engineered by Fuji Electric to deliver robust current handling and high DC current gain in demanding industrial environments. Featuring a 600V collector-emitter voltage rating and a 150A continuous collector current capability, this module is specifically optimized for applications requiring low drive power and high thermal stability. By integrating two Darlington pairs into a single isolated package, it provides a compact solution for power switching, effectively reducing component count and simplifying complex gate drive requirements.
What is the primary technical advantage of using a Darlington module over a standard power transistor? The Darlington configuration provides exceptionally high current gain, allowing high-power loads to be controlled by low-level signals, which significantly reduces the complexity and power consumption of the base drive circuitry.
For systems prioritizing thermal margin and switching reliability in the 400V DC bus range, the 150A rating of the 2DI150D-050C provides the necessary overhead to manage transient surges in heavy machinery. Best Fit: Ideal for industrial AC/DC motor drives and UPS systems requiring a rugged 600V / 150A power stage with high current amplification.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
Engineers often face the challenge of balancing drive circuit simplicity with the need for high output current in high-torque motor applications. The 2DI150D-050C addresses this by providing an integrated solution that thrives in Variable Frequency Drive (VFD) environments. In these scenarios, the 150A collector current allows for smooth torque control during acceleration phases, while the 600V isolation voltage ensures safety in systems operating on a 200-400V AC line. A common challenge in industrial conveyor systems involves high motor-start surge currents; the robust Safe Operating Area (SOA) of this Fuji module allows it to handle these surges without the immediate risk of thermal runaway, a critical factor for maintaining 24/7 production uptime.
In Uninterruptible Power Supplies (UPS), the 2DI150D-050C serves as a critical switching element in the inverter stage. The high hFE (DC current gain) characteristic ensures that the transition between grid power and battery backup is managed with minimal losses in the control stage. For engineers accustomed to working with newer technologies, it is worth noting that while modern IGBT vs MOSFET selections offer faster switching, the Darlington's inherent ruggedness in lower-frequency, high-gain applications remains a preferred choice for heavy-duty power supplies. For systems requiring even higher voltage handling, the related 2MBI200NB-120 offers a Vces of 1200V, though it utilizes IGBT technology which requires different gate drive characteristics.
Industry Insights & Strategic Advantage
Strategic Reliability in the Evolution of Industrial Power Electronics
As the industrial sector moves toward smarter automation, the reliability of legacy-compatible power modules like the 2DI150D-050C becomes a strategic asset for maintenance and long-term infrastructure support. This module aligns with the Thermal Management standards required for high-density power cabinets, where heat dissipation is often the limiting factor for system lifespan. By utilizing an isolated mounting base, designers can mount multiple 2DI150D-050C units on a single heatsink, reducing the footprint in Servo Drive and Welding Power Supply designs.
Understanding the Thermal Resistance (Rth(j-c)) is paramount for engineers designing high-power stages. A lower Rth(j-c) allows for more efficient heat transfer to the cooling medium, directly impacting the sizing of the cooling system. While many modern designs are moving toward the Trenchstop IGBT7 technology for peak efficiency, the Darlington's stability under varying loads ensures it remains a dependable component in medical imaging equipment and PFC stages where reliability under stress is non-negotiable. For a practical understanding of how to verify these modules in the field, see our guide on how to test an IGBT or Darlington module with a multimeter.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The following table outlines the critical electrical and thermal characteristics of the 2DI150D-050C. These values are extracted from the manufacturer's technical documentation to assist in precise system integration and Thermal Design.
| Parameter Symbol | Technical Description | Typical Value/Rating |
|---|---|---|
| Vces | Collector-Emitter Voltage | 600V |
| Ic | Collector Current (Continuous) | 150A |
| hFE | DC Current Gain | High (Darlington Config) |
| Vce(sat) | Saturation Voltage (Collector-Emitter) | Low for High Current Efficiency |
| Viso | Isolation Voltage (RMS) | 2500V AC |
Download the 2DI150D-050C datasheet for detailed specifications and performance curves.
FAQ
Technical Insights for Engineering and Procurement
How does the hFE of the 2DI150D-050C impact the overall system gate drive design?
Because the Darlington configuration provides a very high hFE, the base drive current required to saturate the transistor is significantly lower than that of a standard single-transistor module. This allows designers to use smaller, lower-power drive circuits, reducing overall system cost and heat generation in the control board.
Is the 2DI150D-050C suitable for high-frequency PWM switching?
While Darlington modules are excellent for current gain and ruggedness, they generally have longer storage and fall times compared to IGBTs. This makes them most effective in applications where switching frequencies are below 10-15 kHz. For ultra-high frequency requirements, engineers should evaluate Infineon TRENCHSTOP™ IGBT3 or similar high-speed technologies.
What is the primary failure mode if the Collector-Emitter Voltage (Vces) is exceeded?
Exceeding the 600V rating can lead to avalanche breakdown, potentially causing a collector-to-emitter short. It is recommended to implement Snubber Circuits to clamp voltage spikes caused by stray inductance in the power bus, ensuring the module remains within its Safe Operating Area (SOA).
How does the isolation voltage rating affect mounting considerations?
The 2500V AC isolation rating (Viso) means the internal electrical components are isolated from the module's base plate. This allows the module to be bolted directly to a grounded heatsink without additional insulating pads, improving thermal conductivity and simplifying mechanical assembly.
Can the 2DI150D-050C be used as a drop-in replacement for modern IGBT modules?
No, they are not direct drop-in replacements. A Darlington module is current-controlled at the base, whereas an IGBT Module is voltage-controlled at the gate. Replacing one with the other requires a complete redesign of the driver stage, although the power terminals may occasionally share similar mechanical footprints.
For procurement professionals and engineers looking to ensure the longevity of their industrial power systems, the Fuji Electric 2DI150D-050C remains a benchmark for reliability in Darlington power switching. Its combination of high current handling and low-power drive compatibility provides a distinct advantage in robust motor control and power supply applications. To further explore diagnostic and preventative measures for power semiconductors, we recommend reviewing our resource on IGBT and Power Transistor failure analysis.
