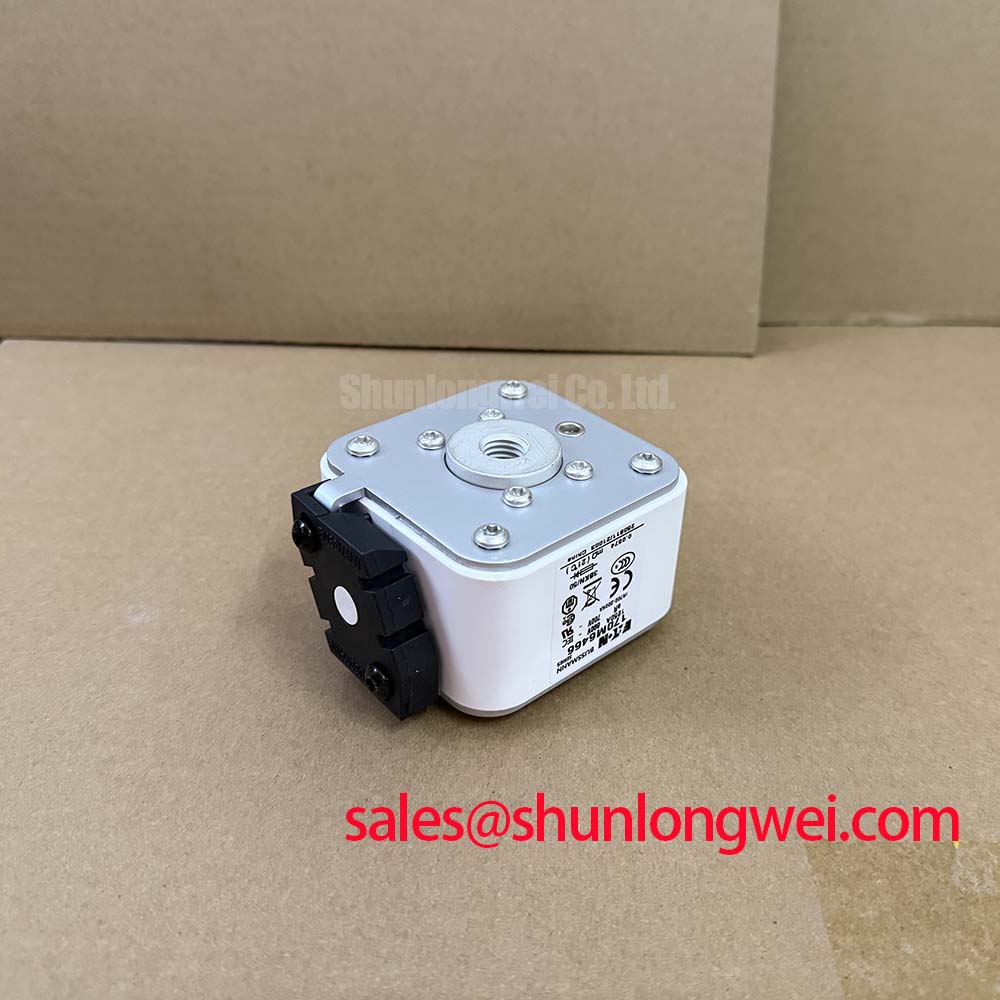

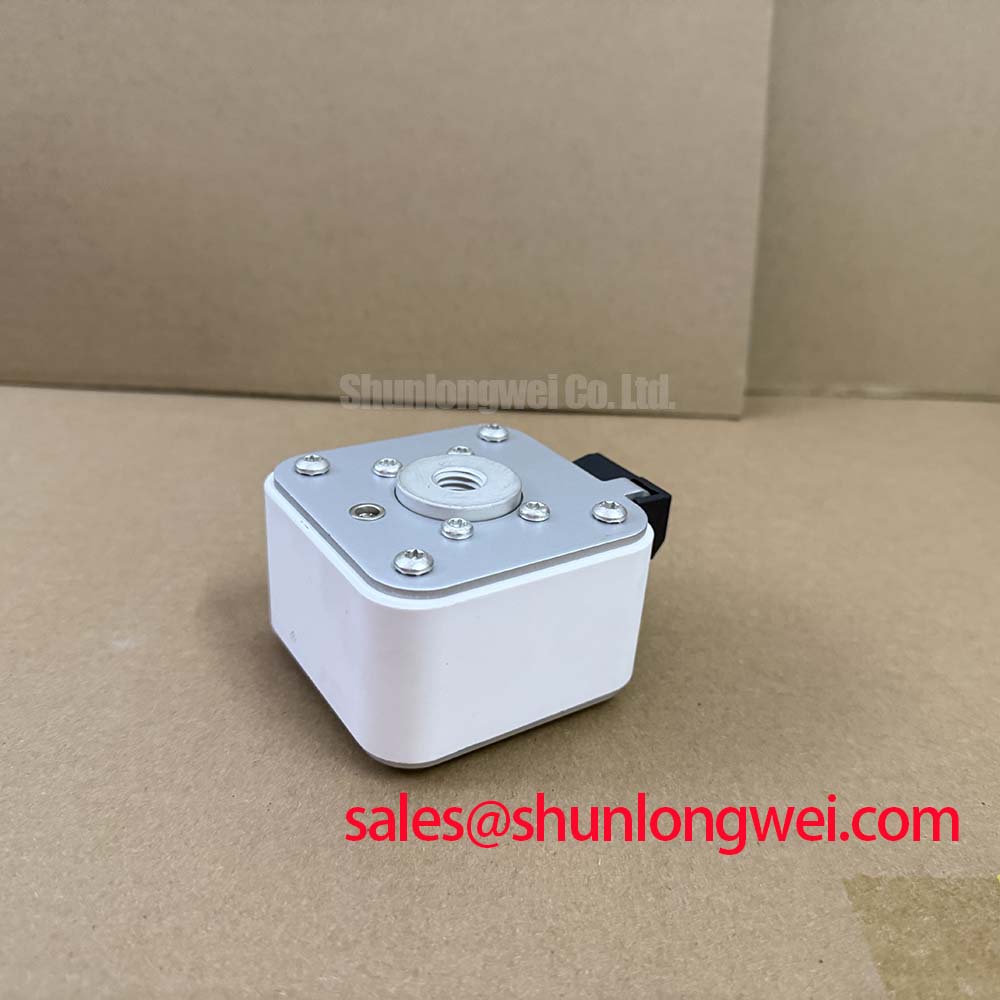

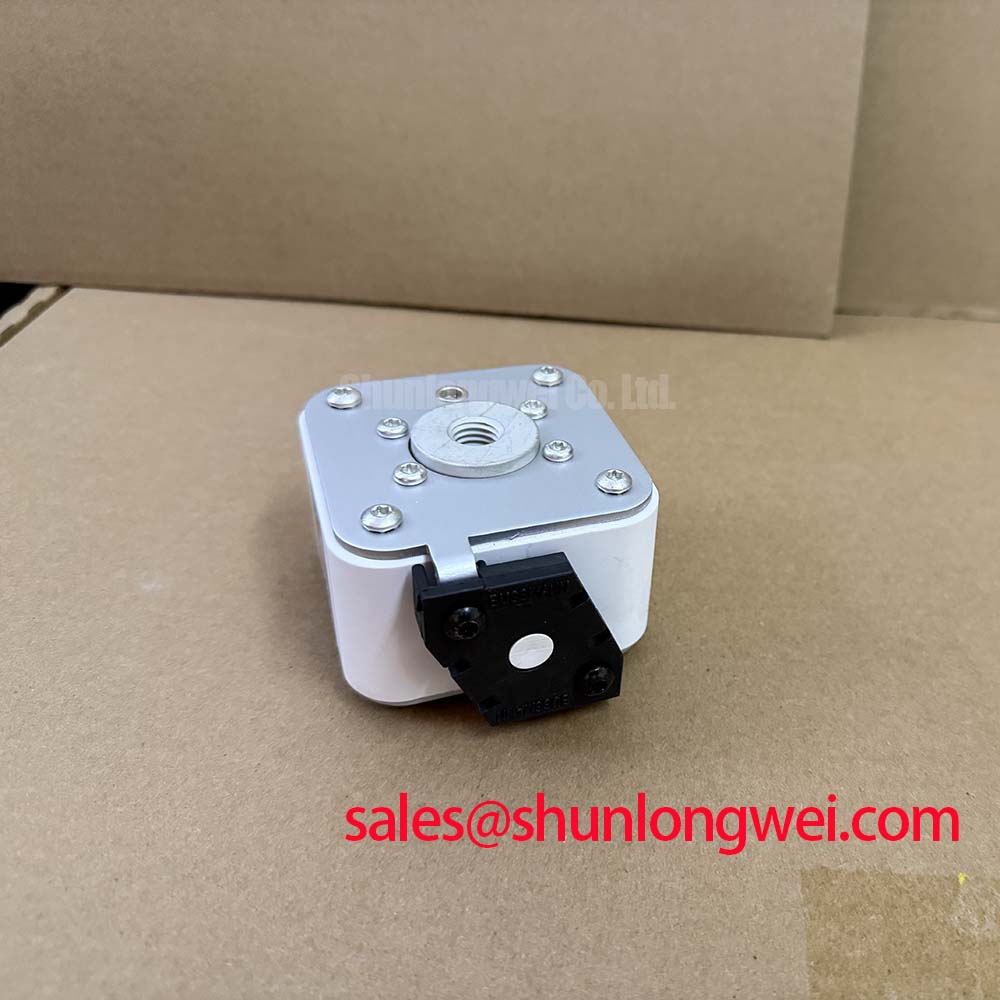

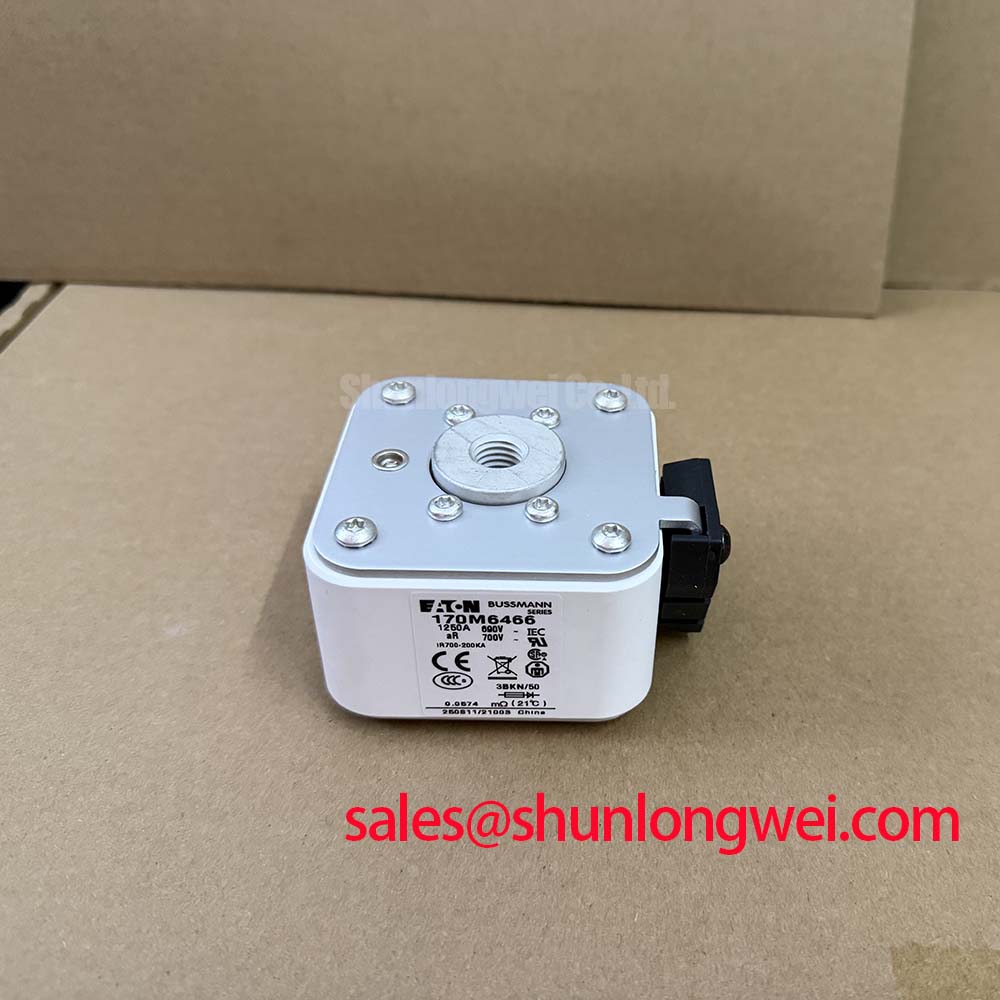

170M6466 Eaton Bussmann series 1000A 690V High Speed Square Body Fuse
The 170M6466, part of the renowned Bussmann series, provides high-performance protection for sensitive power semiconductors by utilizing ultra-low let-through energy I2t and a robust Size 3 flush-end design. With a current rating of 1000A and a voltage rating of 690V AC, this fuse is specifically engineered to minimize thermal dissipation and maximize arc-quenching efficiency in high-density power architectures.
Top Specifications: 1000A | 690V AC | Size 3 Flush End
Key Benefits: Superior semiconductor protection through low I2t and optimized contact resistance for high-current bus bars.
For engineers asking why a flush-end design is critical at this power level, the 170M6466 provides a direct mechanical interface that reduces contact resistance, a vital factor when managing 1000A continuous loads. This reduces localized heating and prevents premature aging of the fuse or the power converter's bus bars. For high-power motor drives and rectifiers requiring 1000A of protection with minimal let-through energy, the 170M6466 is the industry-standard choice for reliability.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The technical profile of the 170M6466 reveals its optimization for high-power electronics. Beyond the headline ratings, its physical form factor and electrical characteristics dictate its suitability for modern industrial converters.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Eaton / Bussmann series |
| Product Model | 170M6466 |
| Amperage Rating | 1000A |
| Voltage Rating | 690V AC (IEC) / 700V (UL) |
| Body Size | Size 3 |
| Termination Style | Flush End (Style /110) |
| Breaking Capacity | 200kA RMS Sym. |
| Operating Class | aR (Partial range semiconductor protection) |
Download the 170M6466 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
The 170M6466 is primarily deployed where the cost of component failure is high. In systems using advanced IGBT Module technology, such as large-scale Solar Inverters or Variable Frequency Drives (VFD), the fuse acts as the ultimate safeguard. During a catastrophic fault, the 170M6466 clears the circuit fast enough to prevent the IGBT from exploding, which often saves the rest of the phase bridge from collateral damage.
Consider a 500kW industrial motor drive. The 170M6466 is often installed on the DC bus or the AC input side. Because it handles 1000A with a very low voltage drop, it prevents the efficiency losses that would otherwise occur with standard industrial fuses. If your system requires higher voltage handling or a different mounting style, the Bussmann range offers various options, but the 170M6466 remains a preferred model for its Size 3 efficiency and 110mm mounting compatibility.
Engineers often face the challenge of Switching Loss management. While the fuse itself is a passive component, its thermal interface at the flush-end terminals is critical. By providing a broad contact area, the 170M6466 ensures that heat is conducted away from the internal fuse element effectively, maintaining its precise trip curve even in ambient temperatures typical of crowded electrical cabinets. This reliability is essential for maintaining IEC 61800-3 compliance in power drive systems.
For more insights into the components this fuse protects, see our guide on In-depth Analysis of IGBT Modules and our comparison of IGBT vs MOSFET vs BJT.
Industry Insights & Strategic Advantage
Evolution of Semiconductor Protection in the Age of High-Density Power
As industrial power systems transition toward higher power densities, the "aR" class of fuses like the 170M6466 has become more than a safety device—it is a strategic design element. In the context of Industrial 4.0, where uptime is quantified in thousands of dollars per minute, the ability of a high-speed fuse to isolate a fault without causing a total system surge is paramount.
The 170M6466 utilizes a high-grade ceramic body and specialized internal silver elements to achieve its 200kA breaking capacity. This ensures that even in systems connected to massive utility transformers, the fuse can safely quench the arc. In modern EV Inverter testing stations or UPS systems for data centers, this 1000A fuse provides the necessary overhead to handle short-term overloads while maintaining a hair-trigger response to short circuits.
Strategically, choosing a Bussmann fuse ensures compliance with global standards including IEC 60269 and UL recognitions. This facilitates faster certification for OEMs exporting machinery to multiple markets. The longevity of the 170M series also provides a stable supply chain, reducing the risk of obsolescence in long-lifecycle industrial projects.
FAQ
What is the primary benefit of its flush-end design?
The flush-end (Style /110) design of the 170M6466 allows for direct mounting onto bus bars using M10 or M12 bolts. This eliminates the need for additional fuse clips or holders, significantly reducing contact resistance and the total footprint of the power assembly.
How does the 1000A rating affect the thermal design of my cabinet?
At 1000A, the 170M6466 dissipates power as heat. Engineers must refer to the "Watts Loss" data in the datasheet (typically around 130W to 150W at rated current) to ensure adequate airflow and avoid localized overheating of adjacent sensitive electronics.
Can the 170M6466 be used in DC applications?
While optimized for 690V AC, many Bussmann 170M fuses have documented DC voltage ratings (often around 450V-700V DC depending on the time constant). However, you must verify the specific L/R time constant of your DC circuit against the manufacturer’s DC clearing curves to ensure safe interruption.
What is the difference between aR and gG fuses for protected components?
A gG fuse is a general-purpose fuse, whereas the 170M6466 is an aR fuse. The aR designation means it is a "Partial Range" fuse with extremely fast clearing speeds specifically designed to protect against Switching Loss related failures in semiconductors, whereas gG fuses are too slow to protect IGBTs or Thyristors.
When engineering for long-term reliability in high-current environments, selecting a component with a proven track record is vital. The 170M6466 remains a cornerstone for power system designers who cannot compromise on protection speed or thermal efficiency.
