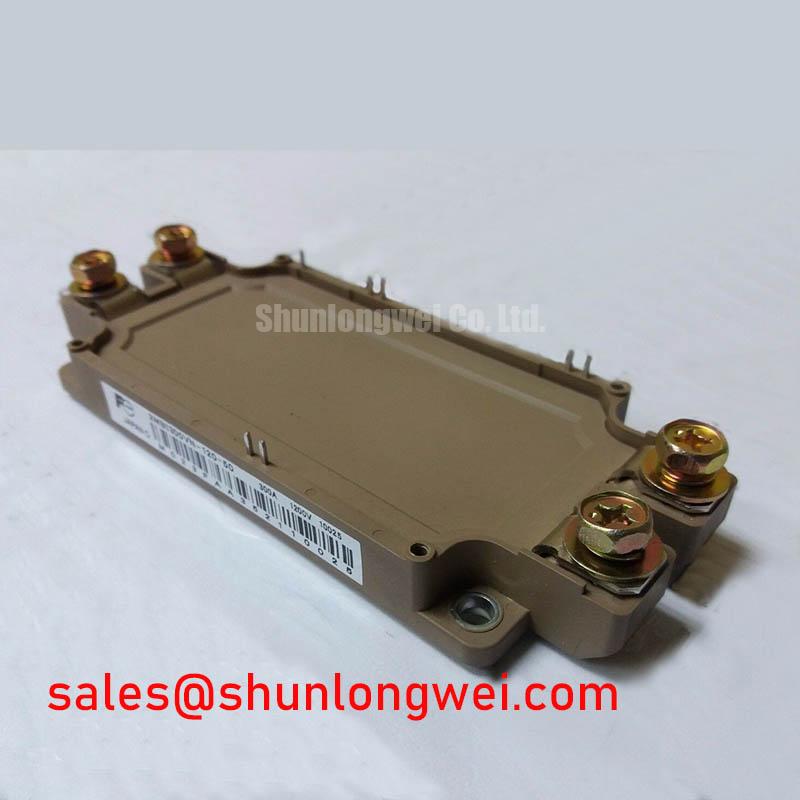

Fuji 2MBI300VN-120-50 IGBT Module

2MBI300VN-120-50 | 1200V 300A Dual IGBT Module | Fuji Electric

Engineering Analysis of a High-Efficiency Power Switching Solution

Content last revised on October 13, 2025.

The Fuji Electric 2MBI300VN-120-50 is a V-Series dual IGBT module engineered to minimize losses and maximize efficiency in high-frequency power conversion systems. This device integrates two IGBTs in a half-bridge configuration, delivering benchmark performance metrics: 1200V | 300A | VCE(sat) (typ) 1.80V. Key engineering benefits include a significant reduction in overall system power loss and improved thermal performance under demanding loads. By leveraging an optimized trench gate structure, this module directly addresses the critical need for higher efficiency in modern power electronics. For industrial drives and power supplies up to approximately 150 kW requiring superior efficiency, the 2MBI300VN-120-50's low collector-emitter saturation voltage makes it a definitive design choice.

Key Parameter Overview

Decoding the Electrical Characteristics for Low-Loss Design

The technical specifications of the 2MBI300VN-120-50 are foundational to its performance in reducing power dissipation. The values below are extracted from the official datasheet and represent the component's capabilities under specified test conditions. Particular attention should be paid to the VCE(sat) and switching energy values, which are direct indicators of conduction and switching losses, respectively.

Download the 2MBI300VN-120-50 datasheet for detailed specifications and performance curves.

Application Scenarios & Value

Enhancing System Efficiency in Industrial Motor Drives and Power Converters

The 2MBI300VN-120-50 is strategically designed for applications where energy efficiency is a primary design driver. Its low-loss characteristics provide quantifiable value in systems such as Variable Frequency Drives (VFDs), uninterruptible power supplies (UPS), and solar inverters.

Consider the design of a VFD for a high-inertia industrial conveyor system. The primary engineering challenge is maintaining high efficiency during long, continuous operation while managing the heat generated by the power stage. The 2MBI300VN-120-50's low typical VCE(sat) of 1.80V directly reduces conduction losses, which are the dominant loss factor in this scenario. The effect of thermal resistance can be visualized like the insulation of a thermos; a lower value, such as this module's 0.080 °C/W, allows heat to escape the semiconductor chip more effectively, simplifying the thermal management system. This translates into a smaller, less costly heatsink and improved system reliability by maintaining lower junction temperatures. The result is a more compact, cost-effective, and energy-efficient VFD that contributes to a lower total cost of ownership.

For systems demanding higher current capacity, such as larger motor drives or high-power inverters, the related 2MBI600VN-120-50 offers a 600A rating within the same V-Series family, providing a scalable solution.

Frequently Asked Questions

Engineering Q&A: Maximizing Performance with the 2MBI300VN-120-50

• How does the typical VCE(sat) of 1.80V impact the thermal design of a power converter?

  A lower VCE(sat) directly reduces the power dissipated as heat during the IGBT's on-state (P_cond = VCE(sat) * Ic). With less heat being generated for the same amount of current, the required heatsink size can be reduced, or more thermal margin can be achieved with an existing design. This allows for higher power density and can improve the overall system's long-term reliability by operating at a lower junction temperature.

• What is the significance of the 10µs short-circuit withstand time for system reliability?

  The 10µs short-circuit rating provides a critical safety margin. In the event of a fault condition like a motor winding short or a phase-to-phase fault, the IGBT can survive the immense current flow for this duration. This gives the gate drive protection circuitry sufficient time to detect the fault and safely shut down the device, preventing a catastrophic failure of the module and protecting the entire system.

• Is it necessary to use a negative gate voltage during turn-off for the 2MBI300VN-120-50?

  While the datasheet specifies characteristics with a 0V turn-off, applying a small negative gate voltage (e.g., -5V to -15V) is a common best practice in high-power, high-frequency designs. It provides a greater noise margin against parasitic turn-on caused by dV/dt effects and Miller capacitance, thereby enhancing the robustness and reliability of the switching operation, especially in noisy industrial environments.

Technical Deep Dive

A Closer Look at the V-Series Technology for Superior Loss Performance

The performance of the 2MBI300VN-120-50 is rooted in Fuji Electric's V-Series technology, which represents an advanced generation of trench-gate field-stop IGBTs. This design is engineered to fundamentally reduce the two primary sources of power loss in an IGBT: conduction loss and switching loss. What is the primary benefit of its V-Series technology? Minimized total power loss through low VCE(sat) and optimized switching.

The trench gate structure creates a vertical current path that increases channel density compared to older planar designs. This, combined with an optimized, thin drift layer, significantly lowers the on-state resistance, which is the physical basis for the module's low VCE(sat). This reduction in on-state voltage drop is analogous to decreasing the friction in a mechanical system; less energy is wasted as heat simply to maintain the "on" state, allowing more power to be delivered to the load. Furthermore, the field-stop layer and tailored lifetime control reduce the stored charge in the device, which enables faster turn-off and significantly lower turn-off energy loss (Eoff). This balance is critical for improving the total system efficiency, especially as designers push for higher Pulse Width Modulation (PWM) frequencies to reduce the size of magnetic components and improve output waveform quality.

For a comprehensive understanding of the technology, reviewing application notes on the Fuji Electric V-Series IGBT platform is recommended for design engineers.
