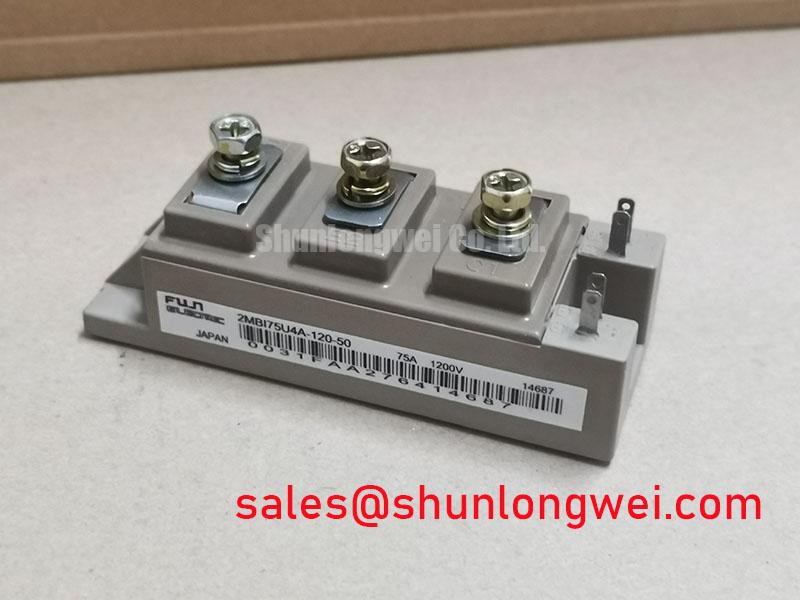

2MBI75U4A-120-50 Fuji Electric IGBT Module: Engineering Analysis
A Technical Overview of the 1200V, 75A Dual IGBT Module
Engineered for reliability in demanding, high-frequency power conversion, the Fuji Electric 2MBI75U4A-120-50 is a high-speed, dual IGBT module. This device integrates two IGBTs in a half-bridge configuration, delivering a robust performance baseline with key specifications of 1200V | 75A | VCE(sat) 2.70V. Its primary engineering benefits include enhanced operational ruggedness and minimized switching voltage overshoots. This module directly addresses the challenge of achieving reliable turn-off performance under high inductive loads by incorporating a Square Reverse Bias Safe Operating Area (RBSOA). For power systems requiring a higher current rating while maintaining the 1200V blocking voltage, the 2MBI200NB-120 provides a suitable alternative.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal and Electrical Reliability
The technical specifications of the 2MBI75U4A-120-50 underscore its suitability for high-performance power systems. The highlighted parameters are critical for design engineers focusing on thermal management, switching efficiency, and long-term reliability.
| Parameter | Value | Significance for Design Engineers |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200V | Provides substantial voltage margin for systems operating on 400V to 575V AC lines. |
| Continuous Collector Current (Ic) at Tc=80°C | 75A | Defines the module's continuous current handling capability, critical for sizing in motor drives and inverters. |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.70V (Typ) / 3.20V (Max) | Directly impacts conduction losses; a lower value signifies higher efficiency during the on-state. |
| Turn-on Switching Loss (Eon) | 8.0 mJ/pulse (Typ) | A key factor in calculating total switching losses, especially important in high-frequency applications. |
| Turn-off Switching Loss (Eoff) | 7.0 mJ/pulse (Typ) | Crucial for efficiency calculations; balanced with Eon to optimize performance across the operating range. |
| Thermal Resistance (Rth(j-c)) IGBT | 0.24 °C/W (Max) | This value is essential for heatsink design; it represents the efficiency of heat transfer from the silicon die to the module case. |
| Short Circuit Withstand Time (tsc) | 10 µs | Indicates the module's robustness against fault conditions, allowing time for protection circuits to react. |
Application Scenarios & Value
System-Level Benefits in High-Frequency Power Conversion
The 2MBI7A-120-50 is optimized for applications where fast, efficient, and reliable power switching is paramount. Its design directly addresses common engineering challenges in modern power electronics.
- High-Frequency Welding Systems: In inverter-based welders operating at frequencies above 20kHz, fast switching speed is essential for a stable arc and precise control. The low turn-on and turn-off times of this module reduce Switching Loss, improving overall efficiency and reducing the thermal load on the heatsink, enabling more compact and reliable designs.
- Industrial Motor Drives (VFD): A critical challenge in Variable Frequency Drive (VFD) applications is managing the energy from an inductive motor load during deceleration or braking. The module's Square RBSOA ensures it can safely turn off high currents under these stressful conditions without failing. This ruggedness is like having robust brakes on a heavy truck; it guarantees a safe stop even when carrying a full load downhill, enhancing the drive's long-term reliability.
- Uninterruptible Power Supplies (UPS): In high-power UPS systems, efficiency and reliability are non-negotiable. The module's low VCE(sat) minimizes conduction losses, contributing to higher overall system efficiency and lower operating costs. The integrated half-bridge configuration simplifies the inverter stage layout, reducing component count and potential points of failure.
For systems demanding even greater current capacity in a similar package, the 2MBI300HH-120 offers a significant step up in power handling for larger motor drives or central UPS installations.
Industry Insights & Strategic Advantage
Meeting the Demands for Power Density and Uptime
The design philosophy of the 2MBI75U4A-120-50 aligns with key strategic imperatives in the industrial sector: maximizing power density and ensuring operational uptime. As industrial automation advances, components are expected to deliver more power from a smaller footprint without compromising reliability. This IGBT module contributes directly to this goal. Its low-inductance internal construction and efficient thermal interface (via an AlN insulator) allow engineers to push operating frequencies higher. This enables the use of smaller, lighter, and more cost-effective magnetic components, directly increasing the power density of the end system, such as a compact servo drive or a portable welding unit.
Frequently Asked Questions (FAQ)
What is the primary benefit of the Square RBSOA feature?
The Square Reverse Bias Safe Operating Area (RBSOA) provides exceptional ruggedness during the turn-off phase with inductive loads. It guarantees the IGBT can withstand high simultaneous collector-emitter voltage and collector current, preventing device failure and significantly enhancing the reliability of motor drives and systems managing high inductive energy.
How does the module's internal low inductance impact system design?
A low internal stray inductance minimizes voltage overshoot (Vce surge) during fast switching events. This reduces the stress on the IGBT, simplifies or even eliminates the need for external snubber circuits, lowers electromagnetic interference (EMI), and improves overall system reliability and stability.
Is this module suitable for paralleling to achieve higher current?
While the datasheet does not explicitly detail paralleling instructions, IGBTs in this class can often be paralleled. However, successful implementation requires careful gate drive design to ensure current sharing and consideration of the positive temperature coefficient of VCE(sat) to prevent thermal runaway. A thorough review of Fuji Electric's application notes on the subject is essential.
How does the Rth(j-c) of 0.24 °C/W influence heatsink selection?
This value signifies highly efficient heat transfer from the IGBT chip to the module's baseplate. A lower thermal resistance means the chip's junction temperature will be closer to the case temperature for a given power loss. This allows for the use of a smaller, more cost-effective heatsink or enables higher power dissipation for a given heatsink size, improving power density and thermal margin.
A Strategic Component for Reliable Power Systems
The Fuji Electric 2MBI75U4A-120-50 IGBT module represents a strategic choice for engineers developing next-generation power converters. By prioritizing electrical ruggedness through its Square RBSOA and minimizing parasitic effects with a low-inductance design, it provides a dependable foundation for building efficient, power-dense, and reliable systems. This focus on inherent reliability helps reduce total cost of ownership by enhancing uptime and simplifying protective circuit design in critical industrial applications.
