Fuji 6DI50A-060 | The Dependable Power Core for Industrial Motor Drives
The Fuji Electric 6DI50A-060 is an industry-proven 600V/50A IGBT module engineered for reliability and efficiency in low-to-mid-power conversion applications. This device is not designed to chase the highest switching frequencies or the lowest possible conduction losses of the latest generation silicon. Instead, its value lies in its robust construction, balanced performance, and highly integrated 6-pack configuration, making it a go-to workhorse for engineers designing cost-effective and durable power stages for general-purpose inverters and drives.
Key Parameters Overview
This table provides a snapshot of the critical performance specifications for the Fuji 6DI50A-060. For a comprehensive breakdown of all electrical and thermal characteristics, you can Download the 6DI50A-060 Datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600 V |
| Continuous Collector Current (IC) at TC=80°C | 50 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) Typ. | 2.2 V (at IC = 50A) |
| Package Type | Module (6-Pack) |
| Isolation Voltage (Visol) | 2500 V (AC, 1 minute) |
| Forward Voltage of FWD (VF) Typ. | 1.8 V (at IF = 50A) |
Application Scenarios & Value Proposition
The 6DI50A-060 excels in applications where long-term reliability and straightforward implementation are paramount. Its integrated design provides tangible benefits across several key industrial sectors.
- Variable Frequency Drives (VFDs): In VFDs for AC motors up to 15 kW, this module provides a complete three-phase inverter bridge. Its well-controlled VCE(sat) and robust thermal performance ensure dependable operation in factory automation, HVAC systems, and pumping applications, directly contributing to superior high-efficiency AC motor control.
- Uninterruptible Power Supplies (UPS): For small to medium-sized commercial UPS systems, the 6DI50A-060's reliability is critical. Its ability to handle pulse currents during load changes and its high isolation voltage ensure the safety and continuity of the power supply, protecting sensitive downstream equipment.
- Welding Power Supplies: The module's robust Safe Operating Area (SOA) and short-circuit withstand capabilities make it a suitable choice for the inverter stage of welding equipment. It can reliably manage the demanding, cyclical power delivery required for consistent and high-quality welds.
Technical Deep Dive: Integration and Performance Balance
The engineering value of the Fuji 6DI50A-060 is best understood by examining its internal topology and performance trade-offs. This isn't just another switch; it's a foundational component for efficient power conversion systems.

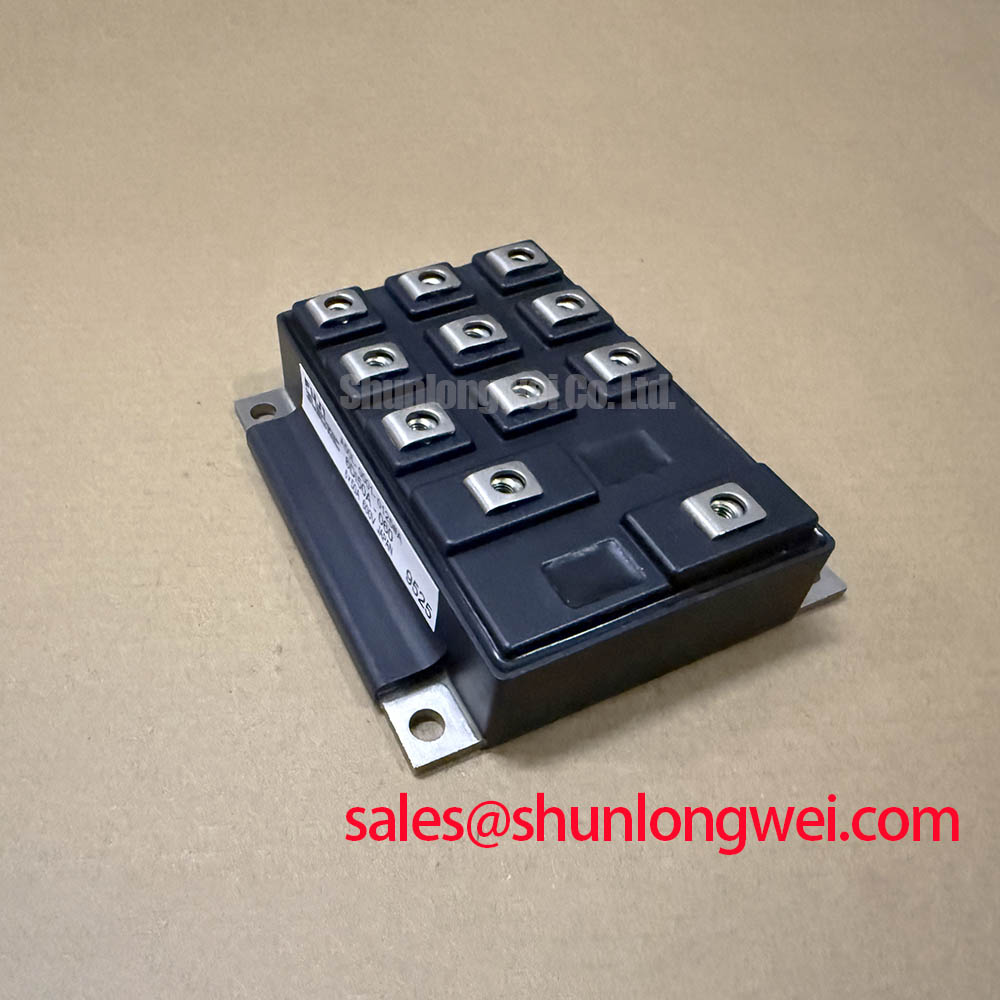

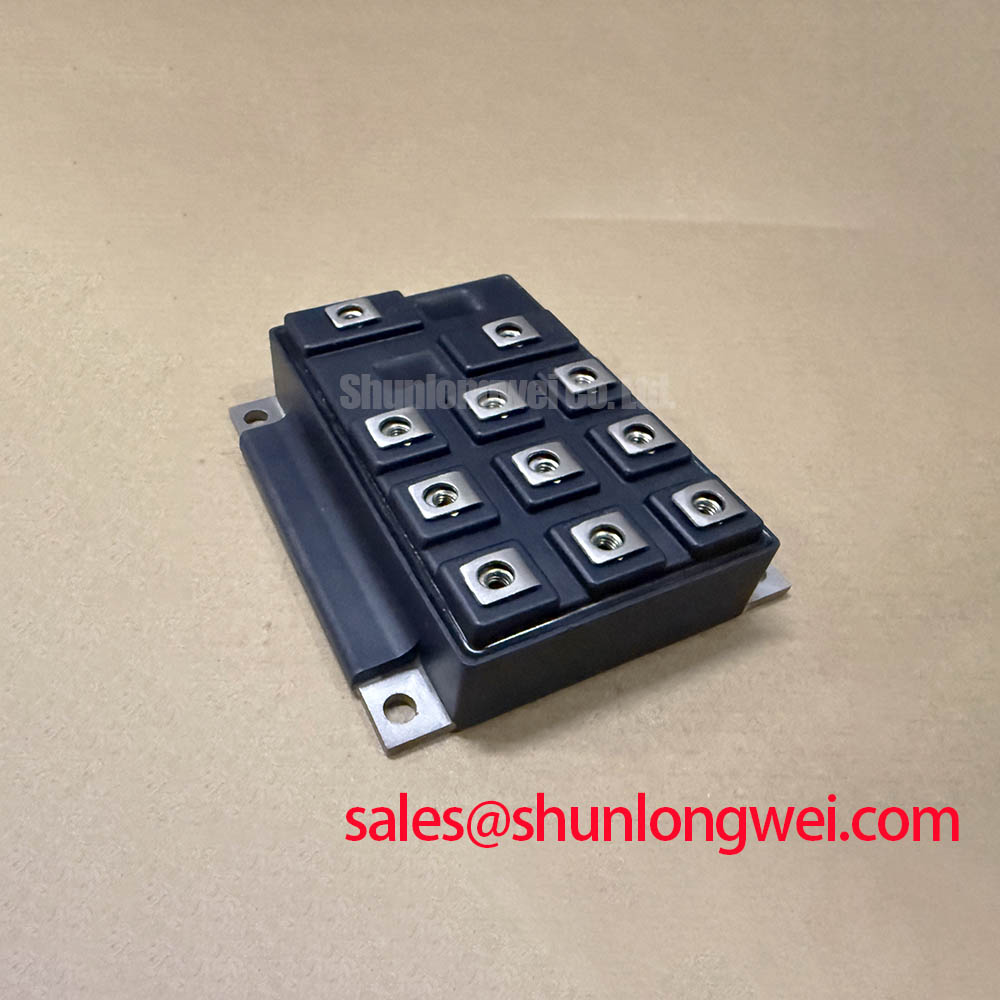

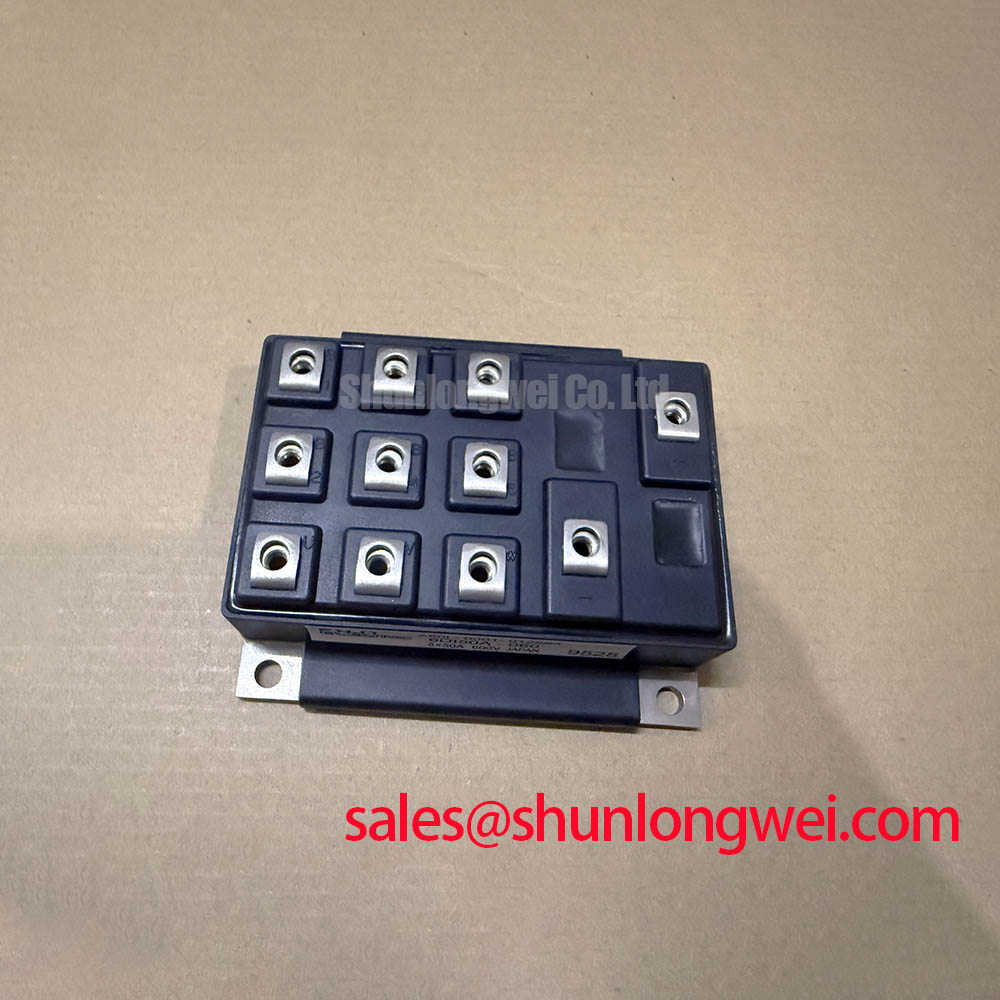

Firstly, its "6-Pack" configuration integrates six IGBTs with their corresponding freewheeling diodes (FWDs) into a single, compact module. This topology forms a complete three-phase inverter bridge, drastically simplifying the power stage layout for designers. This eliminates the need for sourcing, matching, and mounting twelve separate discrete components, reducing assembly complexity, minimizing stray inductance, and improving overall system reliability. These integrated IGBT modules are the backbone of modern power systems for this very reason.
Secondly, the 6DI50A-060 represents a mature IGBT technology that strikes a deliberate balance between conduction and switching losses. While newer technologies may offer lower VCE(sat) or faster switching, this device is optimized for the sub-15kHz switching frequencies typical in motor drives and UPS systems. In these applications, conduction losses often dominate the total thermal load. The module’s design provides predictable thermal behavior and simplifies gate drive requirements, allowing engineers to focus on system-level optimization rather than managing the complexities of ultra-fast switching transients.
Frequently Asked Questions (FAQ)
Q: What are the primary thermal management considerations for the 6DI50A-060?

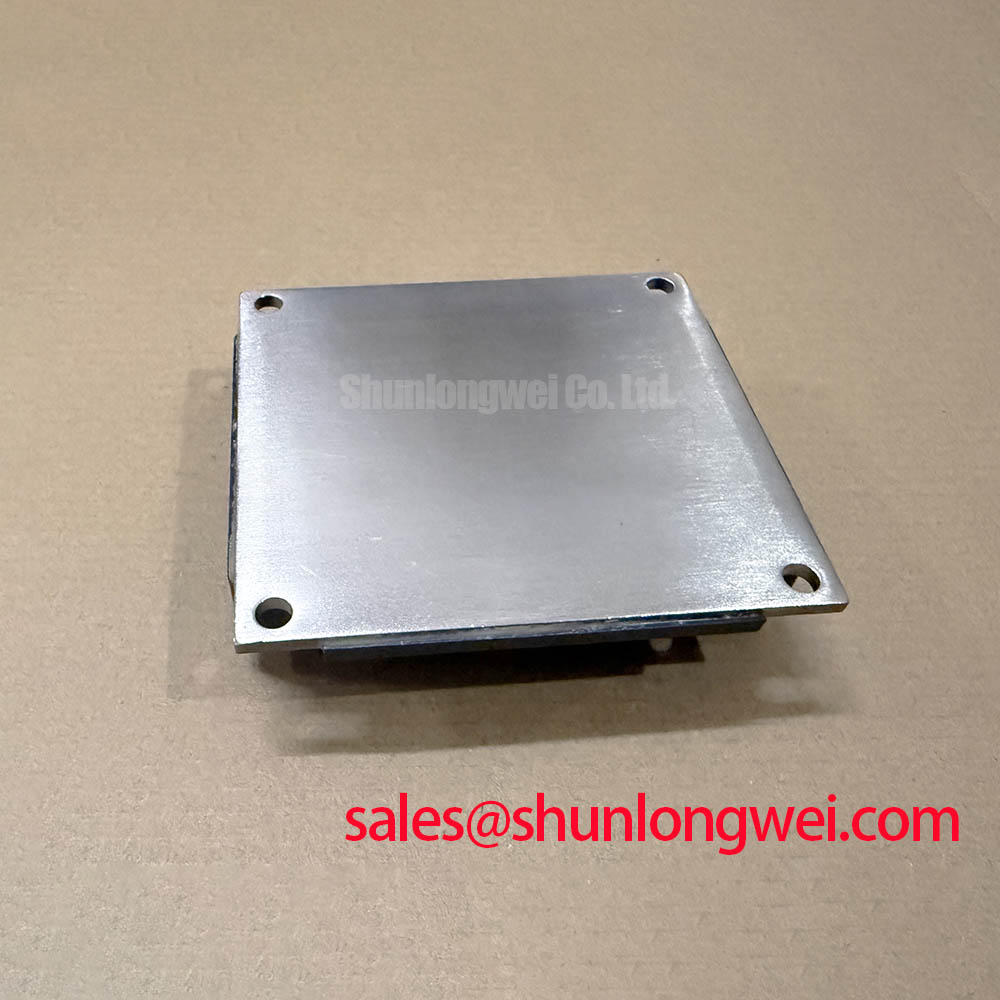

A: Effective thermal management is crucial. The baseplate of the module must be mounted to a properly sized heatsink using a high-quality thermal interface material (TIM). Ensure even mounting pressure across the module to minimize the thermal resistance between the module case and the heatsink. For in-depth guidance, refer to our article on unlocking IGBT thermal performance.
Q: Is the 6DI50A-060 suitable for high-frequency applications above 20 kHz?
A: While possible, it is not the ideal application. The 6DI50A-060 is optimized for lower-frequency hard-switching topologies where its conduction losses are manageable. At frequencies above 20 kHz, its switching losses (Eon and Eoff) would increase significantly, leading to excessive heat generation and reduced efficiency. For higher-frequency designs, consider IGBTs from a newer generation specifically designed for faster switching, or explore alternative technologies like SiC MOSFETs.
