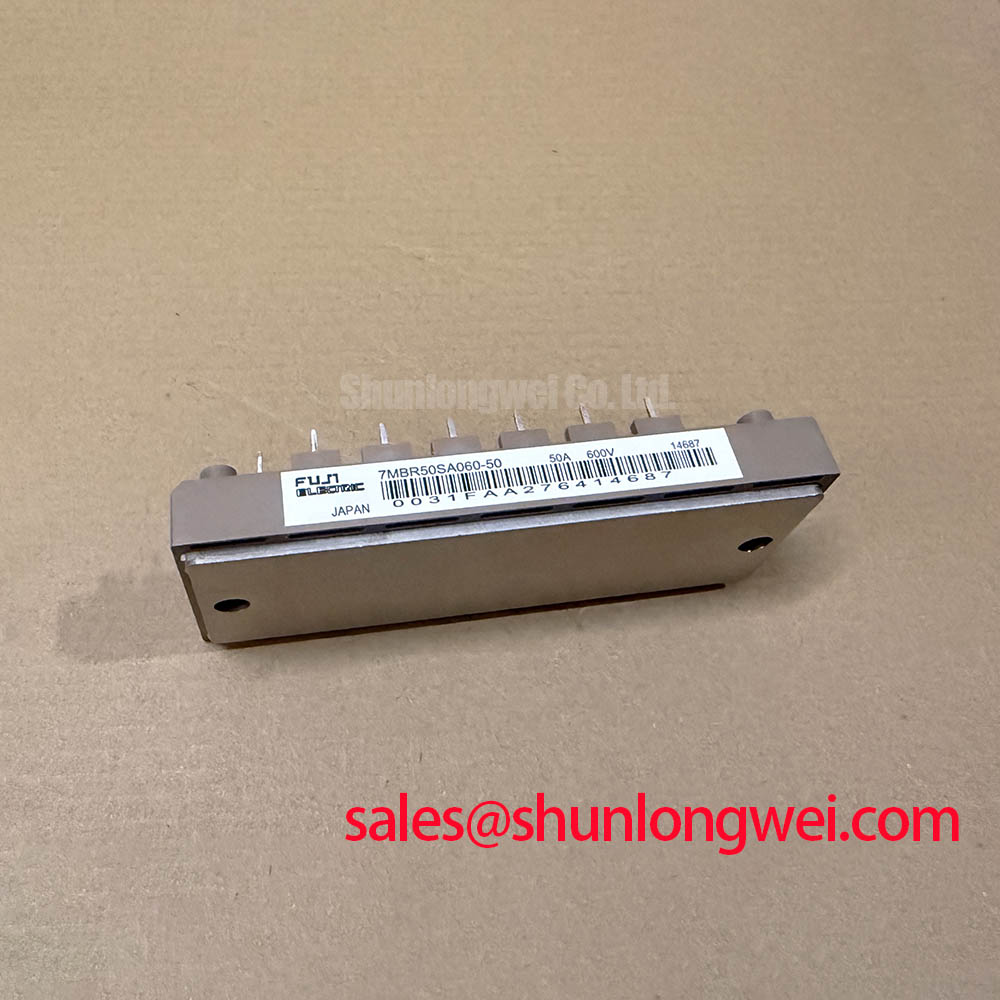

Fuji Electric 7MBR50SA060-50 | A Robust 600V/50A PIM for Compact Power Conversion
The Fuji Electric 7MBR50SA060-50 is an intelligently designed Power Integrated Module (PIM) that serves as a cornerstone for reliable, low-to-mid-power conversion systems. By integrating a complete three-phase converter, brake chopper, and inverter into a single, compact package, this module provides engineers with a streamlined solution that accelerates design cycles and enhances system robustness.
- Integrated 7-in-1 Topology: Features a three-phase diode rectifier bridge, a brake chopper IGBT with a freewheeling diode (FWD), and a three-phase IGBT inverter bridge. This high level of integration drastically reduces component count and simplifies PCB layout.
- Proven Reliability: Built with Fuji Electric's established Non-Punch-Through (NPT) IGBT technology, known for its wide Safe Operating Area (SOA) and rugged performance under demanding load conditions.
- Optimized for Motor Control: With a rating of 600V and 50A, it is perfectly dimensioned for small to medium-sized AC motor drives, servo applications, and general-purpose inverters up to approximately 15 kW.
- Simplified Thermal Management: The consolidated single-module package simplifies heat sink design and mounting, providing a more predictable and efficient thermal path compared to multiple discrete components.
Key Technical Specifications
This data provides a snapshot for initial design assessment. For comprehensive characteristic curves and application notes, please Download the 7MBR50SA060-50 Datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600V |
| Continuous Collector Current (IC) at TC=80°C | 50A |
| Collector-Emitter Saturation Voltage (VCE(sat)) - Typ. at IC=50A | 2.2V |
| Short-Circuit Withstand Time (tSC) | ≥ 10µs |
| Maximum Junction Temperature (Tj max) | 150°C |
| Module Topology | 7-in-1 PIM (Power Integrated Module) |
Technical Deep Dive: The Engineering Behind the 7MBR50SA060-50
While many modern designs chase the lowest possible conduction losses, the Fuji Electric 7MBR50SA060-50 prioritizes a different, equally critical engineering goal: unshakeable reliability. This is achieved through two key design philosophies.
First, its architecture as a PIM (Power Integrated Module) inherently reduces system complexity. By co-packaging the rectifier, brake, and inverter stages, stray inductance between power stages is minimized. This is not a trivial benefit; lower inductance leads to reduced voltage overshoots during switching, which lessens the stress on the silicon and simplifies the requirements for external snubber circuits. This translates to higher system reliability and easier EMI/EMC compliance.
Second, the use of Non-Punch-Through (NPT) IGBT technology provides a distinct advantage in ruggedness. Unlike more advanced trench-gate field-stop structures, NPT chips offer an exceptionally wide Safe Operating Area (SOA). This makes the module more tolerant to unexpected fault conditions, such as over-current or short-circuit events. The module's positive temperature coefficient of VCE(sat) also naturally prevents thermal runaway, a critical characteristic for systems where operational reliability is non-negotiable. For a deeper understanding of how to avoid these issues, our guide on preventing IGBT failure offers valuable insights.
Application Scenarios & Value Proposition
The specific characteristics of the 7MBR50SA060-50 make it a standout choice in several key applications:
- Compact Variable Frequency Drives (VFDs): In industrial automation, space is a premium. The all-in-one nature of this module allows for the design of extremely compact motor drives. The integrated brake chopper is essential for managing regenerative energy from the motor during deceleration, a common scenario in conveyor and hoisting applications.
- Robotic Servo Drives: Precision and reliability are paramount in robotics. This module provides the robust power stage needed to handle the dynamic loads of servo motors. Its tolerance for fault conditions ensures the longevity and safety of the robotic system. Explore more on the role of IGBTs in robotic servo drives.
- Uninterruptible Power Supplies (UPS): The module’s integrated rectifier and inverter are perfectly suited for the core topology of a double-conversion online UPS. Its proven reliability ensures that critical loads remain protected when they need it most.
Frequently Asked Questions (FAQ)
Is the 7MBR50SA060-50 suitable for high-frequency switching applications like induction heating or welding?
This module is optimized for lower-frequency applications, typically below 10 kHz, which is characteristic of motor drives. The NPT IGBT technology, while robust, has higher switching losses (Eon/Eoff) compared to newer generation trench-gate IGBTs. For high-frequency designs, a different module technology focusing on lower switching losses would be more appropriate.
What is the primary advantage of using this PIM over discrete IGBTs and diodes?
The primary advantages are design simplification and reliability. Using a single PIM eliminates the need to source, test, and mount over a dozen individual power components. It guarantees matched dynamic characteristics within the inverter bridge, simplifies the thermal design to a single mounting surface, and reduces assembly time and cost. For many designs under 20kW, the total cost of implementation is often lower with a PIM than with a discrete solution.
For detailed application support or to discuss volume pricing, please contact our technical team to find the ideal power solution for your project.
