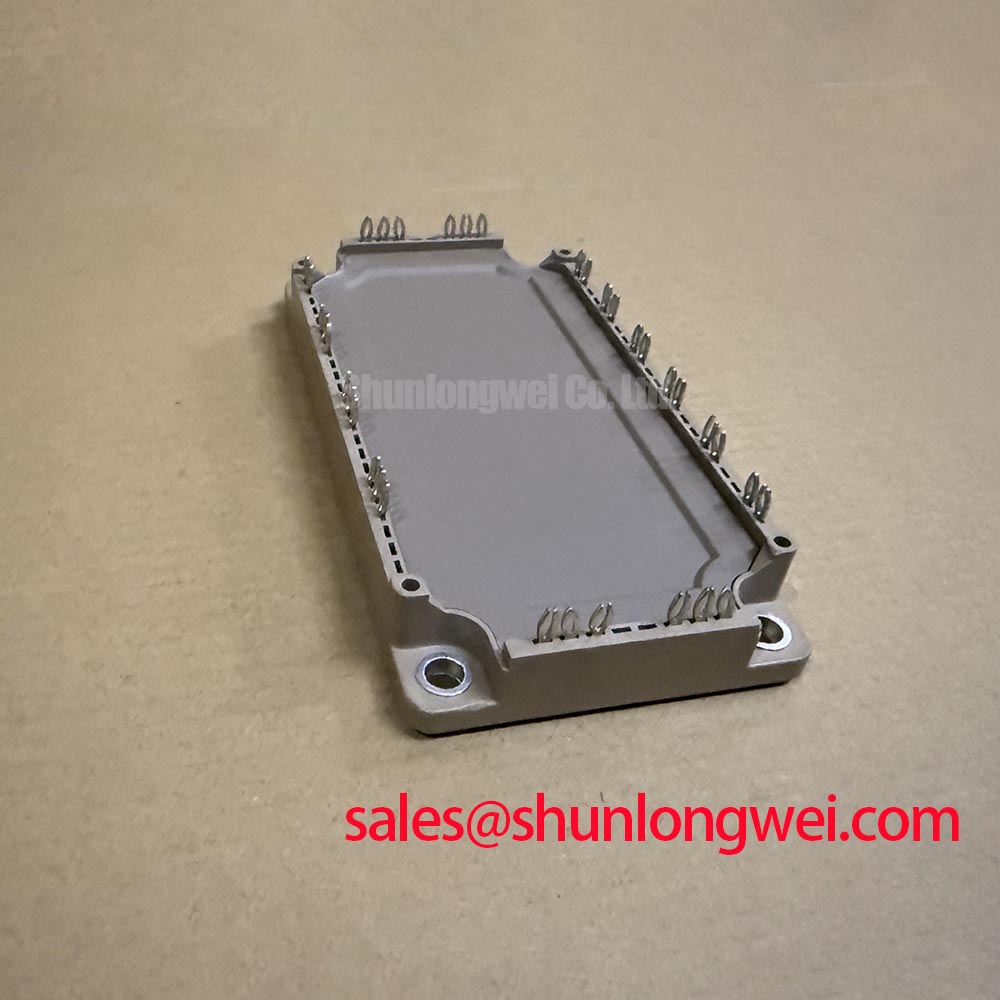

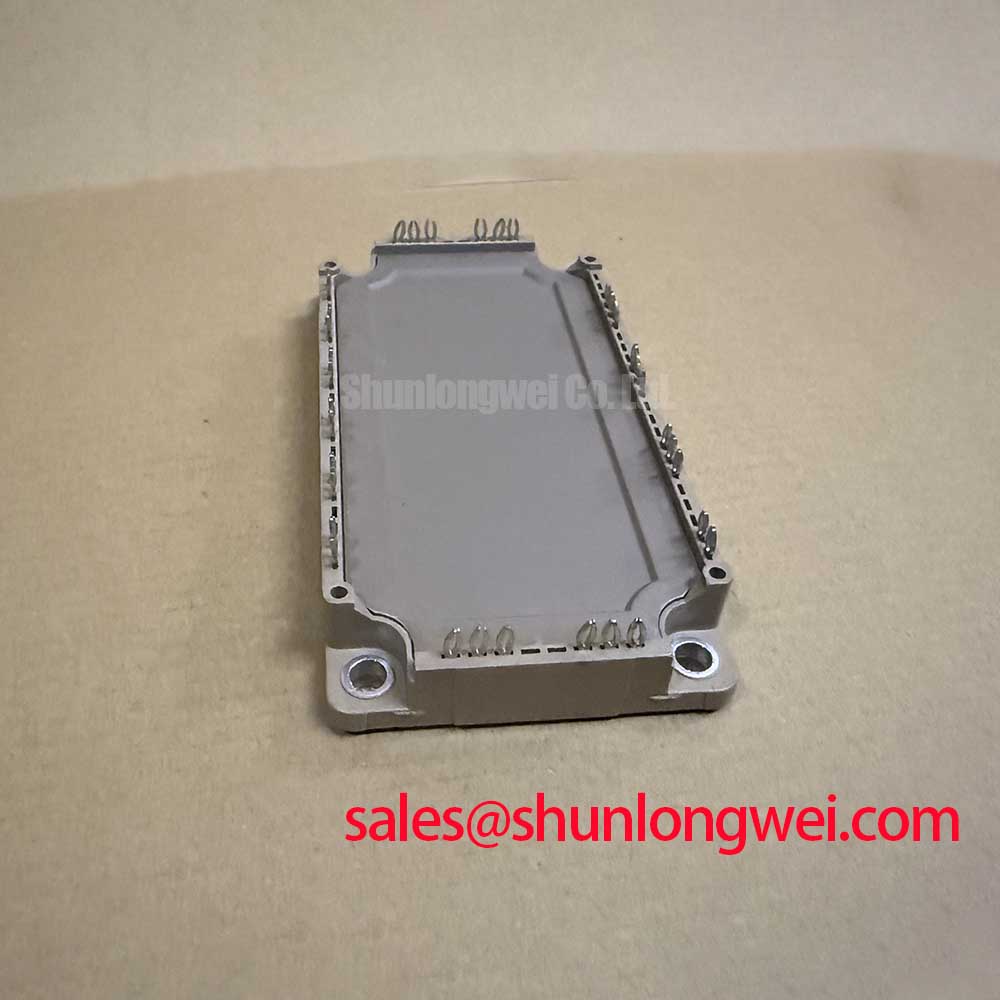

Fuji Electric 6MBI150VX-120-54 | High-Efficiency 1200V V-Series IGBT Module
The Fuji Electric 6MBI150VX-120-54 is a high-performance Power Integrated Module (PIM) designed for demanding power conversion applications. As a core component of Fuji's 6th Generation V-Series, this module leverages advanced trench gate and field-stop technology to deliver an optimized balance of low conduction loss and high-speed switching. It is engineered for engineers seeking to enhance system efficiency, increase power density, and improve the thermal performance of their designs.
Product Highlights: Engineering for Efficiency and Reliability
The 6MBI150VX-120-54 is more than just a collection of components; it's a strategic solution for compact and robust power stages. Here's what sets it apart:
- Integrated 6-Pack Configuration: Combines a three-phase converter bridge, a three-phase inverter bridge, and a brake chopper in a single, compact package, significantly reducing system complexity and assembly time.
- Optimized V-Series Technology: Employs Fuji's advanced trench gate structure, which achieves a remarkably low collector-emitter saturation voltage (VCE(sat)) of 1.70V (typ.), directly translating to lower conduction losses and reduced heat dissipation.
- Enhanced Thermal Management: Features an integrated NTC thermistor for precise, real-time temperature monitoring, enabling sophisticated over-temperature protection and extending operational lifespan.
- Robust and Reliable Package: Housed in a standard M633 package, ensuring industry-standard compatibility and proven mechanical stability for demanding industrial environments.
Technical Deep Dive: The V-Series Advantage
The exceptional performance of the Fuji Electric 6MBI150VX-120-54 stems from its core silicon technology. The V-Series represents a significant evolution in IGBT design, focusing on minimizing total power loss across various operating conditions.
The key is the thin-wafer trench field-stop structure. This design not only reduces the on-state voltage drop (VCE(sat)) but also minimizes the tail current during turn-off. For the design engineer, this means a dual benefit: lower heat generation during steady-state operation and faster, more efficient switching. This characteristic is particularly crucial in applications with high switching frequencies, as it directly curtails switching losses, a major contributor to system inefficiency. The inclusion of a fast-recovery freewheeling diode (FWD) is co-packaged and optimized for the IGBT, ensuring minimal reverse recovery losses and improved reliability under inductive loads.
Application Scenarios & Value Proposition
The integrated nature and performance characteristics of this PIM make it a versatile workhorse for mid-power applications. Its value is most evident in systems where efficiency, compactness, and reliability are non-negotiable.
- Variable Frequency Drives (VFDs): In industrial motor control, the low conduction and switching losses of the 6MBI150VX-120-54 lead to more efficient inverter ACs. The integrated brake chopper simplifies the implementation of regenerative braking, improving dynamic performance and energy management.
- Uninterruptible Power Supplies (UPS): For critical power infrastructure, reliability is paramount. The module's robust thermal design and integrated NTC thermistor provide the necessary safeguards against thermal runaway, ensuring continuous, stable operation. For a deeper understanding of potential failure modes, see our guide on IGBT failure analysis.
- Solar & Renewable Energy Inverters: Maximizing energy harvest requires the highest possible conversion efficiency. The V-Series' low-loss profile ensures that more of the power generated by solar panels is delivered to the grid, directly impacting the system's return on investment.
Key Technical Parameters at a Glance
The following table provides a quick reference for the essential electrical and thermal characteristics. For comprehensive data, including performance curves and package drawings, please download the 6MBI150VX-120-50 datasheet, which is a close reference for the -54 variant.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous Collector Current (Ic) @ Tc=80°C | 150 A |
| Collector-Emitter Saturation Voltage (Vce(sat)) typ. @ Ic=150A | 1.70 V |
| Configuration | Six-Pack (3-phase inverter + 3-phase rectifier + brake) |
| Total Power Dissipation (Pc) @ Tc=25°C | 780 W |
| Operating Junction Temperature (Tj) | -40 to +150 °C |
Frequently Asked Engineer Questions (FAQ)
1. What are the primary considerations for the gate drive design for the 6MBI150VX-120-54?
A standard gate drive voltage of +15V for turn-on and -8V to -15V for turn-off is recommended. A negative gate voltage is crucial to ensure immunity against parasitic turn-on induced by the Miller effect, especially at higher switching speeds. Ensure your gate driver can supply sufficient peak current (typically specified in the datasheet) to charge and discharge the gate capacitance quickly for efficient switching.
2. How does the integrated PIM design benefit my thermal management strategy?
By consolidating the converter, inverter, and brake chopper onto a single isolated baseplate, the PIM simplifies the thermal interface. You only need one heatsink and one mounting procedure. This centralizes the heat source, allowing for a more predictable and manageable thermal model. The built-in NTC thermistor provides a direct feedback point on the baseplate temperature, which is essential for implementing a robust thermal shutdown or derating strategy in your control loop.
For detailed selection advice or to discuss how the 6MBI150VX-120-54 can fit into your next project, please contact our technical team for expert support on our full range of IGBT modules.
