Transient Dynamics & Electrical Design: DC-Bus Operating Voltage Headroom Derating on 6MBP200RSM120

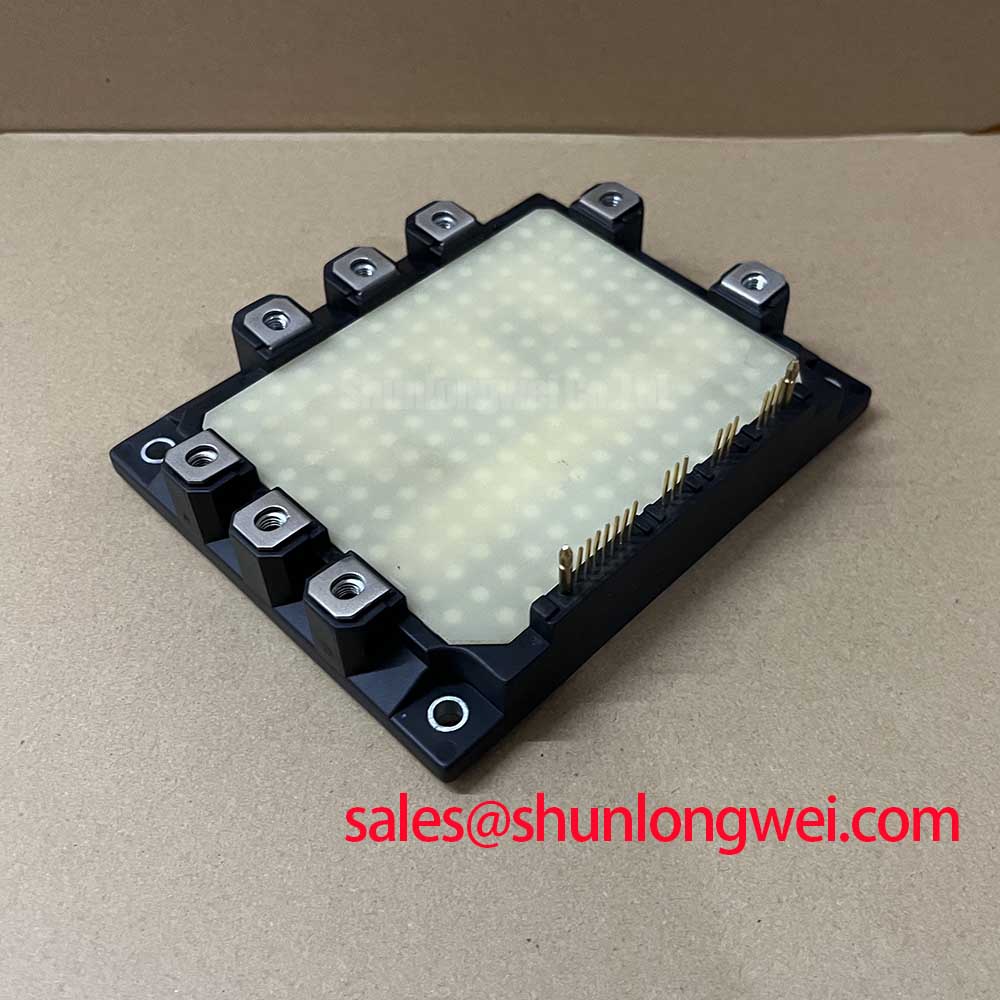

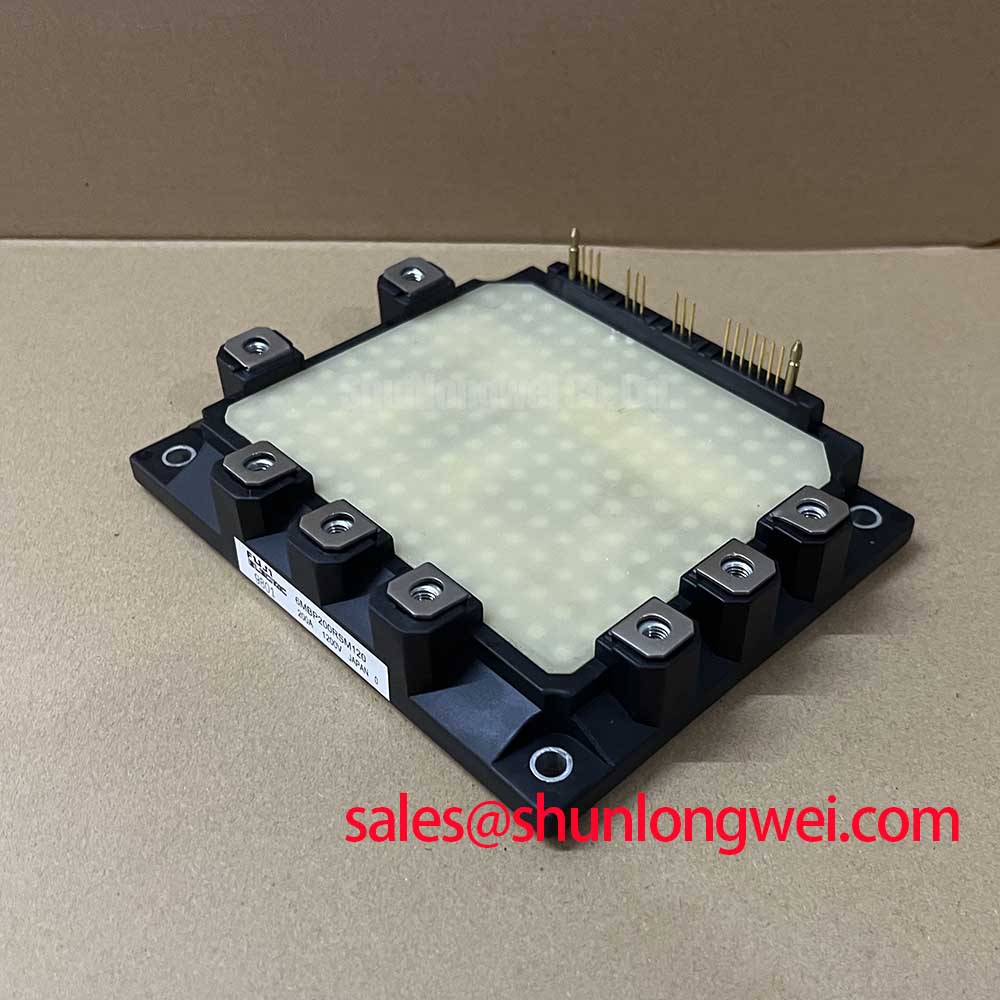

With the inverter isolated and the DC link discharged, first confirm that the installed module marking matches 6MBP200RSM120, then inspect the power terminals, mounting surface, and gate connector area for heat discoloration, cracked housings, loose hardware, or contamination before applying any electrical test.
This Fuji Electric IGBT module is rated at VCES = 1200V and IC = 200A at TC = 80°C as Official Datasheet Specifications. Its listed pulse collector-current rating is 400A. These values establish the module electrical identity, but they do not by themselves define a permitted DC-bus operating voltage for a complete inverter. Actual voltage stress also depends on turn-off overshoot, busbar inductance, clamp behavior, load current, gate-drive timing, and the condition of the DC-link capacitors.
Design Consideration: DC-bus headroom should be evaluated from measured switching waveforms under the actual load and temperature conditions, rather than from the nominal bus voltage alone. The system engineer should verify collector-emitter peak voltage against the 1200V rating during startup, normal loading, regenerative events, and fault interruption. This is particularly important when restoring industrial inverter welders or medium-frequency induction heating power supplies with aged capacitors, altered cabling, or replaced control boards.
No official FIT, terrestrial neutron, altitude, or single-event burnout qualification data is stated in the supplied product parameters. Those subjects should not be converted into predicted failure rates or fixed altitude derating figures for this module without an applicable manufacturer qualification document and system-level environmental assessment. Clearance, creepage, enclosure contamination level, and insulation coordination remain system-determined requirements.
For broader semiconductor technology context, engineers can consult Fuji Electric Discrete IGBT & SiC MOSFETs and the manufacturer’s global power semiconductor technology information. These resources provide technology context but do not replace waveform verification on the repaired equipment.
Field Diagnostics & Commissioning: Planar Symmetrical Busbar Geometry in 6MBP200RSM120 Topologies
Before commissioning, compare cold-state resistance readings between corresponding power paths and inspect the DC-link capacitor connections, busbar faces, and terminal fasteners. A resistance comparison is useful for finding obvious asymmetry, but it cannot prove switching health because a multimeter does not reproduce operating current, gate drive, or transient voltage conditions.
The familiar switching relationship in which collector-emitter peak voltage rises from DC-bus voltage by the product of stray inductance and current transition rate explains why physical bus geometry matters. Design Consideration: keep the commutation path compact and geometrically balanced so that outgoing and return currents remain closely coupled. A planar, symmetrical busbar arrangement can reduce loop inductance and improve current-path repeatability, provided that insulation, creepage, mechanical support, and service access are verified for the finished assembly.
Snubber capacitors and clamp networks should be assessed from measured ringing frequency, peak voltage, current waveform, and component temperature. Their final capacitance, ESR, placement, and voltage rating are system-determined. Adding capacitance without checking the complete commutation loop can shift ringing or increase stress elsewhere in the inverter.
During controlled power-up, observe gate-emitter drive signals and collector-emitter voltage with suitably rated isolated measurement equipment. Complementary switching commands require an interlock interval that prevents simultaneous conduction, while excessive delay can affect waveform quality and thermal loading. The appropriate timing buffer must be verified against the controller logic, driver propagation behavior, load current, and switching tests.
⚠️ Field Alert: Disconnect stored DC-link energy and confirm the measured bus voltage is at a safe level before removing gate leads or loosening any power-terminal hardware.
If the original repair documentation requires comparison of related power devices, 1MBI200S-120 can be reviewed as a separate component reference, subject to full verification of circuit function, terminal arrangement, control interface, cooling interface, and switching behavior. It should not be treated as a drop-in replacement without those checks.
Preventing Spurious Faults: Thermal Feedback Guidelines for 6MBP200RSM120
The thermal path should be inspected before interpreting a drive fault as an electrical module problem. The official maximum junction-to-case thermal resistance is Rth(j-c) = 0.116°C/W per IGBT, while the listed collector power-dissipation value is 1080W per IGBT. These are device specifications, not a completed heatsink thermal model. The case-to-heatsink interface, heatsink condition, fan performance, airflow path, ambient conditions, and duty cycle determine the installed thermal result.
At IC = 200A, the official collector-emitter saturation voltage is 1.8V typical and 2.3V maximum. This voltage should be interpreted only under the specified test condition. It is not a field pass or fail threshold for a powered inverter, because junction temperature, gate-drive conditions, switching state, measurement method, and current waveform affect the observed voltage.
Where multiple semiconductor paths share load current, static current sharing and dynamic current sharing are separate issues. Design Consideration: do not assume a particular temperature coefficient or sharing behavior for this module unless it is documented for the exact operating point. Instead, compare matched current waveforms, gate-drive timing, cooling contact, and physical conductor symmetry. Uneven heating may result from several interacting factors, including a restricted cooling path, an asymmetric gate loop, altered switching timing, or a degraded load connection.
The integrated NTC is specified as 50 kΩ ± 5% at 25°C. It can support temperature-sensing checks when interpreted through the equipment’s original control circuit and temperature conversion method. A resistance reading that differs from an expected ambient value should prompt inspection of the sensor wiring, connector contact, control-board input, and actual module temperature before a module-level conclusion is made.
For a rectifier or associated input-stage review, the 2MBI200UB-120 listing may provide a relevant related-device reference. Electrical topology, thermal interface, and terminal compatibility must still be checked independently.
Preventing Spurious Faults: Optimizing Gate Drive Loop Geometry for 6MBP200RSM120
Gate-loop faults often appear as intermittent overcurrent trips, irregular switching waveforms, or unequal heating after a repair. Start by checking that each gate lead and its return path are secure, short in practical routing, and separated from high-current power conductors where the original assembly intended separation. The return conductor is part of the gate circuit; treating it as an incidental wire can introduce common-emitter voltage effects during high-current transitions.
The supplied official parameters specify a gate-emitter threshold range of 5.0V to 7.5V. Threshold voltage is a test parameter, not a recommended driver supply voltage or a reliable indication of full enhancement in a working inverter. The required gate-drive levels, gate resistance, desaturation protection, active clamping approach, and Miller-control arrangement should be verified from the original driver documentation and measured switching behavior.
The official switching-energy figures are Eon = 34 mJ per pulse and Eoff = 44 mJ per pulse, specified at VCC = 600V and IC = 200A. They provide a controlled reference point, not a direct prediction of loss in another converter. Switching energy in service changes with bus voltage, current, junction temperature, gate-loop impedance, commutation inductance, and diode behavior.
Do not assume that a separate auxiliary or Kelvin-emitter terminal is available unless the original module pin documentation confirms it. If the equipment provides a dedicated gate-drive return, route that return according to the original control topology rather than combining it casually with the main high-current return. This helps limit coupling that can disturb gate-emitter voltage during turn-on and turn-off.
For repair teams tracing ringing, false protection triggers, or unstable gate behavior, the practical discussion in Precision Gate Drive Design can help structure measurements around gate return routing, parasitic inductance, driver protection, and switching validation.
