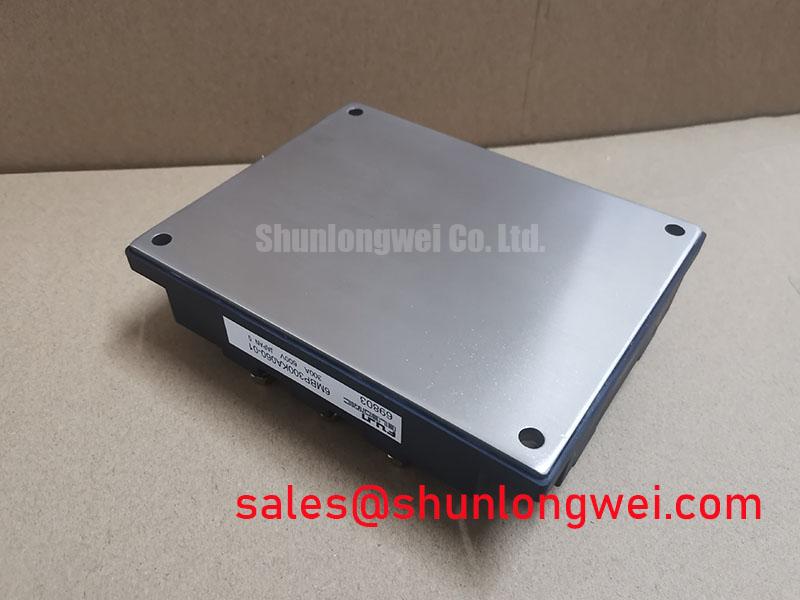

Fuji 6MBP300KA060-01 IGBT Module

6MBP300KA060-01 IGBT Module: Technical Specifications & Analysis

High-Integration Power Module for Demanding Inverter Applications

The 6MBP300KA060-01 is an integrated power module delivering robust performance for high-power three-phase inverter systems through a focus on simplified system integration and built-in protection. It integrates six Insulated Gate Bipolar Transistors (IGBTs) with fast-recovery diodes (FWD) and essential control circuitry, including drive and protection functions, into a single compact package. With core specifications of 600V | 300A | P-side open emitter, this Intelligent Power Module (IPM) is engineered for efficiency and reliability. Key benefits include a streamlined gate drive design and comprehensive on-board protection. For engineers designing motor drives or UPS systems, the primary value of this module lies in its ability to reduce component count and simplify the control interface, directly accelerating the development cycle without compromising on protective features.

Application Scenarios & Value

Streamlining High-Power Inverter Design

The 6MBP300KA060-01 is engineered for deployment in high-power switching applications where both performance and design efficiency are critical. Its highly integrated nature makes it a prime candidate for systems where reducing board complexity and development time is a strategic advantage. The module's internal architecture, which includes gate drivers and protection circuits, alleviates the need for extensive external support circuitry. For designs targeting the 50-100 kW power range, its 600V/300A rating provides substantial capacity.

• Industrial Motor Drives: In applications such as AC servo drives and general-purpose Variable Frequency Drives (VFDs), the module's 6-in-1 configuration simplifies the three-phase inverter stage. The integrated protection against over-current (OC) and short-circuit (SC) events is crucial for maintaining operational uptime in demanding factory environments.
• Uninterruptible Power Supplies (UPS): The reliability of a UPS hinges on the robustness of its power stage. The 6MBP300KA060-01 provides a tested and self-contained solution, with built-in overheating (OH) protection and alarm outputs (OC, SC, OH) that facilitate seamless integration into system-level monitoring and control.
• Renewable Energy Systems: Suitable for smaller-scale solar inverters and power conversion systems, this module helps manage power flow efficiently. Its construction supports the high-reliability requirements of these applications.

For systems requiring high current handling at 600V with an emphasis on design simplicity and integrated protection, the 6MBP300KA060-01 offers a compelling all-in-one solution over a discrete component approach.

Key Parameter Overview

Defining Performance with Integrated Control

The electrical and thermal characteristics of the 6MBP300KA060-01 are defined by its datasheet, providing a clear framework for system design and performance simulation. Below is a summary of key parameters based on the official documentation. For a complete list of specifications, please refer to the product datasheet.

Parameter Interpretation:

• Collector-Emitter Saturation Voltage (VCE(sat)): This parameter is a direct indicator of conduction losses within the IGBT. The 6MBP300KA060-01 specifies a maximum VCE(sat) of 2.70V at its rated current of 300A. A lower VCE(sat) translates to less heat generated during the on-state, which is fundamental to achieving higher overall system efficiency. This value is critical for thermal design calculations and determining heatsink requirements. For an in-depth analysis of how different parameters impact efficiency, see our guide on decoding IGBT datasheets.
• Integrated Protection Functions: This module is not just a collection of switches; it's an Intelligent Power Module (IPM). It includes built-in protection for over-current (OC), short-circuit (SC), control supply under-voltage (UV), and overheating (OH). This integration simplifies the designer's task of implementing a robust and safe power stage, as these critical protective measures are already embedded and optimized within the module. What is the primary benefit of its integrated protection? It significantly reduces external component count and mitigates common failure modes.

Intra-Series Comparison & Positioning

A High-Integration Solution in the 600V IPM Family

Within Fuji Electric's portfolio of Intelligent Power Modules, the 6MBP300KA060-01 is positioned as a high-current solution in the 600V class. It is part of a family that offers various current ratings to suit different power requirements. When compared to lower current modules in the same series, such as a 150A or 200A variant, the 300A rating of this device allows for control of significantly larger motors or management of higher power throughput in UPS systems without needing to parallel multiple modules.

Conversely, for applications requiring higher voltage blocking capabilities, such as those connected to 480V AC lines, designers might consider modules from the 1200V class. However, for 200-240V AC line applications, the 600V rating of the 6MBP300KA060-01 provides an optimal balance, avoiding the higher conduction and switching losses typically associated with higher-voltage IGBTs. The key positioning factor for this module is its role as an all-in-one inverter stage for applications where the DC bus voltage remains safely below 450V, and the design priority is on compactness and simplified control logic.

Technical Deep Dive

Anatomy of an Integrated Power Stage

The 6MBP300KA060-01's design philosophy centers on consolidating a complex power system into a single, reliable component. This integration provides several engineering advantages rooted in its internal architecture.

• 6-in-1 Topology: The module houses a complete three-phase inverter bridge. This topology is the standard for driving three-phase AC motors and is essential for many power conversion applications. By integrating all six IGBTs and their corresponding freewheeling diodes, the module eliminates the need for designers to manage the complex layout, stray inductance, and thermal balancing associated with discrete component designs.
• Built-in Gate Drive and Logic Interface: One of the most significant design simplifications offered is the integrated gate drive circuitry. This circuit is precisely matched to the IGBTs' characteristics, ensuring optimal switching performance. It accepts logic-level control signals (high/low) directly from a microcontroller or DSP, translating them into the high-current gate pulses needed to switch the IGBTs. This removes the gate driver design, a common source of complexity and potential failure, from the engineer's workload.
• Comprehensive Protection with Alarm Outputs: The module features a robust set of self-protection capabilities. It actively monitors for over-current, short-circuit, and over-temperature conditions. If a fault is detected, the drive circuit intelligently shuts down the IGBTs to prevent catastrophic failure. It then outputs a fault signal (FO), allowing the system controller to take appropriate action. How does the integrated over-temperature protection work? It uses a sensing element placed near the IGBT chips to provide a direct and rapid response to thermal stress, enhancing long-term reliability.

Industry Insights & Strategic Advantage

Meeting the Demand for Higher Power Density and Faster Time-to-Market

The industrial automation and power conversion markets are driven by trends toward more compact, efficient, and reliable systems. The 6MBP300KA060-01 directly addresses these needs by offering a high degree of integration. The shift from discrete IGBTs and drivers to Intelligent Power Modules (IPMs) like this one is a key strategy for OEMs looking to accelerate their design cycles. By using a pre-validated and self-contained power stage, engineering teams can focus their resources on application-level software and system features rather than on the intricacies of power circuit design and layout.

This approach not only reduces the bill of materials (BOM) and physical footprint but also inherently enhances system reliability. The optimized internal layout minimizes parasitic inductance, which is a common cause of voltage overshoots and EMI issues in high-power switching circuits. As energy efficiency regulations become more stringent, leveraging a module with matched components and optimized drivers is a critical step in building compliant and competitive products.

For technical evaluation or to discuss specific application requirements for the 6MBP300KA060-01, please contact our engineering support team for detailed guidance and to explore how this integrated module can enhance your next power system design.
