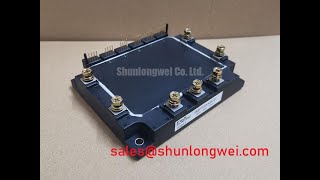

FUJI 6MBP300KA060 IGBT Module

6MBP300KA060 IPM Module: Technical Guide for Engineers

Introduction to the 6MBP300KA060 Intelligent Power Module

The Fuji Electric 6MBP300KA060 is an R-Series Intelligent Power Module (IPM) engineered to deliver robust performance in high-power applications through an integrated and protected design. This module combines six 600V/300A IGBTs in a single package, optimized for simplifying the design of three-phase inverter systems. Key specifications include a collector-emitter voltage of 600V, a continuous collector current of 300A, and a total power dissipation of 1300W. It integrates crucial protection circuits for over-current, short-circuit, control supply under-voltage, and over-temperature, directly addressing the core engineering challenge of achieving system reliability without extensive external monitoring components. The integration of these features ensures dependable operation in demanding industrial environments.

Application Scenarios & Value

Driving High-Power Industrial Systems

The 6MBP300KA060 is specifically tailored for power conversion systems where reliability and integration are paramount. Its robust 600V and 300A ratings make it a suitable component for a range of applications. For systems requiring a balance of high power handling and built-in protection, such as those found in industrial automation, this IPM provides a consolidated solution. Its comprehensive protection suite simplifies the external circuitry, which can be a significant advantage in complex designs. For applications demanding even higher voltage tolerance, a component like the BSM300GA120DN2, which offers a 1200V rating, could be considered for systems operating under more strenuous voltage conditions.

• Industrial Motor Drives: Provides precise and efficient control for three-phase AC motors in manufacturing, robotics, and conveyor systems.
• Uninterruptible Power Supplies (UPS): Forms the core of the inverter stage in high-capacity UPS systems, ensuring stable and reliable power backup for critical infrastructure.
• Renewable Energy Inverters: Manages the power conversion from solar arrays or wind turbines, offering a compact and protected solution.
• Welding Power Supplies: The module's high current capability and short-circuit protection are valuable in the demanding environment of industrial welding equipment.

What is the primary benefit of its integrated protection? It significantly reduces design complexity and component count, leading to smaller, more reliable end-systems. For applications in the 150A range, the related PM150CVA120-2 offers similar integrated features in a lower current package.

Success Stories / Deployment Snippets

Enhancing Reliability in Automated Manufacturing

A key application of the 6MBP300KA060 is within the servo drives that power robotic arms on automated assembly lines. In these environments, operational uptime is critical, and any component failure can halt production. The module's integrated over-temperature protection, which directly senses IGBT junction temperature, acts as a crucial safeguard. Imagine the heat generated within a compact robotic joint; this IPM can preemptively signal an alarm or shut down before thermal runaway causes catastrophic failure. This is not just about preventing damage to the drive, but about maintaining the integrity of the entire production process. By using an IPM like the 6MBP300KA060, system designers can build in a layer of thermal resilience that would otherwise require complex external sensing and logic circuits.

Industry Insights & Strategic Advantage

The Value of Integration in Modern Power Electronics

The trend in power system design is clear: greater power density, higher efficiency, and improved reliability. Intelligent Power Modules like the 6MBP300KA060 are at the forefront of this movement. By integrating the power stages (IGBTs) with the gate drive and protection circuitry, these modules offer a strategic advantage over discrete component designs. The internal layout is optimized by the manufacturer for minimal stray inductance and efficient gate signaling, factors that are challenging and time-consuming to perfect in a discrete layout. This pre-optimized design is crucial for achieving the low power loss and soft switching characteristics mentioned in the datasheet. This approach aligns with the industry's need for faster development cycles and reduced time-to-market, allowing engineering teams to focus on system-level innovation rather than intricate power stage design. For further reading on the fundamentals of IGBTs, see our in-depth analysis of IGBT modules.

Technical Deep Dive

Inside the Integrated Protection System

A standout feature of the 6MBP300KA060 is its comprehensive, built-in protection architecture. This isn't merely a collection of transistors; it's a self-monitoring power conversion subsystem. The module provides alarm signals for short-circuit (SC), over-current (OC), over-temperature (OT), and power supply under-voltage (UV). The over-temperature protection is particularly noteworthy as it is derived from sensing the junction temperature of the power chips directly. This provides a far more accurate and responsive thermal protection mechanism compared to an external NTC thermistor placed on the module's baseplate. This direct sensing method eliminates thermal lag, allowing the system to react to dangerous temperature spikes before they can cause degradation or failure. Think of it as a built-in nervous system for the power stage, capable of instantly detecting and reporting harmful conditions. This level of integration is a key enabler for building robust power systems with extended operational lifetimes.

Intra-Series Comparison & Positioning

Positioning within the 600V IPM Landscape

The 6MBP300KA060 is positioned as a high-current solution within the 600V IPM family. Its 300A rating places it at the upper end of power handling for applications like large motor drives and high-capacity UPS systems. When evaluating alternatives, an engineer might consider lower current modules for smaller loads or modules with different topologies for specific control strategies. The key differentiator for this module is its combination of high current capacity with a full suite of protections in a single, standard package. For high-frequency designs where switching losses are a primary concern, the module's soft-switching characteristics offer a distinct advantage over older IGBT technologies. The data-driven choice becomes clear: for 400V-class inverters requiring up to 300A with integrated, direct-sensing thermal protection, the 6MBP300KA060 offers a compelling and reliable solution.

Key Parameter Overview

The technical specifications of the 6MBP300KA060 are foundational to its performance in demanding power systems. The following table outlines key parameters based on the official datasheet. For a complete list of specifications, please download the datasheet.

Note: These parameters are highlights. Engineers must consult the official 6MBP300KA060 datasheet for detailed specifications, application notes, and operational curves.

Technical Inquiry and Sourcing

To evaluate the 6MBP300KA060 for your power system design, or to request a quote, please contact our technical sales team. We provide engineering support to help you analyze the component's suitability for your specific application and can provide information on availability and procurement. We are committed to empowering your design process with accurate data and reliable components.
