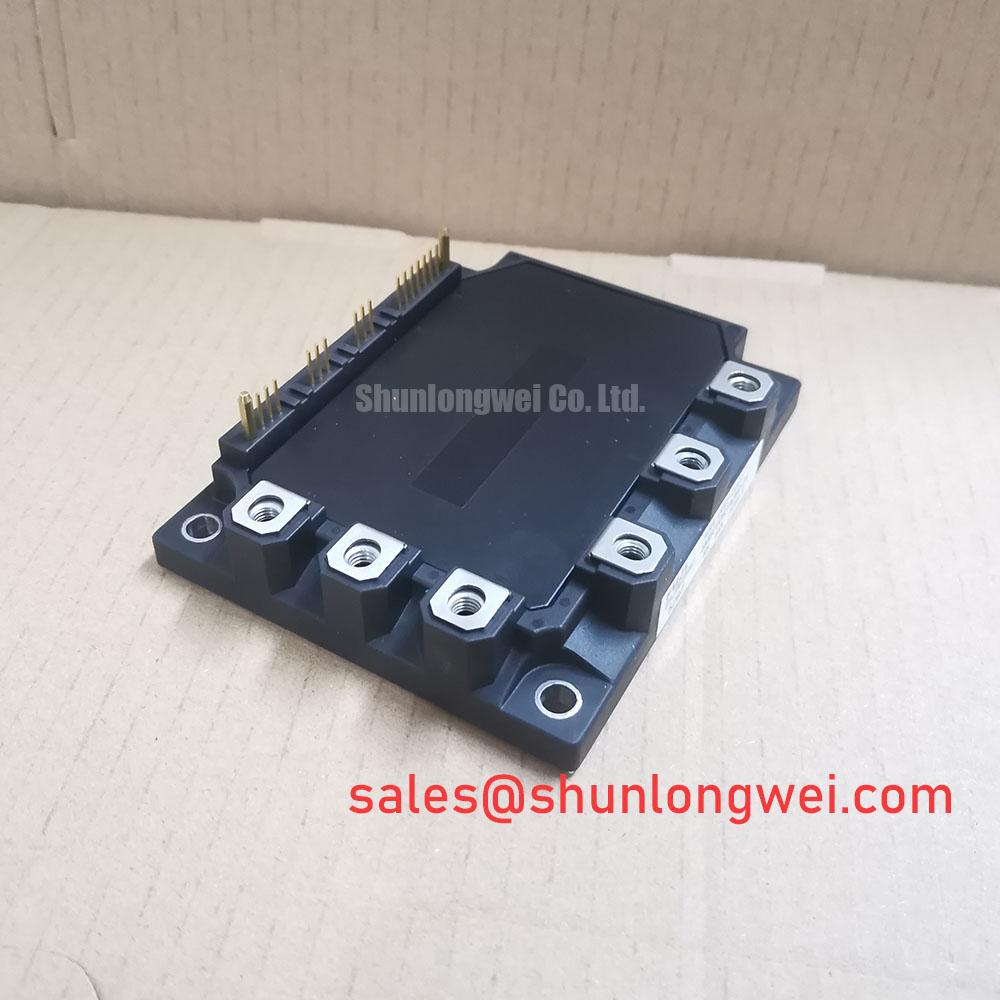

6MBP50RTA060-01 Fuji Electric 600V 50A Intelligent Power Module (IPM)

Content last revised on November 18, 2025

6MBP50RTA060-01 Fuji Electric IPM: Engineering Reliable, Compact Motor Drives

Introduction: A Snapshot of Integrated Power

The Fuji Electric 6MBP50RTA060-01 is an Intelligent Power Module (IPM) engineered for high-reliability motor control, simplifying design through integrated protection and a direct logic-level interface. This device integrates key power and control stages into a single, thermally efficient package. Featuring core specifications of 600V | 50A | Tj 150°C, it delivers streamlined design cycles and enhanced operational robustness. A primary benefit is the significant reduction in external protection circuitry, directly answering the challenge of designing compact and fault-tolerant motor drives. What is the advantage of its built-in fault signaling? It provides immediate diagnostic feedback to the system controller, enabling safer operation.

Application Scenarios & Value

System-Level Benefits in AC Inverter and Servo Applications

For compact AC inverter drives up to ~15kW requiring robust, built-in protection, this 50A IPM is the optimal choice for accelerating development. The 6MBP50RTA060-01 is specifically designed for low to medium-power motor control applications where reliability, space savings, and simplified assembly are critical design drivers. Its primary value is in Variable Frequency Drives (VFDs) and AC servo systems for industrial automation, robotics, and HVAC equipment.

A common engineering challenge in these systems is implementing robust protection against overcurrent, short-circuits, and overheating without adding excessive complexity and cost. The 6MBP50RTA060-01 directly solves this by integrating a suite of protection circuits—including Overcurrent (OC), Short-Circuit (SC), and Over-Temperature (OT)—along with the necessary control ICs. This integrated approach not only reduces the PCB footprint but also minimizes the stray inductance associated with discrete component layouts, leading to cleaner switching and improved EMC performance. The inclusion of a dedicated alarm signal pin allows the microcontroller to take immediate preventative action during a fault condition, a crucial feature for complying with safety standards like IEC 61800-5-1.

For systems that require a higher current rating for more demanding motor loads, the related 6MBP100RTA060 offers a 100A capability within a similar functional framework.

Key Parameter Overview

Highlighting Critical Specifications for Drive Design

The specifications of the 6MBP50RTA060-01 are tailored for efficient and reliable power conversion. The table below highlights the parameters most critical for system design, thermal management, and performance evaluation.

Technical & Design Deep Dive

Inside the IPM: Understanding Integrated Protection and Control

The core advantage of the 6MBP50RTA060-01 lies in its high level of integration, which offloads critical protection and drive functions from the main system controller. The internal control IC is the brain of the module. It accepts 3.3V or 5V logic-level PWM control signals directly, eliminating the need for complex external gate driver circuits. This direct interface simplifies PCB layout and reduces susceptibility to noise.

Furthermore, the module's protection suite operates with a level of speed and precision difficult to achieve with discrete solutions. The Overcurrent (OC) protection, for instance, triggers at 90A (typical), shutting down the corresponding IGBT to prevent damage. This is not just a simple shutdown; the IPM provides a fault signal (Fo) back to the microcontroller. Think of it like a car's engine control unit (ECU) not just detecting a problem but also illuminating a specific warning light on the dashboard. This allows the system to differentiate between an overcurrent event, an undervoltage lockout, or an over-temperature warning, enabling smarter fault handling and diagnostics in the field.

Frequently Asked Questions (FAQ)

How does the integrated under-voltage (UV) protection enhance system reliability?

The UV protection monitors the control supply voltage (Vcc). If this voltage drops below a safe threshold (typically ~12.5V), it shuts down the IGBTs. This prevents the gates from being driven with insufficient voltage, which could cause the IGBTs to operate in their linear region, leading to excessive power dissipation and catastrophic failure. It ensures the module only operates when its internal logic and drivers are properly powered.

What is the function of the alarm signal (Fo) pin?

The Fo pin is an open-drain output that provides a low signal to the system's microcontroller whenever a fault is detected (Overcurrent, Short-Circuit, Under-Voltage, or Over-Temperature). This single pin provides a unified fault flag, simplifying the monitoring process for the controller and enabling immediate, software-defined protective actions.

Is an external gate drive circuit required for the 6MBP50RTA060-01?

No. This IPM is designed to be driven directly by logic-level signals from a CPU, DSP, or microcontroller. It contains all the necessary level-shifting and gate drive amplification circuitry internally. This significantly simplifies the interface design and reduces component count compared to using discrete IGBTs.

How does the VCE(sat) of 2.2V (Typ) impact thermal design?

The Collector-Emitter Saturation Voltage, or VCE(sat), is the voltage drop across the IGBT when it is fully on. A lower VCE(sat) means less power is dissipated as heat for a given current (Conduction Loss = VCE(sat) * Ic). The 2.2V typical value at 50A is a key factor in the module's thermal performance. A lower VCE(sat) directly reduces the heat that must be managed by the heatsink, allowing for either a smaller, more cost-effective cooling solution or greater thermal margin in high-ambient-temperature environments.
