6MBP25VAA120-51 Fuji Electric V-Series IPM: Engineering a Compact & Reliable 1200V/25A Inverter Stage
Introduction: A Blueprint for Integrated Power Design

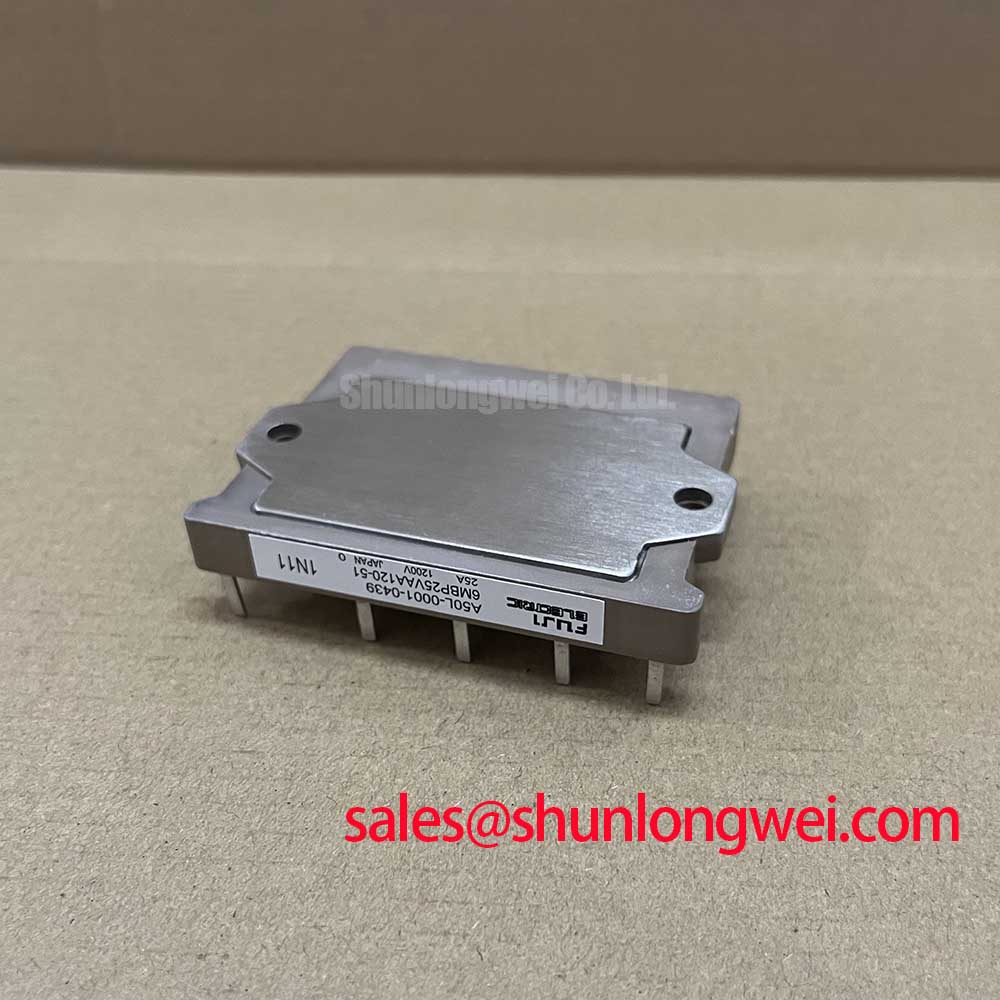

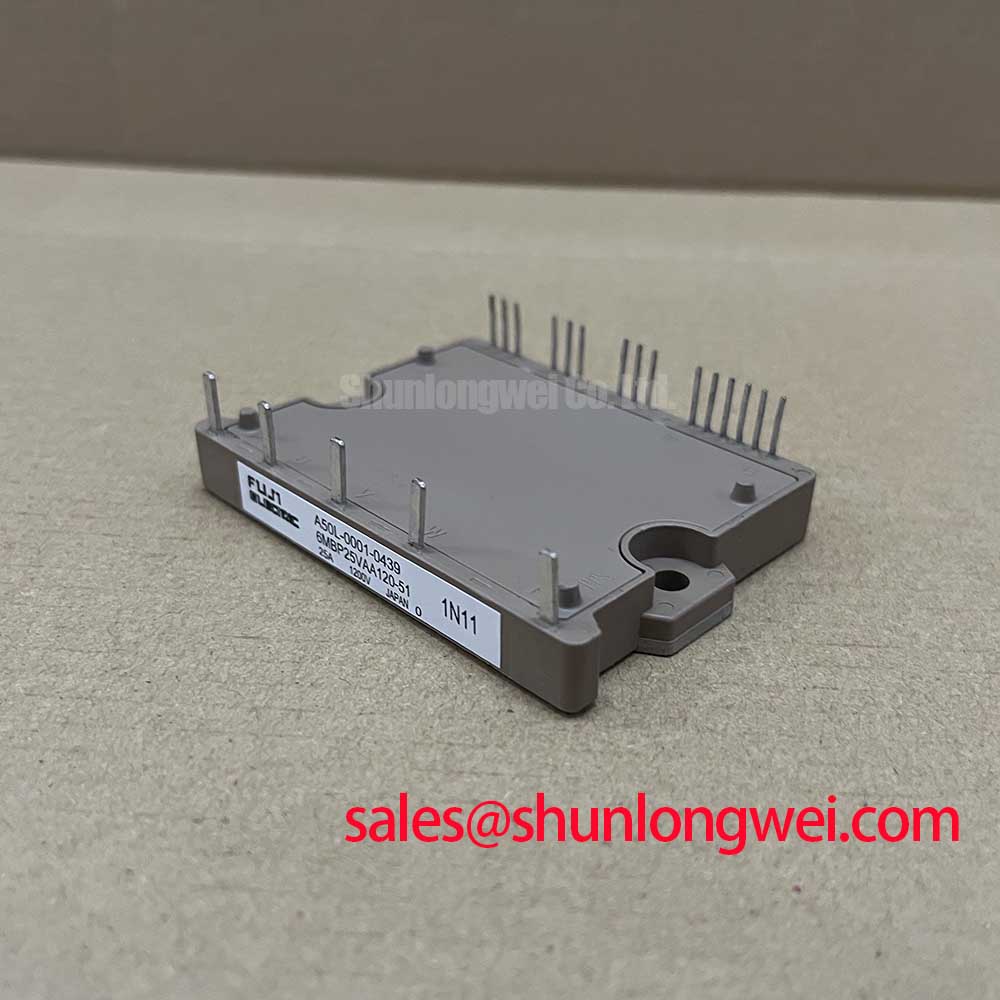

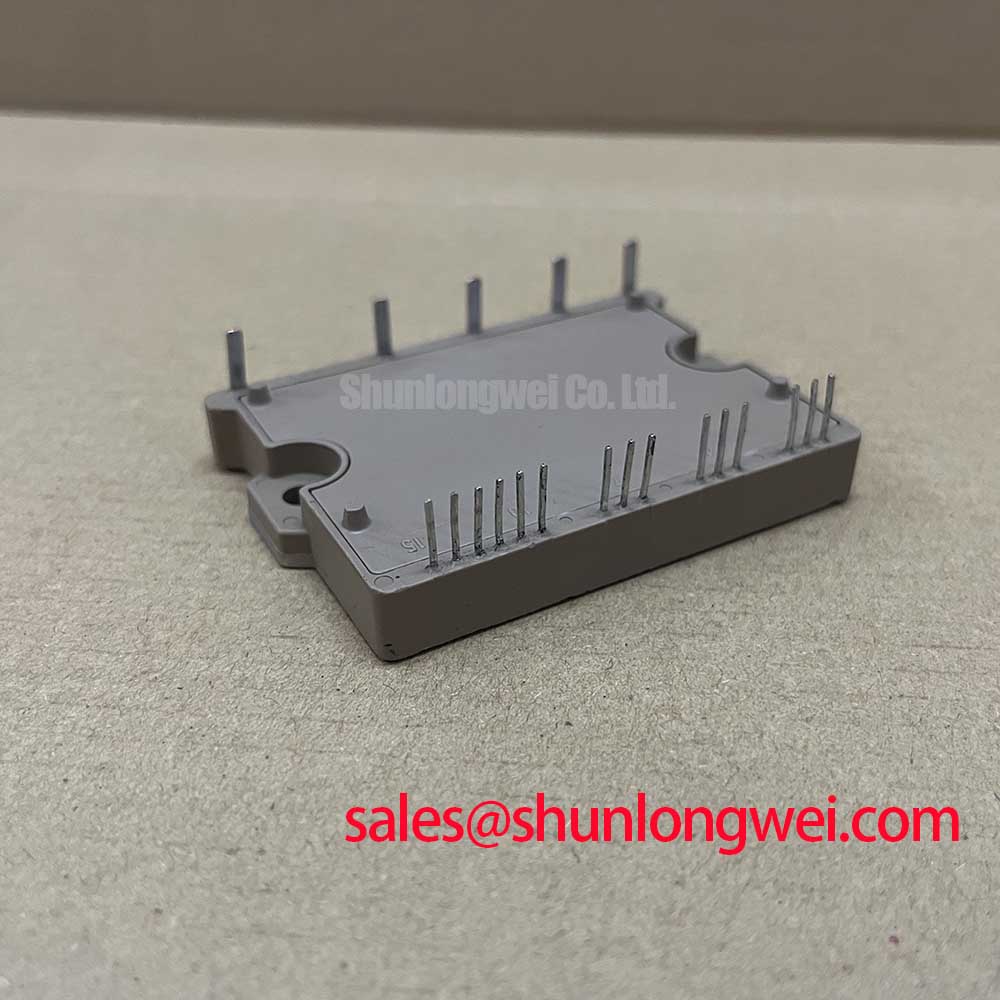

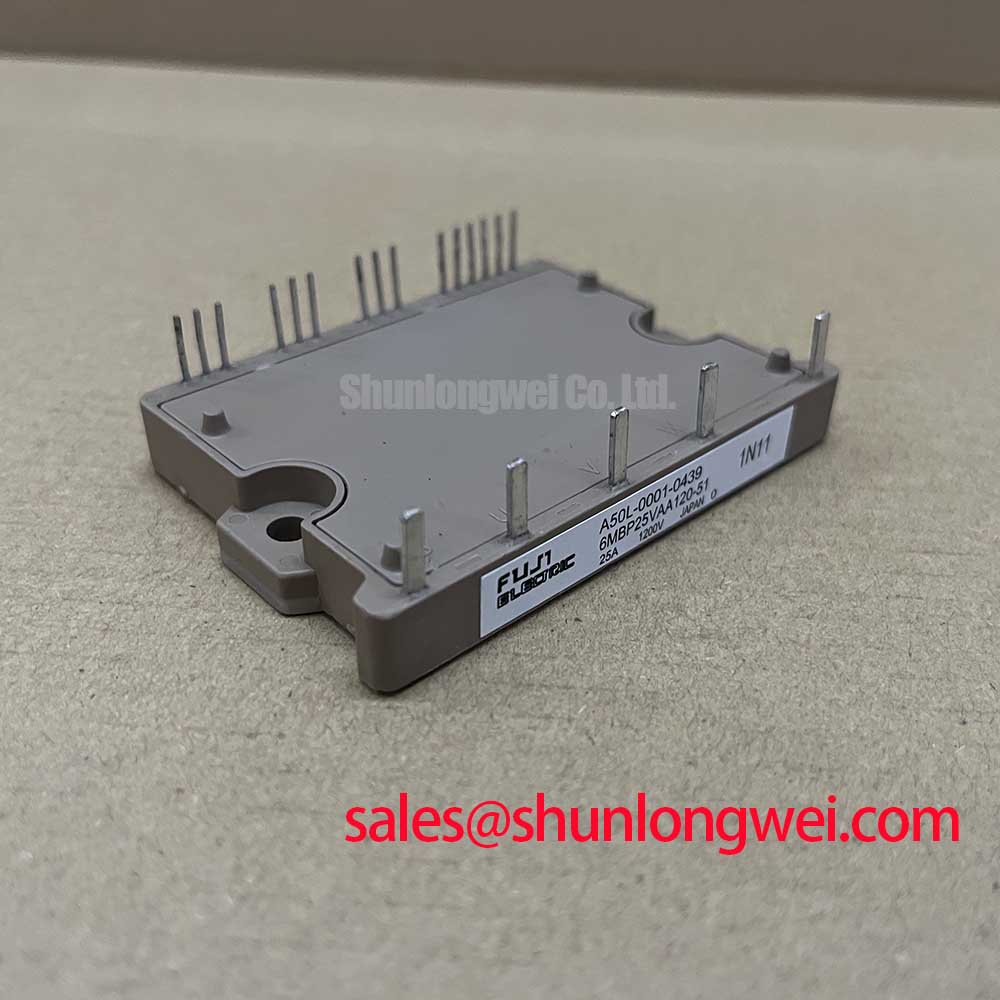

The Fuji Electric 6MBP25VAA120-51 is a V-Series Intelligent Power Module (IPM) that delivers a highly integrated solution for three-phase inverter designs. This module packages a robust 1200V | 25A | 6-pack IGBT configuration with dedicated gate drive and protection circuitry. Key benefits include drastically reduced design complexity and enhanced operational reliability. By integrating critical protection functions, it directly addresses the challenge of creating fault-tolerant motor drives without extensive external components. For low-to-mid-power industrial drives requiring high reliability and a compact footprint, the 6MBP25VAA120-51 offers a clear path to faster system development.
Key Parameter Overview
Decoding the Electrical Characteristics for Reliable Drive Performance
The specifications of the 6MBP25VAA120-51 are tailored for efficiency and resilience in demanding industrial applications. The parameters below highlight the module's capabilities in handling electrical and thermal stress, forming the foundation for a robust power stage design. For a complete understanding, it is essential to consult the official datasheet.
| Parameter | Symbol | Condition | Value |
| Collector-Emitter Voltage | VCES | Tj = 25°C | 1200 V |
| Collector Current (DC) | IC | Tc = 25°C, Per Arm | 25 A |
| Collector Current (Peak) | ICP | Tc = 25°C, Per Arm, t = 1ms | 50 A |
| Collector-Emitter Saturation Voltage | VCE(sat) | IC = 25A, Tj = 125°C | 2.2 V (Typ.) |
| Short-Circuit Withstand Time | tsc | VCC = 800V, VGE = 15V, Tj = 125°C | ≥ 10 µs |
| Isolation Voltage | Viso | AC, 1 minute | 2500 Vrms |
| Operating Junction Temperature | Tj | -20 to +150 °C |
Download the 6MBP25VAA120-51 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Compact Industrial Motor Drives
The 6MBP25VAA120-51 is engineered to accelerate the development of compact and robust power conversion systems, particularly in the 1 to 5.5 kW range. Its primary value lies in its high level of integration, which simplifies the design of the critical power stage.
Consider the design of a Variable Frequency Drive (VFD) for a factory automation conveyor system. A key challenge is ensuring the drive can withstand common fault conditions like motor phase shorts or locked rotors without catastrophic failure. The 6MBP25VAA120-51's integrated short-circuit (SC) and over-current (OC) protections provide an elegant solution. Instead of requiring complex external monitoring circuits and a fast-acting shutdown logic on the main controller, this IPM handles the fault detection and safe shutdown internally. This integration acts like an embedded safety supervisor for the power stage, directly increasing the system's mean time between failures (MTBF) and simplifying the overall gate driver circuit design.
This module is an excellent fit for applications such as:
- Small industrial motor drives and servo systems
- Air conditioning and ventilation fan controls
- General-purpose inverters
- Small-scale Uninterruptible Power Supplies (UPS)
While the 25A rating is suitable for many applications, systems requiring higher power density for the same voltage class could evaluate the related 6MBP50VBA120-50, which offers a 50A current capability.
Frequently Asked Questions (FAQ)
What is the primary benefit of the integrated protection features in the 6MBP25VAA120-51?
The primary benefit is enhanced system reliability and simplified design. By integrating over-current, short-circuit, over-temperature, and under-voltage lockout protections, the module reduces the need for external protection circuitry, minimizes PCB space, and provides a faster, more reliable response to fault conditions than many discrete implementations.
How does the built-in thermistor add value to a design?
The integrated NTC thermistor provides a direct, real-time method for monitoring the module's internal temperature. This allows the system controller to implement precise over-temperature warnings or shutdowns (OT protection), preventing thermal runaway and extending the operational life of the inverter. It's like having a built-in thermometer right at the heart of the power stage.
What is the function of the Fault signal (Fo) pin?
The Fault signal pin is an open-collector output that provides a clear, low-level signal to the host microcontroller whenever one of the internal protection circuits (OC, SC, UV, OT) is triggered. This enables intelligent fault handling, allowing the system to log the event, display an error to the user, and execute a safe shutdown procedure.
Can the 6MBP25VAA120-51 be used with a 3.3V microcontroller?
Yes, the logic inputs of this V-Series IPM (Intelligent Power Module) are compatible with 3.3V and 5V CMOS logic levels, making it straightforward to interface with a wide range of modern microcontrollers without the need for level-shifting components.
Strategic Outlook
Integrating the 6MBP25VAA120-51 into a power design is a strategic decision that prioritizes development speed, reliability, and a compact form factor. In an industrial landscape where time-to-market and long-term dependability are paramount, this module provides a significant advantage by abstracting away the complexities of gate drive design and protection implementation. By leveraging this pre-validated subsystem from a trusted manufacturer like Fuji Electric, engineering teams can focus their resources on system-level features and software development, ultimately creating more competitive and robust products.
