Fuji Electric 6RI30G-160 Three-Phase Diode Bridge Rectifier Module: Technical Overview and Integration Guide

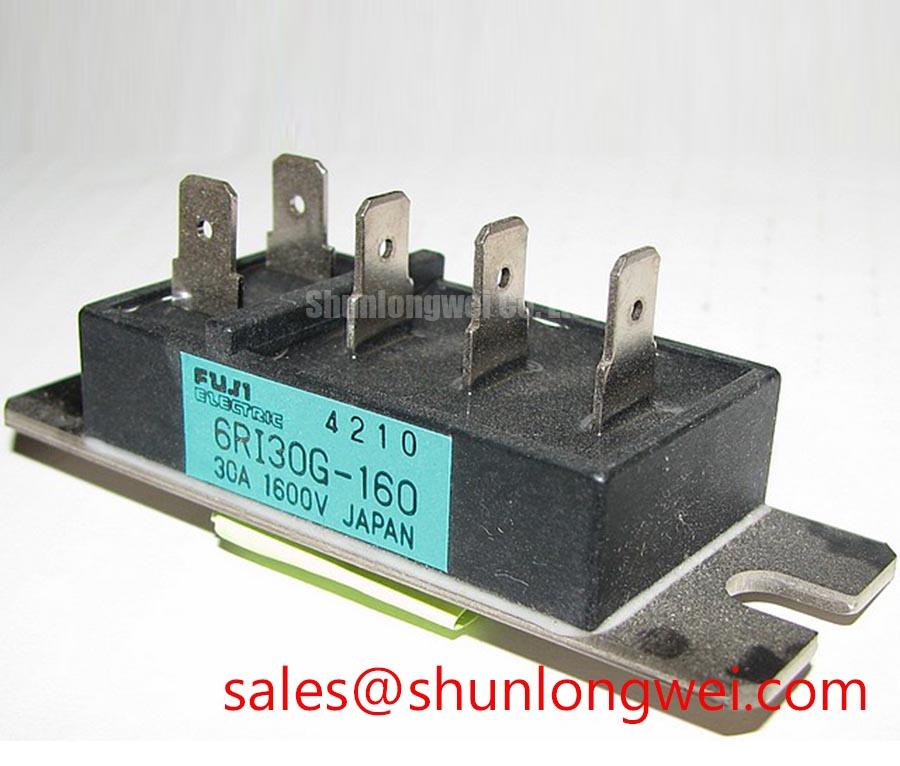

The Fuji Electric 6RI30G-160 is a high-reliability three-phase diode bridge rectifier module designed to support input power conversion in medium-voltage industrial environments. Offering a repetitive peak reverse voltage rating of 1600V and an average output current of 30A, this module provides the necessary ruggedness to withstand line disturbances and voltage fluctuations in complex motor drive and power supply applications. By integrating six diodes into a single isolated package, it streamlines system assembly and enhances thermal management efficiency.
Key Specs: 1600V repetitive peak reverse voltage | 30A average output current | 0.80°C/W junction-to-case thermal resistance.
Key Benefits: Reduced packaging footprint and simplified multi-module heatsink integration.
Application Scenarios & Value
Optimizing Input Stage Reliability in VFDs and Servo Systems
For three-phase motor drives operating on 480V grids, this 1600V module provides the optimal transient voltage safety margin. Engineers often face the challenge of protecting input rectifier stages from high-voltage transients on the factory floor. The 6RI30G-160 addresses this issue directly, operating as a robust front-end block for variable frequency drives (VFDs), servo amplifiers, and industrial uninterruptible power supplies (UPS). In these setups, it reliably converts raw three-phase AC input into a stable DC bus voltage, providing downstream inverter circuits with clean power.
During startup, inductive loads can generate significant inrush currents. The module's peak surge current capability provides the necessary buffer for motor starter loads without risking diode breakdown. For systems requiring higher current handling, the related 6RI100E-080 offers an average output current of 100A for lower-voltage AC lines. To dive deeper into system-level coordination, engineers can refer to the power electronics masterclass for selecting complementary components.
Technical & Design Deep Dive
Conduction Efficiency and Isolated Thermal Baseplate Mechanics
In power electronics design, thermal dissipation governs system lifespan and density. The 6RI30G-160 features a junction-to-case thermal resistance (Rth(j-c)) of 0.80°C/W. Visualizing this thermal path is like directing heavy traffic onto a broad, clear highway; the low thermal resistance ensures that heat generated at the silicon junction is quickly routed to the copper baseplate and external heatsink, maintaining lower internal temperatures.
The module is built with an internally isolated copper baseplate capable of withstanding an isolation voltage (Vis) of AC 2500V for one minute. This insulation eliminates the need for external thermal pads, permitting multiple power modules to be mounted on a single shared cooling block. Choosing a compact module over discrete components reduces parasitic loop inductances and simplifies mounting layout. For more info on package physics, refer to the Fuji Electric power modules product list.
Key Parameter Overview
Functional Parameters Grouped for Design Integration
The parameters below are organized by function to aid electrical and thermal calculations during design-in phases.
| Electrical Ratings | ||
|---|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1600 V | Maximum repetitive peak reverse blocking capability. |
| Non-repetitive Peak Reverse Voltage (VRSM) | 1760 V | Transient voltage peak headroom. |
| Average Output Current (IO) | 30 A | Continuous output at case temperature Tc = 88°C. |
| Surge Forward Current (IFSM) | 320 A | 10ms half sine wave peak capacity. |
| I2t Rating | 400 A2s | Junction energy capacity for fuse selection. |
| Thermal & Isolation Parameters | ||
| Junction Temperature (Tj) | -40°C to +150°C | Continuous silicon operating range. |
| Storage Temperature (Tstg) | -40°C to +125°C | Environmental storage limits. |
| Isolation Voltage (Vis) | AC 2500 V (1 min) | Junction-to-case electrical isolation. |
| Thermal Resistance (Rth(j-c)) | 0.80 °C/W | Junction-to-case thermal path. |
| Thermal Resistance (Rth(c-f)) | 0.10 °C/W | Case-to-fin thermal path with compound. |
Download the 6RI30G-160 datasheet for detailed specifications and performance curves: 6RI30G-160 Datasheet.
Frequently Asked Questions
Practical Engineering Solutions for System Integration
What is the primary benefit of the isolated baseplate?
It simplifies design by enabling direct heatsink mounting.
What is the peak surge capability of this module?
It withstands transient currents up to 320A.
Why is a 1600V repetitive peak reverse voltage rating necessary for a 480V line?
Industrial 480V lines frequently suffer from transients, spikes, and inductive kickbacks. Providing a 1600V repetitive peak reverse voltage (VRRM) rating gives the system over 2.3 times the nominal peak line voltage in safety headroom, minimizing risks of transient-induced diode failures.
For procurement professionals and design engineers seeking robust, space-saving input rectification solutions, contacting an authorized distributor is recommended to evaluate supply chain options and current stock availability.
