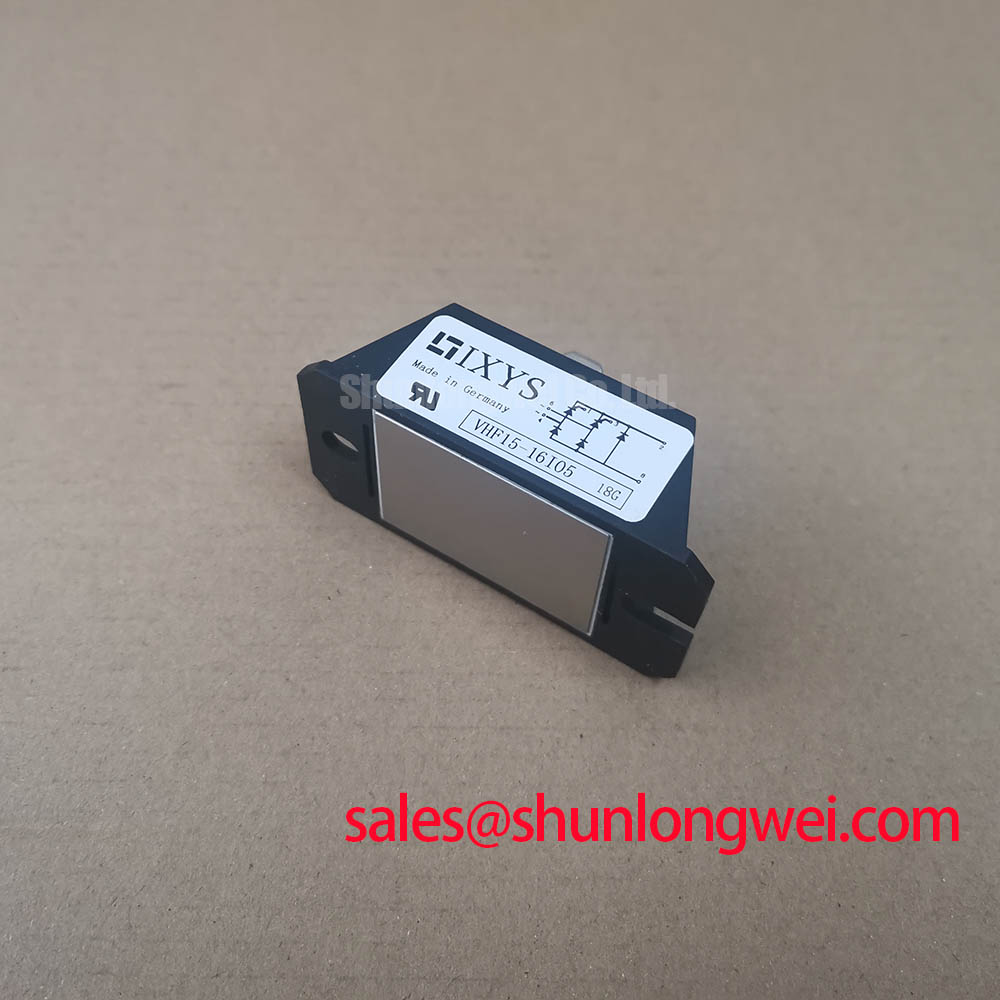

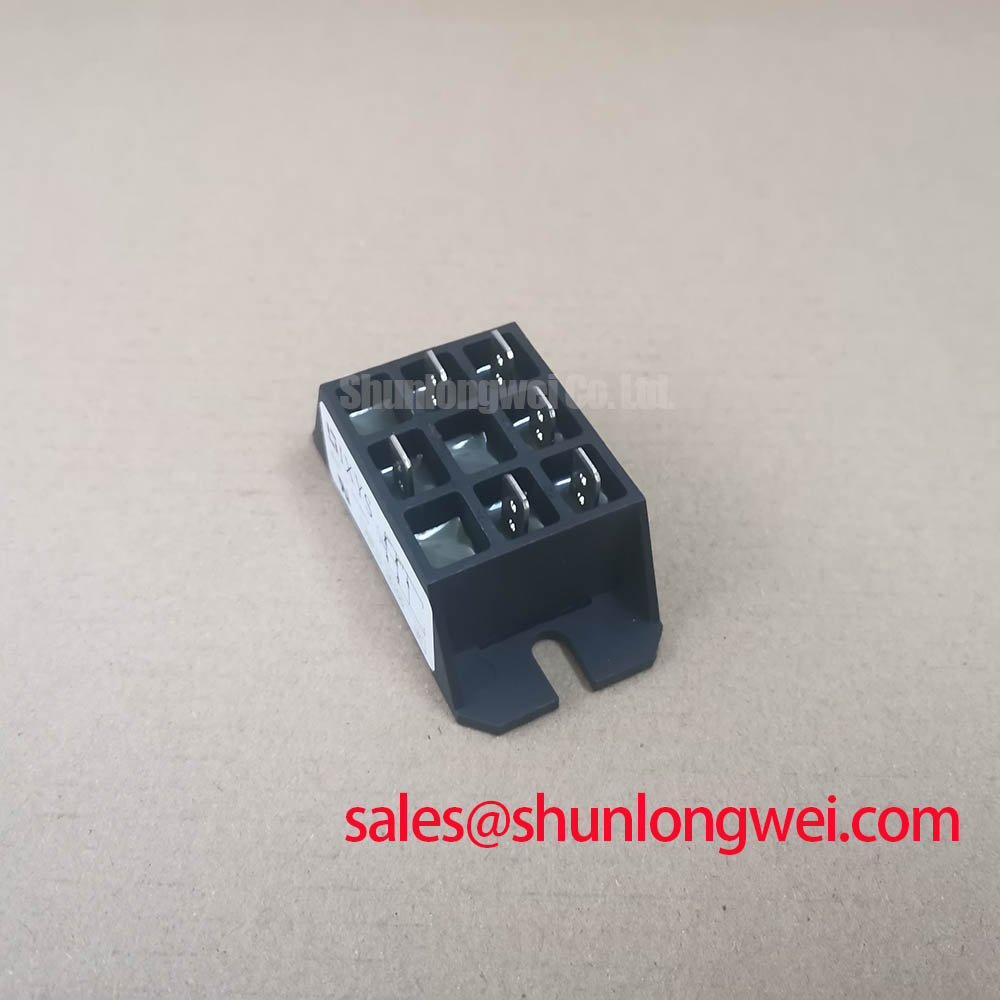

IXYS VHF15-16io5 IGBT Module

VHF15-16io5 Thyristor Module: Engineering-Grade Analysis for Industrial Power Control

Content last revised on October 23, 2025.

Introduction to the VHF15-16io5 Power Module

Delivering Robust Control and Reliability in High-Voltage Applications

The IXYS VHF15-16io5 is a half-controlled single-phase rectifier bridge engineered for long-term reliability in demanding industrial power systems. It integrates two SCRs and two diodes with a freewheeling diode, providing precise phase control backed by robust electrical and thermal characteristics. Key specifications include: 1600V VRRM | 21A IdAVM | 210A ITSM. This module delivers two primary engineering benefits: exceptional resilience against line voltage transients and simplified thermal management. The VHF15-16io5 directly addresses the need for dependable power conversion in high-voltage industrial environments by leveraging planar passivated chips and a high-isolation ceramic baseplate. For controlled rectifiers and soft starters on 480V-690V lines requiring high reliability, the VHF15-16io5 offers a robust and thermally efficient solution.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal and Electrical Reliability

The technical specifications of the VHF15-16io5 are foundational to its performance in industrial applications. The parameters listed below have been selected to provide engineers with the critical data needed for system design, thermal modeling, and reliability assessment. The high isolation voltage and surge current capability are particularly noteworthy for ensuring operational robustness.

Download the VHF15-16io5 datasheet for detailed specifications and performance curves.

Application Scenarios & Value

System-Level Benefits in Industrial Motor Control and Power Supplies

The VHF15-16io5 is engineered for applications where precise control of AC power and high reliability are non-negotiable. Its robust design provides significant value in industrial automation and power conversion systems.

• AC Motor Soft Starters: A primary challenge in motor control is managing the high inrush current during startup. The VHF15-16io5's high surge current rating (ITSM) of 210A provides the necessary robustness to withstand these repeated electrical stresses. This capability prevents device degradation and ensures a longer operational life for the entire motor drive system. By gradually applying voltage via phase angle control, the module reduces mechanical shock on gears and belts, a critical factor in systems like conveyors and industrial fans.
• Controlled Rectifiers for DC Power: In applications such as welding power supplies and battery chargers, this module serves as the core of a regulated DC source. The 1600V blocking voltage offers a substantial safety margin when operating on 400V, 480V, or even 690V industrial AC lines, protecting the system from common overvoltage transients.
• Industrial Heating and Lighting Control: The module's ability to perform phase angle control allows for precise power regulation in heater elements and high-power industrial lighting systems. The efficient thermal transfer facilitated by its DCB (Direct Copper Bonded) ceramic baseplate ensures that waste heat is effectively managed, enabling higher power density and system reliability.

For systems requiring a full uncontrolled bridge configuration, the MDD95-12N1B diode module can serve as a complementary component.

Technical Deep Dive

A Closer Look at the Design for Long-Term Reliability

The long-term performance of a power module is not defined by a single parameter but by the synergy of its internal construction and materials. The VHF15-16io5 integrates several key design features that directly enhance its operational robustness and simplify system integration.

A core element is its package design, which features a Direct Copper Bonded (DCB) ceramic baseplate. This construction provides excellent electrical isolation (3600V~) while maintaining a low thermal resistance path from the semiconductor chips to the heatsink. Think of the DCB ceramic layer as a high-performance thermal bridge; it effectively separates the high-voltage electrical circuit from the grounded heatsink while efficiently conducting heat away from the active silicon. This dual function is critical for building compact, safe, and thermally stable power assemblies.

Furthermore, the use of planar passivated chips is a decisive factor for reliability. Passivation acts as a protective shield for the sensitive PN junctions of the thyristors and diodes, guarding against environmental contaminants and electrical field instability at the chip edges. This process is analogous to creating a hermetic seal at the microscopic level, ensuring stable blocking voltage characteristics and low leakage currents throughout the module's entire service life. This inherent stability minimizes performance degradation over years of thermal cycling and continuous operation, a key requirement for industrial equipment with long life-cycle expectations.

Frequently Asked Questions (FAQ)

What makes the 1600V rating of the VHF15-16io5 significant for industrial applications?
The 1600V repetitive peak reverse voltage (VRRM) provides a critical safety margin for systems connected to volatile industrial grids. For equipment running on 480V or 690V AC lines, this high blocking capability ensures the device can withstand common voltage spikes and transients without failure, directly enhancing the overall ruggedness and reliability of the end application.

How does the planar passivated chip technology in the VHF15-16io5 contribute to system reliability?
Planar passivation creates a stable and robust junction termination on the silicon chips. This technology ensures low leakage currents and consistent high-voltage blocking characteristics over the module's lifetime, preventing the gradual degradation that can occur in less robust designs. It is a key contributor to the device's long-term operational stability.

What is the benefit of the TO-240AA package's isolated baseplate?
The package's integrated DCB ceramic baseplate provides 3600V of electrical isolation. This allows the module to be mounted directly to a grounded heatsink without the need for additional, often thermally inefficient, insulating pads. This simplifies mechanical assembly, reduces component count, and ensures a superior thermal interface for more effective cooling.

What does a "half-controlled" bridge configuration mean for my application?
A half-controlled bridge, containing both thyristors (SCRs) and diodes, allows for power regulation in one quadrant (positive voltage and current). This configuration is ideal and cost-effective for applications like DC motor control (speed but not regenerative braking), soft starters, and heater controls where bidirectional power flow is not required.

Strategic Advantage in Industrial Systems

Integrating the VHF15-16io5 into industrial power control designs offers a strategic advantage rooted in reliability and efficiency. In an era of increasing automation, the dependability of every component is paramount to minimizing downtime and maintenance costs. By specifying a module with proven chip technology like planar passivation and a thermally superior package, engineers are building a foundation of resilience into their systems. This focus on component-level durability directly supports broader objectives such as improving Overall Equipment Effectiveness (OEE) and reducing the total cost of ownership for industrial machinery. For designers of next-generation Variable Frequency Drive (VFD) front-ends or robust power supplies, the VHF15-16io5 represents a commitment to long-term performance over minimal initial cost.
