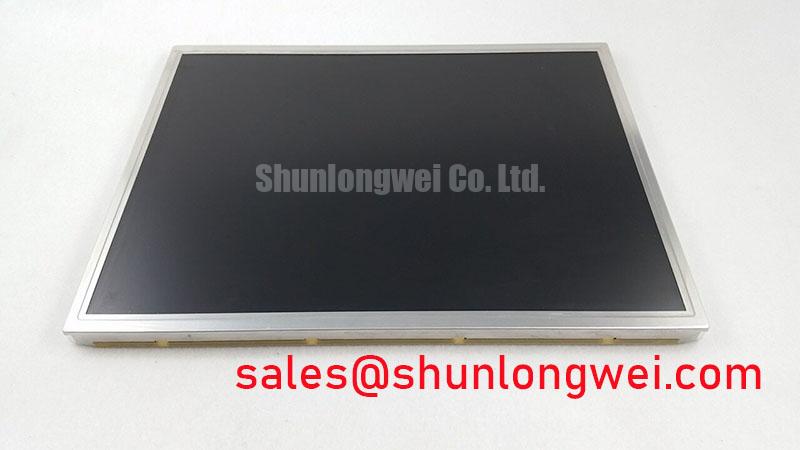

CLAA150XP06CW: The Industrial-Grade 15-inch XGA Display for Demanding Environments
Product Overview
Engineered for Reliability in Legacy and Industrial Systems
The CLAA150XP06CW is a 15.0-inch a-Si TFT-LCD module designed for robust performance where operational stability is paramount. This display provides a proven solution for industrial control systems, instrumentation, and legacy equipment upgrades that demand consistent visual clarity across a wide range of environmental conditions. Its classic XGA resolution and standard interface ensure straightforward integration, minimizing redevelopment costs and system downtime. For industrial HMIs requiring proven durability over high pixel density, the CLAA150XP06CW offers a dependable and cost-effective display foundation.
Core Specifications: 15.0-inch Diagonal | 1024x768 (XGA) Resolution | -20 to 70°C Operating Temperature
- Exceptional thermal resilience for harsh environments.
- Seamless integration with standard LVDS interfaces.
What is the primary benefit of its wide operating temperature? It ensures consistent performance in unconditioned environments, from cold-starts to high-heat factory floors. This display's XGA resolution makes it a best-fit solution for retrofitting industrial machinery where controller compatibility is critical.
Key Parameter Overview
Specifications Grouped for System Integration
The technical specifications of the CLAA150XP06CW are optimized for industrial applications that prioritize reliability and compatibility. The following parameters highlight its suitability for integration into a variety of control and monitoring systems.
| Display Characteristics | |
|---|---|
| Diagonal Size | 15.0 inch |
| Resolution | 1024(RGB)×768, XGA |
| Technology | a-Si TFT-LCD, Normally White, Transmissive |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Electrical & Interface | |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins Connector |
| Supply Voltage | 3.3V (Typ.) |
| Backlight System | 1 pcs CCFL, 50K hours (Typ.) |
| Environmental & Mechanical | |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
| Surface Treatment | Antiglare, Hard coating (3H) |
Application Scenarios & Value
Delivering Reliability for Industrial HMIs and Control Panels
The CLAA150XP06CW excels in applications where environmental conditions are challenging and long-term operational consistency is non-negotiable. Its primary value lies in providing a durable visual interface for systems that do not require full HD resolution but must function flawlessly day after day.
A key engineering scenario is the upgrade of aging control panels on factory floor machinery, such as CNC mills or injection molding machines. In these settings, ambient temperatures can fluctuate dramatically. The CLAA150XP06CW's -20 to 70°C operating range directly addresses this challenge, preventing display failure or image degradation due to thermal stress. Furthermore, its native XGA resolution and standard TFT-LCD LVDS interface often allow for a direct, plug-and-play replacement of older panels, significantly reducing the engineering effort and costs associated with retrofitting a legacy Programmable Logic Controller (PLC) or embedded computer. While this model is ideal for maintaining compatibility, for new systems requiring higher pixel density, the G156XW01 V0 offers a wider WXGA resolution.
Frequently Asked Questions (FAQ)
How does the -20 to 70°C operating temperature impact system design?
This wide temperature range reduces the need for complex thermal management systems like heaters or fans within an enclosure, especially for equipment installed in unconditioned environments like warehouses, outdoor kiosks, or factory floors. It simplifies the mechanical design of the final product and lowers the total cost of ownership.
Is the CCFL backlight a disadvantage compared to modern LED backlights?
While LEDs offer lower power consumption, the CCFL backlight in the CLAA150XP06CW has a well-documented and predictable lifetime of approximately 50,000 hours. For industrial applications, this predictable aging characteristic is a significant advantage. It allows maintenance schedules to be planned proactively, preventing unexpected field failures—a critical requirement for maintaining uptime in production lines or essential monitoring systems.
Why would an engineer choose an XGA (1024x768) resolution display today?
XGA remains a highly relevant resolution for a large installed base of industrial software and hardware. Many legacy SCADA systems and HMI applications are optimized for a 4:3 aspect ratio and do not benefit from higher resolutions. Specifying an XGA panel like the CLAA150XP06CW ensures software compatibility without requiring costly GUI redesigns, making it the most efficient and lowest-risk choice for system repairs and incremental upgrades.
Application Vignette
Retrofitting a CNC Machine HMI for Enhanced Factory Floor Reliability
An automotive parts manufacturer faced recurring failures with the original displays on their fleet of 15-year-old CNC machines. The primary challenge was the factory's fluctuating ambient temperatures, which caused screen flickering and eventual shutdowns, halting production. The solution required a display that could not only withstand the thermal stress but also integrate seamlessly with the machine's existing embedded controller without a major system overhaul.
The CLAA150XP06CW was selected as the replacement component. Its robust -20 to 70°C operating range provided more than enough thermal margin to handle the environment. The display's standard 20-pin LVDS connector and 3.3V power input matched the legacy system's output, eliminating the need for custom interface boards. Engineers were able to perform the swap in under an hour per machine. The result was a significant increase in machine uptime and the extension of the valuable production equipment's service life, all without the prohibitive cost of a complete control system replacement.
Technical Deep Dive
The Engineering Value of a Mature CCFL Backlight System
In an era dominated by LED technology, the choice of a Cold Cathode Fluorescent Lamp (CCFL) backlight system in the CLAA150XP06CW is a deliberate engineering decision rooted in reliability and predictability. While modern LEDs boast higher energy efficiency, the CCFL's performance characteristics are exceptionally well-understood, offering distinct advantages for industrial deployment.
The key benefit is its predictable failure curve. The typical 50,000-hour lifespan is not an abrupt endpoint but a gradual decline in brightness. This behavior allows system integrators to define clear end-of-life parameters and schedule preventative maintenance. Think of it like the scheduled replacement of a critical bearing in a motor; it is a proactive measure to prevent catastrophic, unplanned downtime. This contrasts with some LED backlight failures which can be sudden and total. For a heavy machinery control panel or a critical process monitor, this level of predictability is invaluable for ensuring operational continuity.
For engineering and purchasing teams evaluating display options, please contact us to discuss your specific system requirements and explore how the CLAA150XP06CW can meet your integration and reliability needs.
