Audio Power Amplifiers: Unlocking High Efficiency in Class-D with IGBTs

The Inefficiency Problem: Why Traditional Amplifiers Waste So Much Power

For decades, the world of high-power audio was dominated by Class-A, Class-B, and Class-AB amplifiers. While celebrated for their audio fidelity, they share a significant engineering challenge: inefficiency. In these linear amplifier designs, the output transistors operate in their active region, continuously conducting current and acting like variable resistors. This process inherently dissipates a tremendous amount of energy as heat. A Class-A amplifier might sound pristine, but it can convert over 75% of its input power into thermal waste, requiring massive heatsinks and robust power supplies. Class-AB improves on this, but efficiencies rarely exceed 65%, meaning a significant portion of electricity is still lost before it ever becomes sound.

This thermal burden isn’t just an energy-efficiency issue; it’s a design constraint. It dictates the amplifier’s size, weight, cost, and long-term reliability. For professional audio applications—like concert sound systems, large venue installations, and powerful studio monitors—where hundreds or thousands of watts are required, the inefficiency of linear amplifiers becomes a critical bottleneck. This is where the Class-D topology fundamentally changes the game.

The Class-D Revolution: Switching for Sound, Not Just Power

Unlike its linear counterparts, a Class-D amplifier is a switching amplifier. It doesn’t amplify an audio signal by modulating a continuous current flow. Instead, it converts the analog audio waveform into a high-frequency series of digital pulses using a technique called Pulse Width Modulation (PWM). In this scheme, the output transistors—the heart of the amplifier—are no longer acting as variable resistors. They are either fully “ON” (saturated) or fully “OFF” (cutoff), spending virtually no time in the high-dissipation linear region.

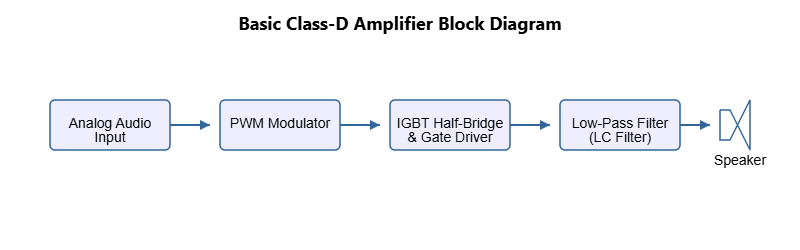

The process works in a few key stages:

1. PWM Modulation: The incoming analog audio signal is compared to a high-frequency triangle wave (typically 250 kHz to over 1 MHz). This comparison generates a square wave whose pulse width is directly proportional to the audio signal’s amplitude at that instant.
2. Switching Stage: This high-frequency PWM signal is fed to a gate driver, which rapidly switches the output power transistors (often arranged in a half-bridge or full-bridge configuration). These transistors connect the output to the positive and negative power supply rails, creating a high-power version of the PWM signal.
3. Demodulation (Filtering): The amplified PWM signal is then passed through a passive low-pass LC (inductor-capacitor) filter. This filter removes the high-frequency switching carrier, leaving behind a smoothed, powerful analog waveform that is a faithful reproduction of the original audio input. This signal then drives the loudspeaker.

Because the switching transistors are either fully on (low voltage drop, high current) or fully off (high voltage, zero current), the power dissipated within them (Voltage x Current) is theoretically near zero. This allows Class-D amplifiers to achieve efficiencies well over 90%, dramatically reducing heat, size, and weight for a given power output. The key to this efficiency lies in the performance of that switching transistor.

Why IGBTs are the Perfect Switch for High-Power Class-D Amplifiers

While MOSFETs are a common choice for low-to-mid power Class-D designs, their performance limitations become apparent in high-power, high-voltage applications. This is where the Insulated Gate Bipolar Transistor (IGBT) offers a superior combination of characteristics. As a hybrid device, the IGBT combines the simple gate-drive characteristics of a MOSFET with the high-current and low-saturation-voltage capability of a bipolar transistor. For a deeper dive into how these components compare, check out our IGBT vs. MOSFET guide.

Here’s why IGBTs excel in demanding Class-D audio applications:

• High Power Density: IGBTs can handle significantly higher current densities than MOSFETs. This means a smaller IGBT chip can manage the same amount of power, leading to more compact and cost-effective module designs like the CM1000DXL-24S, which is essential for professional audio equipment.
• Low Conduction Losses: At high currents, the IGBT’s low collector-emitter saturation voltage (VCE(sat)) results in lower conduction losses compared to the resistive R_DS(on) losses in a MOSFET. This is a critical factor for efficiency in amplifiers that deliver sustained high power.
• Superior Robustness: IGBTs generally feature a wider Safe Operating Area (SOA) and better short-circuit tolerance. In an audio environment with reactive speaker loads and the potential for accidental output shorts, this inherent ruggedness prevents catastrophic failures and enhances product reliability.
• Balanced Switching Performance: While not as fast as some MOSFETs, modern trench-gate IGBTs offer switching speeds that are more than sufficient for high-fidelity audio PWM frequencies. Their slightly slower switching can also help manage EMI and reduce voltage overshoots without complex snubber circuits.

MOSFET vs. IGBT in High-Power Class-D Audio

Selecting the Right IGBT: A Practical Guide for Audio Amplifier Design

Choosing the correct IGBT is crucial for balancing audio performance, efficiency, and reliability. It’s not just about picking the highest voltage and current rating. Engineers must scrutinize several key datasheet parameters:

• V_CE(sat) (Collector-Emitter Saturation Voltage): This is arguably the most critical parameter for efficiency. A lower V_CE(sat) means less power is converted to heat when the IGBT is on. Look for devices with a flat V_CE(sat) curve across your expected operating current range.
• E_on / E_off (Switching Energy): These values define the energy lost during the turn-on and turn-off transitions. Lower values are better for minimizing switching losses, especially at higher PWM frequencies. However, extremely fast switching can cause EMI, so a well-balanced device is often preferred.
• Short-Circuit Withstand Time (t_sc): This defines how long the IGBT can survive a direct short across the output. A rating of 10µs is common and provides a vital safety margin for the protection circuitry to react. This is a key reliability metric defined by the Short-Circuit Withstand Time.
• Thermal Resistance (R_th(j-c)): Junction-to-case thermal resistance dictates how effectively heat can be transferred from the IGBT die to the heatsink. A lower value simplifies thermal design and improves long-term reliability.
• Gate Charge (Q_g): Total gate charge determines the current required from the gate driver to switch the IGBT. A lower Q_g allows for a simpler, lower-power, and more efficient gate drive circuit. Versatile modules like the FP15R12YT3 often provide an excellent balance of these parameters for various power levels.

Design Considerations and Common Pitfalls to Avoid

Successfully integrating IGBTs into a Class-D amplifier requires more than just selecting the right component. The surrounding circuit design is equally critical for achieving high performance and reliability.

1. Gate Drive Design: An IGBT’s performance is directly tied to its Gate Drive circuit. This circuit must provide sufficient peak current to charge and discharge the gate capacitance quickly for clean switching. A weak drive can lead to increased switching losses and potential device failure. It’s also crucial to ensure stable positive and negative gate voltages to keep the IGBT firmly on or off.
2. Dead-Time Management: In a half-bridge topology, there’s a brief period where one IGBT is turning off before the other turns on. This “dead-time” is essential to prevent “shoot-through”—a destructive condition where both devices are on simultaneously, creating a short circuit. However, excessive dead-time can introduce distortion into the audio signal. The optimal dead-time is a careful balance managed by the PWM controller and gate driver.
3. Layout and EMI Control: The high-frequency, high-current switching in a Class-D amplifier is a potent source of Electromagnetic Interference (EMI). A tight PCB layout with minimal loop areas for high-current paths is mandatory. Proper grounding, decoupling capacitors close to the IGBTs, and careful component placement are essential to pass EMC regulations and prevent interference with other audio stages.
4. Thermal Management: While highly efficient, a multi-kilowatt amplifier still generates significant heat. Proper Thermal Management is non-negotiable. This involves selecting an appropriate heatsink, using high-quality thermal interface material (TIM), and ensuring adequate airflow to keep the IGBT junction temperature well within its specified limits.

Conclusion: The Symbiotic Relationship Between IGBTs and High-Fidelity, High-Efficiency Audio

The evolution of Class-D amplifiers from a niche technology to the industry standard for high-power audio is directly linked to advancements in power semiconductors. IGBTs, with their unique blend of high power handling, low conduction losses, and robust operation, have proven to be the enabling technology for this shift. They allow designers to create amplifiers that are not only immensely powerful but also compact, lightweight, and incredibly efficient.

This symbiotic relationship continues to push the boundaries of what’s possible in professional audio. As IGBT technology improves further, we can expect Class-D amplifiers to deliver even higher fidelity with greater power density and reliability. For engineers working on the next generation of professional sound systems, touring amplifiers, or active loudspeakers, mastering the selection and implementation of IGBT modules is a strategic imperative. If you are designing a high-power audio system and need help selecting the optimal components, from a workhorse like the BSM100GB120DN2K to a high-power module, our team of application experts is available to support your design journey.
