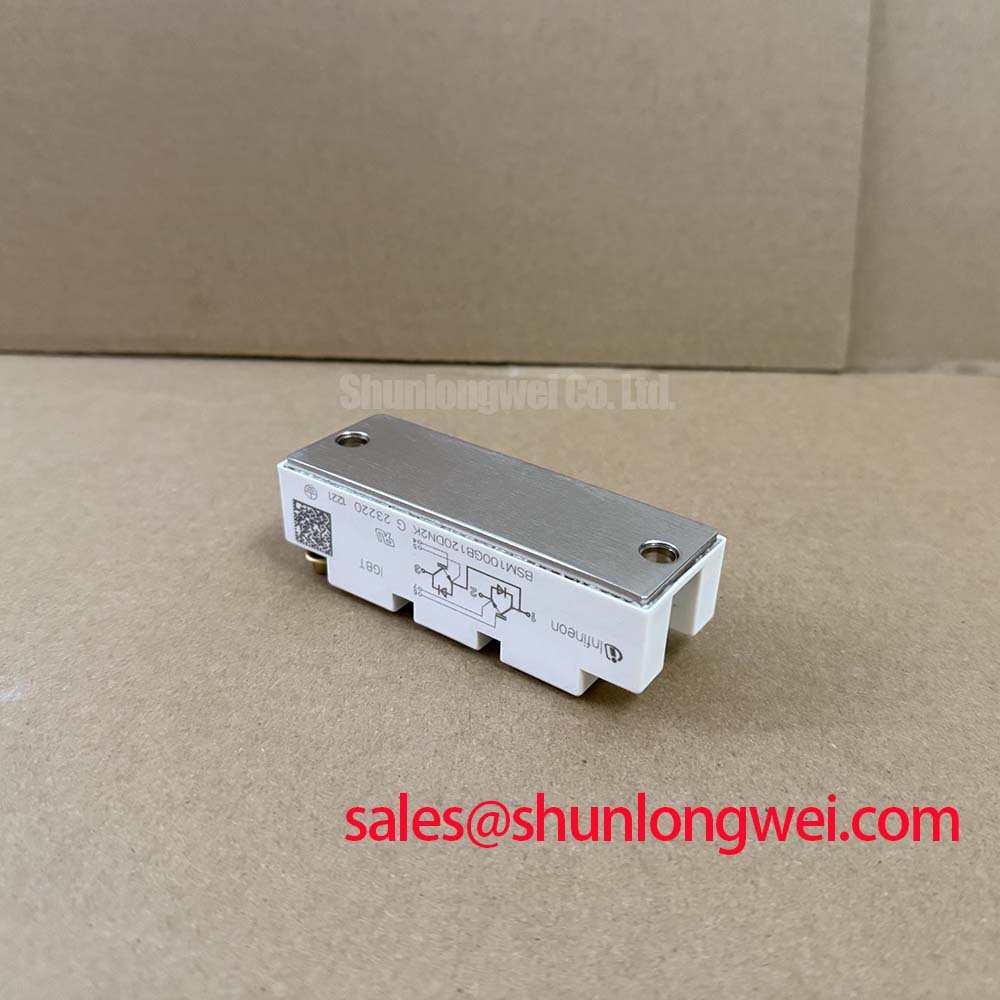

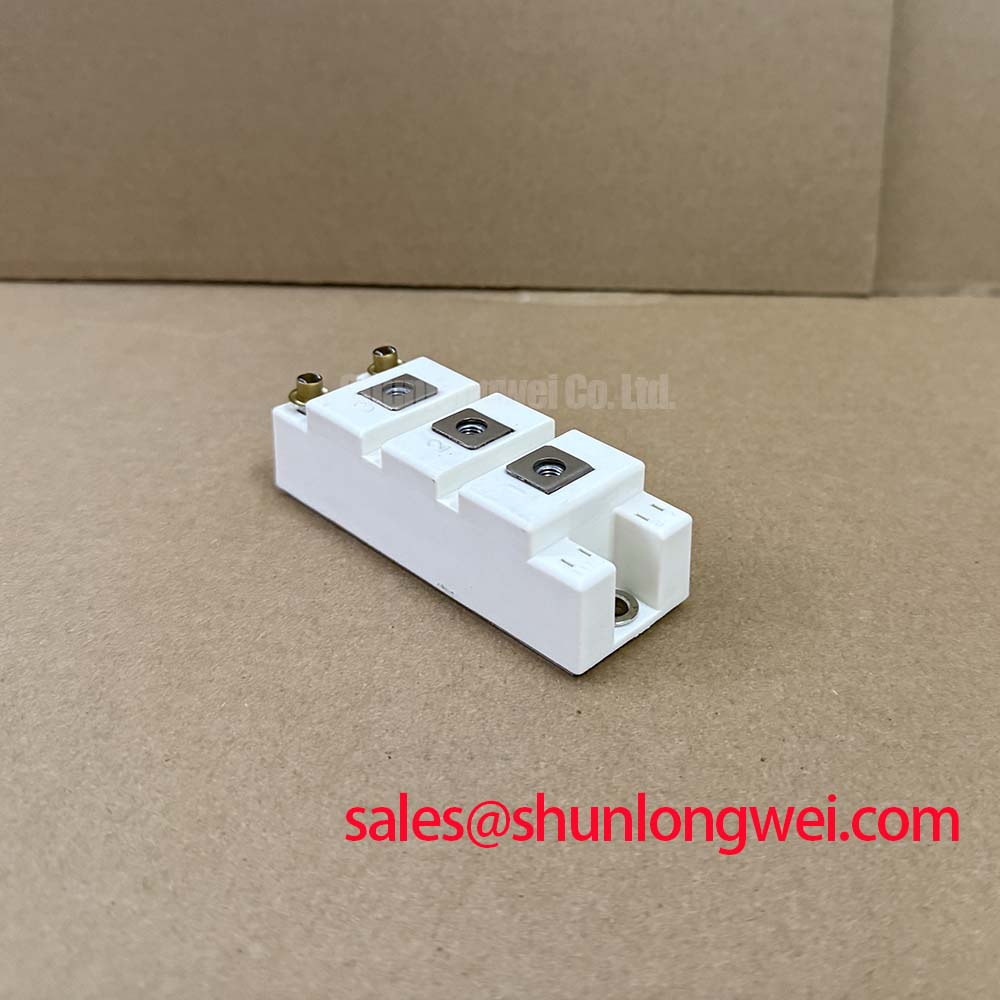

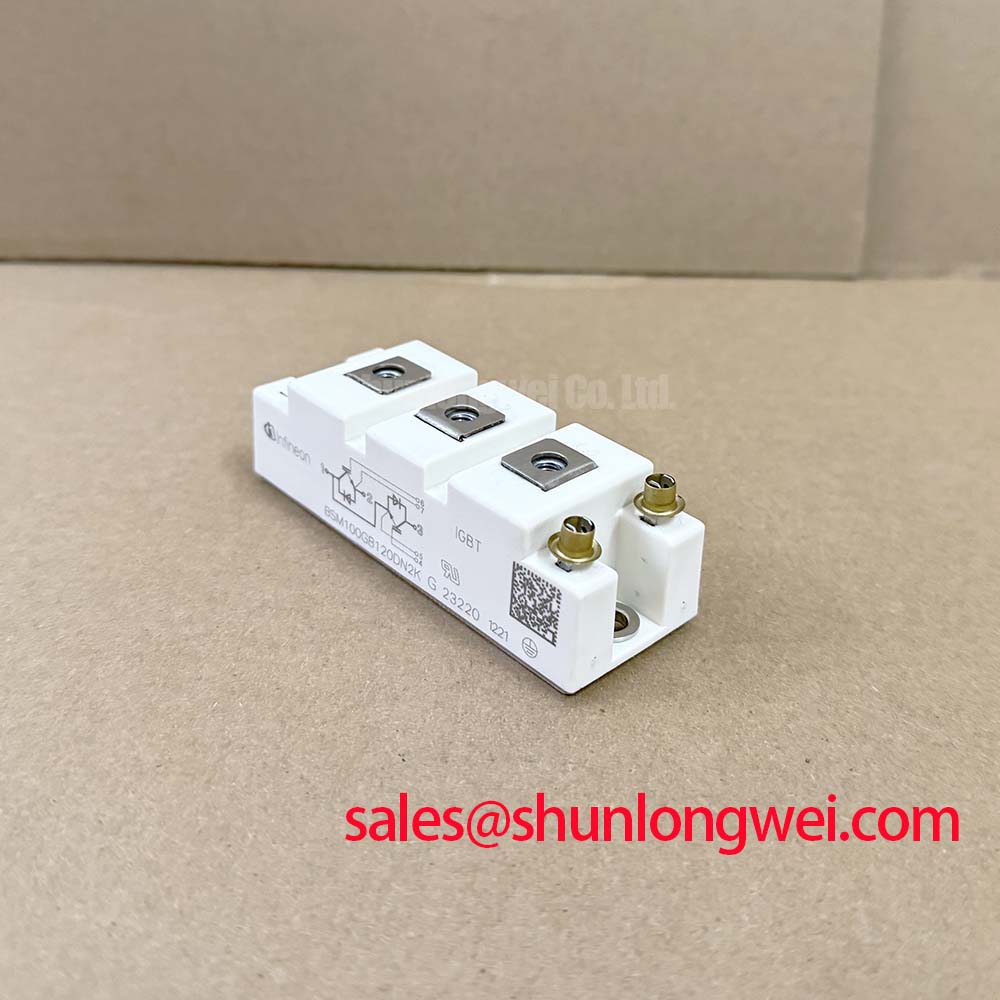

BSM100GB120DN2K: Technical Deep Dive on a 1200V/100A Half-Bridge IGBT Module
Engineered for High-Frequency Power Conversion and Thermal Stability
The BSM100GB120DN2K is a robust half-bridge IGBT power module engineered for high-reliability power conversion systems. It delivers a finely tuned balance of switching efficiency and thermal performance, crucial for demanding industrial applications. With core specifications of 1200V | 100A | VCE(sat) 2.2V, this module ensures low conduction losses and robust high-voltage blocking capability. Its design directly addresses the need for compact and efficient power stages in modern electronics. For systems demanding higher power throughput in a similar package, the related BSM200GB120DN2 provides double the current handling capability.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Motor Drives
Best fit for motor drives and UPS systems operating up to 20 kHz, where minimizing switching losses is as critical as managing conduction losses. The BSM100GB120DN2K excels in applications such as industrial servo drives, uninterruptible power supplies (UPS), and solar inverters. A key engineering challenge in these systems is managing the trade-off between switching speed and thermal stability. The module's total switching energy (Ets) of 13.00 mJ at 25°C is a critical parameter. This figure allows engineers to precisely calculate and predict thermal load under high-frequency operation, enabling more compact heatsink designs without sacrificing long-term reliability. The integrated fast free-wheeling diodes are optimized for soft switching behavior, reducing voltage overshoots and electromagnetic interference (EMI), which simplifies system-level filtering and compliance with standards like IEC 61800-3.
Key Parameter Overview
Decoding the Specs for Enhanced Switching Performance
The technical specifications of the BSM100GB120DN2K are tailored for efficiency and durability in high-power switching circuits. Below is a summary of the key parameters that define its performance envelope.
| Parameter | Symbol | Value | Conditions |
|---|---|---|---|
| Collector-Emitter Voltage | VCES | 1200 V | VGE = 0V, Tj = 25°C |
| Continuous Collector Current | IC | 100 A | TC = 80°C |
| Collector-Emitter Saturation Voltage | VCE(sat) | 2.2 V (typ) / 2.7 V (max) | IC = 100 A, VGE = 15 V, Tj = 25°C |
| Total Switching Energy | Ets | 13.00 mJ (typ) | IC = 100 A, VCE = 600 V, Tj = 25°C |
| Gate-Emitter Voltage | VGE | ±20 V | |
| Thermal Resistance, Junction to Case | RthJC | ≤ 0.18 K/W (per IGBT) |
Download the BSM100GB120DN2K datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at the VCE(sat) and Its Impact on Thermal Design
A pivotal parameter for any power module is the collector-emitter saturation voltage, or VCE(sat). The BSM100GB120DN2K specifies a typical VCE(sat) of 2.2V at its nominal current of 100A. This value is a direct indicator of the module's conduction losses—the power dissipated as heat while the switch is on. Think of VCE(sat) as the "toll" the current pays to pass through the device. A lower toll means less energy is wasted as heat. With a maximum VCE(sat) of 2.7V, engineers can confidently calculate worst-case power dissipation (P = VCE(sat) * IC), which is the foundational step for any effective thermal management strategy. This ensures the junction temperature remains within its safe operating area, even under peak load conditions, directly contributing to the system's overall reliability and lifespan.
Frequently Asked Questions (FAQ)
What is the primary benefit of the module's typical 2.2V VCE(sat)?
Its primary benefit is lower conduction losses, which translates to reduced heat generation and higher overall system efficiency.
How does the total switching energy (Ets) of 13.00 mJ influence design decisions?
This parameter is crucial for applications with high switching frequencies. It allows engineers to accurately model and manage thermal performance, enabling the design of more compact and cost-effective cooling systems while ensuring the module operates reliably without overheating.
System Integration and Design Simplification
Streamlining Power Stage Development
The BSM100GB120DN2K is configured in a standard half-bridge topology, one of the most common building blocks in power electronics. This pre-packaged configuration simplifies the design of three-phase inverters and other complex power stages by reducing component count and simplifying PCB layout. The module's insulated metal baseplate provides excellent electrical isolation between the power circuit and the heatsink, rated at 2500V (RMS) for one minute. This built-in isolation streamlines mechanical assembly and helps meet safety regulations without requiring additional insulating materials, reducing both assembly time and potential points of failure.
