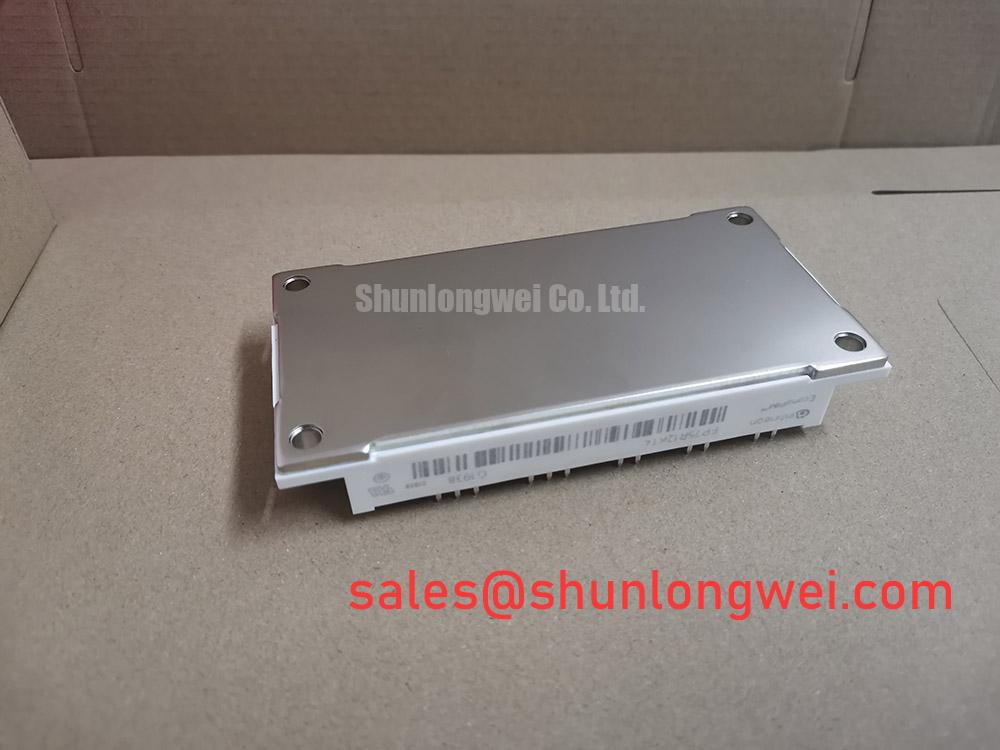

Infineon FP75R12KT4: A 1200V, 75A EconoPIM™ 3 Module Engineered for Thermal Stability and System Reliability
Executive Summary: Key Engineering Features
The Infineon FP75R12KT4 is a highly integrated Power Integrated Module (PIM) delivering robust thermal performance and high reliability for demanding power conversion applications. It combines a three-phase rectifier, brake chopper, and a three-phase inverter stage in a single EconoPIM™ 3 package. With core specifications of 1200V | 75A | Tvj op 150°C, this module leverages Infineon's TrenchSTOP™ IGBT4 technology to provide a decisive engineering advantage. Key benefits include optimized thermal management due to a low VCE(sat) and a copper baseplate, and enhanced system monitoring via an integrated NTC thermistor. This module directly addresses the challenge of achieving high power density in compact designs by ensuring efficient heat dissipation and stable operation at elevated temperatures. For motor drive systems requiring high thermal stability under 40kW, the FP75R12KT4 offers an optimal balance of integration and performance.
Key Parameter Overview
Decoding the Specs for Thermal and Electrical Robustness
The FP75R12KT4's specifications are tailored for high-performance industrial applications where reliability and efficiency are paramount. The parameters detailed below highlight the module's capability to handle significant electrical and thermal loads. The integration of a full three-phase inverter stage, a brake chopper, and a rectifier bridge simplifies system design and assembly.
| Parameter Group | Parameter | Symbol | Condition | Value | Unit |
|---|---|---|---|---|---|
| Inverter Stage | Collector-Emitter Voltage | VCES | Tvj = 25°C | 1200 | V |
| Nominal Collector Current | IC nom | TC = 95°C, Tvj max = 175°C | 75 | A | |
| Collector-Emitter Saturation Voltage | VCE(sat) | IC = 75A, VGE = 15V, Tvj = 125°C | 2.15 | V | |
| Gate Threshold Voltage | VGE(th) | IC = 2.40mA, Tvj = 25°C | 5.20 - 6.40 | V | |
| Brake-Chopper Stage | Collector-Emitter Voltage | VCES | Tvj = 25°C | 1200 | V |
| Nominal Collector Current | IC nom | TC = 95°C, Tvj max = 175°C | 35 | A | |
| Rectifier Diode | Repetitive Peak Reverse Voltage | VRRM | 1600 | V | |
| Forward Current | IF(AV) | TC = 80°C | 75 | A | |
| Thermal & Mechanical | Operating Junction Temperature | Tvj op | Under switching conditions | -40 to +150 | °C |
| Isolation Test Voltage | VISOL | RMS, f=50Hz, t=1min | 2.5 | kV |
Download the FP75R12KT4 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Motor Drives and Power Conversion
The FP75R12KT4 is engineered to deliver high performance in power-dense applications where thermal management is a critical design constraint. Its primary value is seen in systems like Variable Frequency Drives (VFDs), servo drives, and auxiliary inverters.
Consider the design of a compact 30 kW VFD for a conveyor system. A key engineering challenge is managing the heat generated by the power module within a constrained enclosure to prevent overheating and ensure long-term reliability. The FP75R12KT4 directly addresses this with its low VCE(sat) of 2.15V at 125°C, which minimizes conduction losses—a major source of heat. This efficiency is like using a well-insulated pipe to transport hot water; less energy is wasted as heat along the way. The integrated copper baseplate further enhances this by providing a low Thermal Resistance path, allowing for efficient transfer of waste heat to the heatsink. This enables designers to use smaller, more cost-effective heatsinks or increase the power output without compromising the system's operational temperature limits, directly supporting the trend toward smaller, more powerful industrial drives.
While the FP75R12KT4 is well-suited for this power range, systems with lower current requirements might consider the FP50R12KT4 for a more cost-optimized solution. Conversely, for applications demanding higher current handling in the same package, the FP100R12KT4 provides an upward migration path.
Technical Deep Dive
An Analysis of the TrenchSTOP™ IGBT4 and Emitter Controlled Diode
The core of the FP75R12KT4's performance lies in its use of Infineon's proven TrenchSTOP™ IGBT4 technology. This technology is engineered to provide a superior trade-off between conduction losses (VCE(sat)) and Switching Loss. The typical VCE(sat) of 1.85V at 25°C and 2.15V at 125°C is a critical attribute. This positive temperature coefficient of VCE(sat) is essential for reliable paralleling of IGBTs, as it naturally promotes current balancing between chips. If one chip starts to heat up, its on-state resistance increases, automatically shunting current to cooler, parallel chips, thus preventing thermal runaway.
What is the primary benefit of its Emitter Controlled 4 diode? Fast and soft reverse recovery characteristics. This minimizes voltage overshoots and electromagnetic interference (EMI) during switching, simplifying the design of snubber circuits and improving compliance with standards like IEC 61800-3 for adjustable speed electrical power drive systems.
Industry Insights & Strategic Advantage
Enabling Compact and Reliable Industrial Automation Systems
The trend in industrial automation and motor control is towards decentralization and higher power density. This places significant pressure on component manufacturers to deliver modules that are not only electrically robust but also thermally efficient in compact footprints. The FP75R12KT4, with its PIM configuration, is a direct response to this need. By integrating the input rectifier, brake chopper, and inverter into one EconoPIM™ 3 housing, it significantly reduces the bill of materials (BOM), simplifies manufacturing assembly, and shrinks the overall size of the power conversion unit. This integration is a key enabler for building smaller, more reliable, and cost-effective servo drives and VFDs, which are fundamental components of modern automated factories and smart manufacturing initiatives.
Frequently Asked Questions (FAQ)
How does the integrated NTC thermistor in the FP75R12KT4 enhance system reliability?
The integrated NTC (Negative Temperature Coefficient) thermistor provides real-time temperature feedback directly from the module's baseplate. This allows the drive's control system to accurately monitor the operating temperature, enabling protective functions like power derating or shutdown if a cooling system failure or overload condition occurs. This direct measurement is far more accurate than an external sensor on the heatsink and is crucial for preventing catastrophic thermal failure.
What is the significance of the 1600V repetitive peak reverse voltage (VRRM) on the rectifier diodes?
The 1600V rating for the rectifier diodes provides a substantial safety margin for industrial applications operating on 380V to 480V AC lines. Line voltage fluctuations, transients, and surges are common in industrial environments. This high VRRM ensures the input rectifier can withstand these events without damage, enhancing the overall robustness and lifespan of the entire drive system, particularly in environments with unstable power grids.
System Design & Integration
Your Next Steps for Evaluation
To evaluate the FP75R12KT4 for your power conversion design, we recommend downloading the official datasheet to review the detailed performance curves and thermal characteristics. For further inquiries regarding technical specifications or procurement, please contact our sales team to receive dedicated support for your project's specific requirements.
