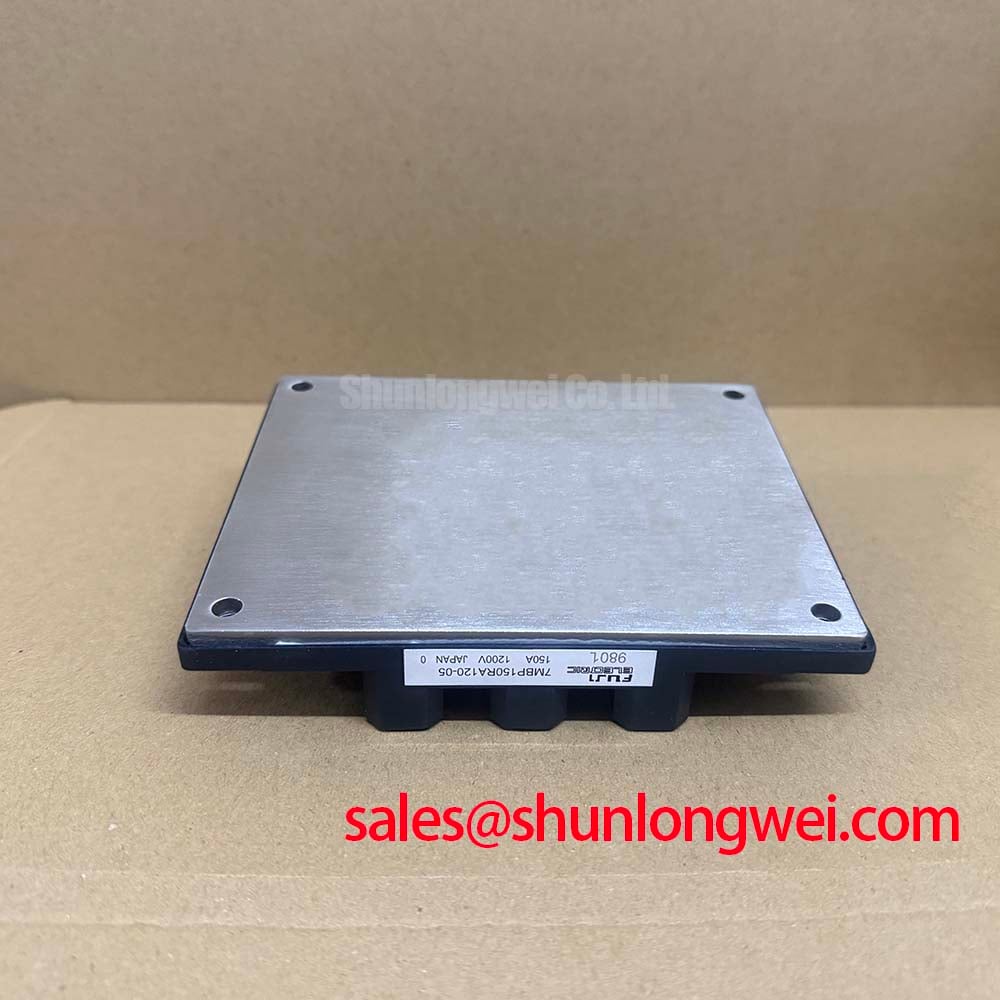

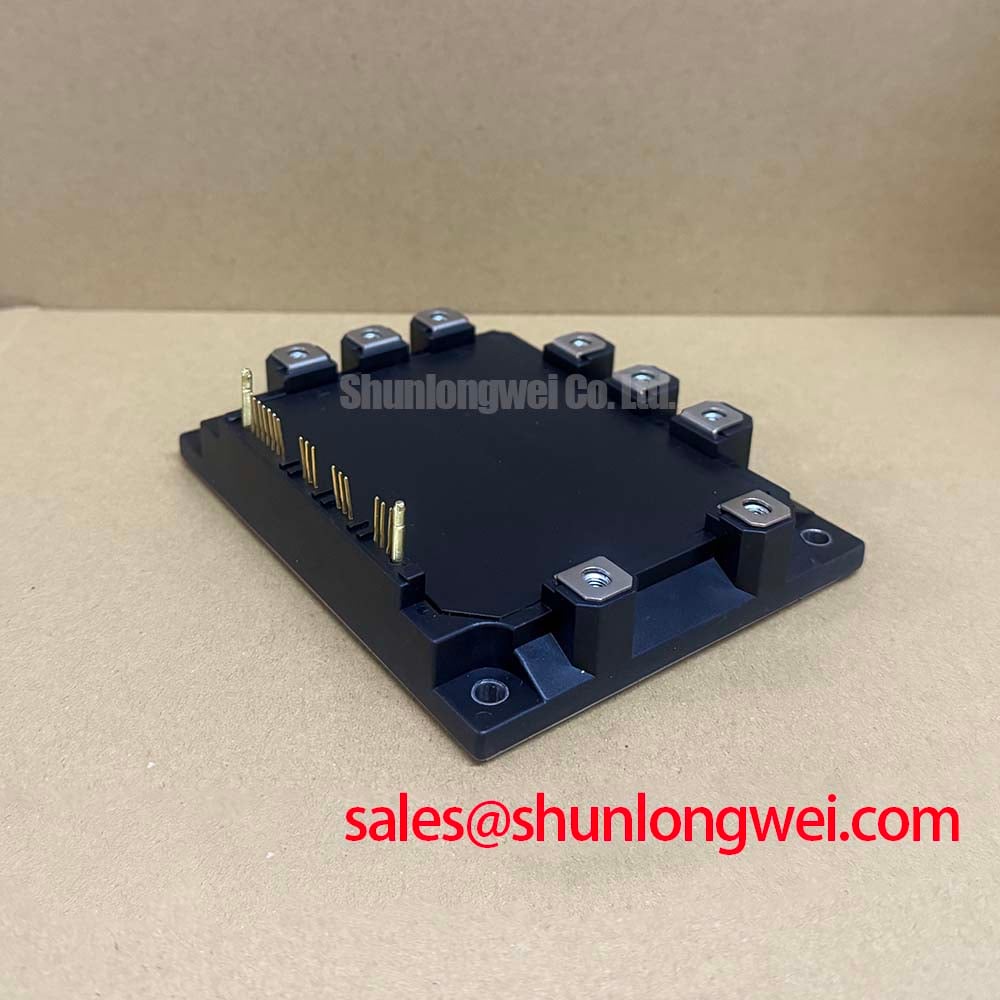

7MBP150RA120-05 Fuji Electric IGBT Module: Technical Review for Power System Design
Introduction to a Compact Power Core
The 7MBP150RA120-05 from Fuji Electric is an intelligent power module (IPM) that delivers a highly integrated 7-in-1 power stage for motor control applications. This module consolidates a three-phase converter, a three-phase inverter, and a brake chopper into a single compact package, offering key specifications of 1200V and 150A. Its core engineering benefits are a significant reduction in system complexity and an inherent boost in reliability. For engineers designing compact IGBT Module based motor drives, this PIM (Power Integrated Module) directly addresses the challenge of minimizing footprint without compromising on thermal performance or protective features. With its integrated approach, this module is the optimal choice for variable frequency drives up to ~75 kW that prioritize rapid assembly and long-term operational stability.
Application Scenarios & Value
Achieving System-Level Benefits in Compact Motor Drives
The primary value of the 7MBP150RA120-05 lies in its ability to simplify the design and assembly of high-power-density motor control systems. Consider an engineer developing a Variable Frequency Drive (VFD) for an industrial conveyor or HVAC system where cabinet space is at a premium. The challenge is not just fitting the components, but also ensuring robust performance by minimizing parasitic inductance and managing thermal loads effectively. The 7MBP150RA120-05 directly solves this by co-packaging the rectifier, inverter, and brake IGBTs. This integration eliminates complex bus bar arrangements and multiple discrete components, reducing assembly time and potential points of failure. The result is a more compact, reliable, and cost-effective VFD design with a streamlined manufacturing process. For systems requiring lower current, the related 7MBP100RA120-05 offers a similar level of integration at a 100A rating.
Key Parameter Overview
Decoding the Specs for Integrated Power Conversion
The electrical characteristics of the 7MBP150RA120-05 are tailored for demanding industrial applications. The parameters below, sourced from the official datasheet, highlight its capacity for robust and efficient power switching.
| Parameter | Symbol | Value | Conditions |
|---|---|---|---|
| Inverter Section | |||
| Collector-Emitter Voltage | VCES | 1200 V | - |
| Collector Current (DC) | IC | 150 A | TC = 25°C |
| Collector-Emitter Saturation Voltage | VCE(sat) | 2.7 V (Typ) / 3.3 V (Max) | IC = 150 A, Tj = 125°C |
| Converter & Brake Section | |||
| DB Reverse Voltage | VR | 1200 V | - |
| Forward Current of Diode | IF | 50 A | - |
| Thermal & Control | |||
| Junction Temperature | Tj | 150 °C | - |
| Isolation Voltage | Viso | AC 2500 V | 1 minute |
Download the 7MBP150RA120-05 datasheet for detailed specifications and performance curves.
The Collector-Emitter Saturation Voltage (VCE(sat)) is a critical indicator of conduction losses. Think of it as the 'voltage toll' for allowing current to flow when the IGBT is on. The typical value of 2.7V at full load and operating temperature signifies efficient energy transfer, minimizing the heat that must be dissipated by the cooling system.
Frequently Asked Questions (FAQ)
What is the primary benefit of the 7-in-1 integrated configuration in the 7MBP150RA120-05?
The main advantage is system simplification. By combining the AC-DC converter, DC-AC inverter, and braking chopper into a single module, it reduces the physical footprint, lowers the component count, minimizes assembly labor, and decreases parasitic inductance between power stages, leading to enhanced electrical performance and reliability.
How does the built-in overheating protection enhance system reliability?
The module includes a feature to directly detect the junction temperature of the IGBTs. This provides a much faster and more accurate response to thermal overload compared to external thermistors placed on the case. It allows the control system to take protective action, such as reducing output power or initiating a safe shutdown, before permanent damage occurs, thus safeguarding both the module and the application it drives.
Design & Integration Considerations
Leveraging the PIM Architecture for Robust Systems
Integrating the 7MBP150RA120-05 into a power system design requires attention to both the gate drive and thermal interface. The module includes built-in pre-driver circuits, which simplifies the interface to the system's microcontroller. However, ensuring clean power for the control circuits (Vcc) and proper signal integrity for the logic inputs is crucial for leveraging its soft-switching capabilities and minimizing switching losses. For Thermal Management , the module's single, flat baseplate provides an excellent thermal interface to a heatsink. The key to long-term reliability is ensuring a low thermal resistance path through proper mounting pressure and the correct application of a high-quality thermal interface material (TIM). This ensures that the heat generated during operation, especially in demanding servo drive applications, is efficiently transferred away from the IGBT junctions.
For engineering teams focused on accelerating development cycles and enhancing the reliability of their power conversion systems, the 7MBP150RA120-05 offers a robust, all-in-one foundation. To assess its suitability for your specific motor drive or power conversion project, a thorough review of the datasheet is the recommended next step.
