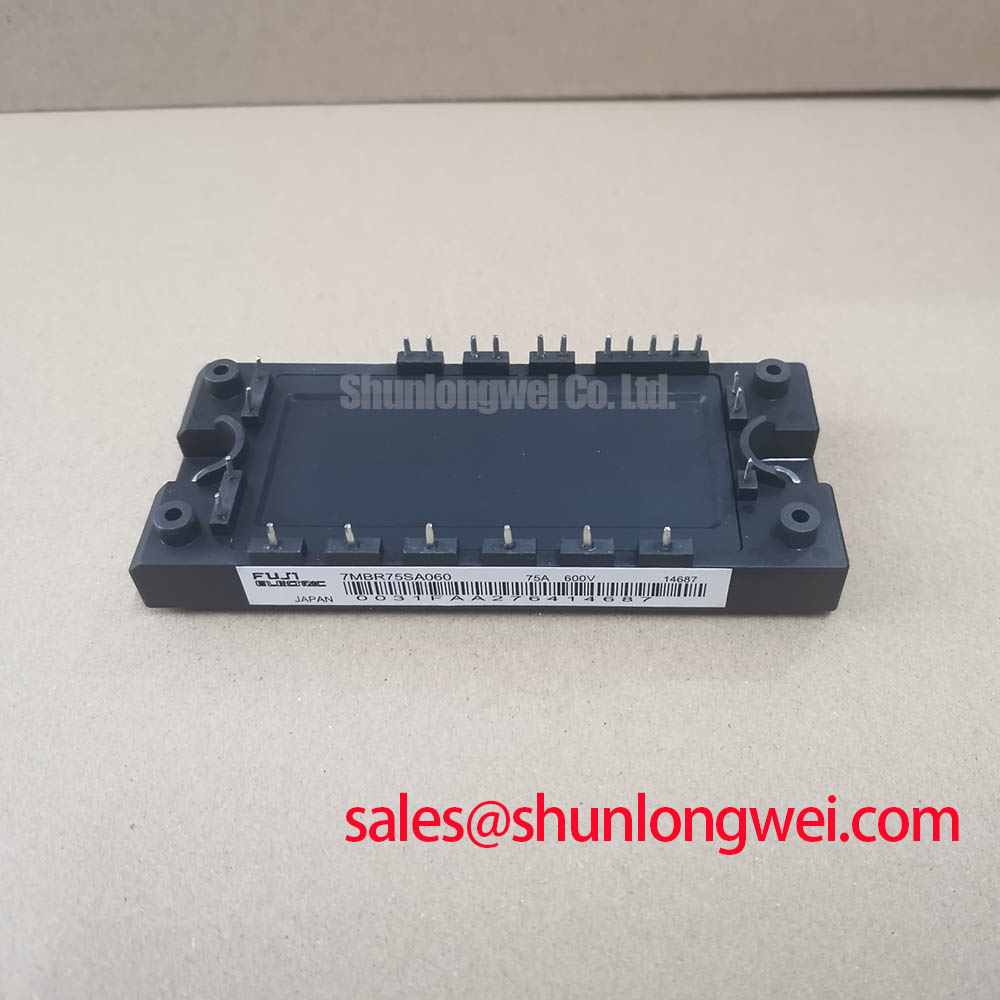

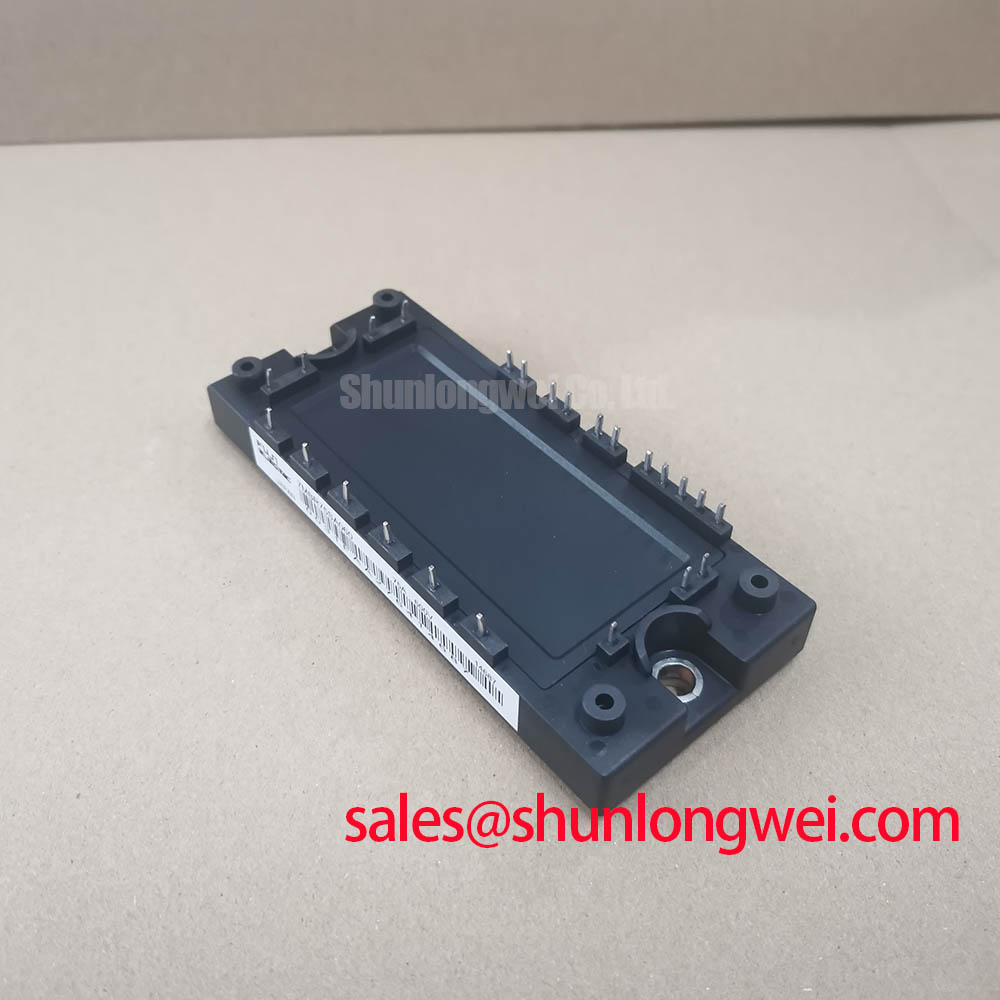

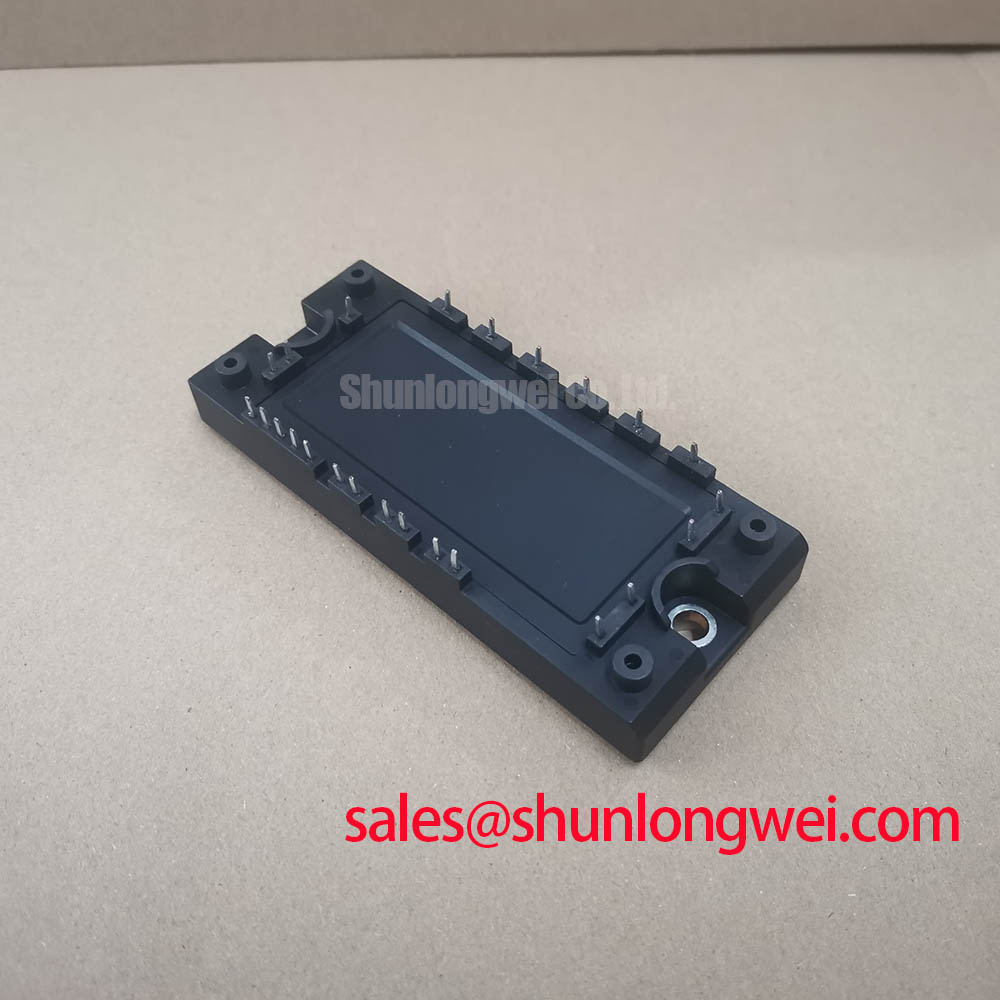

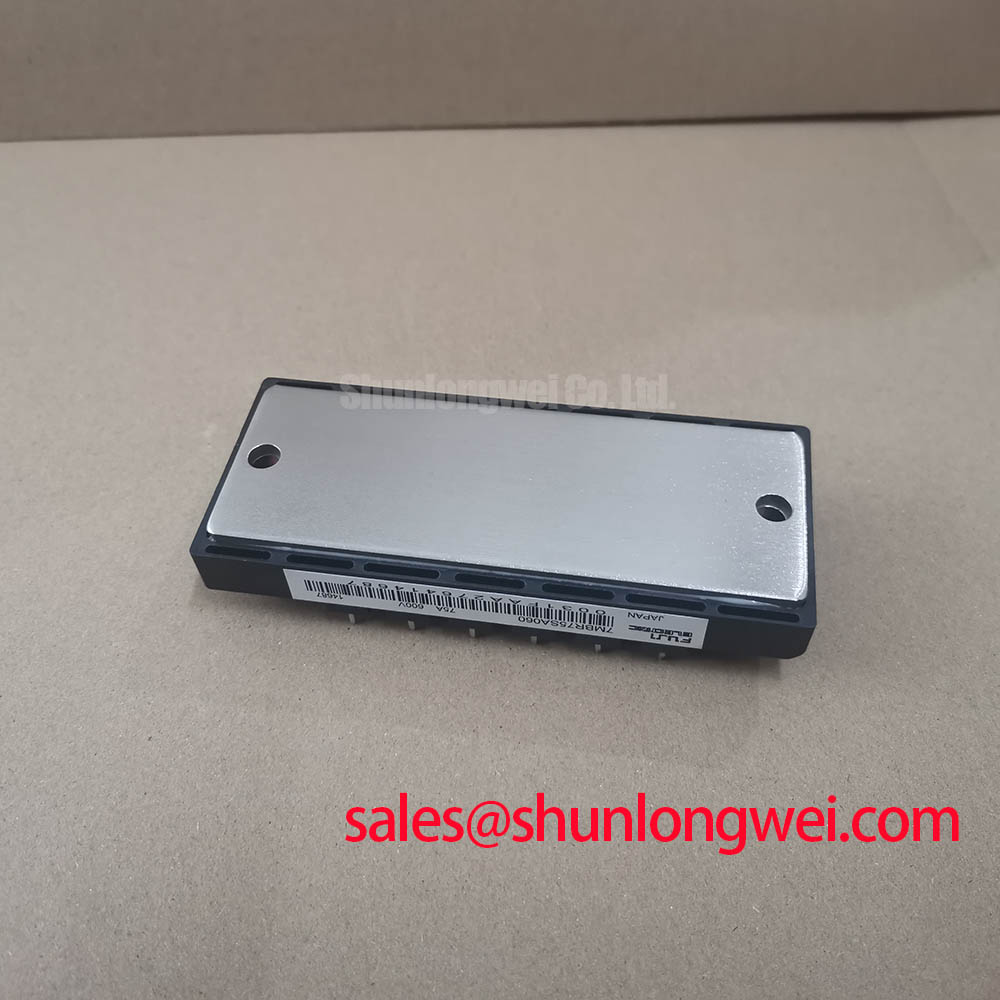

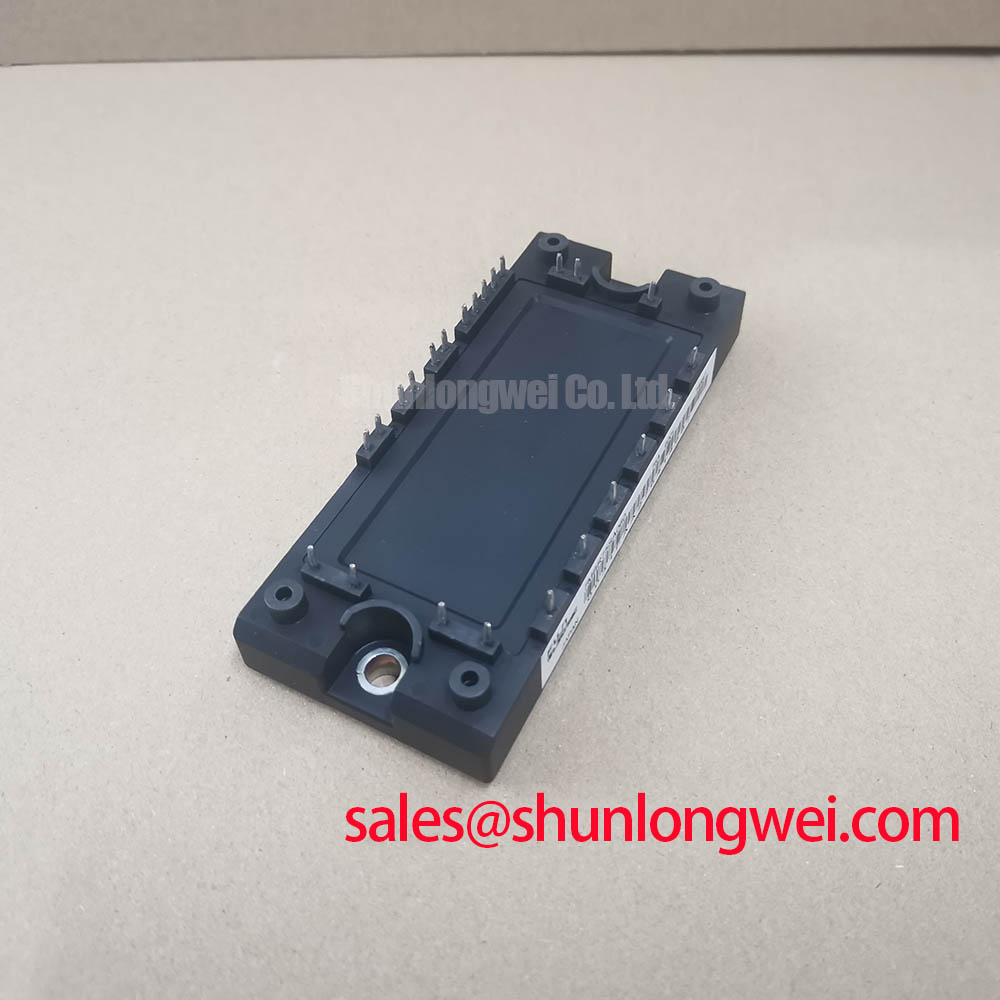

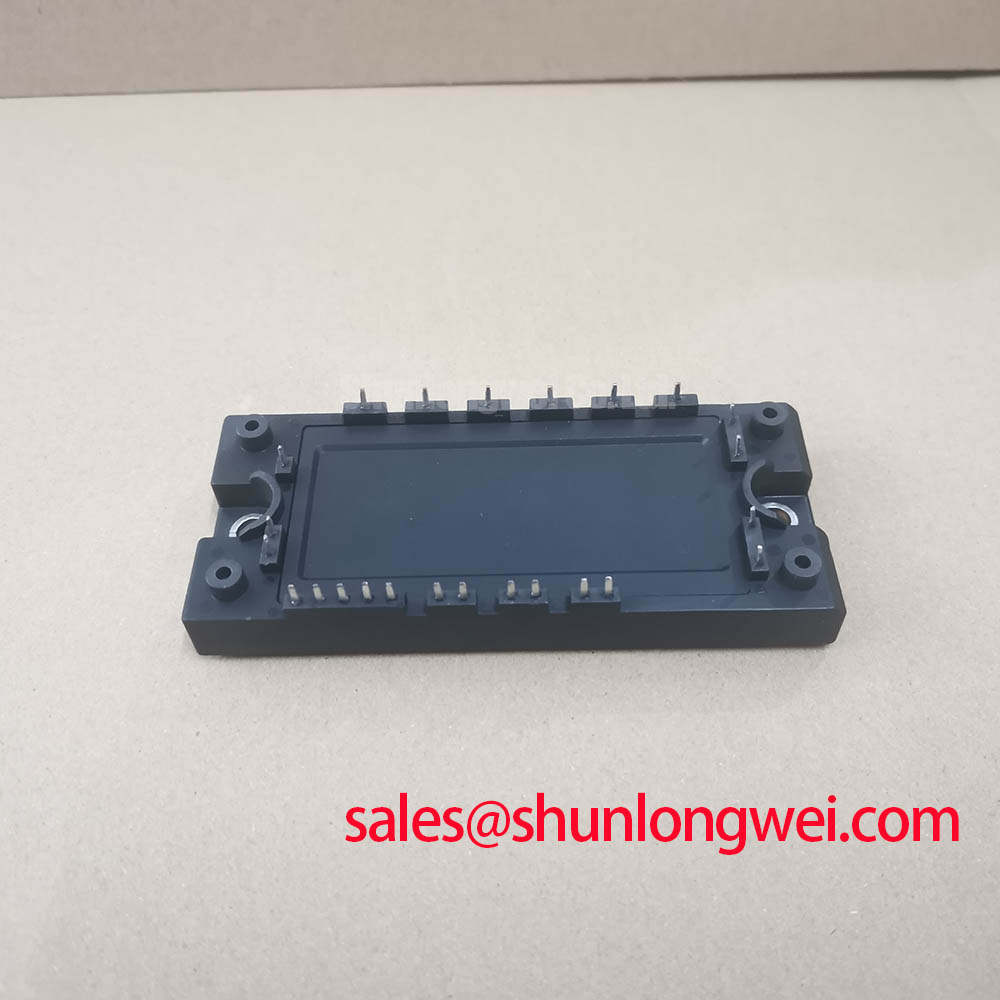

FUJI 7MBR75SA060 IGBT Module

Fuji Electric 7MBR75SA060 IGBT Module | Compact 6-Pack PIM for High-Efficiency Drives

The **Fuji Electric 7MBR75SA060** is a 600V, 75A Power Integrated Module (PIM) that encapsulates a complete three-phase inverter bridge in a single, compact package. Designed for engineers developing small to medium-power motor drives, uninterruptible power supplies (UPS), and welding equipment, this 6-pack IGBT module streamlines system design, reduces assembly complexity, and enhances overall thermal performance. The **7MBR75SA060** is not just a component; it's a strategic solution for achieving higher power density and reliability in demanding industrial applications.

Technical Deep Dive: Core Advantages of the 7MBR75SA060

Two primary characteristics define the engineering value of the **7MBR75SA060**: its integrated topology and optimized conduction characteristics.

• Integrated 6-Pack Configuration

  Technical Principle: This module integrates six IGBTs and six corresponding freewheeling diodes (FWDs) into a standard three-phase bridge configuration. This architecture eliminates the need to select, match, and mount twelve separate discrete components, drastically simplifying the power stage layout.

  Application Value: For designers, this means a significantly reduced bill of materials (BOM), smaller PCB footprint, and minimized parasitic inductance between components. Lower stray inductance leads to reduced voltage overshoots during high-speed switching, simplifying EMI filtering and improving the system's electromagnetic compatibility (EMC).

• Low Collector-Emitter Saturation Voltage (Vce(sat))

  Technical Principle: The 7MBR75SA060 utilizes advanced trench-gate and field-stop technologies to achieve a very low Vce(sat). This parameter is a direct measure of the voltage drop across the IGBT when it is fully turned on, representing a key factor in IGBT power loss.

  Application Value: A lower Vce(sat) translates directly to reduced conduction losses. This reduction means less heat is generated, allowing for smaller heatsinks, or enabling higher power output within the same thermal budget. In applications like battery-powered servo drives or high-efficiency UPS systems, this directly contributes to longer operational uptime and lower energy consumption.

Key Technical Parameters

For detailed specifications, please refer to the official 7MBR75SA060 Datasheet.

Solving Problems Across Industrial Applications

The true strength of the **Fuji Electric 7MBR75SA060** lies in its ability to address specific challenges in various power conversion systems.

• AC Motor Drives & Servo Control: In compact VFDs and precision servo systems, space is a premium. The integrated nature of the 7MBR75SA060 allows for a much smaller inverter footprint. Its predictable thermal and electrical characteristics simplify the design of the three-phase IGBT inverter, leading to faster development cycles and improved system reliability.
• Uninterruptible Power Supplies (UPS): Efficiency is paramount. The low IGBT Vce(sat) minimizes energy waste during operation, which is critical for extending battery runtime during a power outage and reducing the total cost of ownership (TCO) through lower electricity bills.
• Welding Equipment: Welders require robust power stages capable of handling high current pulses. The monolithic construction of this module provides superior thermal cycling capability compared to an array of discrete components, enhancing the equipment's lifespan under harsh, repetitive load conditions.

Frequently Asked Questions (FAQ)

• What are the primary advantages of using the 7MBR75SA060 over six discrete IGBTs?
  The primary benefits are simplified design, reduced assembly costs, a smaller physical footprint, and improved thermal management due to a single, optimized thermal interface. Parasitic inductance is also inherently lower, reducing voltage ringing and improving EMC performance.
• Is an NTC thermistor included for temperature monitoring?
  Yes, the M711 package for the 7MBR75SA060 typically includes an integrated NTC thermistor. This allows the drive's control system to accurately monitor the module's baseplate temperature, enabling effective over-temperature protection and ensuring long-term reliability.

For designers looking to accelerate development and enhance the performance of their next power conversion project, the 7MBR75SA060 offers a compelling, highly integrated solution. To explore other power modules or discuss your specific application needs, browse our complete collection of IGBT Modules or contact our technical specialists for a quote.
