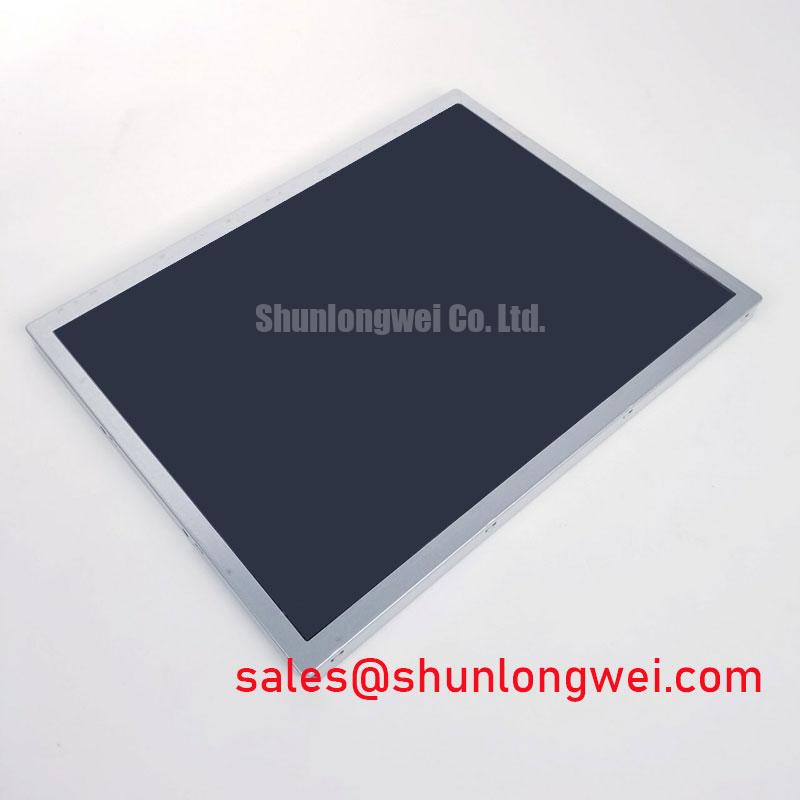

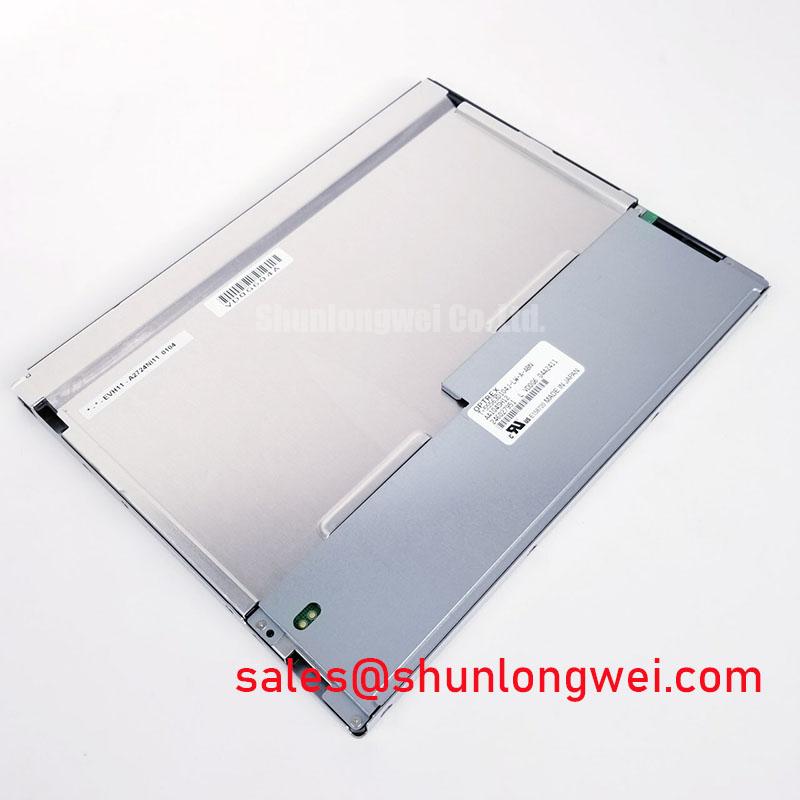

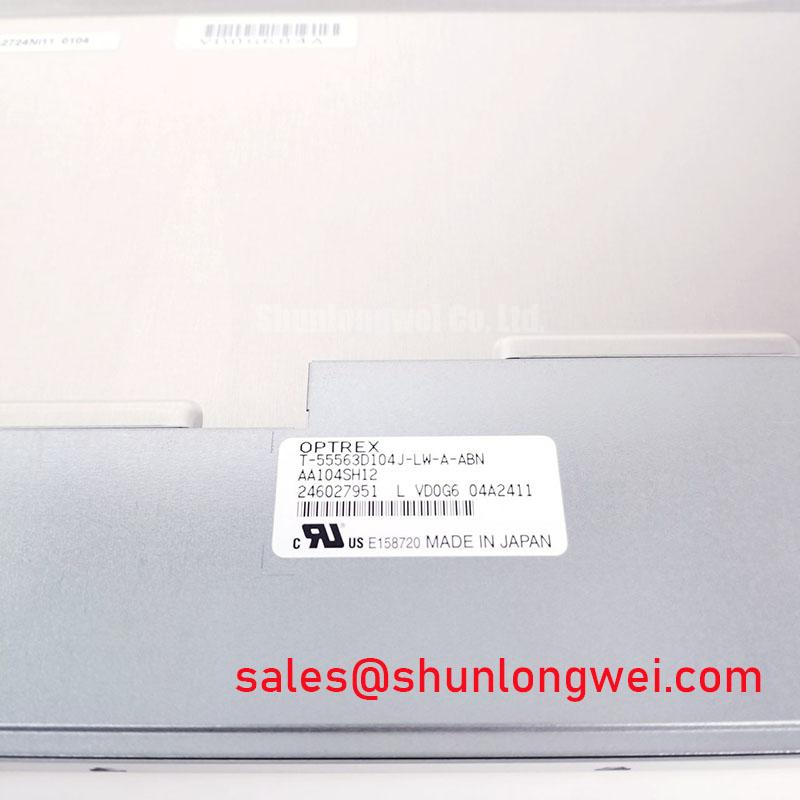

AA104SH12--T1: 10.4-inch SVGA TFT-LCD Engineered for High-Ambient-Light Readability and Industrial Durability
The Mitsubishi AA104SH12--T1 is a 10.4-inch SVGA TFT-LCD module engineered to deliver exceptional visual performance and steadfast reliability in demanding operational environments. Featuring key specifications of 10.4" | 800x600 SVGA | 960 cd/m² | -30 to 70°C Operating Temperature, this display provides uncompromised sunlight readability and an extended operational lifespan. It directly addresses the critical need for a robust HMI solution in industrial applications where standard displays fail due to environmental stress or high ambient light. For systems requiring higher resolution in a similar form factor, the AA104VH01 provides a viable alternative to consider. With a high-intensity backlight and a durable build, the AA104SH12--T1 is the optimal choice for outdoor kiosks and industrial control panels prioritizing long-term visual consistency.
Application Scenarios & Value
System-Level Benefits in Demanding HMI Applications
The AA104SH12--T1 is designed for deployment in environments where commercial-grade displays are inadequate. Its combination of high brightness and a wide operating temperature range makes it a prime candidate for applications exposed to fluctuating environmental conditions and direct sunlight. Consider the engineering challenge of designing an operator interface for heavy construction machinery or an outdoor navigational panel for marine vessels. In such scenarios, the operator's ability to clearly read critical data is paramount for both safety and efficiency. The AA104SH12--T1's high luminance of 960 cd/m² cuts through direct sunlight, while the anti-glare surface treatment minimizes reflections that could otherwise obscure the screen.
This robust performance envelope allows system designers to develop products that can be deployed globally in varied climates without requiring costly enclosures or supplemental heating/cooling systems. The extended 100,000-hour backlight lifespan further enhances its value proposition by reducing maintenance requirements and lowering the total cost of ownership—a critical consideration for industrial equipment with long service life expectations. For applications in environments with less extreme temperature variations but still requiring high reliability, the AA104VC06 may also be suitable.
Key Parameter Overview
Decoding the Specs for Environmental Resilience and Optical Performance
The technical specifications of the AA104SH12--T1 are carefully balanced to support its use in rugged applications. Below is a summary of the key parameters that enable its performance.
| Parameter | Value |
| Screen Size | 10.4 inches |
| Resolution | 800(RGB) x 600 (SVGA) |
| Brightness | 960 cd/m² (Typ.) |
| Contrast Ratio | 670:1 (Typ.) |
| Viewing Angle (L/R/U/D) | 80°/80°/80°/60° (Typ., CR≥10) |
| Operating Temperature | -30°C to 70°C |
| Storage Temperature | -30°C to 80°C |

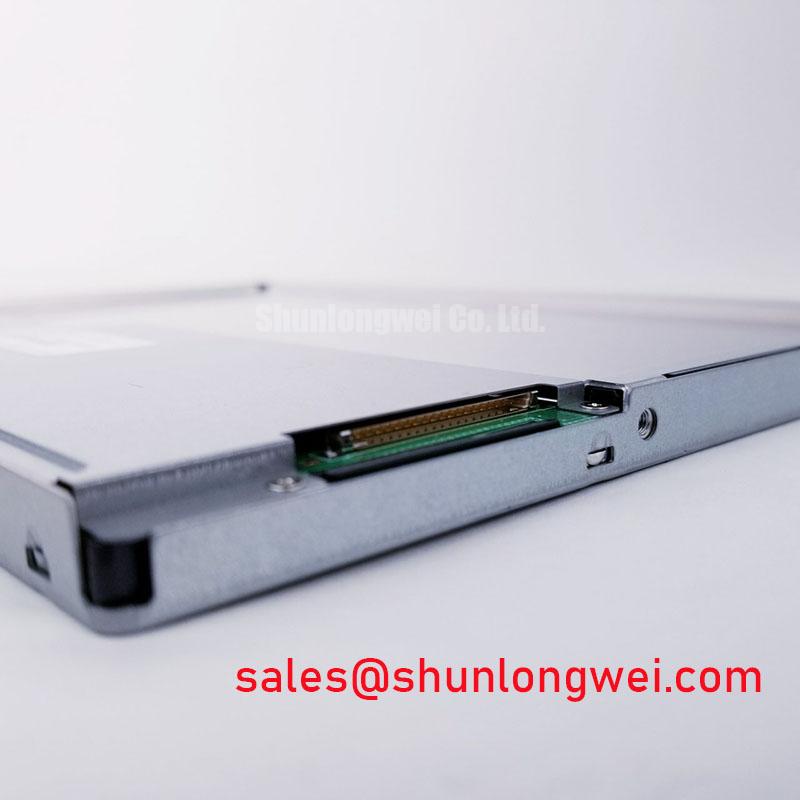

| Interface | LVDS (1 channel, 6/8-bit) |
| Backlight Lifetime | 100,000 Hours (Typ.) |
| Surface Treatment | Antiglare, Hard coating (3H) |
| Touchscreen | 4-wire Resistive Touch |
Technical Deep Dive
A Closer Look at the Engineering for Durability and Optical Performance
The impressive performance of the AA104SH12--T1 is not the result of a single feature but the interplay of several core design choices. The foundation is its a-Si TFT (Amorphous Silicon) active matrix, a mature and reliable technology known for its stability in industrial applications. This is paired with a powerful WLED backlight system configured as an edge-light type. This design allows for a slim profile while delivering the high-intensity illumination required for its 960 cd/m² brightness, making it a truly sunlight-readable display.
Furthermore, the 100,000-hour backlight rating is a significant engineering achievement. This longevity can be compared to running a device continuously for over 11 years. It's achieved through careful thermal management within the module and the use of high-grade LEDs, directly translating to reduced field service and enhanced system uptime. The integrated 4-wire resistive touchscreen adds a layer of interactivity suitable for industrial environments where operators may be wearing gloves, a key differentiator from capacitive touchscreens that often struggle in such scenarios.
Frequently Asked Questions
What is the primary benefit of the 960 cd/m² brightness rating?
The high brightness level ensures the screen remains clearly visible even in direct sunlight or high ambient lighting conditions, which is critical for outdoor HMIs, marine chart plotters, and vehicle-mounted displays.
How does the -30°C to 70°C operating temperature range impact system design?
This wide temperature range allows the display to be used in unconditioned environments, from cold storage facilities to outdoor desert installations, without requiring external heating or cooling systems, thereby simplifying the overall mechanical design and reducing costs.
What does the 100,000-hour backlight lifetime mean in practical terms for an industrial application?
It signifies a very low probability of backlight failure over the typical lifespan of industrial machinery. This reduces the total cost of ownership by minimizing downtime and eliminating the need for periodic backlight replacement, a common maintenance task for displays with shorter-lived CCFL backlights.
Is the built-in 4-wire resistive touchscreen suitable for gloved operation?
Yes, resistive touch technology functions based on pressure, making it inherently compatible with gloved hands or a stylus. This is a crucial feature for industrial control panels, medical devices, and other applications where operators cannot use bare hands.
Strategic Implications for System Integration
Integrating the AA104SH12--T1 into a product line offers a strategic advantage by enhancing equipment utility and market reach. The module's standard SVGA resolution and LVDS interface ensure broad compatibility with common single-board computers and industrial controllers, simplifying the design-in process. By building upon a display that is pre-validated for harsh environments, engineering teams can significantly de-risk project timelines and focus on core application development. The resulting end-product benefits from a reputation for reliability and usability, capable of performing in the challenging environments that define the modern industrial landscape. For further information on the benefits of industrial-grade displays, it is valuable to understand the difference between industrial versus consumer-grade panels and their long-term value. This display is a component choice that reinforces a commitment to quality and operational excellence, directly impacting a product's field performance and customer satisfaction. Its manufacturer, Mitsubishi, is a recognized name in the field of electronic components, providing an additional layer of assurance.
